8-50 — AIR CONDITIONING SYSTEM; FRONT (#73877) — 204 parça

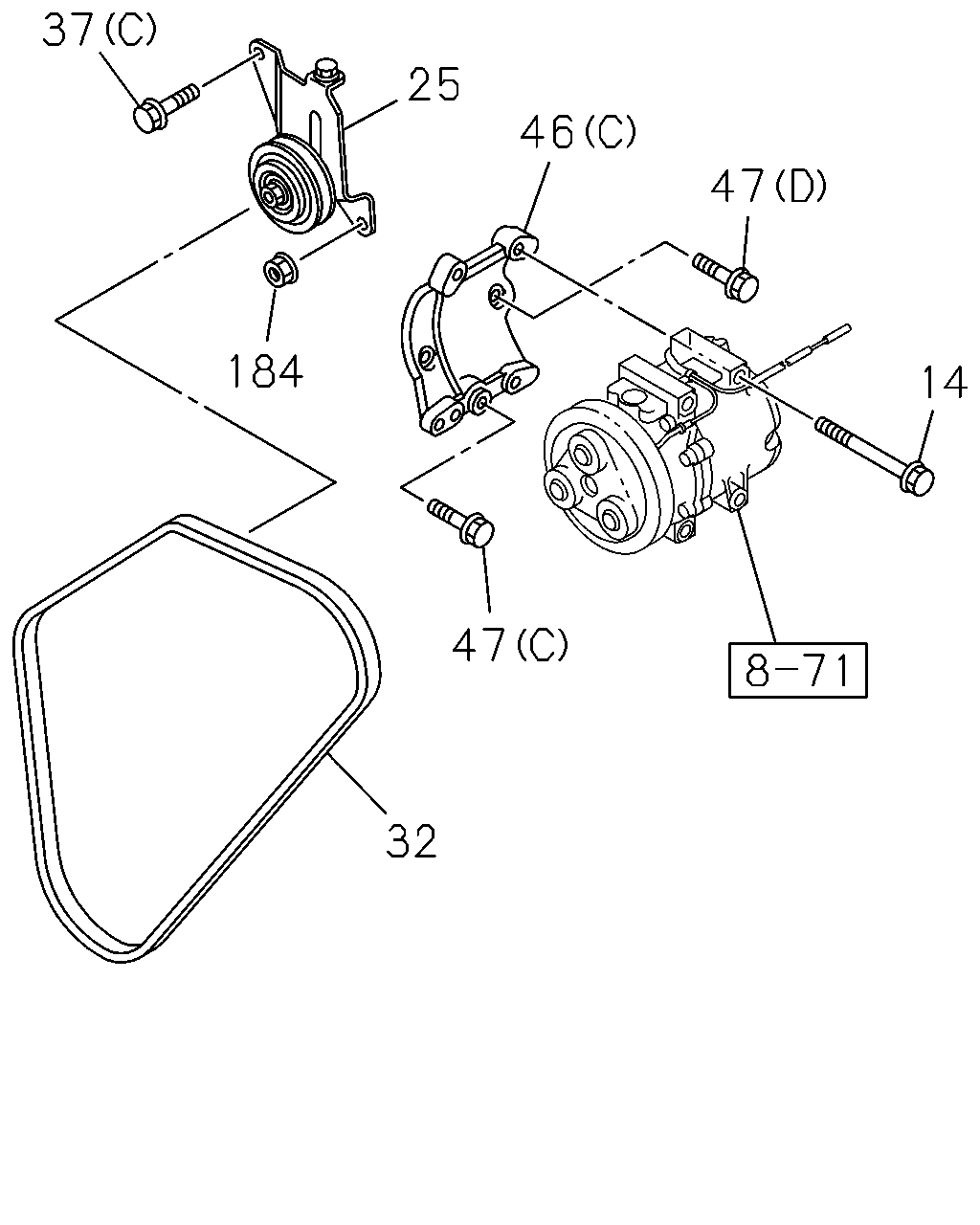

çizim 116693
37 25 46 47 184 14 47 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0204-0207 ● ● ●
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ● ●
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0409-0412 ● ● ● ●
14 BOLT; CMPR
COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0409-0412 ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0501-0608 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0609-0708 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0709-0709 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0710- ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> THA 		8-97942-989-0 01 1 0204-0310 ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0311-0408 ● ●
25 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0409-0412 ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> THA 		8-97363-476-3 01 1 0409-0412 ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97363-476-3 01 1 0501-0507 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97945-065-0 01 1 0508-0608 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97945-065-0 01 1 0609-0610 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0611-0708 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0709-0709 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0710- ● ● ● ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0409-0412 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0409-0412 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0204-0207 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0208-0408 ● ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0409-0412 ● ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0204-0207 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0208-0408 ● ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0409-0412 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> B=13.3 L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0204-0207 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0208-0408 ● ● ● ●
32 BELT; A/C CMPR
B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0208-0408 ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0409-0412 ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0501-0608 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0609-0708 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0709-0709 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0710-0711 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.2 L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0712- ● ● ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0204-0207 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0208-0408 ● ● ● ●
32 BELT; A/C CMPR
L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0208-0408 ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0409-0412 ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0501-0608 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0609-0708 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0709-0709 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0710- ● ● ● ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) M10X80 FLANGE THA 		0-28051-080-0 01 1 0204-0408 ● ●
37 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> (A) M10X80 FLANGE THA 		0-28051-080-0 01 1 0409-0412 ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0204-0408 ● ●
37 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0409-0412 ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0608 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0609-0708 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ● ● ●
46 BRACKET; CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA 		8-97919-250-1 01 1 0204-0207 ● ●
46 BRACKET; CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA 		8-97919-250-1 01 1 0208-0408 ● ● ●
46 BRACKET; CMPR
4JA1-T ENG<LP0> (A) SCAL THA 		8-97919-250-1 01 1 0409-0412 ● ●
46 BRACKET; CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) SCAL THA 		8-97919-250-1 01 1 0409-0412 ●
46 BRACKET; CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) THA 		8-97920-583-1 01 1 0204-0207 ● ● ●
46 BRACKET; CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) THA 		8-97920-583-1 01 1 0208-0408 ● ● ● ●
46 BRACKET; CMPR
(B) THA 		8-97920-583-1 01 1 0208-0408 ●
46 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0409-0412 ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA 		8-97371-258-0 01 1 0501- ● ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0710-0802 ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0803- ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0609-0708 ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0204-0207 ● ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0208-0408 ● ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0409-0412 ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0409-0412 ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0204-0207 ● ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0208-0408 ● ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0409-0412 ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0409-0412 ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0204-0207 ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0208-0408 ● ● ● ●
47 BOLT; BRKT TO BODY
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0208-0408 ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0409-0412 ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0501-0606 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0607-0608 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0609-0708 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0709-0709 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0710- ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0204-0207 ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0208-0408 ● ● ● ●
47 BOLT; BRKT TO BODY
(A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0208-0408 ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (D) M8X25 FLANGE THA 		0-28680-825-0 03 1 0409-0412 ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28680-825-0 03 1 0501-0601 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0602-0608 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0609-0708 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0709-0709 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0710- ● ● ● ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-208-0 01 1 0409-0412 ● ● ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 0501-0608 ● ● ● ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 0609-0708 ● ● ● ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 0709-0709 ● ● ● ● ●
184 NUT; A/C PIPE BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M8 FLANGE THA 		0-91180-208-0 01 1 0710- ● ● ● ● ●

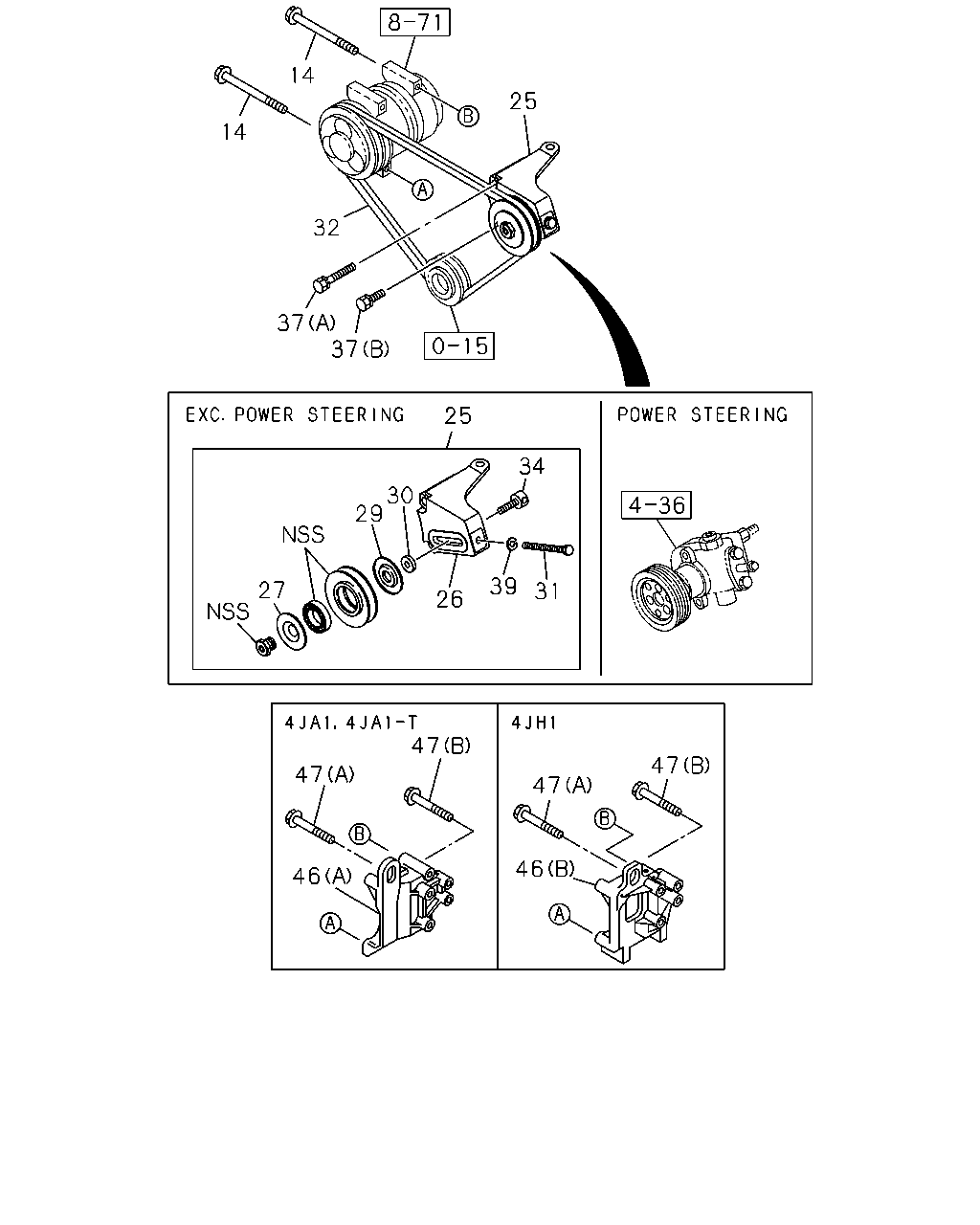

çizim 116697
14 25 14 32 37 37 25 34 30 29 39 27 31 26 47 47 47 47 46 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0204-0207 ● ● ●
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ● ●
14 BOLT; CMPR
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
COOLER WO/HEATER<YL1> M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0208-0408 ●
14 BOLT; CMPR
M10X100 FLANGE THA 		0-28151-000-0 04 1 0409-0412 ● ● ● ●
14 BOLT; CMPR
COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0409-0412 ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0501-0608 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0609-0708 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0709-0709 ● ● ● ● ●
14 BOLT; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> M10X100 FLANGE THA 		0-28151-000-0 04 1 0710- ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> THA 		8-97942-989-0 01 1 0204-0310 ● ●
25 PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0311-0408 ● ●
25 PULLEY ASM; IDLER,CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> THA 		8-97943-806-0 01 1 0409-0412 ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB> THA 		8-97363-476-3 01 1 0409-0412 ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97363-476-3 01 1 0501-0507 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97945-065-0 01 1 0508-0608 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97945-065-0 01 1 0609-0610 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0611-0708 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0709-0709 ● ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> 1-GROOVE THA 		8-98051-011-0 01 1 0710- ● ● ● ● ●
26 BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> THA 		8-97943-100-0 01 1 0204-0310 ● ●
27 PULLEY; IDLE,A/C
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97920-463-0 01 1 0204-0310 ● ●
29 COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97920-462-0 01 1 0204-0310 ● ●
30 COLLAR; IDLE PULLEY
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97920-412-0 01 1 0204-0310 ● ●
31 BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97920-413-0 01 1 0204-0310 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> L=1394 B=13.3 MITSUBOSHI THA 		8-97942-722-0 01 1 0409-0412 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> L=1394 B=13.3 BANDO THA 		8-97942-723-0 01 1 0409-0412 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0204-0207 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0208-0408 ● ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> POWER STEERING<N40> B=12.5 L=1510 1 SET=2 PIECE BANDO THA 		8-97942-726-0 01 1 0409-0412 ● ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0204-0207 ● ●
32 BELT; A/C CMPR
4JA1 ENG<RLE> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0208-0408 ● ● ●
32 BELT; A/C CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> POWER STEERING<N40> L=1510 B=13.3 1 SET=2 PIECE(8979427270) MITSUBOSHI THA 		8-97942-728-0 01 1 0409-0412 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> B=13.3 L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0204-0408 ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0204-0207 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0208-0408 ● ● ● ●
32 BELT; A/C CMPR
B=12.5 L=1537 1 SET=2 PIECE BANDO THA 		8-97942-725-0 01 1 0208-0408 ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0409-0412 ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0501-0608 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0609-0708 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0709-0709 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.3 MITSUBOSHI THA 		8-97944-104-0 01 1 0710-0711 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1369 B=13.2 L=1355 MITSUBOSHI THA 		8-98088-385-0 01 1 0712- ● ● ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0204-0207 ● ● ●
32 BELT; A/C CMPR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0208-0408 ● ● ● ●
32 BELT; A/C CMPR
L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSHI THA 		8-97942-729-0 01 1 0208-0408 ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0409-0412 ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0501-0608 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0609-0708 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0709-0709 ● ● ● ● ●
32 BELT; A/C CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> L=1355 B=12.5 BANDO THA 		8-97944-138-0 01 1 0710- ● ● ● ● ●
34 SHAFT; IDLE PULLEY
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97920-414-0 01 1 0204-0310 ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (A) M10X80 FLANGE THA 		0-28051-080-0 01 1 0204-0408 ● ●
37 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> (A) M10X80 FLANGE THA 		0-28051-080-0 01 1 0409-0412 ● ●
37 BOLT; PULLEY BRKT
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0204-0408 ● ●
37 BOLT; PULLEY BRKT
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> EXC. POWER STEERING<N40> (B) M8X70 W/WASHER THA 		8-97919-730-1 01 1 0409-0412 ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0608 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0609-0708 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ● ● ● ●
37 BOLT; PULLEY BRKT
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ● ● ●
39 WASHER; LK,ADJ BOLT
COOLER WO/HEATER<YL1> EXC. POWER STEERING<N40> SCAL THA 		8-97919-999-0 01 1 0204-0310 ● ●
46 BRACKET; CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA 		8-97919-250-1 01 1 0204-0207 ● ●
46 BRACKET; CMPR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA 		8-97919-250-1 01 1 0208-0408 ● ● ●
46 BRACKET; CMPR
4JA1-T ENG<LP0> (A) SCAL THA 		8-97919-250-1 01 1 0409-0412 ● ●
46 BRACKET; CMPR
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) SCAL THA 		8-97919-250-1 01 1 0409-0412 ●
46 BRACKET; CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) THA 		8-97920-583-1 01 1 0204-0207 ● ● ●
46 BRACKET; CMPR
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) THA 		8-97920-583-1 01 1 0208-0408 ● ● ● ●
46 BRACKET; CMPR
(B) THA 		8-97920-583-1 01 1 0208-0408 ●
46 BRACKET; CMPR
4JJ1-TCS ENG<LFB> (C) THA 		8-97371-258-0 01 1 0409-0412 ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA 		8-97371-258-0 01 1 0501- ● ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0710-0802 ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0803- ● ● ● ●
46 BRACKET; CMPR
4JJ1-TCX ENG<LS0> (C) THA 		8-98039-618-0 01 1 0609-0708 ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0204-0207 ● ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0208-0408 ● ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0409-0412 ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) M8X40 FLANGE THA 		0-28050-840-0 02 1 0409-0412 ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0204-0207 ● ●
47 BOLT; BRKT TO BODY
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0208-0408 ● ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0409-0412 ● ●
47 BOLT; BRKT TO BODY
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) M10X45 FLANGE THA 		0-28051-045-0 02 1 0409-0412 ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0204-0207 ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0208-0408 ● ● ● ●
47 BOLT; BRKT TO BODY
(B) M8X45 FLANGE THA 		0-28050-845-0 02 1 0208-0408 ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0409-0412 ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		0-28650-835-0 01 1 0501-0606 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0607-0608 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0609-0708 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0709-0709 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) M8X35 FLANGE THA 		8-98049-562-0 01 1 0710- ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0204-0207 ● ● ●
47 BOLT; BRKT TO BODY
4JH1 ENG<RJX> COOLER WO/HEATER<YL1> (A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0208-0408 ● ● ● ●
47 BOLT; BRKT TO BODY
(A) M10X50 FLANGE THA 		0-28051-050-0 02 1 0208-0408 ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB> (D) M8X25 FLANGE THA 		0-28680-825-0 03 1 0409-0412 ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28680-825-0 03 1 0501-0601 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0602-0608 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0609-0708 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0709-0709 ● ● ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 0710- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
