8-40 — HEATER SYSTEM (#73875) — 99 parça

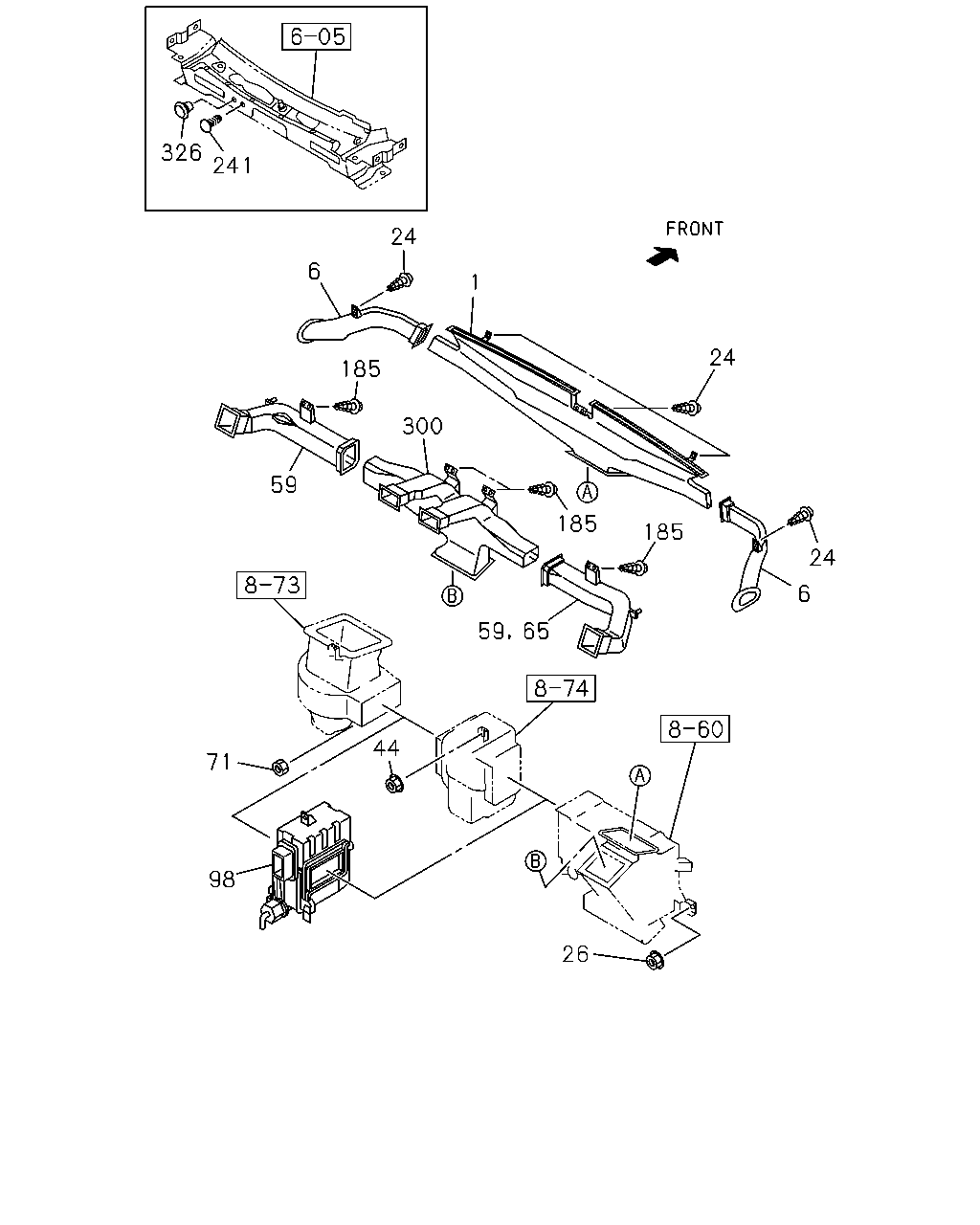

326 241 24 6 1 24 185 300 59 185 185 24 6 59 65 44 71 98 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	NOZZLE; DEFROSTER,INST PNL THA	8-97235-773-1	01	1	0204-0207	●	●	●
1	NOZZLE; DEFROSTER,INST PNL THA	8-97235-773-1	01	1	0208-	●	●	●	●	●
6	DUCT; SIDE DEFROSTER THA	8-97235-878-0	01	1	0204-0207	●	●	●
6	DUCT; SIDE DEFROSTER THA	8-97235-878-0	01	1	0208-	●	●	●	●	●
6	DUCT; SIDE DEFROSTER THA	8-97235-874-0	01	1	0204-0207	●	●	●
6	DUCT; SIDE DEFROSTER THA	8-97235-874-0	01	1	0208-	●	●	●	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 TAPPING THA	9-09829-323-1	05	1	0204-0207	●	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 TAPPING THA	9-09829-323-1	05	1	0208-0702	●	●	●	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 TAPPING THA	8-98061-685-0	05	1	0703-1005	●	●	●	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 TAPPING THA	8-98167-449-0	05	1	1006-	●	●	●	●	●
26	NUT; HTR M6 FLANGE THA	8-97063-399-0	04	1	0204-0207	●	●	●
26	NUT; HTR M6 FLANGE THA	8-97063-399-0	04	1	0208-0702	●	●	●	●	●
26	NUT; HTR M6 FLANGE IMA	8-98055-704-0	04	1	0703-	●	●	●	●	●
44	NUT; EVAP M6 FLANGE THA	8-97063-399-0	02	1	0204-0207	●	●	●
44	NUT; EVAP M6 FLANGE THA	8-97063-399-0	02	1	0208-0702	●	●	●	●	●
44	NUT; EVAP M6 FLANGE IMA	8-98055-704-0	02	1	0703-	●	●	●	●	●
59	DUCT; VENT,ASSIST SIDE THA	8-98007-084-0	01	1	0607-	●	●	●	●	●
59	DUCT; VENT,ASSIST SIDE THA	8-97235-884-1	01	1	0204-0207	●	●	●
59	DUCT; VENT,ASSIST SIDE THA	8-97235-884-1	01	1	0208-0606	●	●	●	●	●
59	DUCT; VENT,ASSIST SIDE THA	8-98007-083-0	01	1	0607-	●	●	●	●	●
65	DUCT; VENT,DRIVER SIDE THA	8-97235-886-1	01	1	0204-0207	●	●	●
65	DUCT; VENT,DRIVER SIDE THA	8-97235-886-1	01	1	0208-0606	●	●	●	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE THA	8-97063-399-0	03	1	0204-0207	●	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE THA	8-97063-399-0	03	1	0208-0702	●	●	●	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE IMA	8-98055-704-0	03	1	0703-	●	●	●	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97234-557-2	01	1	0204-0404		●
98	DUCT; BLOWER UNIT TO HTR UNIT FORGED AIR VENTILATION<C57> THA	8-97234-557-2	01	1	0204-0404			●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97369-328-0	01	1	0405-0408		●
98	DUCT; BLOWER UNIT TO HTR UNIT FORGED AIR VENTILATION<C57> THA	8-97369-328-0	01	1	0405-0408			●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97369-328-0	01	1	0409-0606		●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98045-312-0	01	1	0607-0612		●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98063-500-0	01	1	0701-0708		●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98086-178-0	01	1	0709-		●
185	SCREW; VENT DUCT M5X16 TAPPING THA	9-09829-323-1	04	1	0204-0207	●	●	●
185	SCREW; VENT DUCT M5X16 TAPPING THA	9-09829-323-1	04	1	0208-0702	●	●	●	●	●
185	SCREW; VENT DUCT M5X16 TAPPING THA	8-98061-685-0	04	1	0703-1005	●	●	●	●	●
185	SCREW; VENT DUCT M5X16 TAPPING THA	8-98167-449-0	04	1	1006-	●	●	●	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE THA	8-94279-922-0	01	1	0208-0408	●			●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE COOLER WO/HEATER<YL1> THA	8-94279-922-0	01	1	0208-0408		●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-T ENG<LP0> THA	8-94279-922-0	01	1	0409-0412	●			●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-94279-922-0	01	1	0409-0412		●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. COOLER WO/HEATER<YL1> THA	8-94279-922-0	01	1	0204-0207		●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. COOLER WO/HEATER<YL1> THA	8-94279-922-0	02	1	0208-0408		●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JJ1-TCS ENG<LFB> THA	8-94279-922-0	02	1	0409-0412	●		●	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JA1-T ENG<LP0> VENTILATION RAM AIR<6TN> THA	8-94279-922-0	02	1	0409-0412		●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-94279-922-0	02	1	0501-0606	●			●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JK1 ENG<LKZ> THA	8-94279-922-0	02	1	0501-0606		●
241	PLUG; RUBBER,EVAP DRAIN HOLE 4JJ1-TCS ENG<LFB> THA	8-94279-922-0	02	1	0501-0606			●		●
300	DUCT; VENT,CENTER THA	8-97235-881-0	01	1	0204-0207	●	●	●
300	DUCT; VENT,CENTER THA	8-97235-881-0	01	1	0208-0606	●	●	●	●	●
300	DUCT; VENT,CENTER THA	8-98007-074-0	01	1	0607-	●	●	●	●	●
326	GROMMET; DRAIN HOSE OD=12 THA	9-09956-122-0	02	1	0204-0207	●	●	●
326	GROMMET; DRAIN HOSE OD=12 THA	9-09956-122-0	02	1	0208-	●	●	●	●	●

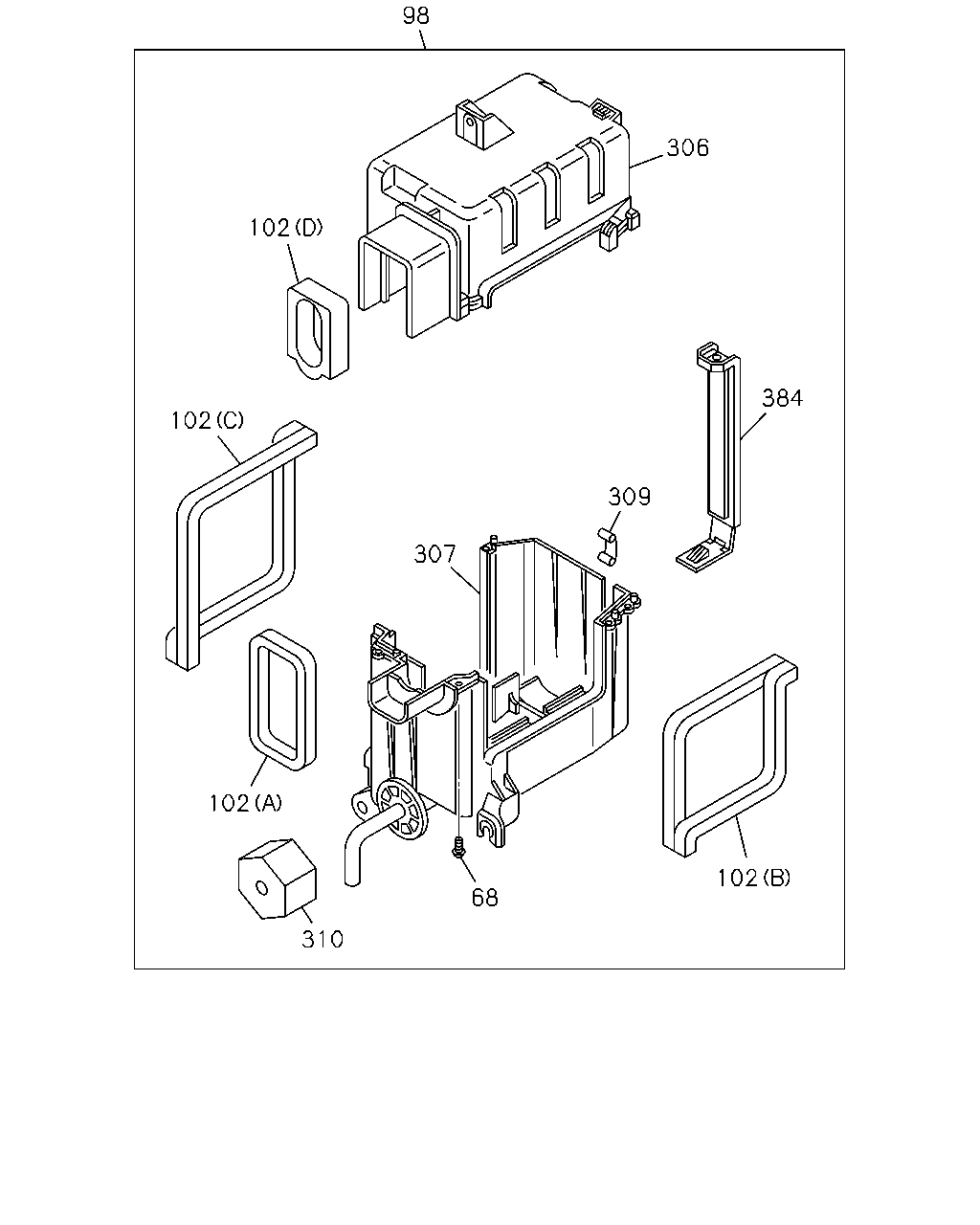

98 306 102 384 102 309 307 102 102 68 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
68	SCREW; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-165-0	05	1	0204-0404	●
68	SCREW; HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-165-0	05	1	0204-0404		●
68	SCREW; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-165-0	04	1	0405-0408	●
68	SCREW; HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-165-0	04	1	0405-0408		●
68	SCREW; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-165-0	04	1	0409-0612	●
68	SCREW; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-98071-323-0	04	1	0701-0708	●
68	SCREW; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-165-0	04	1	0709-	●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97234-557-2	01	1	0204-0404	●
98	DUCT; BLOWER UNIT TO HTR UNIT FORGED AIR VENTILATION<C57> THA	8-97234-557-2	01	1	0204-0404		●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97369-328-0	01	1	0405-0408	●
98	DUCT; BLOWER UNIT TO HTR UNIT FORGED AIR VENTILATION<C57> THA	8-97369-328-0	01	1	0405-0408		●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-97369-328-0	01	1	0409-0606	●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98045-312-0	01	1	0607-0612	●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98063-500-0	01	1	0701-0708	●
98	DUCT; BLOWER UNIT TO HTR UNIT VENTILATION RAM AIR<6TN> THA	8-98086-178-0	01	1	0709-	●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (A) THA	8-97321-158-1	01	1	0204-0408	●
102	LINING; HTR DUCT FORGED AIR VENTILATION<C57> (A) THA	8-97321-158-1	01	1	0204-0408		●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (A) THA	8-97321-158-1	01	1	0409-	●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (B) THA	8-97321-159-0	01	1	0204-0408	●
102	LINING; HTR DUCT FORGED AIR VENTILATION<C57> (B) THA	8-97321-159-0	01	1	0204-0408		●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (B) THA	8-97321-159-0	01	1	0409-	●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (C) THA	8-97321-160-0	01	1	0204-0408	●
102	LINING; HTR DUCT FORGED AIR VENTILATION<C57> (C) THA	8-97321-160-0	01	1	0204-0408		●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (C) THA	8-97321-160-0	01	1	0409-0612	●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (C) THA	8-98063-684-0	01	1	0701-	●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (D) THA	8-97355-831-0	01	1	0204-0408	●
102	LINING; HTR DUCT FORGED AIR VENTILATION<C57> (D) THA	8-97355-831-0	01	1	0204-0408		●
102	LINING; HTR DUCT VENTILATION RAM AIR<6TN> (D) THA	8-97355-831-0	01	1	0409-	●
306	CASE; UPR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-144-0	01	1	0204-0408	●
306	CASE; UPR,HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-144-0	01	1	0204-0408		●
306	CASE; UPR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-144-0	01	1	0409-0606	●
306	CASE; UPR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-98055-332-0	01	1	0607-	●
307	CASE; LWR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-145-0	01	1	0204-0408	●
307	CASE; LWR,HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-145-0	01	1	0204-0408		●
307	CASE; LWR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-145-0	01	1	0409-0606	●
307	CASE; LWR,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-98055-336-0	01	1	0607-	●
309	CLIP; CASE,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-166-0	01	1	0204-0408	●
309	CLIP; CASE,HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-166-0	01	1	0204-0408		●
309	CLIP; CASE,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-166-0	01	1	0409-0708	●
309	CLIP; CASE,HTR DUCT VENTILATION RAM AIR<6TN> THA	8-98088-089-0	01	1	0709-	●
310	GROMMET; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-157-0	01	1	0204-0408	●
310	GROMMET; HTR DUCT FORGED AIR VENTILATION<C57> THA	8-97321-157-0	01	1	0204-0408		●
310	GROMMET; HTR DUCT VENTILATION RAM AIR<6TN> THA	8-97321-157-0	01	1	0409-	●
384	COVER; DUCT VENTILATION RAM AIR<6TN> THA	8-97321-156-0	01	1	0204-0408	●
384	COVER; DUCT FORGED AIR VENTILATION<C57> THA	8-97321-156-0	01	1	0204-0408		●
384	COVER; DUCT VENTILATION RAM AIR<6TN> THA	8-97321-156-0	01	1	0409-0606	●
