Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#73874) — 163 parça

25 25 25 551 551 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	RELAY; TAIL LAMP 12V OMRON THA	8-98005-407-0	01	1	0508-	●	●	●	●	●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0709-	●	●	●	●	●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0204-0207	●	●		●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0208-0606	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-98146-834-0	01	1	0909-	●	●	●	●	●
123	RELAY; HTR 12V OMRON THA	8-97125-441-1	01	1	0508-0908	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0709-0908	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205	●			●
123	RELAY; HTR 4JA1 ENG<RLE> EXC. VENTILATION RAM AIR<6TN> 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205		●
123	RELAY; HTR 4JH1 ENG<RJX> 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205		●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0206-0207	●	●		●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0208-0606	●	●	●	●	●
551	RELAY; TRANSMISSION 12V OMRON THA	8-98005-407-0	01	1	0607-	●	●	●	●	●
551	RELAY; TRANSMISSION 12V YAZAKI THA	8-97309-293-0	01	1	0709-	●	●	●	●	●

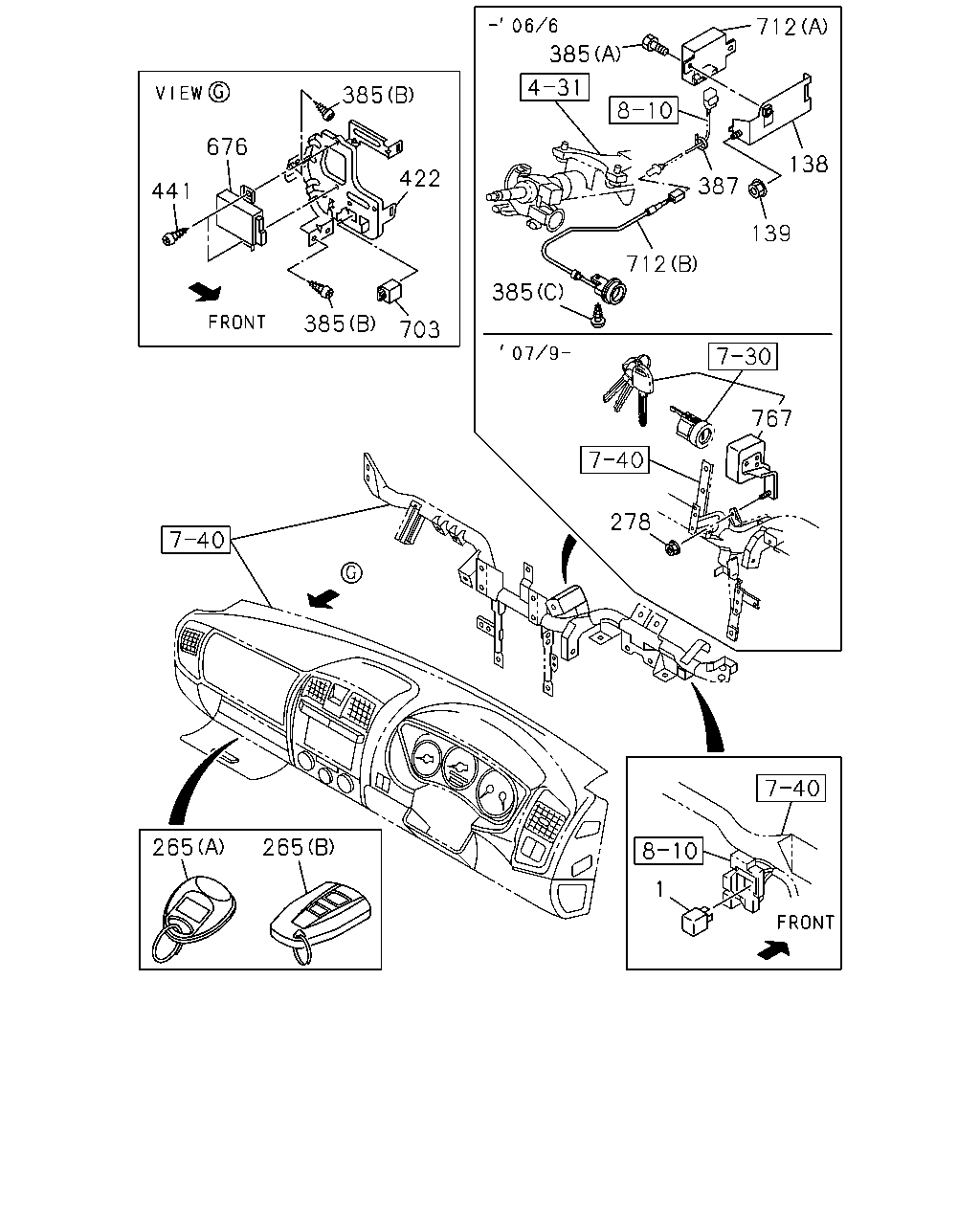

712 385 385 676 138 422 387 441 139 712 385 385 703 767 278 265 265 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	UNIT; FLASHER 12V DENSO THA	8-97912-779-0	01	1	0204-0207	●	●		●
1	UNIT; FLASHER 12V DENSO THA	8-97912-779-0	01	1	0208-0510	●	●	●	●	●
1	UNIT; FLASHER 12V DENSO THA	8-98032-675-0	01	1	0511-1404	●	●	●	●	●
1	UNIT; FLASHER DENSO THA	8-97202-225-1	01	1	1405-	●	●	●	●	●
138	BRACKET; ANTI THEFT CONT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> THA	8-97357-768-0	01	1	0508-0606			●
138	BRACKET; ANTI THEFT CONT 4JJ1-TCS ENG<LFB> THA	8-97357-768-0	01	1	0508-0606					●
139	NUT; ANTI THEFT BRKT IMMOBILIZER SYSTEM<7KC> M6 FLANGE THA	0-91180-106-0	01	1	0508-0606			●
139	NUT; ANTI THEFT BRKT M6 FLANGE THA	0-91180-106-0	01	1	0508-0606					●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (B) THA	8-97375-439-0	02	1	0508-0608	●		●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK (B) THA	8-97375-439-0	02	1	0508-0608					●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<AP5> (B) THA	8-97375-439-0	02	1	0609-0708	●		●	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA	8-90508-961-1	01	1	0204-0207	●			●
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) THA	8-90508-961-1	01	1	0208-0209	●		●	●	●
278	NUT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> M6 FLANGE THA	0-91180-106-0	01	1	0709-0709	●		●	●	●
278	NUT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> M6 FLANGE THA	0-91180-106-0	01	1	0710-	●		●	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0204-0207	●	●		●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0208-0702	●	●	●	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●	●	●	●
385	BOLT; CONT UNIT (B) SCREW M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●	●	●	●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0508-0606			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0508-0606					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0508-0606			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0508-0606					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-0608			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-0608					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0609-0708			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0609-0708					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0709-0709			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0709-0709					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0710-			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0710-					●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0508-0608			●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0508-0608					●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0609-0709			●		●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0710-			●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0710-					●
422	BRACKET; CONT UNIT THA	8-97238-470-1	01	1	0204-0207	●	●		●
422	BRACKET; CONT UNIT THA	8-97238-470-1	01	1	0208-	●	●	●	●	●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> M5X16 TAPPING THA	9-09829-323-1	02	1	0508-0608	●		●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	9-09829-323-1	02	1	0508-0608					●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> M5X16 TAPPING THA	9-09829-323-1	02	1	0609-0702	●		●	●	●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> M5X16 TAPPING THA	8-98061-685-0	02	1	0703-0709	●		●	●	●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> M5X16 TAPPING THA	8-98061-685-0	02	1	0710-1005	●		●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	8-98061-685-0	02	1	0710-1005					●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<AP5> M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●		●	●
441	SCREW; CONT UNIT M5X16 TAPPING THA	8-98167-449-0	02	1	1006-					●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M5X16 TAPPING THA	9-09829-323-1	02	1	0204-0207	●			●
441	SCREW; CONT UNIT REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M5X16 TAPPING THA	9-09829-323-1	02	1	0208-0209	●		●	●	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> THA	8-97375-440-0	01	1	0508-0608	●		●	●
676	CONTROL UNIT; KEYLESS ENTRY THA	8-97375-440-0	01	1	0508-0608					●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> THA	8-97375-440-0	01	1	0609-0708	●		●	●	●
676	CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> THA	8-98053-167-0	01	1	0709-0709	●		●	●	●
676	CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> THA	8-98053-167-0	01	1	0710-	●		●	●	●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97168-381-2	01	1	0204-0207	●			●
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97168-381-2	01	1	0208-0209	●		●	●	●
703	TIMER; DEFOGGER REAR DEFOGGER<C49> 12V THA	8-97301-600-0	01	1	0204-0207	●			●
703	TIMER; DEFOGGER REAR DEFOGGER<C49> 12V THA	8-97301-600-0	01	1	0208-	●		●	●
703	TIMER; DEFOGGER 12V THA	8-97301-600-0	01	1	0208-					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (B) THA	8-97251-755-0	01	1	0508-0606			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (B) THA	8-97251-755-0	01	1	0508-0606					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0607-0608			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (C) THA	8-98008-412-0	01	1	0607-0608					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0609-0708			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0609-0708					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0709-0709			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0709-0709					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0710-			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) THA	8-98008-412-0	01	1	0710-					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) THA	8-97377-323-0	01	1	0508-0606			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (A) THA	8-97377-323-0	01	1	0508-0606					●
767	RECEIVER ASM; KEYLESS ENTRY REMOTE CONT DOOR LOCK<AP5> THA	8-98053-170-2	01	1	0709-	●	●	●	●	●

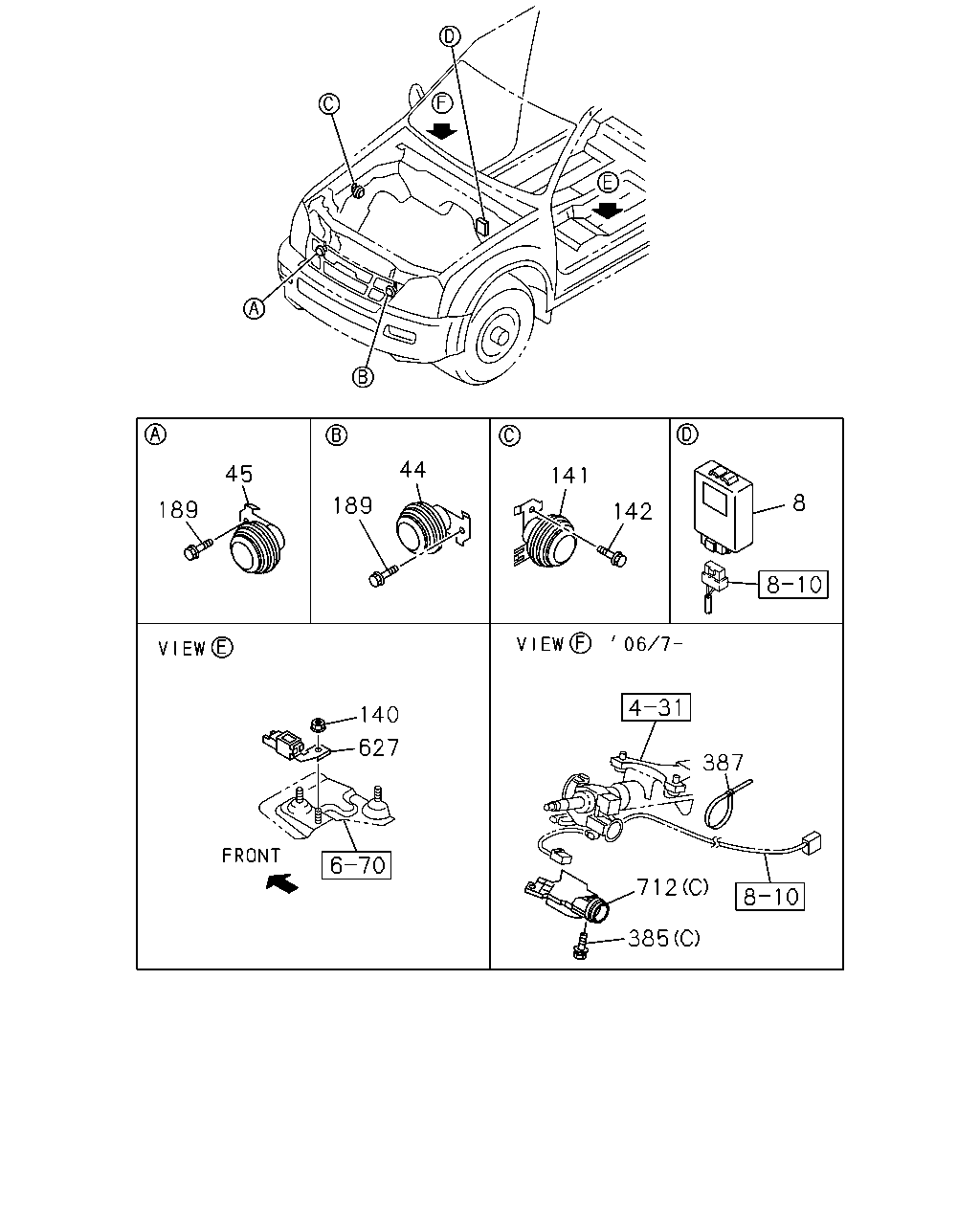

44 45 141 8 189 189 142 140 627 387 712 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	RELAY; WIPER INTERMITTENT WIPER<C13> 12V THA	8-97302-100-0	01	1	0204-0207	●	●		●
8	RELAY; WIPER INTERMITTENT WIPER<C13> 12V THA	8-97302-100-0	01	1	0208-	●	●	●	●
8	RELAY; WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH> 12V THA	8-97302-101-0	01	1	0204-0207	●			●
8	RELAY; WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH> 12V THA	8-97302-101-0	01	1	0208-0408	●		●	●
8	RELAY; WIPER 12V THA	8-97302-101-0	01	1	0208-0408					●
8	RELAY; WIPER VARIABLE INTERMITTENT WIPER<CD4> 12V THA	8-97302-101-0	01	1	0409-	●		●	●
8	RELAY; WIPER 12V THA	8-97302-101-0	01	1	0409-					●
44	HORN; HIGH NOTE THA	8-97237-046-0	01	1	0204-0207	●	●		●
44	HORN; HIGH NOTE THA	8-97237-046-0	01	1	0208-	●	●	●	●	●
45	HORN; LOW NOTE THA	8-97237-047-0	01	1	0204-0207	●	●		●
45	HORN; LOW NOTE THA	8-97237-047-0	01	1	0208-	●	●	●	●	●
140	BOLT; CONTROLLER M6X16 FLANGE THA	0-28680-616-0	01	1	0204-0207				●
140	BOLT; CONTROLLER M6X16 FLANGE THA	0-28680-616-0	01	1	0208-0307				●	●
141	HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97237-044-0	01	1	0204-0207	●			●
141	HORN; ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-97237-044-0	01	1	0208-0209	●		●	●	●
142	BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0207	●			●
142	BOLT; HORN,ANTI THEFT REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X16 FLANGE THA	0-28650-616-0	01	1	0208-0209	●		●	●	●
189	BOLT; HORN M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	0204-0207	●	●		●
189	BOLT; HORN M6X14 W/LK&PL WASHER THA	8-97086-822-0	02	1	0208-	●	●	●	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0204-0207	●	●		●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	9-09829-323-1	02	1	0208-0702	●	●	●	●	●
385	BOLT; CONT UNIT (B) M5X16 TAPPING THA	8-98061-685-0	02	1	0703-1005	●	●	●	●	●
385	BOLT; CONT UNIT (B) SCREW M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●	●	●	●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0508-0606			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	0508-0606					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0508-0606			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	9-03920-412-0	01	1	0508-0606					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	01	1	0607-0607					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-0608			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0607-0608					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0609-0708			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0609-0708					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0709-0709			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0709-0709					●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0710-			●
385	BOLT; CONT UNIT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) M4X12 W/LK&PL WASHER THA	0-36230-412-0	02	1	0710-					●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0508-0608			●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0508-0608					●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0609-0709			●		●
387	CLIP; BAND IMMOBILIZER SYSTEM<7KC> L=140 THA	8-97920-656-0	01	1	0710-			●
387	CLIP; BAND L=140 THA	8-97920-656-0	01	1	0710-					●
627	CONTROLLER; SHIFT ON THE FLY THA	8-97250-596-1	01	1	0204-0207				●
627	CONTROLLER; SHIFT ON THE FLY THA	8-97250-596-1	01	1	0208-0307				●	●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (B) THA	8-97251-755-0	01	1	0508-0606			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (B) THA	8-97251-755-0	01	1	0508-0606					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0607-0608			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (C) THA	8-98008-412-0	01	1	0607-0608					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0609-0708			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0609-0708					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0709-0709			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0709-0709					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> (C) THA	8-98008-412-0	01	1	0710-			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (C) THA	8-98008-412-0	01	1	0710-					●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> IMMOBILIZER SYSTEM<7KC> (A) THA	8-97377-323-0	01	1	0508-0606			●
712	CONTROL UNIT; ANTI THEFT 4JJ1-TCS ENG<LFB> (A) THA	8-97377-323-0	01	1	0508-0606					●

25 606 231 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	RELAY; TAIL LAMP 12V OMRON THA	8-98005-407-0	01	1	0508-	●	●	●	●	●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0709-	●	●	●	●	●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0204-0207	●	●		●
25	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	0208-0606	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-98146-834-0	01	1	0909-	●	●	●	●	●
123	RELAY; HTR 12V OMRON THA	8-97125-441-1	01	1	0508-0908	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0709-0908	●	●	●	●	●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205	●			●
123	RELAY; HTR 4JA1 ENG<RLE> EXC. VENTILATION RAM AIR<6TN> 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205		●
123	RELAY; HTR 4JH1 ENG<RJX> 12V YAZAKI THA	8-97309-294-0	01	1	0204-0205		●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0206-0207	●	●		●
123	RELAY; HTR 12V YAZAKI THA	8-97309-294-0	01	1	0208-0606	●	●	●	●	●
231	RELAY; HAZARD 12V YAZAKI THA	8-97309-293-0	02	1	0204-0207	●			●
231	RELAY; HAZARD 12V YAZAKI THA	8-97309-293-0	02	1	0208-0212	●		●	●	●
606	RELAY; SPILL VLV 4JH1 ENG<RJX> 12V YAZAKI THA	8-97309-293-0	01	1	0204-0207	●	●
606	RELAY; SPILL VLV 12V YAZAKI THA	8-97309-293-0	01	1	0204-0207				●
606	RELAY; SPILL VLV 4JH1 ENG<RJX> 12V YAZAKI THA	8-97309-293-0	01	1	0208-0408	●	●	●
606	RELAY; SPILL VLV 12V YAZAKI THA	8-97309-293-0	01	1	0208-0408				●	●

386

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	386	CLIP; HARNESS ID=7-10 THA	8-94472-578-0	01	1	0204-0207				●
	386	CLIP; HARNESS ID=7-10 THA	8-94472-578-0	01	1	0208-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
