8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#73873) — 36 parça

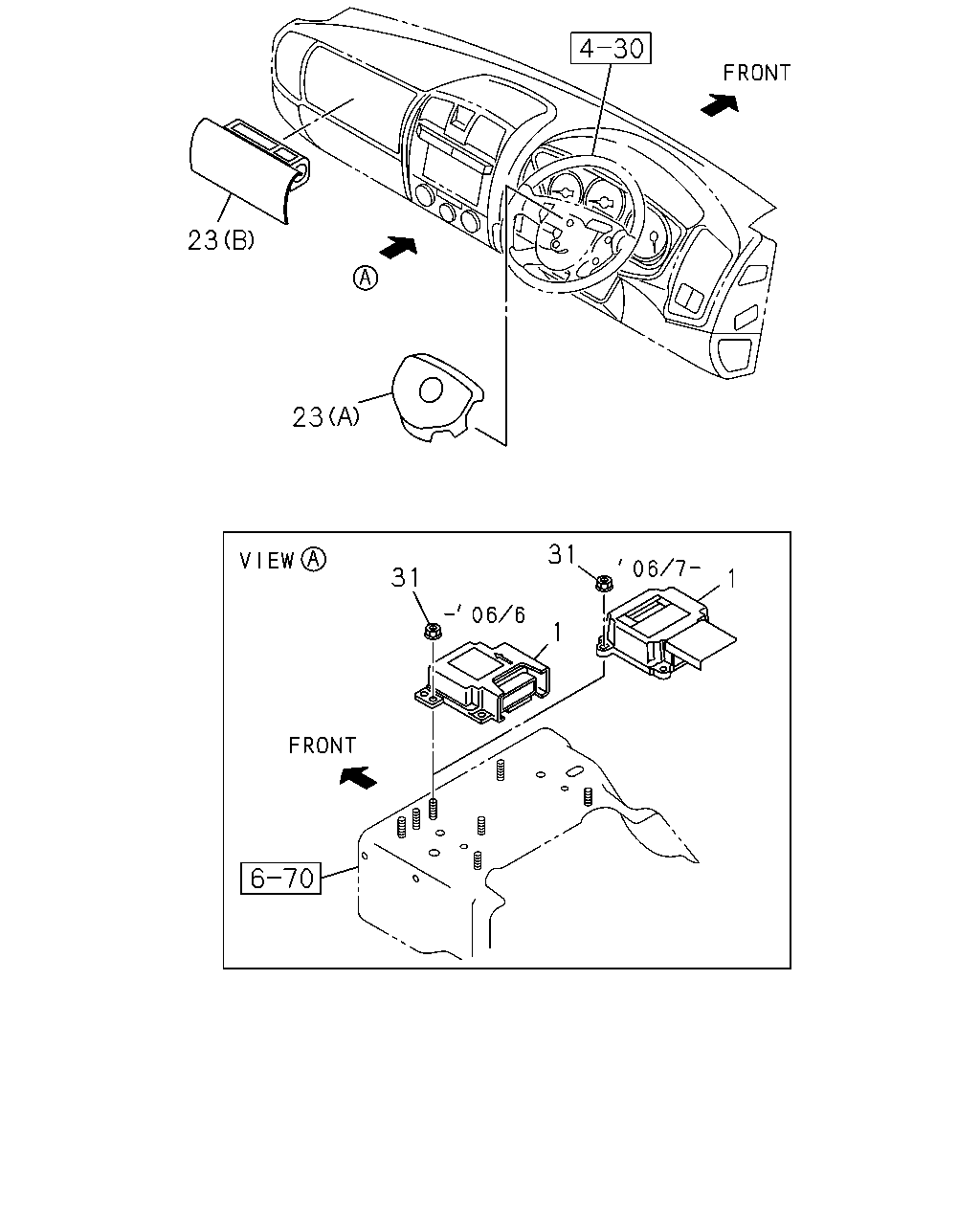

çizim 116708
23 23 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97352-915-0 01 1 0204-0207 ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97352-915-0 01 1 0208-0208 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97352-916-0 01 1 0209-0305 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97360-407-0 01 1 0306-0408 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97360-407-0 01 1 0409-0510 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98032-626-0 01 1 0511-0606 ● ● ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98039-722-0 01 1 0607- ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR BLACK<101> AIR BAG DRIVER & PASSENGER<AK5> SALES PACKAGE EQUIPMENT SPORTY<XK0> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97418-424-0 01 1 1010- ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR BLACK<101> AIR BAG DRIVER & PASSENGER<AK5> IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97418-424-0 01 1 1002-1008 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY THA 		8-97408-901-1 01 1 1009-1009 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) BLACK THA 		8-97422-062-0 01 1 1010- ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97293-916-3 01 1 0204-0207 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97293-916-3 01 1 0208-0212 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97395-749-0 01 1 0301-0305 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97396-840-0 01 1 0306-0408 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY THA 		8-97396-840-0 01 1 0409-0606 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY THA 		8-97403-930-1 01 1 0607-0609 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY THA 		8-97408-901-1 01 1 0610-1007 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) BLACK THA 		8-97422-062-0 01 1 1008-1008 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97294-068-5 01 1 0204-0207 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97294-068-5 01 1 0208-0310 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97396-931-0 01 1 0311-0312 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97397-845-0 01 1 0401-0408 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY THA 		8-97397-845-0 01 1 0409-0606 ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY THA 		8-97397-845-0 01 1 0409-0606 ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97403-333-1 01 1 0607-0609 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97408-898-0 01 1 0610-0708 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97412-975-0 01 1 0709-0808 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97408-898-0 01 1 0809-0904 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97417-274-0 01 1 0905-0906 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97418-298-0 01 1 0907-1001 ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (A) DARK GRAY THA 		8-97418-298-0 01 1 1002-1008 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY THA 		8-97418-298-0 01 1 1009- ● ● ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<7FA> M6 FLANGE THA 		0-91180-206-0 03 1 0204-0207 ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<7FA> M6 FLANGE THA 		0-91180-206-0 03 1 0208-0408 ● ● ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE THA 		0-91180-206-0 03 1 0409- ● ● ● ●
