◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#73872) — 155 parça

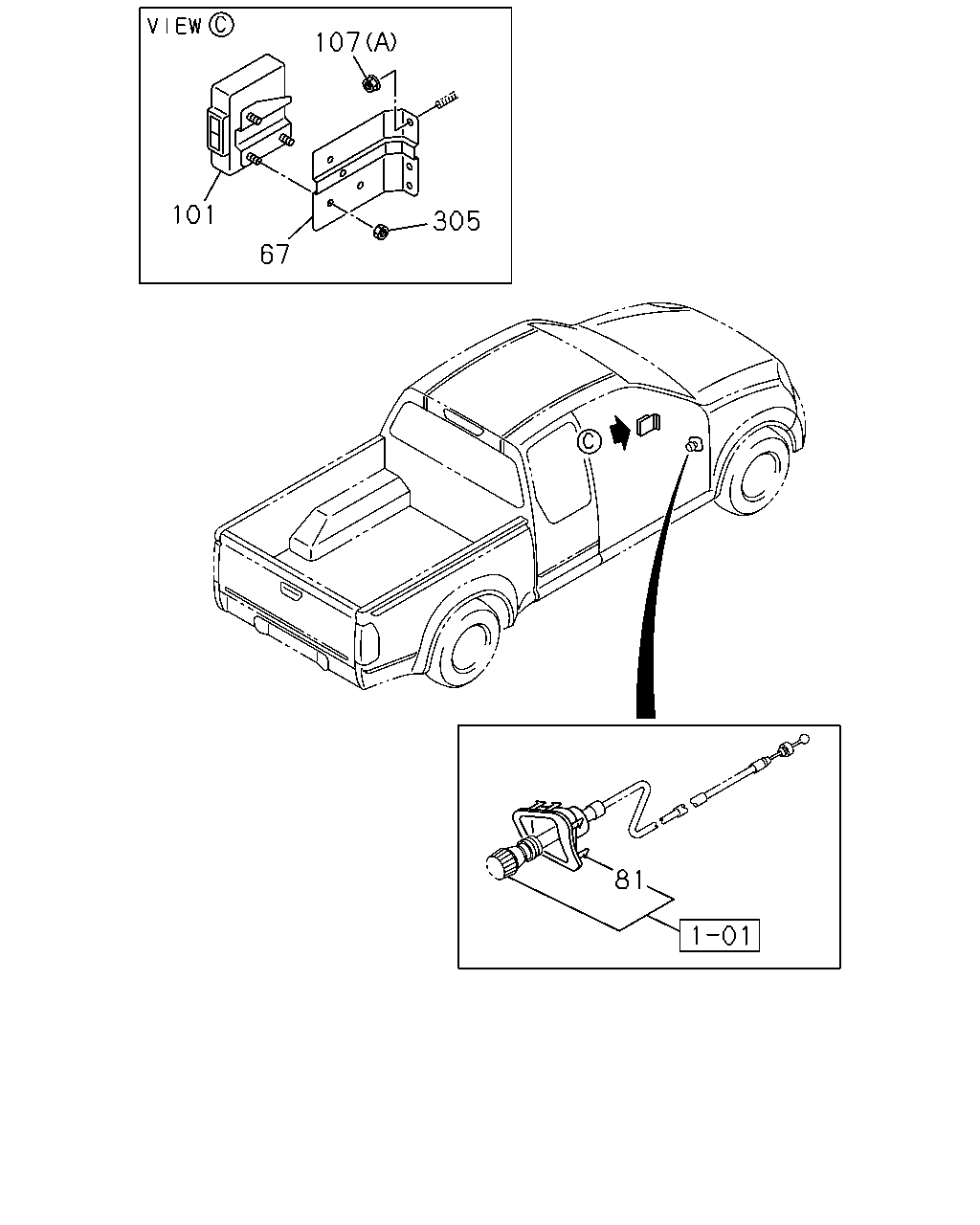

çizim 116675
107 101 305 67 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97234-955-0 01 1 0204-0207 ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97234-955-0 01 1 0208-0408 ● ● ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0409-0608 ● ● ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0609-0708 ● ● ●
67 BRACKET; CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0609-0708 ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0709-0709 ● ● ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0710- ● ●
67 BRACKET; CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0710- ● ●
81 BEZEL; IDLE CONT
4JA1 ENG<RLE> DARK GRAY THA 		8-97390-736-0 01 1 0204-0207 ● ●
81 BEZEL; IDLE CONT
4JA1 ENG<RLE> DARK GRAY THA 		8-97390-736-0 01 1 0208-0408 ● ● ●
81 BEZEL; IDLE CONT
4JA1-T ENG<LP0> DARK GRAY THA 		8-97390-736-0 01 1 0409-0412 ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C GOODYEAR TIRE<QFT> THA 		8-98049-042-0 01 1 0607-0708 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ>,FRT&RR 215/70R15C GOODYEAR TIRE<QFT> THA 		8-98049-042-0 01 1 0709-0712 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> THA 		8-98049-042-0 01 1 0801- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 43/10<GY2> FRT&RR 245/70R16 BRIDGESTONE TIRE<QCQ>,FRT&RR 245/70R16 MICHELIN TIRE<QFE> THA 		8-98041-750-0 01 1 0607- ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO<RMK> THA 		8-97329-270-0 01 1 0204-0207 ● ●
101 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-JATCO<RMK> THA 		8-97329-270-0 01 1 0208-0408 ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97374-474-0 01 1 0409-0503 ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98012-395-0 01 1 0504-0606 ● ● ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> FRT&RR 215/70R15C<QBQ> THA 		8-98041-751-0 01 1 0607-0708 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98043-641-0 01 1 0710- ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> THA 		8-98043-641-0 01 1 0609-0708 ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0204-0207 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0208-0608 ● ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0709-0709 ● ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ● ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 03 1 0204-0207 ● ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 03 1 0208- ● ● ● ●
305 NUT; CONT UNIT
A/T AISIN<RMD> M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ●
305 NUT; CONT UNIT
A/T AISIN<RMD> M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ●

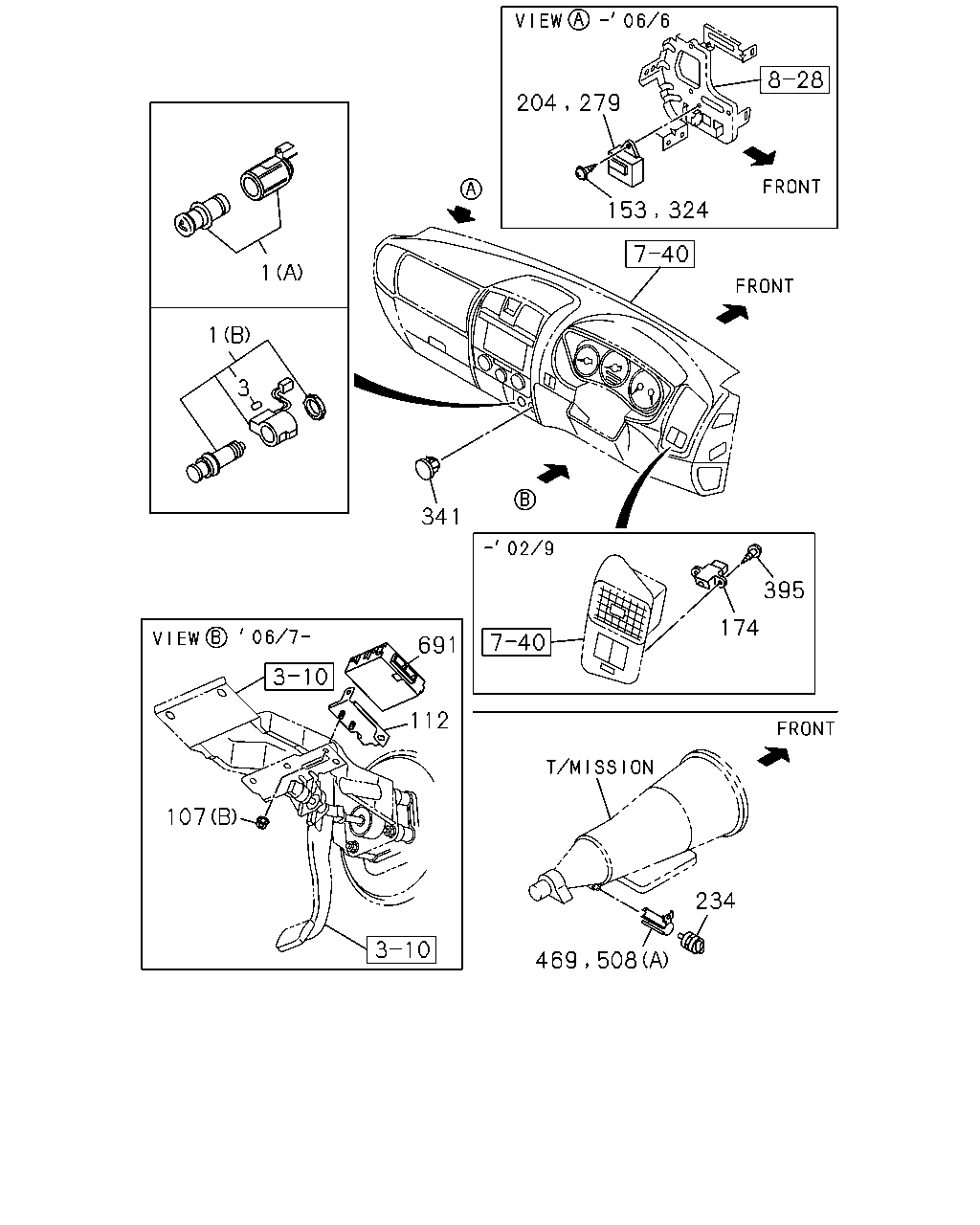

çizim 116682
1 1 3 341 395 174 691 112 107 234 204 279 153 324 469 508
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (B) THA 		8-97302-229-0 01 1 1002-1008 ● ● ● ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97302-229-0 01 1 1009- ● ● ● ●
1 LIGHTER; CIGAR
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97314-003-0 01 1 0204-0207 ● ●
1 LIGHTER; CIGAR
(A) THA 		8-97314-003-0 01 1 0204-0207 ●
1 LIGHTER; CIGAR
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97314-003-0 01 1 0208-0507 ● ● ●
1 LIGHTER; CIGAR
(A) THA 		8-97314-003-0 01 1 0208-0507 ●
1 LIGHTER; CIGAR
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97314-003-0 01 1 0508- ● ● ● ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97094-468-2 01 1 0204-0207 ● ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97094-468-2 01 1 0208-0208 ● ● ●
1 LIGHTER; CIGAR
(B) THA 		8-97094-468-2 01 1 0208-0208 ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97329-641-0 01 1 0208-0507 ● ● ●
1 LIGHTER; CIGAR
(B) THA 		8-97329-641-0 01 1 0208-0507 ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97329-641-0 01 1 0508-1001 ● ● ● ●
1 LIGHTER; CIGAR
GRADE SX<RBB>,GRADE SLX/LS<RBD> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (B) THA 		8-97329-641-0 01 1 1002-1008 ● ● ● ●
3 BULB; CIGAR LIGHTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> 14V 1.4W WO/CAP THA 		5-82194-026-0 01 1 0204-0207 ● ●
3 BULB; CIGAR LIGHTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> 14V 1.4W WO/CAP THA 		5-82194-026-0 01 1 0208-0208 ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W WO/CAP THA 		5-82194-026-0 01 1 0208-0208 ●
3 BULB; CIGAR LIGHTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> 14V 1.4W THA 		8-97173-160-0 01 1 0208-0507 ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W THA 		8-97173-160-0 01 1 0208-0507 ●
3 BULB; CIGAR LIGHTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> 14V 1.4W THA 		8-97173-160-0 01 1 0508- ● ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0204-0207 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0208-0608 ● ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0709-0709 ● ● ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0710- ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ● ●
112 BRACKET; CONT UNIT
THA 		8-97945-256-0 01 1 0607- ● ●
153 BOLT; BUZZER FIX
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> M5X16 TAPPING THA 		9-09829-323-1 01 1 0409-0606 ● ● ●
153 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING THA 		9-09829-323-1 01 1 0409-0606 ● ● ●
153 BOLT; BUZZER FIX
M5X16 TAPPING THA 		9-09829-323-1 01 1 0409-0606 ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97248-972-0 01 1 0204-0207 ● ●
174 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-97248-972-0 01 1 0208-0209 ● ● ● ●
204 BUZZER; KEY REMIND
GRADE SX<RBB>,GRADE SLX/LS<RBD> THA 		8-97135-562-0 01 1 0204-0207 ● ●
204 BUZZER; KEY REMIND
GRADE SX<RBB>,GRADE SLX/LS<RBD> THA 		8-97135-562-0 01 1 0208-0408 ● ● ●
204 BUZZER; KEY REMIND
THA 		8-97135-562-0 01 1 0208-0408 ●
234 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0204-0207 ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0204-0207 ● ●
234 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0208-0406 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0208-0406 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0407-0408 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0407-0408 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0409-0412 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0409-0412 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0409-0412 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0501-0507 ● ● ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0508-0606 ● ● ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0508-0606 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0607-0608 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0607-0608 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0609-0708 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0609-0708 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0609-0708 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0709-0709 ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0709-0709 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0710- ● ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0710- ● ●
234 SENSOR; VEHICLE SPD
A/T AISIN<RMD> 4 PULSE PPS RESIN WHITE/BLACK THA 		8-98043-734-0 01 1 0710- ●
279 BUZZER ASM; SEAT BELT WARNING
KEY REMINDER BUZZER<T48> EXC. HEAD LAMP REMINDER<T63> THA 		8-97135-562-0 01 1 0409-0606 ● ● ●
279 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63> THA 		8-97135-562-0 01 1 0409-0606 ● ● ●
279 BUZZER ASM; SEAT BELT WARNING
THA 		8-97135-562-0 01 1 0409-0606 ●
324 SCREW; TAP WARNING
GRADE SX<RBB>,GRADE SLX/LS<RBD> M5X16 TAPPING THA 		9-09829-323-1 01 1 0204-0207 ● ●
324 SCREW; TAP WARNING
GRADE SX<RBB>,GRADE SLX/LS<RBD> M5X16 TAPPING THA 		9-09829-323-1 01 1 0208-0408 ● ● ●
324 SCREW; TAP WARNING
M5X16 TAPPING THA 		9-09829-323-1 01 1 0208-0408 ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97390-774-0 01 1 0204-0207 ● ●
341 COVER ASM
DARK GRAY THA 		8-97390-774-0 01 1 0204-0207 ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97390-774-0 01 1 0208-0606 ● ● ●
341 COVER ASM
DARK GRAY THA 		8-97390-774-0 01 1 0208-0606 ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0607-0908 ● ● ●
341 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0607-0908 ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0909-1001 ● ●
341 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 0909-1001 ●
341 COVER ASM
INTERIOR COLOR VERY DARK GRAY<116> EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 0909-1001 ●
341 COVER ASM
INTERIOR COLOR VERY DARK GRAY<116> EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 1002-1009 ● ● ●
341 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 1002-1009 ●
341 COVER ASM
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97396-703-0 01 1 1010- ● ● ●
341 COVER ASM
DARK GRAY THA 		8-97396-703-0 01 1 1010- ●
395 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ●
395 SCREW; INDICATOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0209 ● ● ● ●
469 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0409-0412 ● ●
469 PROTECTOR; SPEED SENSOR
THA 		8-97168-308-0 01 1 0409-0412 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0501-0507 ● ●
469 PROTECTOR; SPEED SENSOR
THA 		8-97168-308-0 01 1 0501-0507 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0508-0606 ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97168-308-0 01 1 0508-0606 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97168-308-0 01 1 0607-0809 ● ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 0810- ● ● ●
508 PROTECTOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0204-0207 ●
508 PROTECTOR
(A) THA 		8-97168-308-0 01 1 0204-0207 ●
508 PROTECTOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0208-0408 ● ●
508 PROTECTOR
(A) THA 		8-97168-308-0 01 1 0208-0408 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0204-0207 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0208-0606 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0204-0207 ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0208-0307 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97368-449-0 01 1 0308-0408 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0409 ● ●
691 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> THA 		8-97374-038-0 01 1 0409-0507 ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0507 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0508-0512 ● ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ● ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ● ●

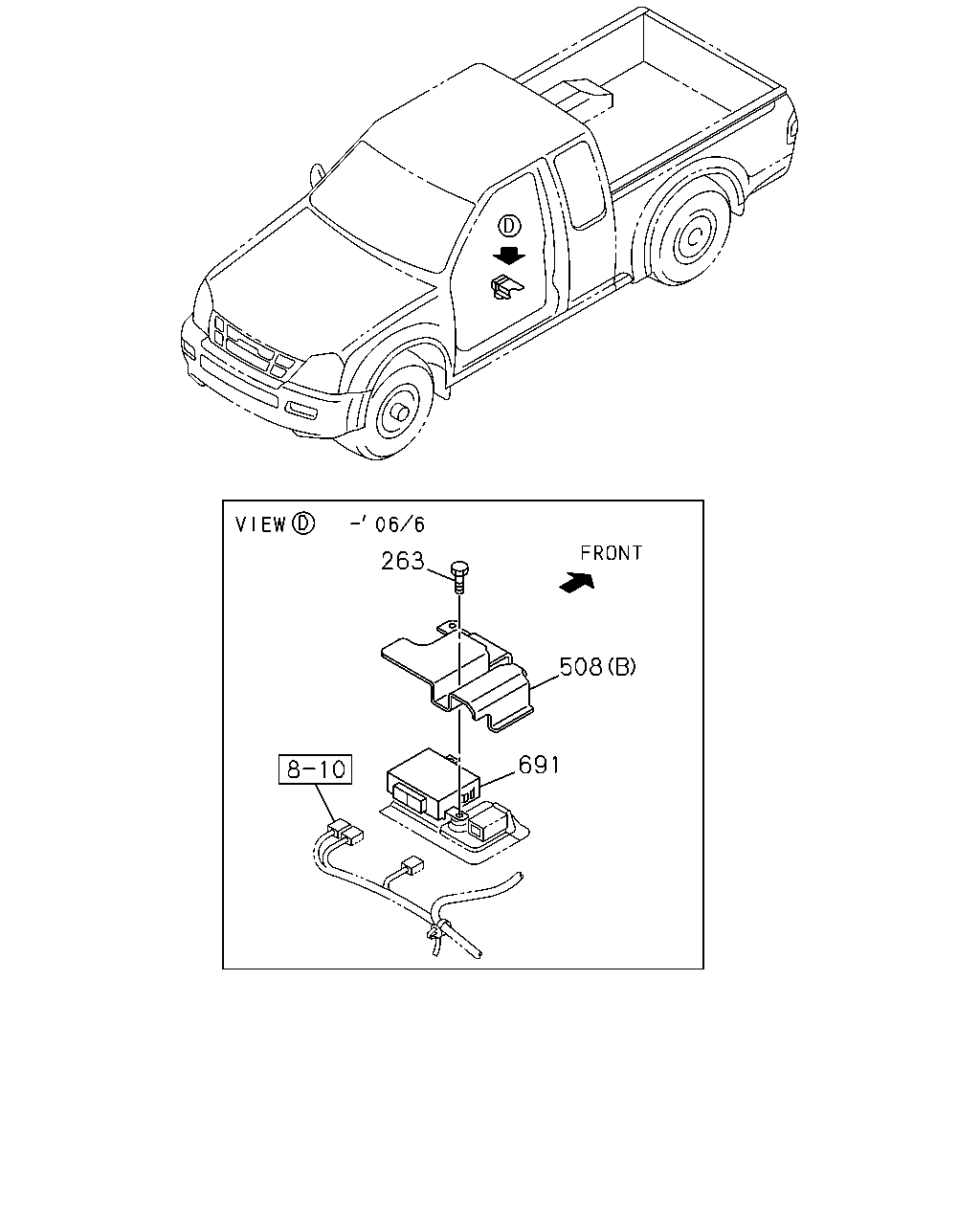

çizim 116691
263 508 691
BalonParca AdiParca NoAdetTipApplied Date A B C D E
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28680-616-0 02 1 0204-0207 ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28680-616-0 02 1 0208-0601 ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0602-0606 ● ●
508 PROTECTOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0204-0207 ●
508 PROTECTOR
(A) THA 		8-97168-308-0 01 1 0204-0207 ●
508 PROTECTOR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0208-0408 ● ●
508 PROTECTOR
(A) THA 		8-97168-308-0 01 1 0208-0408 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0204-0207 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0208-0606 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0204-0207 ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0208-0307 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97368-449-0 01 1 0308-0408 ● ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0409 ● ●
691 CONTROLLER; TRANSFER
SHIFT ON THE FLY<NR4> THA 		8-97374-038-0 01 1 0409-0507 ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0507 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0508-0512 ● ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ● ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
