2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#7387) — 160 parça

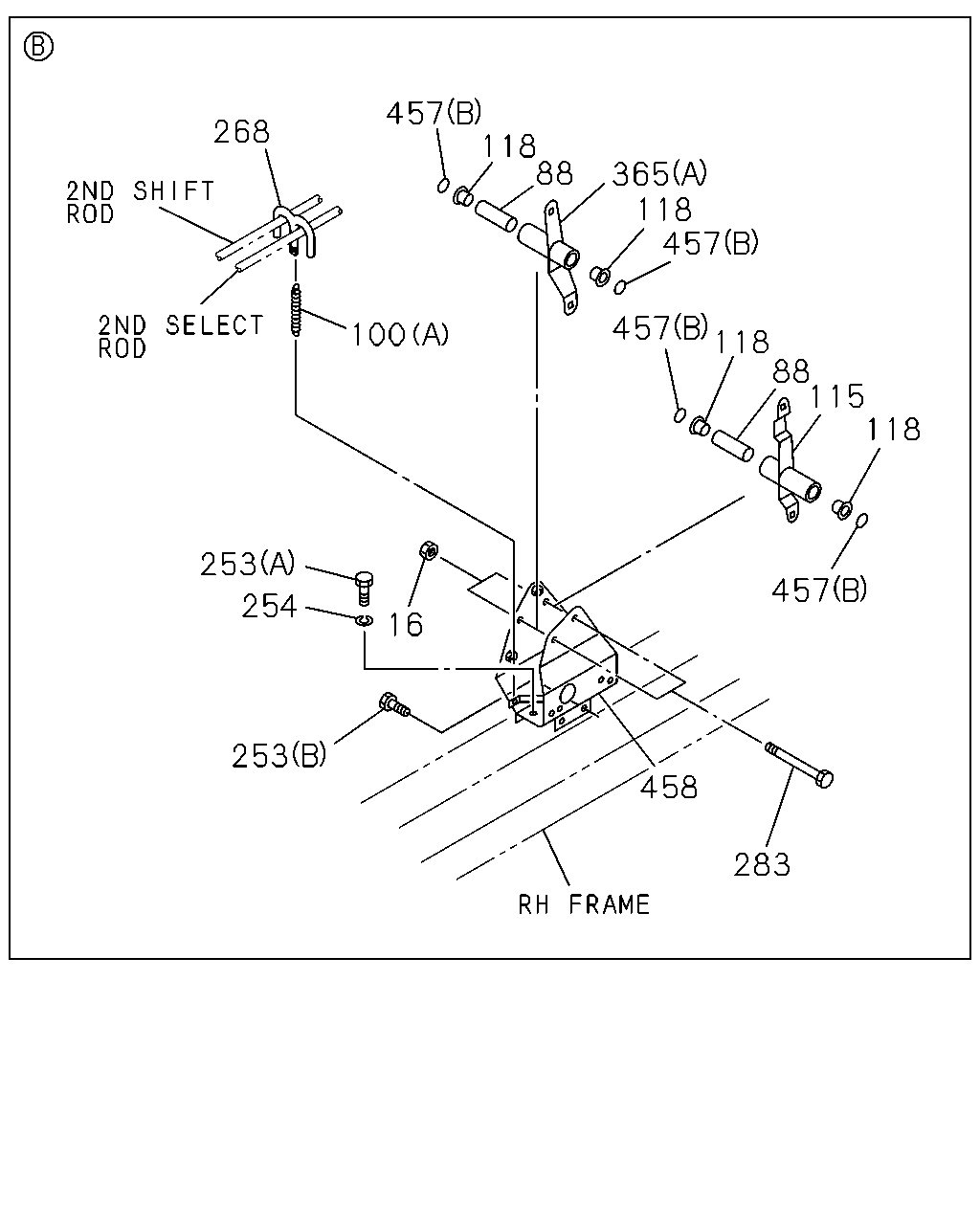

çizim 43720
457 118 88 268 365 118 457 457 100 118 88 115 118 253 457 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B C
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9812-9901 ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9902-9904 ● ● ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9812-9901 ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9902-9904 ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9905- ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9812-9901 ●
100 SPRING
(B) 		1-09583-319-0 01 1 9902-9904 ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9905- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9812- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9812-9901 ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9902-9904 ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9905- ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9812-9901 ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9902-9904 ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9905- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9812- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9812- ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9812- ● ● ●
268 BRACKET; LINK ROD 1-33657-216-0 01 1 9812- ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9812-9901 ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9902-9904 ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9812-9901 ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9902-9904 ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9812- ● ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9812-9901 ●
457 GASKET
(B) 		1-09623-594-0 04 1 9902-9904 ● ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9905- ● ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902- ● ●
458 BRACKET; 2ND RELAY LEVER
6WG1 TC-C(72L) CAB UP +110MM<TGG> 		1-33657-664-1 01 1 9812-9901 ● ● ●
458 BRACKET; 2ND RELAY LEVER
CAB UP +110MM<TGG> 		1-33657-664-1 01 1 9902- ● ● ●
458 BRACKET; 2ND RELAY LEVER
6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> 		1-33657-583-1 01 1 9812-9901 ● ● ●
458 BRACKET; 2ND RELAY LEVER
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> 		1-33657-583-1 01 1 9902-9904 ● ● ●
458 BRACKET; 2ND RELAY LEVER
EXC. CAB UP +110MM<TGG> 		1-33657-583-1 01 1 9905-9906 ● ● ●
458 BRACKET; 2ND RELAY LEVER
EXC. CAB UP +110MM<TGG> 		1-33657-583-1 01 1 9907- ● ● ●

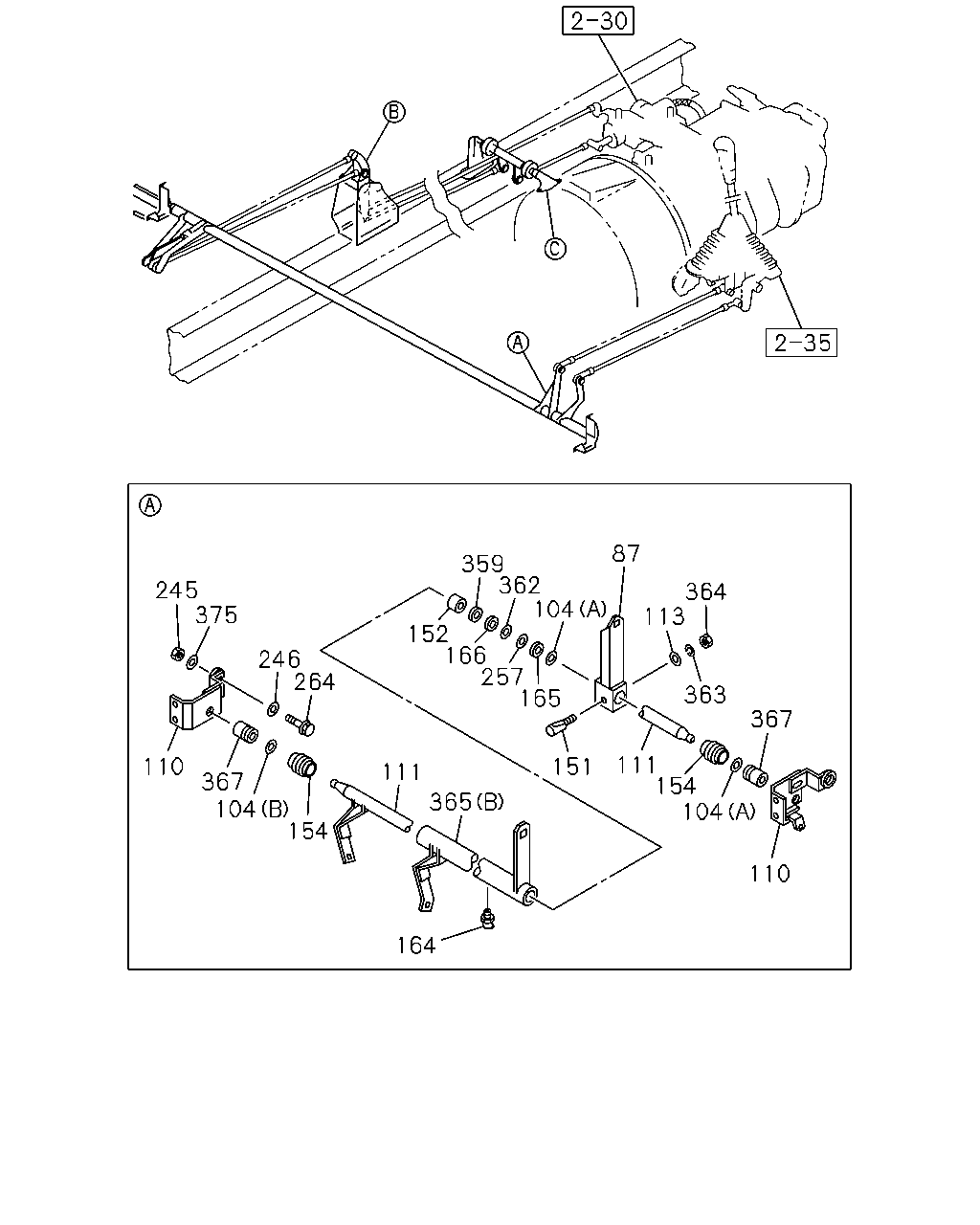

çizim 44380
87 359 362 104 245 375 364 113 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164
BalonParca AdiParca NoAdetTipApplied Date A B C
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9812- ● ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9812- ● ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9812- ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9812- ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9812- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9812- ● ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9812- ● ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9812- ● ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9812- ● ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9812- ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9812- ● ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9812- ● ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9812- ● ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9812- ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9812- ● ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9812- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 9812- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 02 1 9812- ● ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9812- ● ● ●
362 SHIM 1-09503-172-0 AR 1 9812- ● ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9812- ● ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9812- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9812-9901 ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9902-9904 ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9905- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9812- ● ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9812- ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9812- ● ● ●

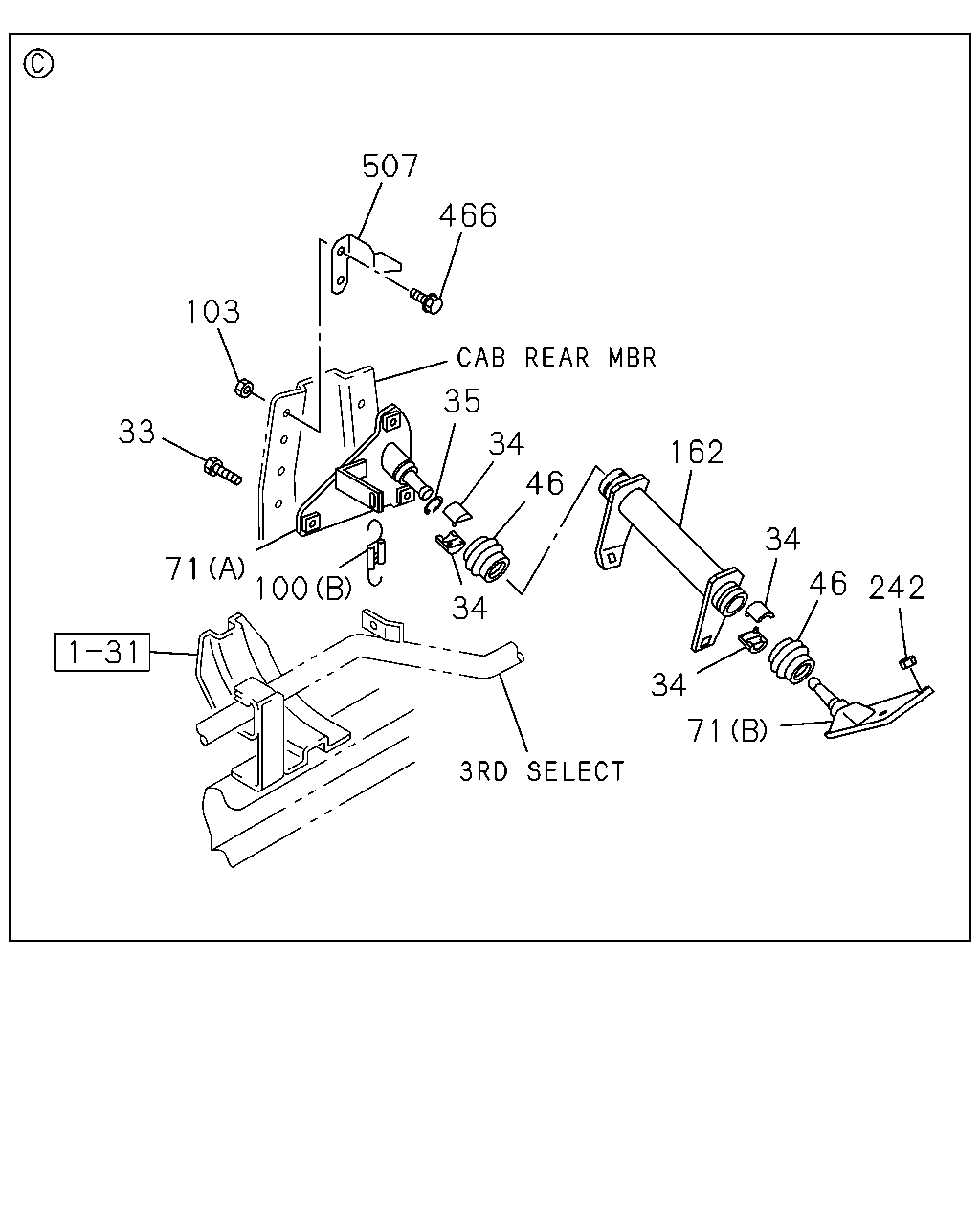

çizim 44924
507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71
BalonParca AdiParca NoAdetTipApplied Date A B C
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 9812-9901 ●
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 9902-9904 ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 9905- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 9812-9904 ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 9905- ● ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 9812-9904 ● ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 9905- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 9812-9904 ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 9905- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. CAB UP +110MM<TGG> (A) 		1-33657-512-0 01 1 9812-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. CAB UP +110MM<TGG> (A) 		1-33657-512-0 01 1 9905- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 9812-9904 ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 9905- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
CAB UP +110MM<TGG> (A) 		1-33657-657-1 01 1 9812-9904 ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
CAB UP +110MM<TGG> (A) 		1-33657-657-1 01 1 9905- ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9812-9901 ●
100 SPRING
(B) 		1-09583-319-0 01 1 9902-9904 ● ● ●
100 SPRING
(B) 		1-09583-319-0 01 1 9905- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9812- ● ● ●
103 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9812- ● ● ●
162 LEVER; RELAY 1-33651-679-0 01 1 9812- ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 9812-9901 ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 9902-9904 ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 9905- ● ● ●
466 BOLT; FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 02 1 9812- ● ● ●
507 PROTECTOR; HEAT
CAB UP +110MM<TGG> 		1-14181-315-0 01 1 9812- ● ● ●

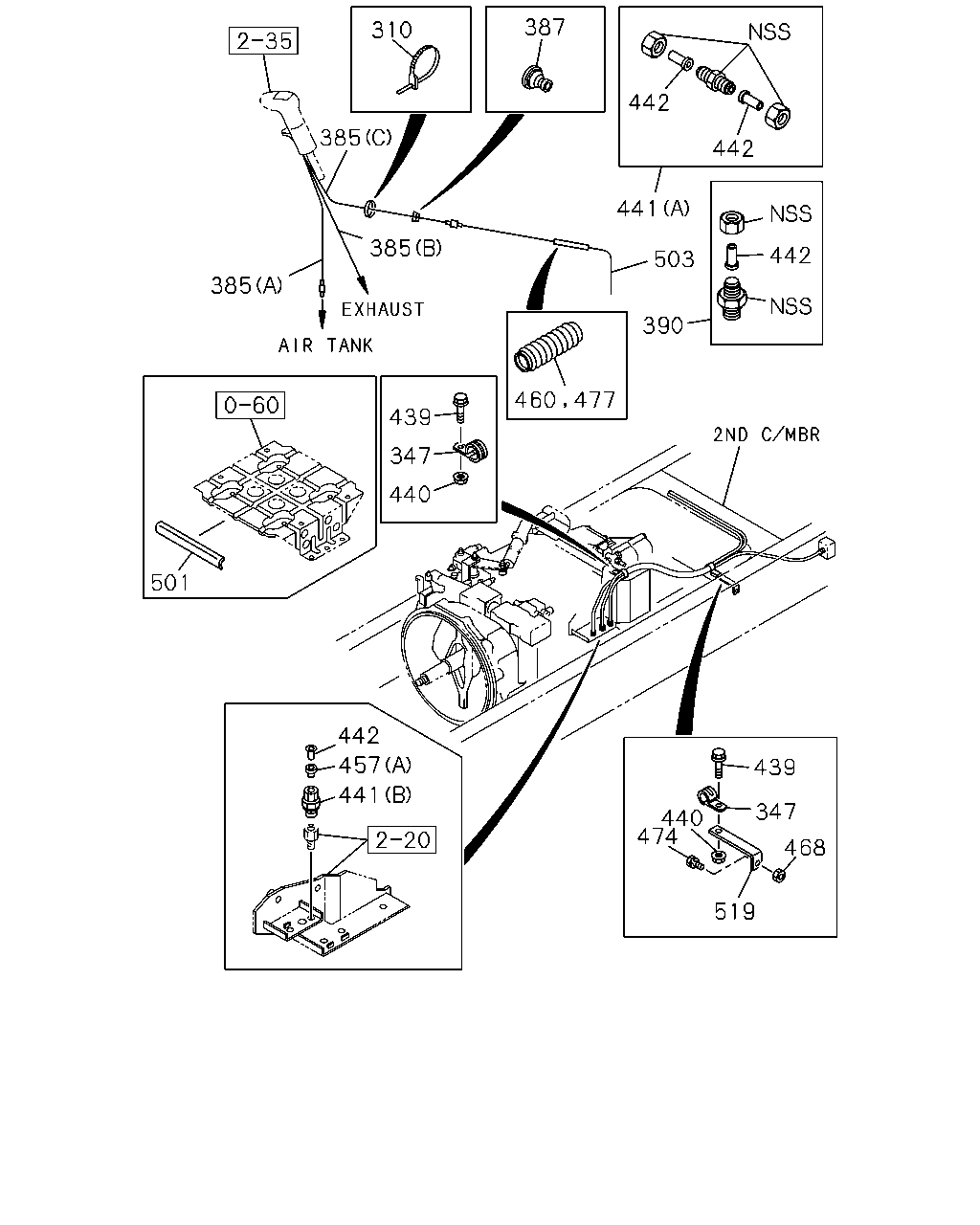

çizim 44956
387 310 442 385 442 441 385 442 503 385 390 439 347 440 501 442 457 439 441 347 440 474 468 519 460 477
BalonParca AdiParca NoAdetTipApplied Date A B C
310 CLIP; TUBE
L=250 		1-09707-126-0 07 1 9812-9910 ● ● ●
310 CLIP; TUBE
L=250 		1-09707-126-0 17 1 9911- ● ●
310 CLIP; TUBE
L=250 		5-09707-030-1 11 1 9812-9910 ● ● ●
310 CLIP; TUBE
L=140 		5-09707-031-1 04 1 9911-0105 ● ●
310 CLIP; TUBE
L=140 		5-09707-031-1 05 1 0106- ● ●
347 CLIP; AIR PIPE
ID=18 L=28 		1-09701-067-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) ID=28 L=40 		1-09701-261-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
ID=24 L=27 		1-09700-809-0 02 1 9812-9905 ● ● ●
347 CLIP; AIR PIPE
EXC. PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX),PTO TRANS RR RATIO 1.68(BEY) ID=24 L=27 		1-09700-809-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
ID=24 L=27 		1-09700-809-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
ID=24 L=27 		1-09700-809-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9906- ● ● ●
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 9812-9901 ●
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 9902- ● ●
385 TUBE; NYLON
(C) L=1160 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9812-9812 ●
385 TUBE; NYLON
(C) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9901-9901 ●
385 TUBE; NYLON
(C) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9902- ● ●
385 TUBE; NYLON
CAB UP +110MM<TGG> (A) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9812-9901 ●
385 TUBE; NYLON
CAB UP +110MM<TGG> (A) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9902- ● ●
385 TUBE; NYLON
EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9812-9901 ●
385 TUBE; NYLON
EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9902- ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 9812-9901 ●
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 9902- ● ●
390 CONNECTOR; STRAIGHT,TRANS SIDE
DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 9812-9901 ●
390 CONNECTOR; STRAIGHT,TRANS SIDE
DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 9902- ● ●
439 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9905 ● ● ●
439 BOLT; CLIP,AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) M8X25 FLANGE 		0-28680-825-0 03 1 9906- ● ● ●
439 BOLT; CLIP,AIR PIPE
EXC. PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX),PTO TRANS RR RATIO 1.68(BEY) M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ● ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ● ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9812-9901 ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9902- ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN4 STRAIGHT 		1-09660-512-0 02 1 9812-9910 ● ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN4 STRAIGHT 		1-09660-512-0 02 1 9911- ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9812-9901 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9812-9901 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9902-9910 ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9902-9910 ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 9911- ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 04 1 9812-9910 ● ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9911- ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9812-9901 ●
457 GASKET
(B) 		1-09623-594-0 04 1 9902-9904 ● ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9905- ● ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9812-9901 ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9902- ● ●
460 TUBE; CORRUGATE
L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9812-9901 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902- ● ●
460 TUBE; CORRUGATE
L=620 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9812-9812 ●
460 TUBE; CORRUGATE
L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9901-9901 ●
460 TUBE; CORRUGATE
L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9902- ● ●
460 TUBE; CORRUGATE
L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9812-9901 ●
460 TUBE; CORRUGATE
L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9902- ● ●
468 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9812- ● ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9812- ● ● ●
477 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9812-9901 ●
477 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9902- ● ●
477 TUBE; CORRUGATE
SERVICED BY L=6000 ID=7 		1-87410-087-0 01 1 9812-9901 ●
477 TUBE; CORRUGATE
SERVICED BY L=6000 ID=7 		1-87410-087-0 01 1 9902- ● ●
501 SEAL; HARNESS PROTECTOR
100X30 		1-72498-014-1 04 1 9901-9901 ●
501 SEAL; HARNESS PROTECTOR
100X30 		1-72498-014-1 04 1 9902-9903 ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9904-9904 ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9905- ● ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9812-9901 ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9902- ● ●
503 TUBE; NYLON
SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 9812-9901 ●
503 TUBE; NYLON
SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 9902- ● ●
519 BRACKET; FRAME
L=125 		1-47475-897-0 01 1 9812- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
