◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#73868) — 682 parça

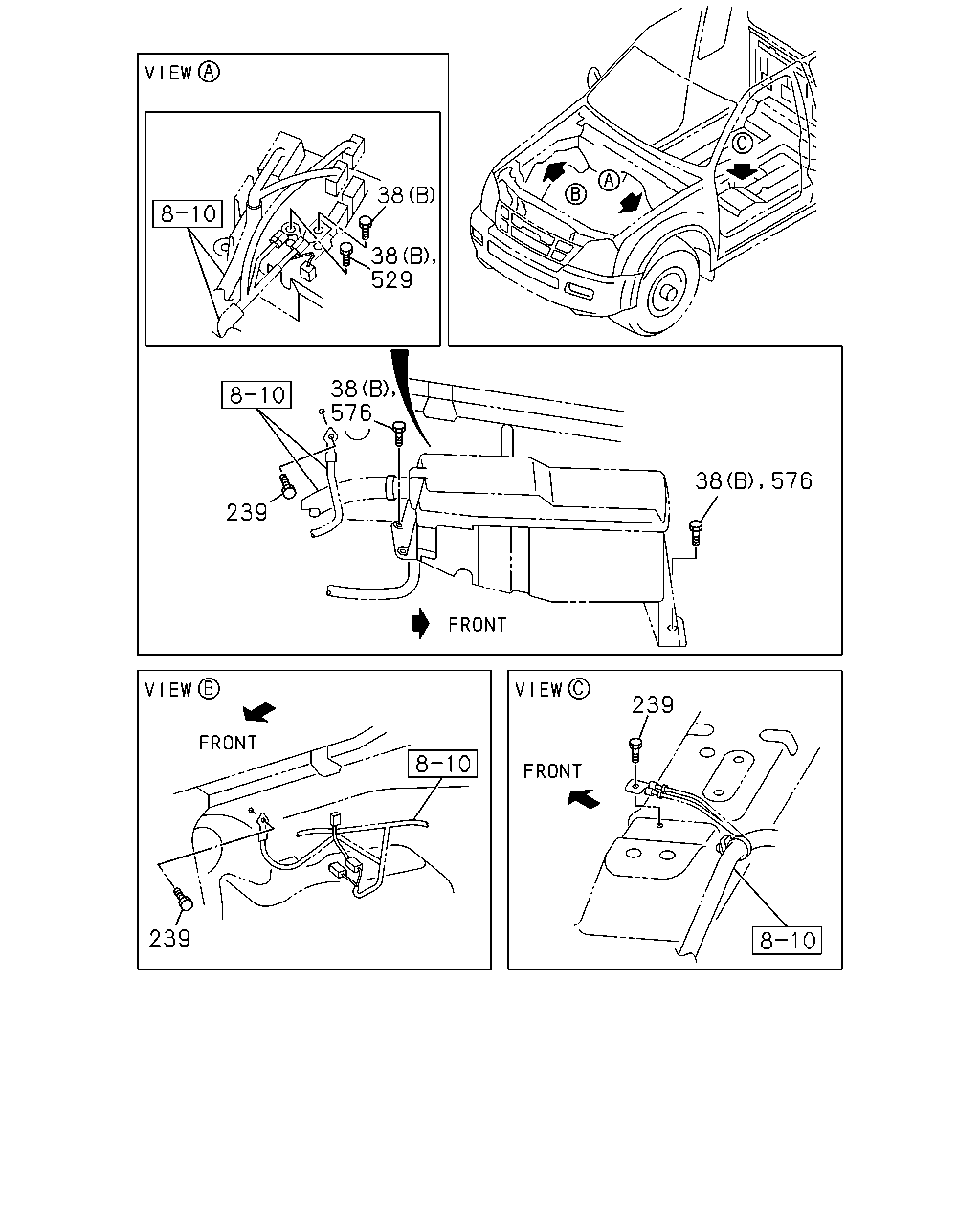

çizim 116652
38 38 529 38 576 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0409-0412 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 04 1 0409-0411 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 04 1 0412-0412 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0204-0207 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0208-0408 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 0607- ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 0204-0207 ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 0208- ● ● ● ● ●
529 BOLT; RELAY BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 0204-0207 ● ● ●
529 BOLT; RELAY BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 0208-0408 ● ● ● ● ●
576 BOLT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0204-0207 ● ● ●
576 BOLT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0208-0408 ● ● ● ● ●

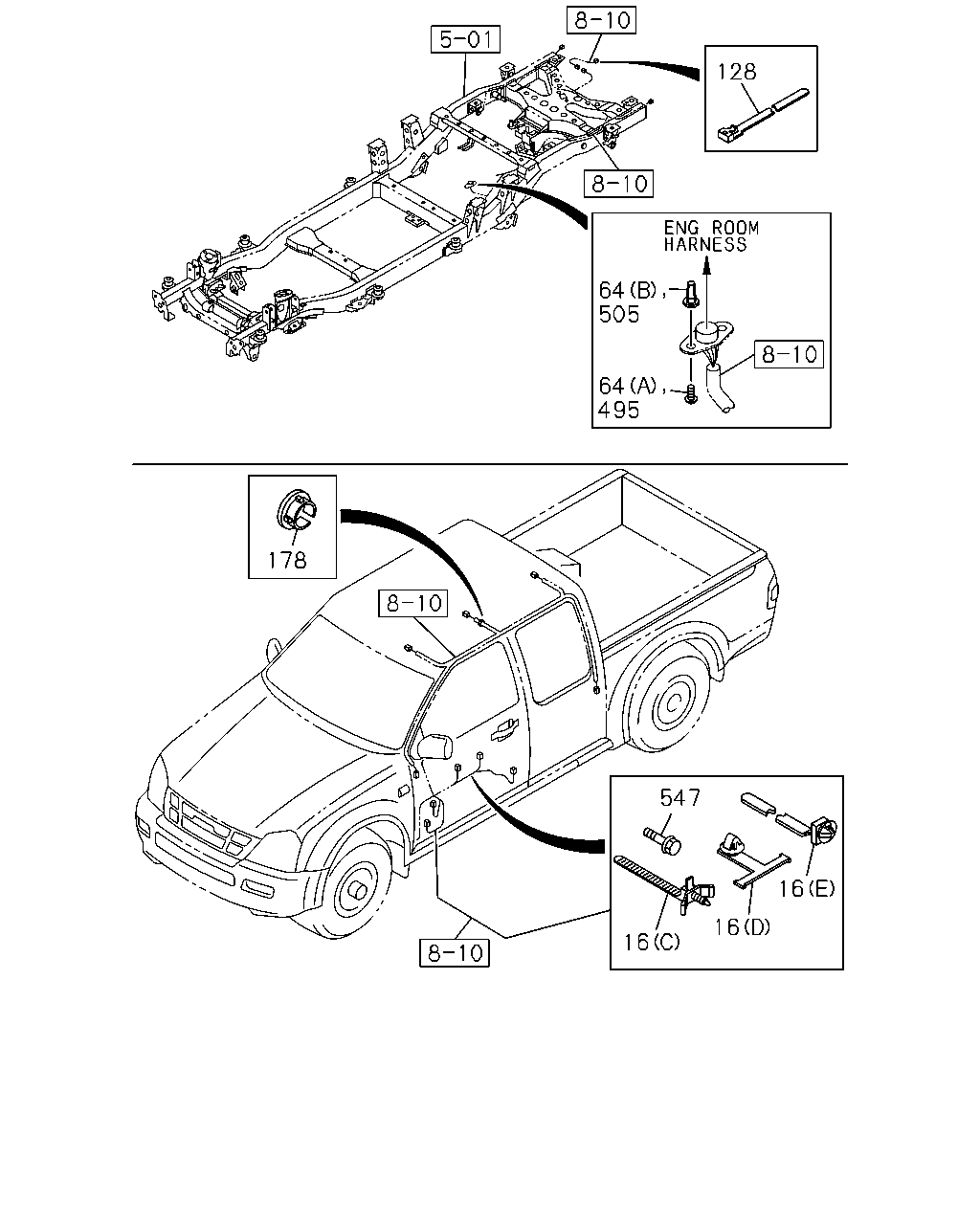

çizim 116661
128 64 505 64 495 178 547 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0401-0408 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (A) ID=8.5 THA 		8-97912-612-0 02 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB> (H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
(H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (H) L=197 THA 		1-83574-032-0 01 1 0501-0507 ● ● ● ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (H) L=197 THA 		1-83574-032-0 01 1 0508-0606 ● ● ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 IMA 		5-09707-031-1 02 1 0409-0411 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 THA 		8-97920-656-0 02 1 0412-0412 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ●
64 SCREW; CLIP
(A) M5X14 IMA 		8-94120-095-0 02 1 0204-0207 ● ● ●
64 SCREW; CLIP
(A) M5X14 IMA 		8-94120-095-0 02 1 0208-0408 ● ● ● ● ●
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0204-0207 ● ● ●
64 SCREW; CLIP
(B) D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0208-0408 ● ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> L=250 IMA 		5-09707-030-1 01 1 0204-0207 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> L=250 IMA 		5-09707-030-1 01 1 0204-0207 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> L=250 IMA 		5-09707-030-1 01 1 0208-0408 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> L=250 IMA 		5-09707-030-1 01 1 0208-0408 ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 0204-0207 ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 0208- ● ● ● ●
495 BOLT; CABLE TO BODY
M5X14 IMA 		8-94120-095-0 02 1 0409- ● ● ● ● ●
505 RETAINER; HARNESS
D=7.9X7.9 L=20 M5 IMA 		8-94441-539-0 02 1 0409- ● ● ● ● ●
547 BOLT
AIR BAG DRIVER & PASSENGER<AK5> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 0809- ● ● ● ●

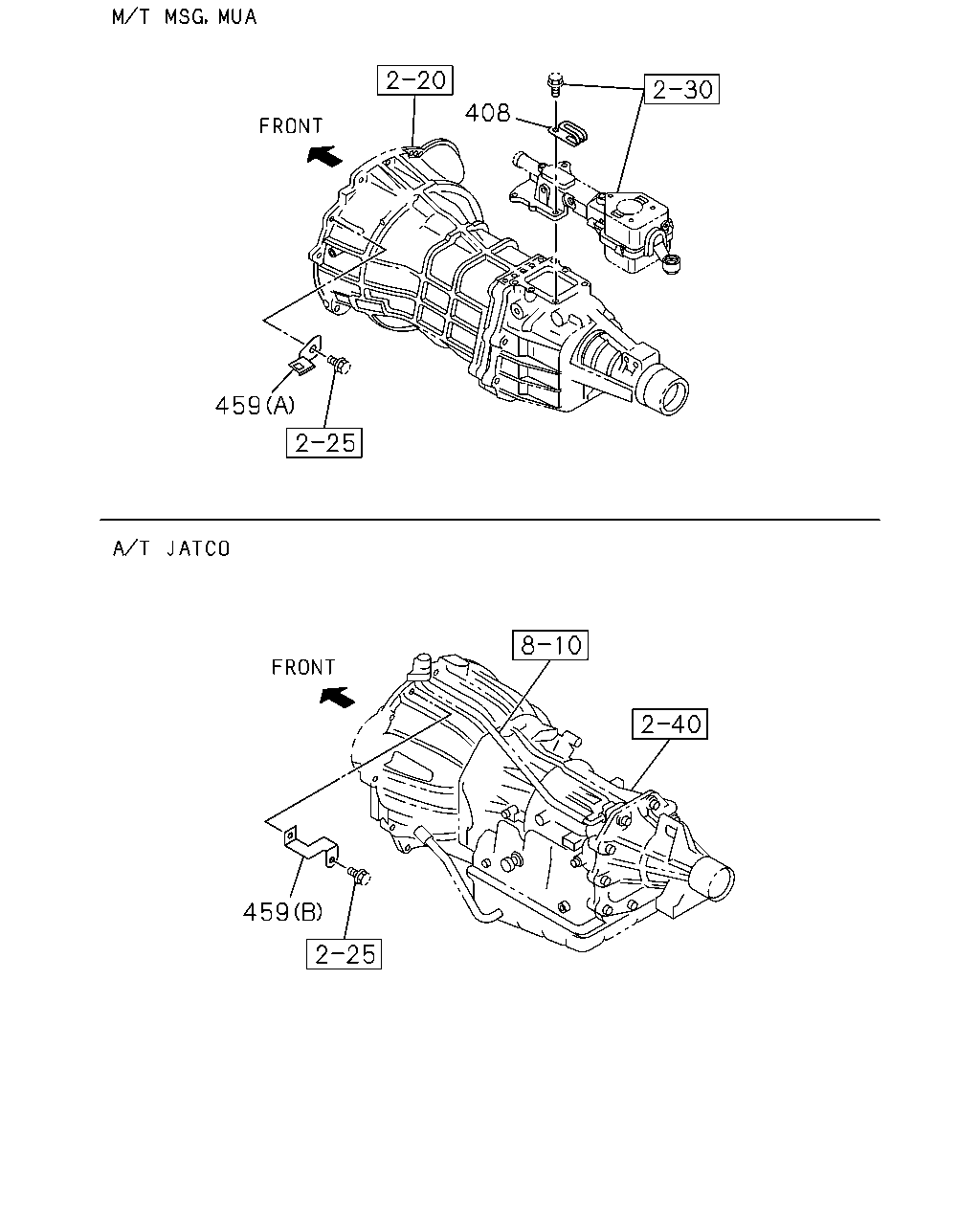

çizim 116668
408 459 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED<RMN> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0204-0207 ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0409-0412 ● ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0501-0507 ● ● ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0508-0604 ● ● ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 04 1 0508-0604 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0605-0606 ● ● ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> ID=12 VINYL CHLORIDE THA 		8-97367-984-0 04 1 0605-0606 ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ● ● ● ● ●
408 CLIP; TRANS HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 0607- ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-94315-284-0 01 1 0204-0207 ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-94315-284-0 01 1 0208-0408 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0409-0412 ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
(A) THA 		8-94315-284-0 01 1 0409-0412 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0501-0606 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-94315-284-0 01 1 0607-0608 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98050-882-0 01 1 0609- ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0204-0207 ● ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0208-0408 ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0409- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA 		8-98050-720-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA 		8-98050-720-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0609-0708 ●

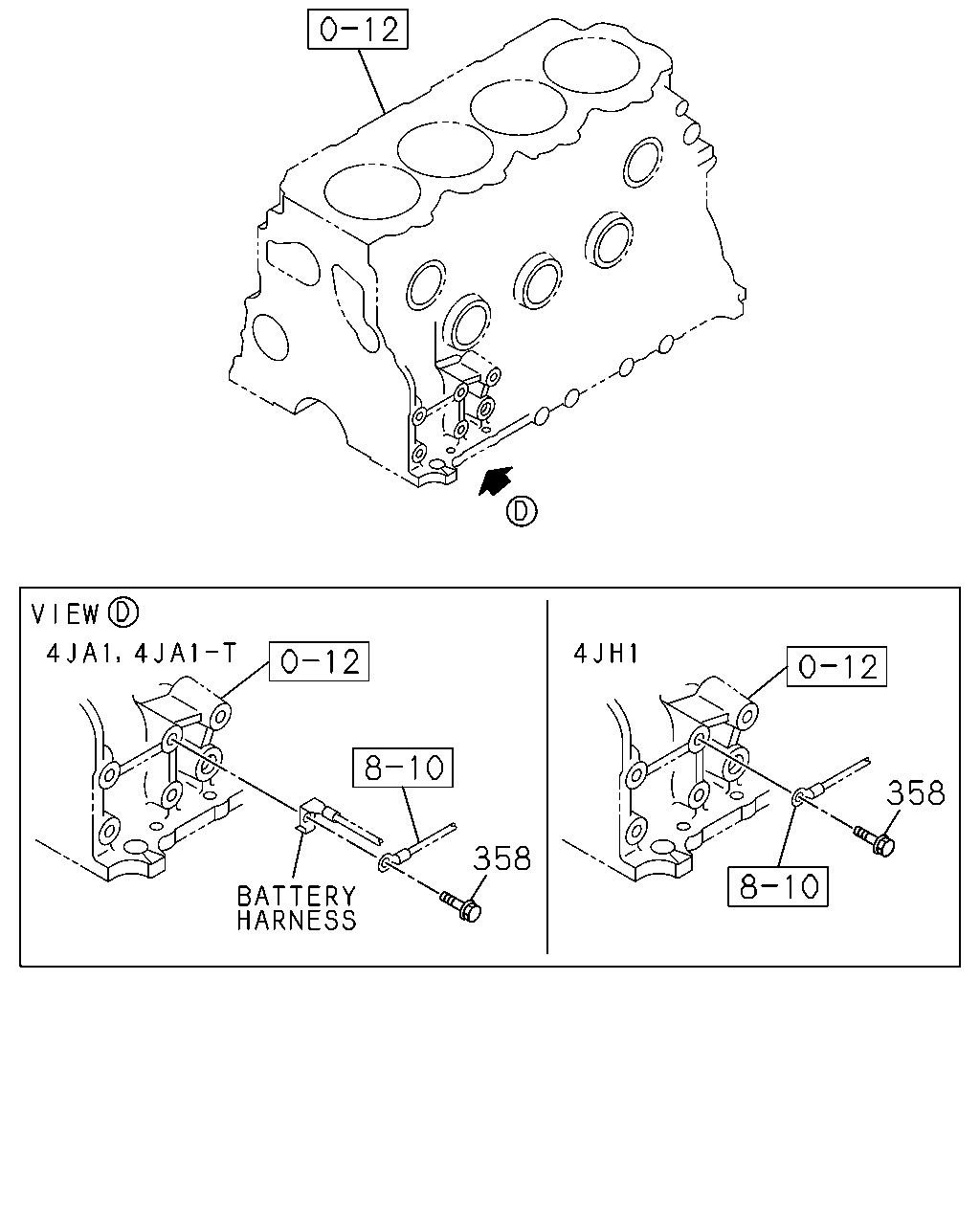

çizim 116670
358 358
BalonParca AdiParca NoAdetTipApplied Date A B C D E
358 BOLT; EARTH
4JA1 ENG<RLE> M10X16 FLANGE THA 		0-28081-016-0 01 1 0204-0207 ● ●
358 BOLT; EARTH
4JA1 ENG<RLE> M10X16 FLANGE THA 		0-28081-016-0 01 1 0208-0408 ● ● ●
358 BOLT; EARTH
4JA1-T ENG<LP0> M10X16 FLANGE THA 		0-28081-016-0 01 1 0409-0412 ● ● ●
358 BOLT; EARTH
4JH1 ENG<RJX> M10X20 FLANGE THA 		0-28651-020-0 01 1 0204-0207 ● ●
358 BOLT; EARTH
M10X20 FLANGE THA 		0-28651-020-0 01 1 0204-0207 ●
358 BOLT; EARTH
4JH1 ENG<RJX> M10X20 FLANGE THA 		0-28651-020-0 01 1 0208-0408 ● ● ●
358 BOLT; EARTH
M10X20 FLANGE THA 		0-28651-020-0 01 1 0208-0408 ● ●

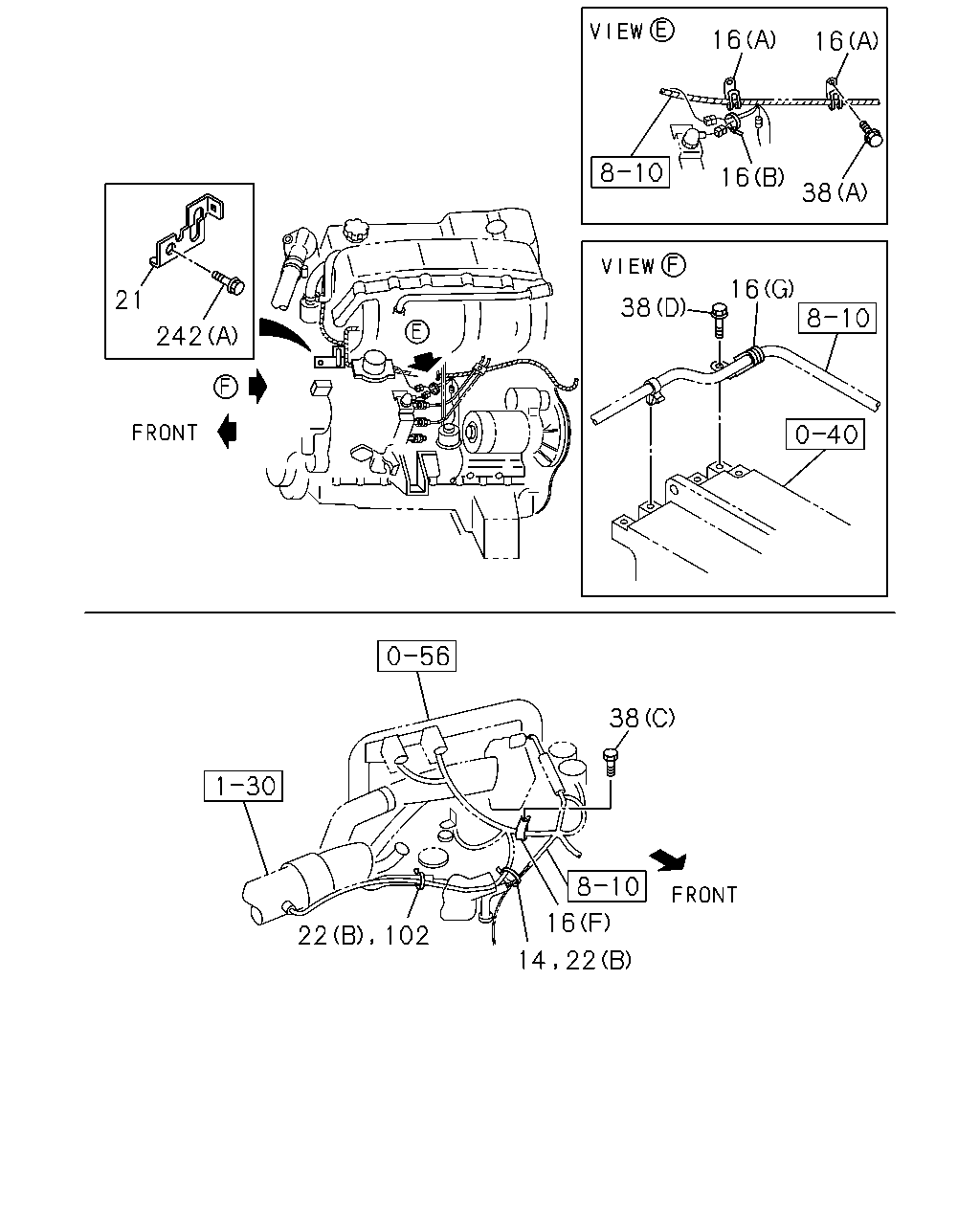

çizim 116673
16 16 16 38 16 21 38 242 38 16 22 102 14 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 CLIP; BAND,HARNESS
4JH1 ENG<RJX> L=140 THA 		8-97920-656-0 01 1 0204-0207 ● ●
14 CLIP; BAND,HARNESS
L=140 THA 		8-97920-656-0 01 1 0204-0207 ●
14 CLIP; BAND,HARNESS
4JH1 ENG<RJX> L=140 THA 		8-97920-656-0 01 1 0208-0408 ● ● ●
14 CLIP; BAND,HARNESS
L=140 THA 		8-97920-656-0 01 1 0208-0408 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0401-0408 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (A) ID=8.5 THA 		8-97912-612-0 02 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB> (H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
(H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (H) L=197 THA 		1-83574-032-0 01 1 0501-0507 ● ● ● ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (H) L=197 THA 		1-83574-032-0 01 1 0508-0606 ● ● ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 IMA 		5-09707-031-1 02 1 0409-0411 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 THA 		8-97920-656-0 02 1 0412-0412 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ●
21 BRACKET; ENG HARNESS
4JA1 ENG<RLE> THA 		8-97249-918-1 01 1 0204-0207 ● ●
21 BRACKET; ENG HARNESS
4JA1 ENG<RLE> THA 		8-97249-918-1 01 1 0208-0408 ● ● ●
21 BRACKET; ENG HARNESS
4JA1-T ENG<LP0> THA 		8-97249-918-1 01 1 0409-0412 ● ● ●

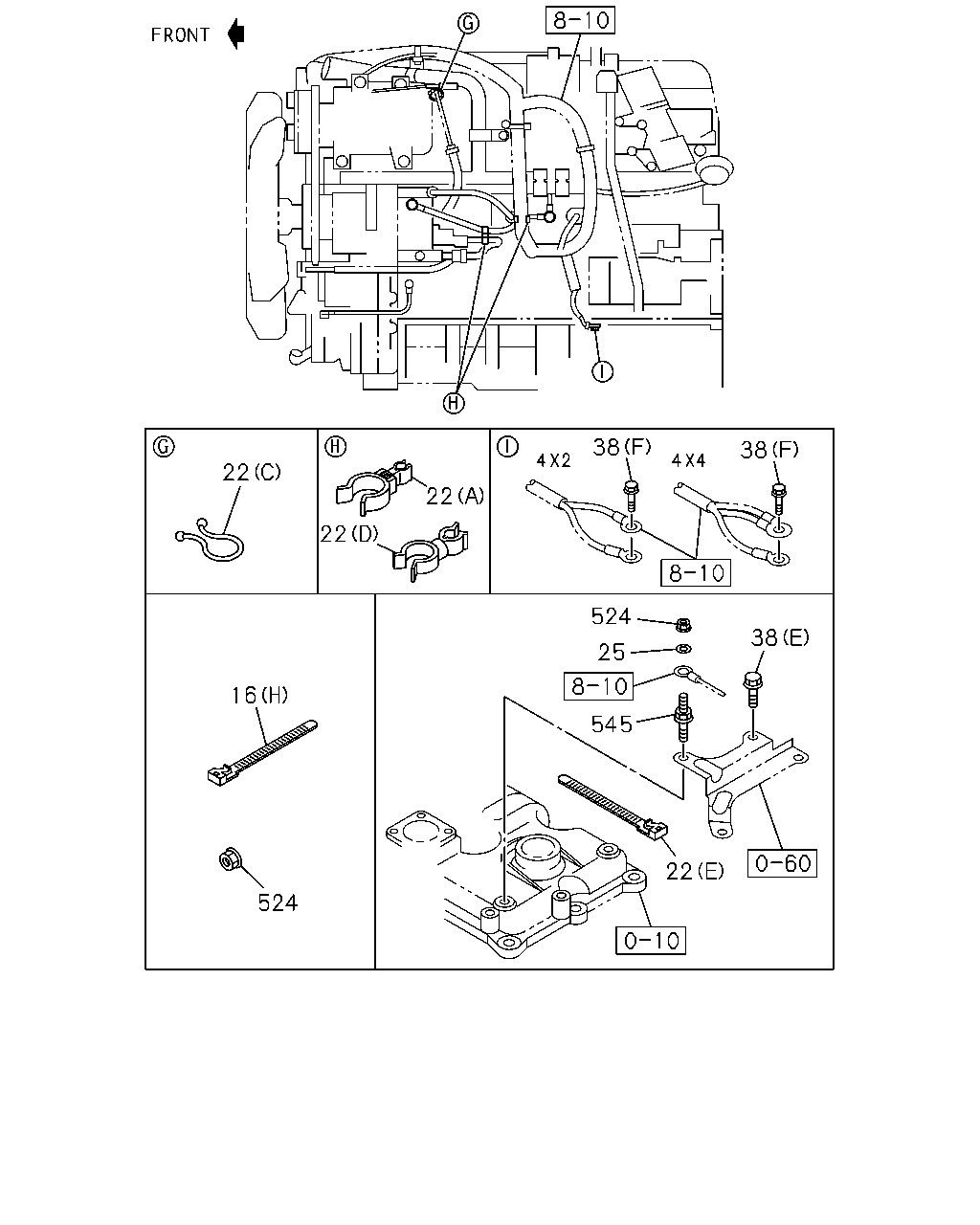

22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) L=140 THA 		8-97920-656-0 01 1 0409-0412 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (B) L=140 THA 		8-97920-656-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (B) L=140 THA 		8-97920-656-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
(C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (C) ID=15 THA 		1-09709-003-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (C) ID=15 THA 		1-09709-003-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) ID=15 THA 		1-09709-003-0 01 1 0607- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0409-0412 ● ● ● ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (E) L=158.7 THA 		8-97922-209-0 01 1 0409-0412 ● ● ● ●
22 CLIP; ENG HARNESS
(E) L=158.7 THA 		8-97922-209-0 01 1 0501-0606 ● ● ● ● ●

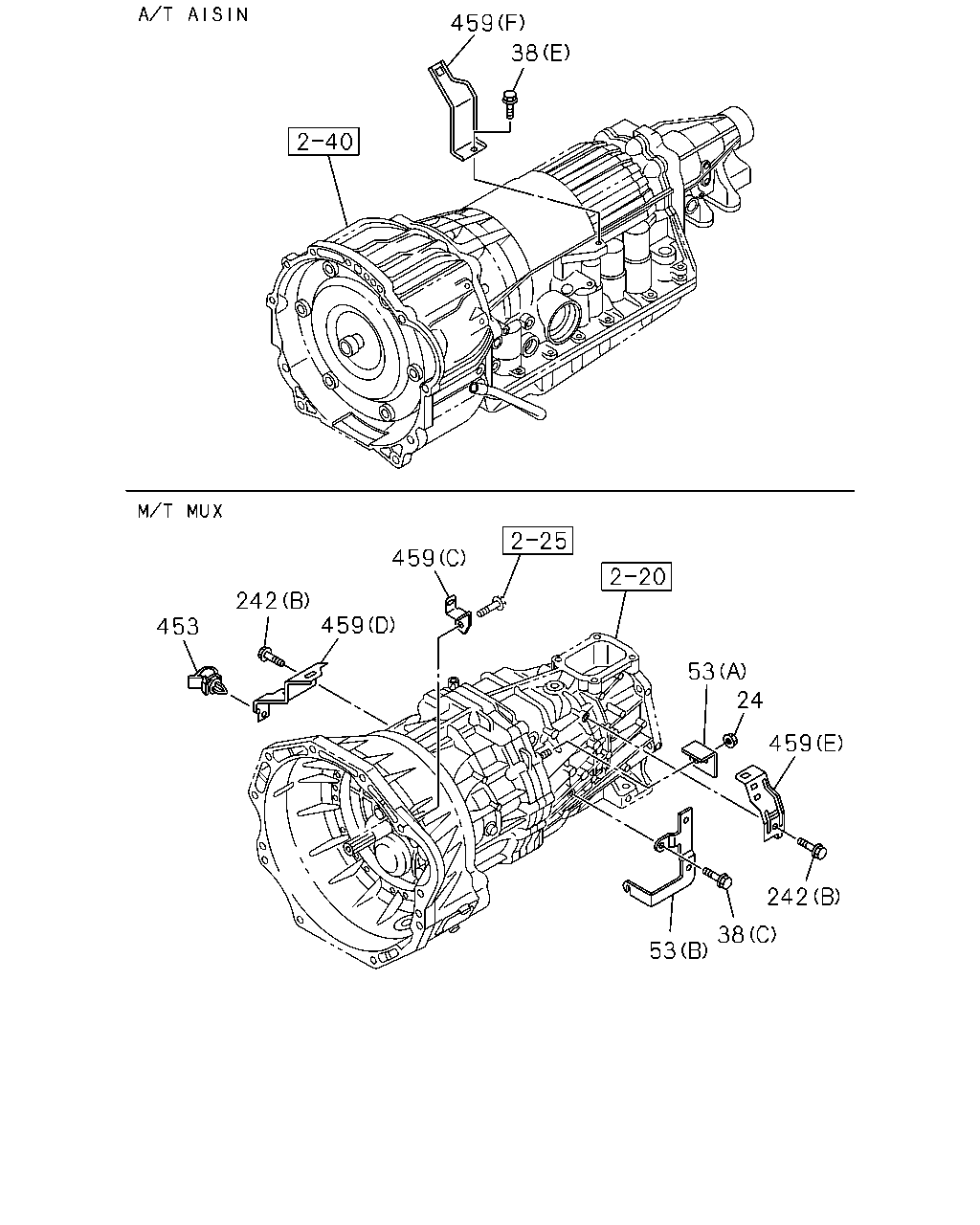

38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0409-0412 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 04 1 0409-0411 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 04 1 0412-0412 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0204-0207 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0208-0408 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ● ● ● ● ●
102 CLIP; BAND
4JH1 ENG<RJX>,4JA1 ENG<RLE> L=140 THA 		8-97920-656-0 01 1 0204-0207 ● ●
102 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 0204-0207 ●
102 CLIP; BAND
4JH1 ENG<RJX>,4JA1 ENG<RLE> L=140 THA 		8-97920-656-0 01 1 0208-0408 ● ● ●
102 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 0208-0408 ● ●
242 BOLT; BRKT,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 01 1 0204-0207 ● ●
242 BOLT; BRKT,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 01 1 0208-0408 ● ● ●
242 BOLT; BRKT,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0409-0411 ● ● ●
242 BOLT; BRKT,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0412-0412 ● ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710-0802 ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803- ● ● ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ●
çizim 116676
38 38 22 22 22 524 38 25 16 545 22 524
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (G) ID=12 B=13 ID=6.5 IMA 		5-09700-348-0 01 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0208-0312 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (B) L=140 IMA 		5-09707-031-1 01 1 0401-0408 ● ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
4JA1 ENG<RLE> (A) ID=8.5 THA 		8-97912-612-0 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (A) ID=8.5 THA 		8-97912-612-0 02 1 0409-0412 ● ● ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0204-0207 ●
16 CLIP; HARNESS
4JH1 ENG<RJX> (F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ● ●
16 CLIP; HARNESS
(F) ID=24 L=32 IMA 		1-09700-766-1 02 1 0208-0408 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB> (H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
(H) L=197 THA 		1-83574-032-0 01 1 0409-0412 ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (H) L=197 THA 		1-83574-032-0 01 1 0501-0507 ● ● ● ● ●
16 CLIP; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (H) L=197 THA 		1-83574-032-0 01 1 0508-0606 ● ● ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 IMA 		5-09707-031-1 02 1 0409-0411 ● ● ●
16 CLIP; HARNESS
4JA1-T ENG<LP0> (B) L=140 THA 		8-97920-656-0 02 1 0412-0412 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0508-0606 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0409-0507 ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0409-0507 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 05 1 0508-0606 ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0208-0209 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0409-0507 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0508-0606 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 01 1 0607- ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0204-0207 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0208-0209 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0210-0211 ● ● ● ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0212-0307 ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB>,GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ● ●
16 CLIP; HARNESS
GRADE SLX/LS<RBD> POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0308-0408 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ● ●
16 CLIP; HARNESS
GRADE SX<RBB> AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0409-0507 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0508-0606 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW<A31> (E) L=155 THA 		8-97173-307-0 03 1 0607- ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 03 1 0607- ● ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(C) L=135 IMA 		8-94473-399-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(D) L=60 H=10.9 THA 		8-97128-114-0 02 1 0208-0209 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0204-0207 ●
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ● ● ●
16 CLIP; HARNESS
(E) L=155 THA 		8-97173-307-0 06 1 0208-0209 ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) L=140 THA 		8-97920-656-0 01 1 0409-0412 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (B) L=140 THA 		8-97920-656-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (B) L=140 THA 		8-97920-656-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) L=140 THA 		8-97920-656-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
(C) ID=15 THA 		1-09709-003-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (C) ID=15 THA 		1-09709-003-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (C) ID=15 THA 		1-09709-003-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) ID=15 THA 		1-09709-003-0 01 1 0607- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
(D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0409-0412 ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (D) ID=6 & 8.3 IMA 		8-94167-742-0 01 1 0501-0507 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0508-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (D) ID=6 & 10 IMA 		8-94154-844-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0409-0412 ● ● ● ●
22 CLIP; ENG HARNESS
(A) ID=20 & 16.5 IMA 		8-94486-835-0 01 1 0501-0606 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0607-0608 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0609-0708 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0709-0709 ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (A) ID=10 & 11 IMA 		8-94438-996-0 01 1 0710- ● ● ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCS ENG<LFB> (E) L=158.7 THA 		8-97922-209-0 01 1 0409-0412 ● ● ● ●
22 CLIP; ENG HARNESS
(E) L=158.7 THA 		8-97922-209-0 01 1 0501-0606 ● ● ● ● ●
25 WASHER; PL,ENG HARNESS
4JJ1-TCS ENG<LFB> ID=8.4 THA 		9-09164-508-0 01 1 0409-0412 ● ●
25 WASHER; PL,ENG HARNESS
ID=8.4 THA 		9-09164-508-0 01 1 0409-0412 ● ●
25 WASHER; PL,ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> ID=8.4 THA 		9-09164-508-0 01 1 0501-0507 ● ● ● ● ●
25 WASHER; PL,ENG HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> ID=8.4 THA 		9-09164-508-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0409-0412 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 04 1 0409-0411 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 04 1 0412-0412 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0204-0207 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0208-0408 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB> M8 FLANGE THA 		0-91180-108-0 02 1 0409-0412 ● ●
524 NUT; HARNESS
M8 FLANGE THA 		0-91180-108-0 02 1 0409-0412 ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> M8 FLANGE THA 		0-91180-108-0 02 1 0501-0507 ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA 		0-91180-108-0 02 1 0508-0606 ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-108-0 01 1 0607-0608 ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-108-0 01 1 0609-0708 ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-108-0 01 1 0709-0709 ● ● ● ● ●
524 NUT; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M8 FLANGE THA 		0-91180-108-0 01 1 0710- ● ● ● ● ●
545 STUD; HARNESS
4JJ1-TCS ENG<LFB> M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0409-0412 ● ●
545 STUD; HARNESS
M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0409-0412 ● ●
545 STUD; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> M8X15 M8X17 L=40 THA 		8-97366-633-0 01 1 0501-0507 ● ● ● ● ●
545 STUD; HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> M8X15 M8X17 L=40 THA 		8-97945-023-0 01 1 0508-0606 ● ● ● ● ●
çizim 116678
459 38 459 242 459 453 53 24 459 242 38 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 NUT; HARNESS
M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-206-0 01 1 0710-0802 ● ●
24 NUT; HARNESS
M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-206-0 01 1 0803- ● ● ● ●
24 NUT; HARNESS
M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA 		0-91180-206-0 01 1 0609-0708 ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (D) M6X10 FLANGE THA 		0-28050-610-0 01 1 0409-0412 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0207 ●
38 BOLT; CLIP,HARNESS
4JH1 ENG<RJX> (C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0208-0408 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (F) M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 04 1 0409-0411 ● ● ●
38 BOLT; CLIP,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 04 1 0412-0412 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0204-0207 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 01 1 0208-0408 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M6X16 FLANGE THA 		0-28650-616-0 05 1 0409- ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> EURO3 SPECIFICATION<NT3> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0507 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK>, M/T MUA 5 SPEED 5G<RSP> (E) M8X20 FLANGE THA 		0-28650-820-0 01 1 0508-0606 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0607-0608 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0709-0709 ● ● ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710- ● ● ● ● ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97944-510-1 01 1 0710-0802 ● ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97944-510-1 01 1 0803- ● ● ● ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-511-1 01 1 0710-0802 ● ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-511-1 01 1 0803- ● ● ● ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-97944-510-1 01 1 0609-0708 ●
53 BRACKET; HARNESS
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-97944-511-1 01 1 0609-0708 ●
242 BOLT; BRKT,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 01 1 0204-0207 ● ●
242 BOLT; BRKT,HARNESS
4JA1 ENG<RLE> (A) M8X12 FLANGE THA 		0-28080-812-0 01 1 0208-0408 ● ● ●
242 BOLT; BRKT,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28080-812-0 02 1 0409-0411 ● ● ●
242 BOLT; BRKT,HARNESS
4JA1-T ENG<LP0> (A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0412-0412 ● ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0710-0802 ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0803- ● ● ● ●
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0609-0708 ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 0710-0802 ● ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 0803- ● ● ● ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-94315-284-0 01 1 0204-0207 ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA 		8-94315-284-0 01 1 0208-0408 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0409-0412 ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
(A) THA 		8-94315-284-0 01 1 0409-0412 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-94315-284-0 01 1 0501-0606 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-94315-284-0 01 1 0607-0608 ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98050-882-0 01 1 0609- ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0204-0207 ● ●
459 BRACKET; SUPPORT,HARNESS
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0208-0408 ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97307-524-1 01 1 0409- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA 		8-98050-720-0 01 1 0710- ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0710-0802 ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0803- ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> A/T AISIN<RMD> (F) THA 		8-98050-720-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-97382-804-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98035-740-0 01 1 0609-0708 ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98035-741-0 01 1 0609-0708 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
