8-05 — INTERIOR LAMP (#73866) — 67 parça

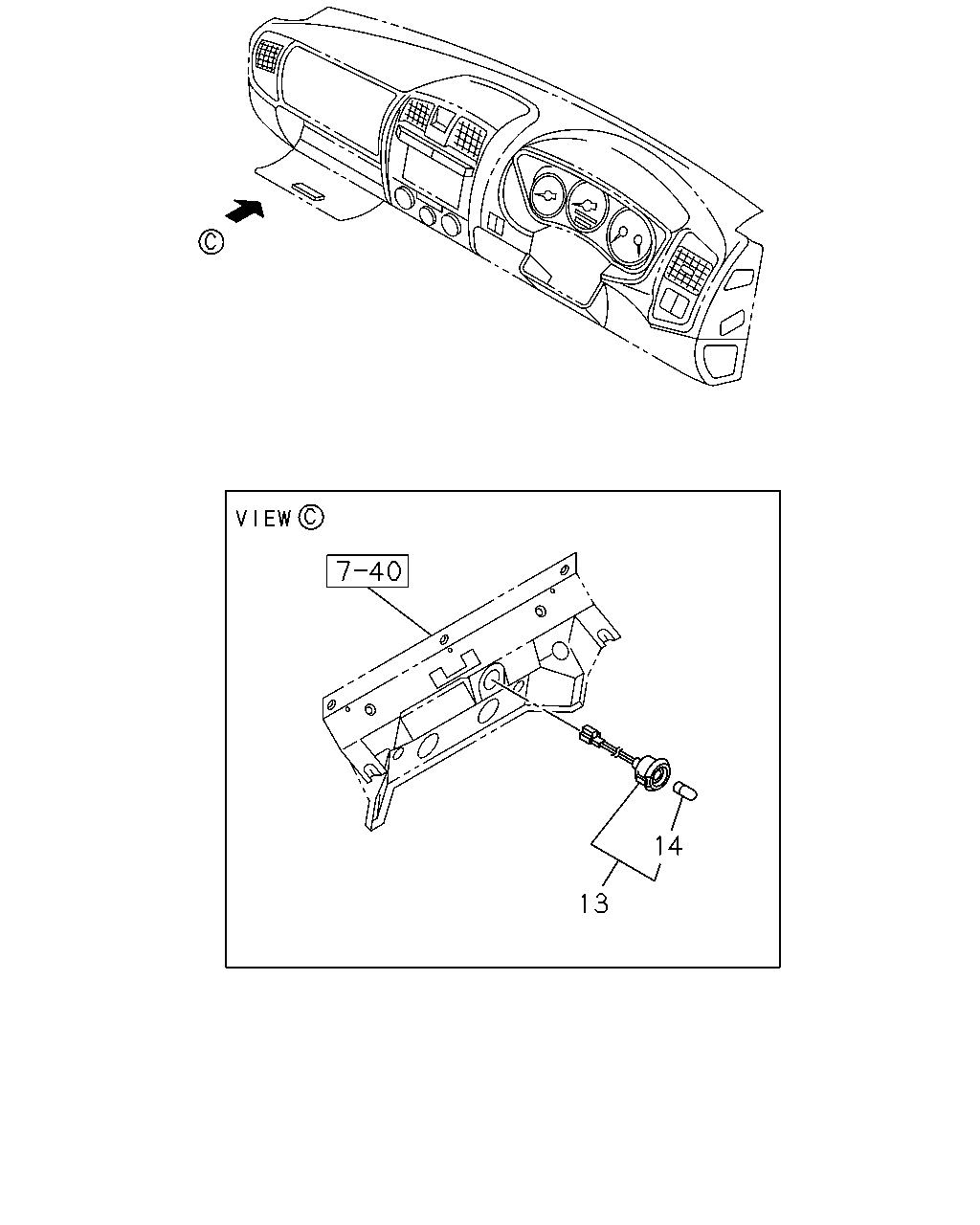

14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	LAMP ASM; GLOVE BOX LAMP GLOVE BOX<U27> THA	8-97302-698-1	01	1	0204-0207	●	●
13	LAMP ASM; GLOVE BOX LAMP GLOVE BOX<U27> THA	8-97302-698-1	01	1	0208-0302	●	●	●
13	LAMP ASM; GLOVE BOX THA	8-97302-698-1	01	1	0208-0302				●
13	LAMP ASM; GLOVE BOX LAMP GLOVE BOX<U27> THA	8-97363-727-0	01	1	0303-	●	●	●
13	LAMP ASM; GLOVE BOX THA	8-97363-727-0	01	1	0303-				●
14	BULB; GLOVE BOX LAMP LAMP GLOVE BOX<U27> 12V 1.2W THA	8-97352-272-0	01	1	0204-0207	●	●
14	BULB; GLOVE BOX LAMP LAMP GLOVE BOX<U27> 12V 1.2W THA	8-97352-272-0	01	1	0208-	●	●	●
14	BULB; GLOVE BOX LAMP 12V 1.2W THA	8-97352-272-0	01	1	0208-				●

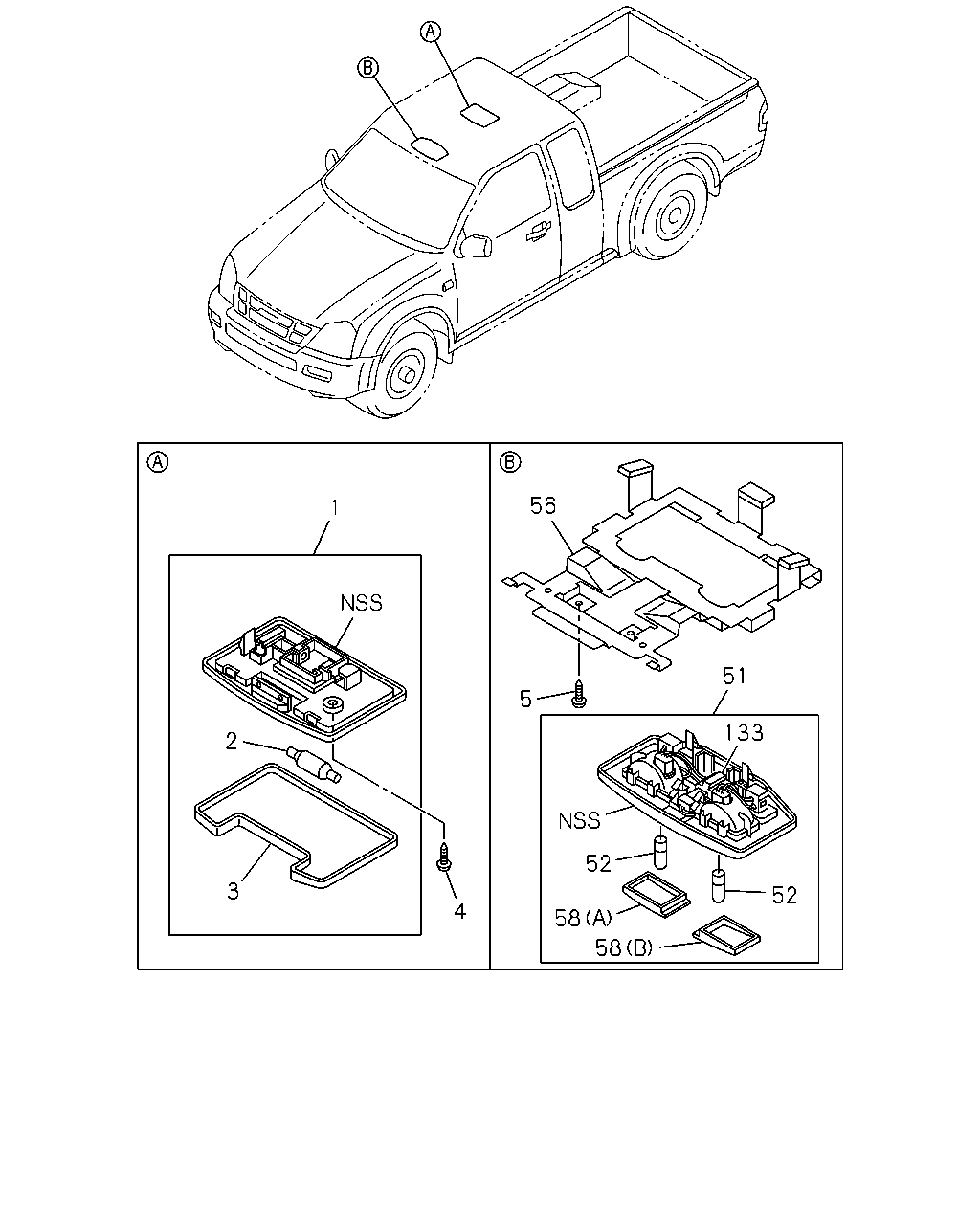

56 1 51 5 133 2 52 3 52 4 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; ROOM INTERIOR COLOR BLACK<101> BLACK THA	8-97418-484-0	01	1	1010-	●	●	●	●
1	LAMP ASM; ROOM INTERIOR COLOR BLACK<101> BLACK THA	8-97418-484-0	01	1	1002-1008	●	●	●	●
1	LAMP ASM; ROOM INTERIOR COLOR BEIGE<184> BEIGE THA	8-97418-278-0	01	1	0909-1001			●
1	LAMP ASM; ROOM BEIGE THA	8-97418-278-0	01	1	0909-1001				●
1	LAMP ASM; ROOM INTERIOR COLOR BEIGE<184> BEIGE THA	8-97418-278-0	01	1	1002-			●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97294-070-2	01	1	0204-0207	●	●			●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97294-070-2	01	1	0208-0606	●	●	●	●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97403-891-2	01	1	0607-0612	●	●	●	●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97411-439-0	01	1	0701-0908	●	●	●	●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97411-439-0	01	1	0909-1001	●	●			●
1	LAMP ASM; ROOM INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA	8-97411-439-0	01	1	0909-1001			●
1	LAMP ASM; ROOM INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA	8-97411-439-0	01	1	1002-	●	●	●
1	LAMP ASM; ROOM LIGHT GRAY THA	8-97411-439-0	01	1	1002-					●
2	BULB; ROOM LAMP 12V 10W THA	8-97128-771-0	01	1	0204-0207	●	●			●
2	BULB; ROOM LAMP 12V 10W THA	8-97128-771-0	01	1	0208-	●	●	●	●	●
3	LENS; ROOM LAMP THA	8-97333-429-0	01	1	0204-0207	●	●			●
3	LENS; ROOM LAMP THA	8-97333-429-0	01	1	0208-	●	●	●	●	●
4	SCREW; ROOM LAMP M5X12 TAPPING THA	9-07066-512-0	02	1	0204-0207	●	●			●
4	SCREW; ROOM LAMP M5X12 TAPPING THA	9-07066-512-0	02	1	0208-0604	●	●	●	●	●
4	SCREW; ROOM LAMP M5X12 TAPPING IMA	0-71040-512-0	02	1	0605-	●	●	●	●	●
5	SCREW; SPOT LAMP MAP LAMP<UF3> M5X12 THA	8-94120-094-0	02	1	0204-0207	●	●
5	SCREW; SPOT LAMP MAP LAMP<UF3> M5X12 THA	8-94120-094-0	02	1	0208-0408	●	●	●
5	SCREW; SPOT LAMP M5X12 THA	8-94120-094-0	02	1	0208-0408				●
5	SCREW; SPOT LAMP MAP LAMP<C74> M5X12 THA	8-94120-094-0	02	1	0409-0507	●	●	●
5	SCREW; SPOT LAMP M5X12 THA	8-94120-094-0	02	1	0409-0507				●
51	LAMP ASM; SPOT MAP LAMP<UF3> LIGHT GRAY THA	8-97294-071-3	01	1	0204-0207	●	●
51	LAMP ASM; SPOT MAP LAMP<UF3> LIGHT GRAY THA	8-97294-071-3	01	1	0208-0211	●	●	●
51	LAMP ASM; SPOT LIGHT GRAY THA	8-97294-071-3	01	1	0208-0211				●
51	LAMP ASM; SPOT MAP LAMP<UF3> LIGHT GRAY THA	8-97396-084-0	01	1	0212-0408	●	●	●
51	LAMP ASM; SPOT LIGHT GRAY THA	8-97396-084-0	01	1	0212-0408				●
51	LAMP ASM; SPOT MAP LAMP<C74> LIGHT GRAY THA	8-97396-084-0	01	1	0409-0507	●	●	●
51	LAMP ASM; SPOT LIGHT GRAY THA	8-97396-084-0	01	1	0409-0507				●
52	BULB; SPOT LAMP MAP LAMP<UF3> 12V 5W THA	8-94124-595-0	02	1	0204-0207	●	●
52	BULB; SPOT LAMP MAP LAMP<UF3> 12V 5W THA	8-94124-595-0	02	1	0208-0408	●	●	●
52	BULB; SPOT LAMP 12V 5W THA	8-94124-595-0	02	1	0208-0408				●
52	BULB; SPOT LAMP MAP LAMP<C74> 12V 5W THA	8-94124-595-0	02	1	0409-0507	●	●	●
52	BULB; SPOT LAMP 12V 5W THA	8-94124-595-0	02	1	0409-0507				●
56	BRACKET; LAMP MAP LAMP<UF3> THA	8-97236-839-5	01	1	0204-0207	●	●
56	BRACKET; LAMP MAP LAMP<UF3> THA	8-97236-839-5	01	1	0208-0408	●	●	●
56	BRACKET; LAMP THA	8-97236-839-5	01	1	0208-0408				●
56	BRACKET; LAMP MAP LAMP<C74> THA	8-97236-839-5	01	1	0409-0412	●	●	●
56	BRACKET; LAMP THA	8-97236-839-5	01	1	0409-0412				●
56	BRACKET; LAMP MAP LAMP<C74> THA	8-97385-493-0	01	1	0501-0507	●	●	●
56	BRACKET; LAMP THA	8-97385-493-0	01	1	0501-0507				●
58	LENS; SPOT LAMP MAP LAMP<UF3> (A) THA	8-97333-440-0	01	1	0204-0207	●	●
58	LENS; SPOT LAMP MAP LAMP<UF3> (A) THA	8-97333-440-0	01	1	0208-0408	●	●	●
58	LENS; SPOT LAMP (A) THA	8-97333-440-0	01	1	0208-0408				●
58	LENS; SPOT LAMP MAP LAMP<C74> (A) THA	8-97333-440-0	01	1	0409-0507	●	●	●
58	LENS; SPOT LAMP (A) THA	8-97333-440-0	01	1	0409-0507				●
58	LENS; SPOT LAMP MAP LAMP<UF3> (B) THA	8-97333-441-0	01	1	0204-0207	●	●
58	LENS; SPOT LAMP MAP LAMP<UF3> (B) THA	8-97333-441-0	01	1	0208-0408	●	●	●
58	LENS; SPOT LAMP (B) THA	8-97333-441-0	01	1	0208-0408				●
58	LENS; SPOT LAMP MAP LAMP<C74> (B) THA	8-97333-441-0	01	1	0409-0507	●	●	●
58	LENS; SPOT LAMP (B) THA	8-97333-441-0	01	1	0409-0507				●
133	SOCKET ASM; SPOT LAMP MAP LAMP<UF3> THA	8-97176-526-0	01	1	0204-0207	●	●
133	SOCKET ASM; SPOT LAMP MAP LAMP<UF3> THA	8-97176-526-0	01	1	0208-0408	●	●	●
133	SOCKET ASM; SPOT LAMP THA	8-97176-526-0	01	1	0208-0408				●
133	SOCKET ASM; SPOT LAMP MAP LAMP<C74> THA	8-97176-526-0	01	1	0409-0507	●	●	●
133	SOCKET ASM; SPOT LAMP THA	8-97176-526-0	01	1	0409-0507				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
