Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#73865) — 221 parça

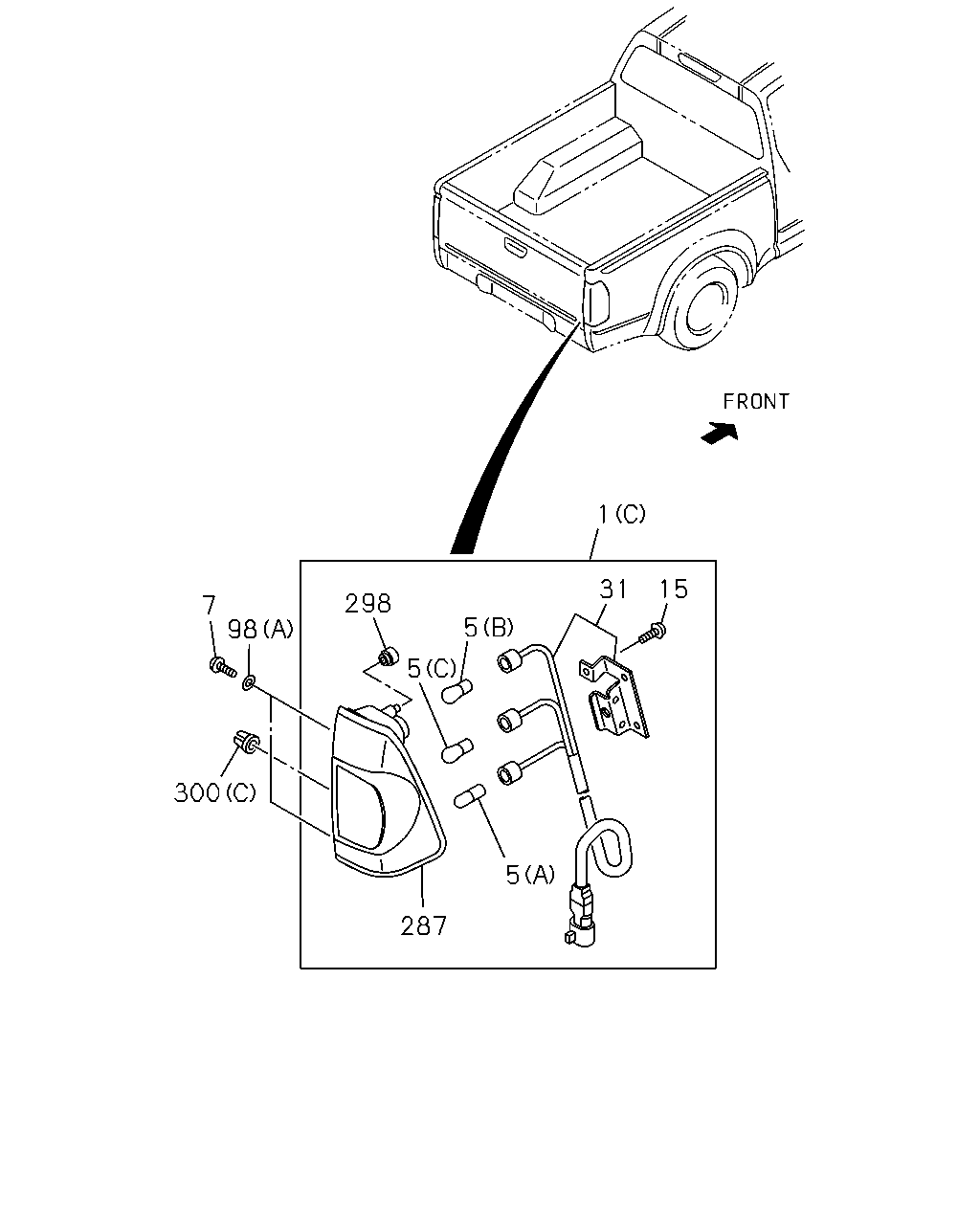

1 31 15 298 7 5 98 5 300 5 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-750-2	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-750-2	01	1	0208-0210	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97360-144-0	01	1	0211-0302	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97364-115-0	01	1	0303-0306	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97368-095-0	01	1	0307-0408	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-97368-095-0	01	1	0409-0508	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-360-0	01	1	0509-0606	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-360-0	01	1	0607-		●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-749-2	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-749-2	01	1	0208-0210	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97360-143-0	01	1	0211-0302	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97364-114-0	01	1	0303-0306	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97368-094-0	01	1	0307-0408	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-97368-094-0	01	1	0409-0508	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-359-0	01	1	0509-0606	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-359-0	01	1	0607-		●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-732-0	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-732-0	01	1	0208-0408	●	●	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-731-0	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-731-0	01	1	0208-0408	●	●	●	●	●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (C) THA	8-97375-607-2	01	1	0607-	●			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA> (C) THA	8-97375-607-2	01	1	0607-			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (C) THA	8-97375-606-2	01	1	0607-	●			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA> (C) THA	8-97375-606-2	01	1	0607-			●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-97374-666-2	01	1	0607-0802	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-98098-587-0	01	1	0803-	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-97374-665-2	01	1	0607-0802	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-98098-586-0	01	1	0803-	●		●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0409-	●	●	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 21W THA	8-94124-074-0	02	1	0409-0606	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 21W THA	8-94124-074-0	02	1	0607-		●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (C) 12V 21W THA	8-97179-967-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (C) 12V 21W THA	8-97179-967-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (C) 12V 21W THA	8-97179-967-0	02	1	0409-	●	●	●	●	●
5	BULB; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	04	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	04	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 18W THA	8-94372-897-0	02	1	0607-	●		●	●	●
7	SCREW; RR COMB LAMP RR COMB LAMP VERTICAL<T98> M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0204-0207	●	●	●
7	SCREW; RR COMB LAMP RR COMB LAMP VERTICAL<T98> M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0208-0408	●	●	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0409-0606	●	●	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	0607-	●	●	●	●	●
15	SCREW; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	0204-0207	●	●	●
15	SCREW; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	0208-0408	●	●	●	●	●
31	BRACKET; RR COMB LAMP THA	8-98012-764-0	01	1	0607-	●		●	●	●
31	BRACKET; RR COMB LAMP THA	8-98012-765-0	01	1	0607-	●		●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0204-0207	●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0208-0408	●	●	●	●	●
98	WASHER (A) D=16 THA	8-94427-941-0	04	1	0409-	●	●	●	●	●
98	WASHER (B) THA	8-94279-039-0	02	1	0409-	●		●	●	●
287	LAMP UNIT; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> THA	8-98012-760-0	01	1	0607-	●			●
287	LAMP UNIT; RR COMB GRADE EXL/EX/SL/S<RBA> THA	8-98012-760-0	01	1	0607-			●
287	LAMP UNIT; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> THA	8-98012-759-0	01	1	0607-	●			●
287	LAMP UNIT; RR COMB GRADE EXL/EX/SL/S<RBA> THA	8-98012-759-0	01	1	0607-			●
287	LAMP UNIT; RR COMB GRADE SLX/LS<RBD> THA	8-98012-758-0	01	1	0607-	●		●	●	●
287	LAMP UNIT; RR COMB GRADE SLX/LS<RBD> THA	8-98012-757-0	01	1	0607-	●		●	●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	0607-	●		●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (A) THA	8-97305-675-0	02	1	0204-0207	●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (A) THA	8-97305-675-0	02	1	0208-0408	●	●	●	●	●
300	HOLDER; LAMP (A) THA	8-97305-675-0	02	1	0409-0606	●	●	●	●	●
300	HOLDER; LAMP (A) THA	8-97305-675-0	02	1	0607-		●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (B) THA	8-97305-676-0	02	1	0204-0207	●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (B) THA	8-97305-676-0	02	1	0208-0408	●	●	●	●	●
300	HOLDER; LAMP (B) THA	8-97305-676-0	02	1	0409-0606	●	●	●	●	●
300	HOLDER; LAMP (B) THA	8-97305-676-0	02	1	0607-		●
300	HOLDER; LAMP (C) THA	8-97372-854-0	02	1	0607-	●		●	●	●

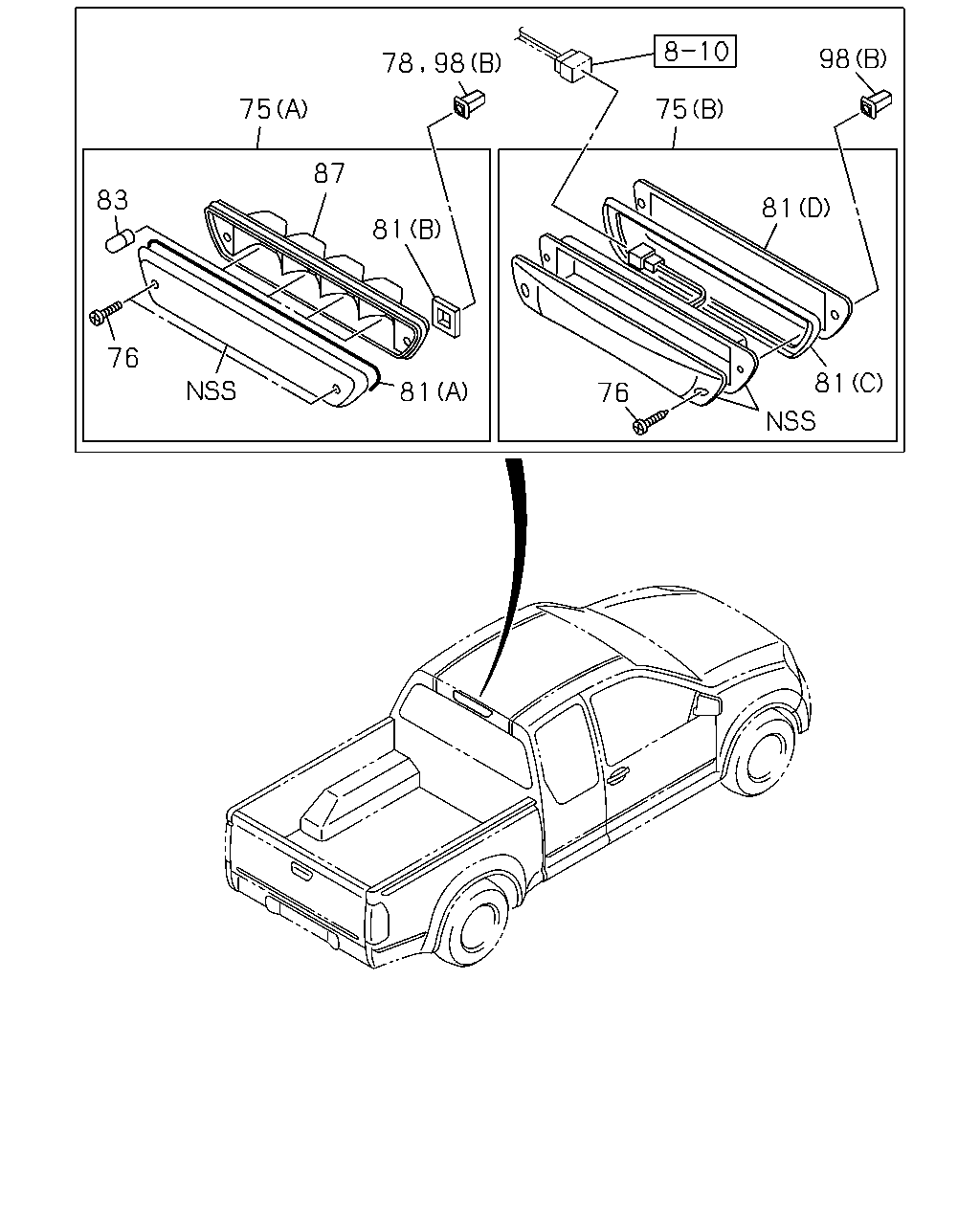

98 75 75 87 83 81 81 76 81 81 76 78 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
75	LAMP ASM; STOP,HIGHMOUNTED (A) THA	8-97305-674-1	01	1	0204-0207	●		●
75	LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> (A) THA	8-97305-674-1	01	1	0204-0207		●
75	LAMP ASM; STOP,HIGHMOUNTED (A) THA	8-97305-674-1	01	1	0208-0208	●		●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> (A) THA	8-97305-674-1	01	1	0208-0208		●
75	LAMP ASM; STOP,HIGHMOUNTED (A) THA	8-97305-674-1	01	1	0209-0405	●		●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED (A) THA	8-97381-629-0	01	1	0406-0708	●		●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED (B) THA	8-98052-867-2	01	1	0709-	●		●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-97333-426-0	02	1	0204-0207	●		●
76	SCREW; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> THA	8-97333-426-0	02	1	0204-0207		●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-97333-426-0	02	1	0208-0208	●		●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> THA	8-97333-426-0	02	1	0208-0208		●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-97333-426-0	02	1	0209-0708	●		●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-98095-145-0	02	1	0709-	●		●	●	●
78	GROMMET; STOP LAMP THA	8-94279-039-0	02	1	0204-0207	●		●
78	GROMMET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> THA	8-94279-039-0	02	1	0204-0207		●
78	GROMMET; STOP LAMP THA	8-94279-039-0	02	1	0208-0208	●		●	●	●
78	GROMMET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> THA	8-94279-039-0	02	1	0208-0208		●
78	GROMMET; STOP LAMP THA	8-94279-039-0	02	1	0209-0408	●		●	●	●
81	GASKET; STOP LAMP (A) THA	8-97333-427-0	01	1	0204-0207	●		●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (A) THA	8-97333-427-0	01	1	0204-0207		●
81	GASKET; STOP LAMP (A) THA	8-97333-427-0	01	1	0208-0208	●		●	●	●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (A) THA	8-97333-427-0	01	1	0208-0208		●
81	GASKET; STOP LAMP (A) THA	8-97333-427-0	01	1	0209-0708	●		●	●	●
81	GASKET; STOP LAMP (C) THA	8-98095-143-0	01	1	0709-	●		●	●	●
81	GASKET; STOP LAMP (B) THA	8-97333-428-0	01	1	0204-0207	●		●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (B) THA	8-97333-428-0	01	1	0204-0207		●
81	GASKET; STOP LAMP (B) THA	8-97333-428-0	01	1	0208-0208	●		●	●	●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (B) THA	8-97333-428-0	01	1	0208-0208		●
81	GASKET; STOP LAMP (B) THA	8-97333-428-0	01	1	0209-0708	●		●	●	●
81	GASKET; STOP LAMP (D) THA	8-98095-144-0	01	1	0709-	●		●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-97333-424-0	04	1	0204-0207	●		●
83	BULB; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> 12V 5W THA	8-97333-424-0	04	1	0204-0207		●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-97333-424-0	04	1	0208-0208	●		●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6> 12V 5W THA	8-97333-424-0	04	1	0208-0208		●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-97333-424-0	04	1	0209-0708	●		●	●	●
87	SOCKET; STOP LAMP THA	8-97333-425-0	01	1	0204-0207	●		●
87	SOCKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> THA	8-97333-425-0	01	1	0204-0207		●
87	SOCKET; STOP LAMP THA	8-97333-425-0	01	1	0208-0208	●		●	●	●
87	SOCKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> THA	8-97333-425-0	01	1	0208-0208		●
87	SOCKET; STOP LAMP THA	8-97333-425-0	01	1	0209-0708	●		●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0204-0207	●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0208-0408	●	●	●	●	●
98	WASHER (A) D=16 THA	8-94427-941-0	04	1	0409-	●	●	●	●	●
98	WASHER (B) THA	8-94279-039-0	02	1	0409-	●		●	●	●

1 5 5 9 5 15 3 6 1 5 8 7 300 5 98 5 300 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

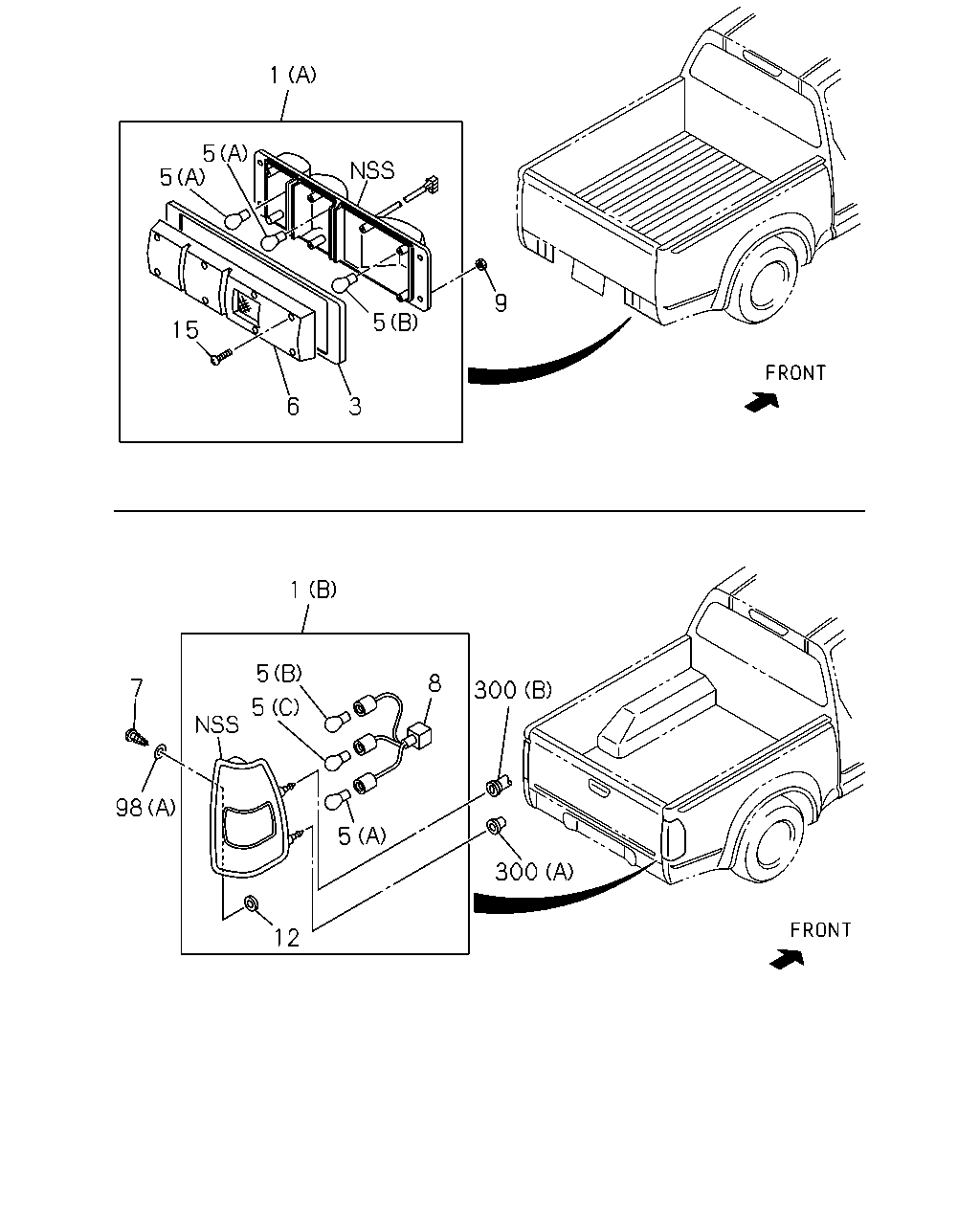

1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-750-2	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-750-2	01	1	0208-0210	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97360-144-0	01	1	0211-0302	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97364-115-0	01	1	0303-0306	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97368-095-0	01	1	0307-0408	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-97368-095-0	01	1	0409-0508	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-360-0	01	1	0509-0606	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-360-0	01	1	0607-		●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-749-2	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97234-749-2	01	1	0208-0210	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97360-143-0	01	1	0211-0302	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97364-114-0	01	1	0303-0306	●	●	●	●	●
1	LAMP ASM; RR COMB RR COMB LAMP VERTICAL<T98> (B) THA	8-97368-094-0	01	1	0307-0408	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-97368-094-0	01	1	0409-0508	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-359-0	01	1	0509-0606	●	●	●	●	●
1	LAMP ASM; RR COMB (B) THA	8-98023-359-0	01	1	0607-		●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-732-0	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-732-0	01	1	0208-0408	●	●	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-731-0	01	1	0204-0207	●	●	●
1	LAMP ASM; RR COMB EXC. RR COMB LAMP VERTICAL<T98> (A) IMA	8-97137-731-0	01	1	0208-0408	●	●	●	●	●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (C) THA	8-97375-607-2	01	1	0607-	●			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA> (C) THA	8-97375-607-2	01	1	0607-			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (C) THA	8-97375-606-2	01	1	0607-	●			●
1	LAMP ASM; RR COMB GRADE EXL/EX/SL/S<RBA> (C) THA	8-97375-606-2	01	1	0607-			●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-97374-666-2	01	1	0607-0802	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-98098-587-0	01	1	0803-	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-97374-665-2	01	1	0607-0802	●		●	●	●
1	LAMP ASM; RR COMB GRADE SLX/LS<RBD> (C) THA	8-98098-586-0	01	1	0803-	●		●	●	●
3	GASKET; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82236-002-0	01	1	0204-0207	●	●	●
3	GASKET; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82236-002-0	01	1	0208-0408	●	●	●	●	●
3	GASKET; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82236-001-0	01	1	0204-0207	●	●	●
3	GASKET; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82236-001-0	01	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W THA	8-94125-959-0	02	1	0409-	●	●	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 21W THA	8-94124-074-0	02	1	0409-0606	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 21W THA	8-94124-074-0	02	1	0607-		●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (C) 12V 21W THA	8-97179-967-0	02	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP RR COMB LAMP VERTICAL<T98> (C) 12V 21W THA	8-97179-967-0	02	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (C) 12V 21W THA	8-97179-967-0	02	1	0409-	●	●	●	●	●
5	BULB; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	04	1	0204-0207	●	●	●
5	BULB; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> (A) 12V 21W THA	8-94124-074-0	04	1	0208-0408	●	●	●	●	●
5	BULB; RR COMB LAMP (A) 12V 18W THA	8-94372-897-0	02	1	0607-	●		●	●	●
6	LENS; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82235-002-0	01	1	0204-0207	●	●	●
6	LENS; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82235-002-0	01	1	0208-0408	●	●	●	●	●
6	LENS; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82235-001-0	01	1	0204-0207	●	●	●
6	LENS; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> IMA	5-82235-001-0	01	1	0208-0408	●	●	●	●	●
7	SCREW; RR COMB LAMP RR COMB LAMP VERTICAL<T98> M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0204-0207	●	●	●
7	SCREW; RR COMB LAMP RR COMB LAMP VERTICAL<T98> M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0208-0408	●	●	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74110-514-0	04	1	0409-0606	●	●	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	0607-	●	●	●	●	●
8	HARNESS; RR COMB LAMP RR COMB LAMP VERTICAL<T98> THA	8-97333-421-0	02	1	0204-0207	●	●	●
8	HARNESS; RR COMB LAMP RR COMB LAMP VERTICAL<T98> THA	8-97333-421-0	02	1	0208-0408	●	●	●	●	●
8	HARNESS; RR COMB LAMP THA	8-97333-421-0	02	1	0409-0508	●	●	●	●	●
8	HARNESS; RR COMB LAMP THA	8-98023-361-0	02	1	0509-0606	●	●	●	●	●
8	HARNESS; RR COMB LAMP THA	8-98023-361-0	02	1	0607-		●
9	NUT; LAMP,RR COMB EXC. RR COMB LAMP VERTICAL<T98> M5 FLANGE THA	5-09440-003-0	08	1	0204-0207	●	●	●
9	NUT; LAMP,RR COMB EXC. RR COMB LAMP VERTICAL<T98> M5 FLANGE THA	5-09440-003-0	08	1	0208-0408	●	●	●	●	●
12	GROMMET; RR COMB LAMP RR COMB LAMP VERTICAL<T98> THA	8-97349-413-0	04	1	0204-0207	●	●	●
12	GROMMET; RR COMB LAMP RR COMB LAMP VERTICAL<T98> THA	8-97349-413-0	04	1	0208-0408	●	●	●	●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	04	1	0409-0507	●	●	●	●	●
15	SCREW; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	0204-0207	●	●	●
15	SCREW; RR COMB LAMP EXC. RR COMB LAMP VERTICAL<T98> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	0208-0408	●	●	●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0204-0207	●	●	●
98	WASHER RR COMB LAMP VERTICAL<T98> (A) D=16 THA	8-94427-941-0	04	1	0208-0408	●	●	●	●	●
98	WASHER (A) D=16 THA	8-94427-941-0	04	1	0409-	●	●	●	●	●
98	WASHER (B) THA	8-94279-039-0	02	1	0409-	●		●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (A) THA	8-97305-675-0	02	1	0204-0207	●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (A) THA	8-97305-675-0	02	1	0208-0408	●	●	●	●	●
300	HOLDER; LAMP (A) THA	8-97305-675-0	02	1	0409-0606	●	●	●	●	●
300	HOLDER; LAMP (A) THA	8-97305-675-0	02	1	0607-		●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (B) THA	8-97305-676-0	02	1	0204-0207	●	●	●
300	HOLDER; LAMP RR COMB LAMP VERTICAL<T98> (B) THA	8-97305-676-0	02	1	0208-0408	●	●	●	●	●
300	HOLDER; LAMP (B) THA	8-97305-676-0	02	1	0409-0606	●	●	●	●	●
300	HOLDER; LAMP (B) THA	8-97305-676-0	02	1	0607-		●
300	HOLDER; LAMP (C) THA	8-97372-854-0	02	1	0607-	●		●	●	●

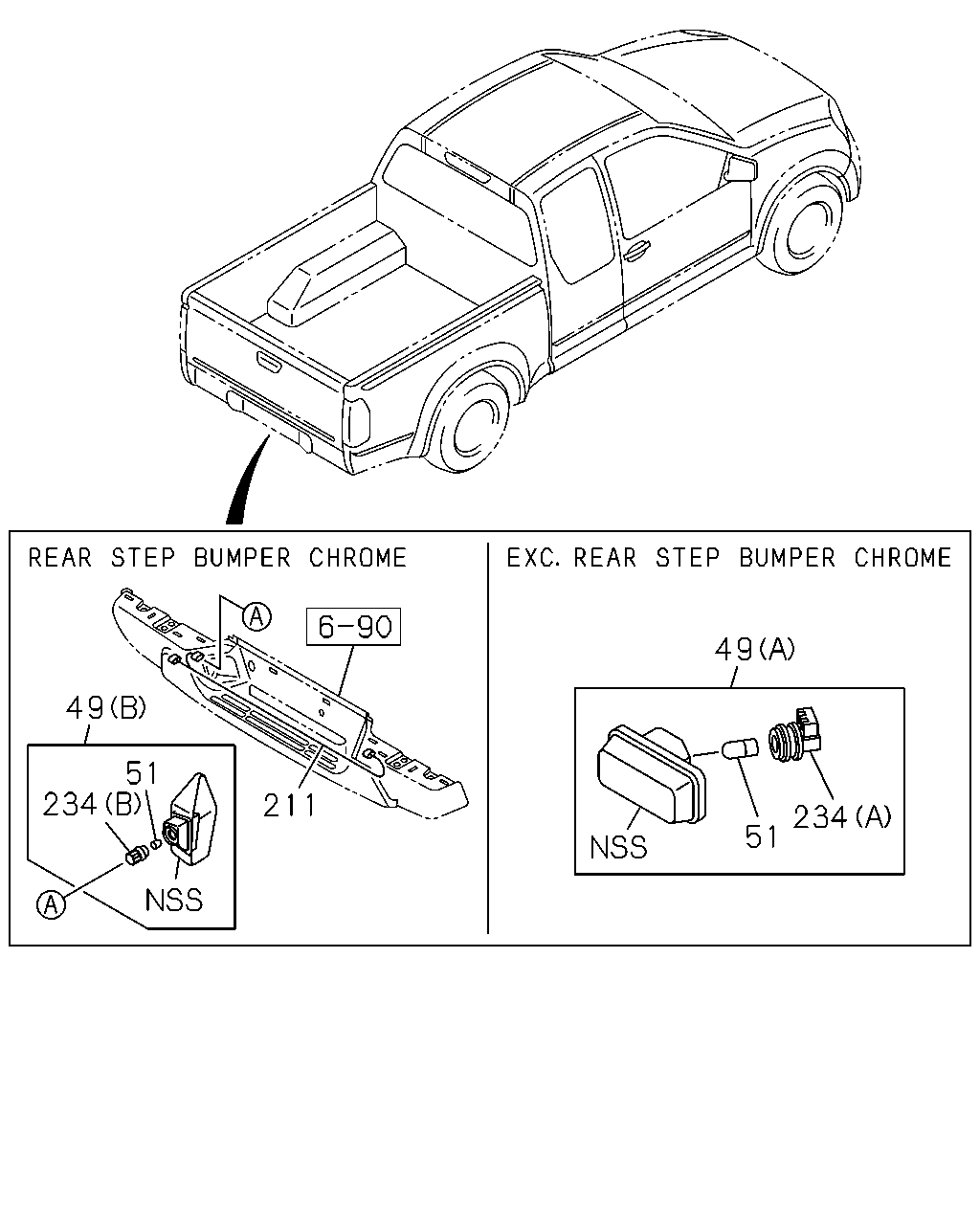

49 49 51 234 211 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
49	LAMP; LICENSE PLATE (A) THA	8-97236-690-1	01	1	0204-0207	●	●	●
49	LAMP; LICENSE PLATE (A) THA	8-97236-690-1	01	1	0208-0408	●	●	●	●	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> (A) THA	8-97236-690-1	01	1	0409-1209	●		●	●
49	LAMP; LICENSE PLATE (A) THA	8-97236-690-1	01	1	0409-1209		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> (A) THA	8-98224-482-0	01	1	1210-	●		●	●
49	LAMP; LICENSE PLATE (A) THA	8-98224-482-0	01	1	1210-		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> (B) THA	8-97357-808-0	01	1	0409-0612	●		●	●
49	LAMP; LICENSE PLATE (B) THA	8-97357-808-0	01	1	0409-0612					●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> (B) THA	8-98070-867-0	01	1	0701-	●		●	●
49	LAMP; LICENSE PLATE (B) THA	8-98070-867-0	01	1	0701-					●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> (B) THA	8-97357-807-0	01	1	0409-0612	●		●	●
49	LAMP; LICENSE PLATE (B) THA	8-97357-807-0	01	1	0409-0612					●
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42> (B) THA	8-98070-866-0	01	1	0701-	●		●	●
49	LAMP; LICENSE PLATE (B) THA	8-98070-866-0	01	1	0701-					●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	01	1	0204-0207	●	●	●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	01	1	0208-0408	●	●	●	●	●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	01	1	0409-	●		●	●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	01	1	0409-		●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	02	1	0409-	●		●	●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	02	1	0409-					●
211	HARNESS; EXT REAR STEP BUMPER CHROME<V42> THA	8-97253-465-2	01	1	0409-0606	●		●	●
211	HARNESS; EXT THA	8-97253-465-2	01	1	0409-0606					●
211	HARNESS; EXT REAR STEP BUMPER CHROME<V42> THA	8-98025-099-0	01	1	0607-	●		●	●
211	HARNESS; EXT THA	8-98025-099-0	01	1	0607-					●
234	SOCKET ASM; LICENSE PLATE LAMP (A) THA	1-82119-148-0	01	1	0204-0207	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP (A) THA	1-82119-148-0	01	1	0208-0408	●	●	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> (A) THA	1-82119-148-0	01	1	0409-	●		●	●
234	SOCKET ASM; LICENSE PLATE LAMP (A) THA	1-82119-148-0	01	1	0409-		●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42> (B) THA	8-97184-970-0	02	1	0409-	●		●	●
234	SOCKET ASM; LICENSE PLATE LAMP (B) THA	8-97184-970-0	02	1	0409-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
