◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#73864) — 996 parça

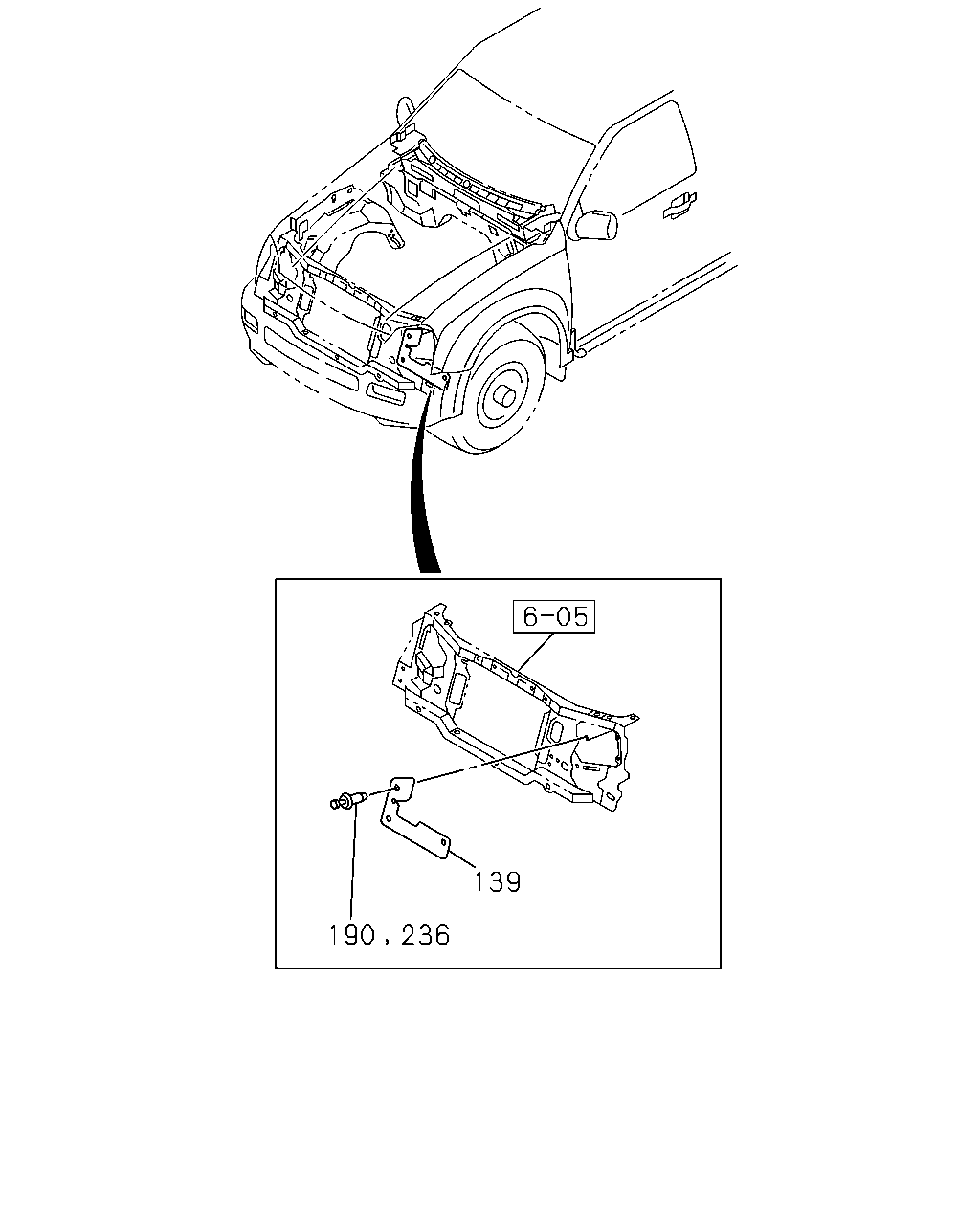

çizim 116644
139 190 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E
139 COVER; HEADLAMP
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-394-0 02 1 0205-0207 ● ●
139 COVER; HEADLAMP
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-394-0 02 1 0208-0408 ● ● ●
139 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97333-394-0 02 1 0409-0412 ● ● ● ●
139 COVER; HEADLAMP
4JA1-T ENG<LP0> THA 		8-97333-394-0 02 1 0409-0412 ● ●
139 COVER; HEADLAMP
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA 		8-97333-394-0 02 1 0409-0412 ●
139 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97333-394-0 02 1 0501-0606 ● ● ● ●
139 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-394-0 01 1 0409-0412 ● ● ● ●
139 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-394-0 01 1 0501-0507 ● ● ● ●
139 COVER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-394-0 01 1 0501-0507 ● ●
139 COVER; HEADLAMP
4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97333-394-0 01 1 0501-0507 ●
139 COVER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-394-0 01 1 0508-0606 ● ● ● ●
139 COVER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-394-0 01 1 0508-0606 ● ●
139 COVER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65> THA 		8-97333-394-0 01 1 0508-0606 ●
190 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-94279-954-0 06 1 0409-0412 ● ● ● ●
190 RETAINER; HEADLAMP
4JA1-T ENG<LP0> THA 		8-94279-954-0 06 1 0409-0412 ● ●
190 RETAINER; HEADLAMP
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA 		8-94279-954-0 06 1 0409-0412 ●
190 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-94279-954-0 06 1 0501-0606 ● ● ● ●
190 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-94279-954-0 03 1 0409-0412 ● ● ● ●
190 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-94279-954-0 03 1 0501-0507 ● ● ● ●
190 RETAINER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-94279-954-0 03 1 0501-0507 ● ●
190 RETAINER; HEADLAMP
4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-94279-954-0 03 1 0501-0507 ●
190 RETAINER; HEADLAMP
4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA 		8-94279-954-0 03 1 0508-0606 ● ● ● ●
190 RETAINER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-94279-954-0 03 1 0508-0606 ● ●
190 RETAINER; HEADLAMP
4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65> THA 		8-94279-954-0 03 1 0508-0606 ●
236 CLIP; COVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-94279-954-0 06 1 0205-0207 ● ●
236 CLIP; COVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-94279-954-0 06 1 0208-0408 ● ● ●

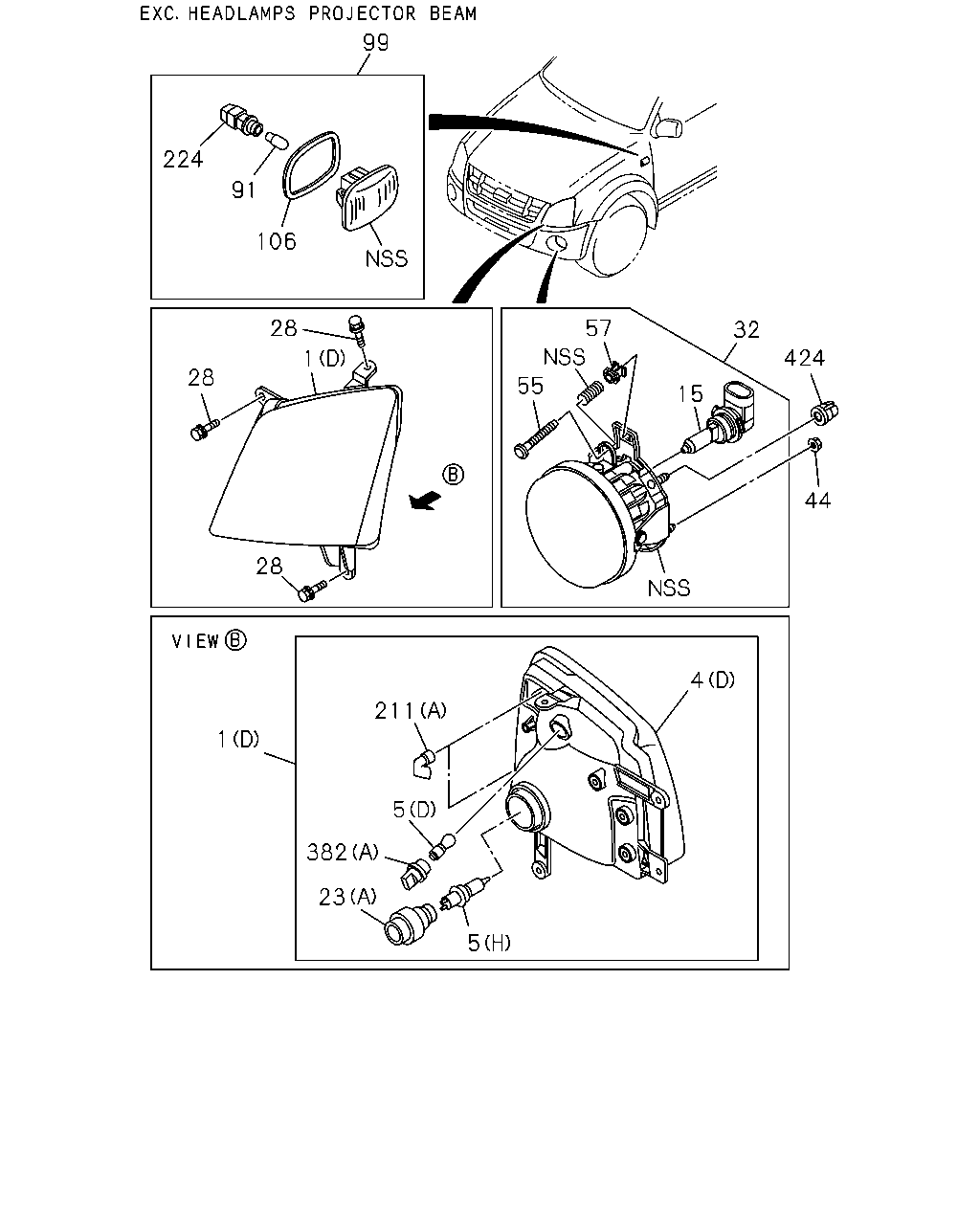

çizim 116650
99 224 91 106 28 57 32 424 1 28 55 15 44 28 4 211 1 5 382 23 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-804-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-043-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-043-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-661-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-661-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-002-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-002-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-320-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-320-0 01 1 0809- ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-803-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-042-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-042-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-660-3 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-660-3 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-001-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-001-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-319-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-319-0 01 1 0809- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-802-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-802-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-724-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-724-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-643-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-643-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-992-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-992-0 01 1 0705- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-801-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-801-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-723-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-723-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-642-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-642-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-991-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-991-0 01 1 0705- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-842-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-842-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-345-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-345-0 01 1 0809- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-841-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-841-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-344-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-344-0 01 1 0809- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-756-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-756-0 01 1 0607- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-755-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-755-0 01 1 0607- ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0409-0506 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0409-0506 ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (G) 12V 60W THA 		8-97289-997-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(G) 12V 60W THA 		8-97289-997-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (F) 12V 55W THA 		8-98011-475-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(F) 12V 55W THA 		8-98011-475-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) PHILIPS 12V 35W THA 		8-97920-254-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) STANLEY 12V 35W THA 		8-97921-486-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 21W THA 		8-97332-465-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0607- ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) 12V 35W THA 		8-97921-486-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0204-0207 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0208-0307 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0308-0507 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0308-0507 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0508-0606 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0508-0606 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W THA 		8-97286-998-0 02 1 0607- ● ● ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-97675-961-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(B) THA 		8-97675-961-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-477-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(C) THA 		8-98011-477-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0204-0207 ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0204-0207 ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0208-0408 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0208-0408 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-448-0 02 1 0409-0606 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0409-0606 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-448-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0607- ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0204-0207 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0208-0612 ● ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0701- ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0607-0904 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0204-0207 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0208-0307 ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ● ● ●
44 NUT; FOG LAMP
M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		8-97063-399-0 04 1 0607-0702 ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ● ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> THA 		8-98017-834-0 02 1 0607- ● ● ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> THA 		8-98017-835-0 02 1 0607- ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0204-0207 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0208-0507 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> 12V 5W THA 		8-97310-952-0 02 1 0508-0708 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0508-0708 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> 12V 5W THA 		8-97310-952-0 02 1 0709-0808 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0709-0808 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 12V 5W THA 		8-97310-952-0 02 1 0809- ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0809- ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0204-0207 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0208-0507 ● ● ● ● ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97237-378-1 02 1 0508-0708 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0508-0708 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97237-378-1 02 1 0709-0808 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0709-0808 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97237-378-1 02 1 0809- ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0809- ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0204-0207 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0208-0507 ● ● ● ● ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97333-420-0 02 1 0508-0708 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0508-0708 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97333-420-0 02 1 0709-0808 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0709-0808 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97333-420-0 02 1 0809- ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0809- ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0204-0207 ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0208-0307 ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0308-0606 ● ● ●
211 TUBE; HEADLAMP
(B) THA 		8-94451-175-0 02 1 0308-0606 ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0508-0606 ● ● ● ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97333-983-0 04 1 0607- ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0607- ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0204-0207 ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0208-0506 ● ● ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97333-983-0 04 1 0507-0507 ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0204-0207 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0208-0507 ● ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97310-953-0 02 1 0508-0708 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0508-0708 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97310-953-0 02 1 0709-0808 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0709-0808 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97310-953-0 02 1 0809- ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98106-751-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98106-751-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0508-0606 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-380-0 02 1 0607- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0607- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0204-0207 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0208-0506 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-380-0 02 1 0507-0507 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98012-761-0 02 1 0607-0808 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98012-761-0 02 1 0607-0808 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98012-788-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98012-788-0 02 1 0809- ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> THA 		8-97372-854-0 02 1 0607-0608 ● ● ● ●
424 RETAINER; FOG LAMP
THA 		8-97372-854-0 02 1 0607-0608 ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> THA 		8-97372-854-0 02 1 0609- ● ● ● ● ●

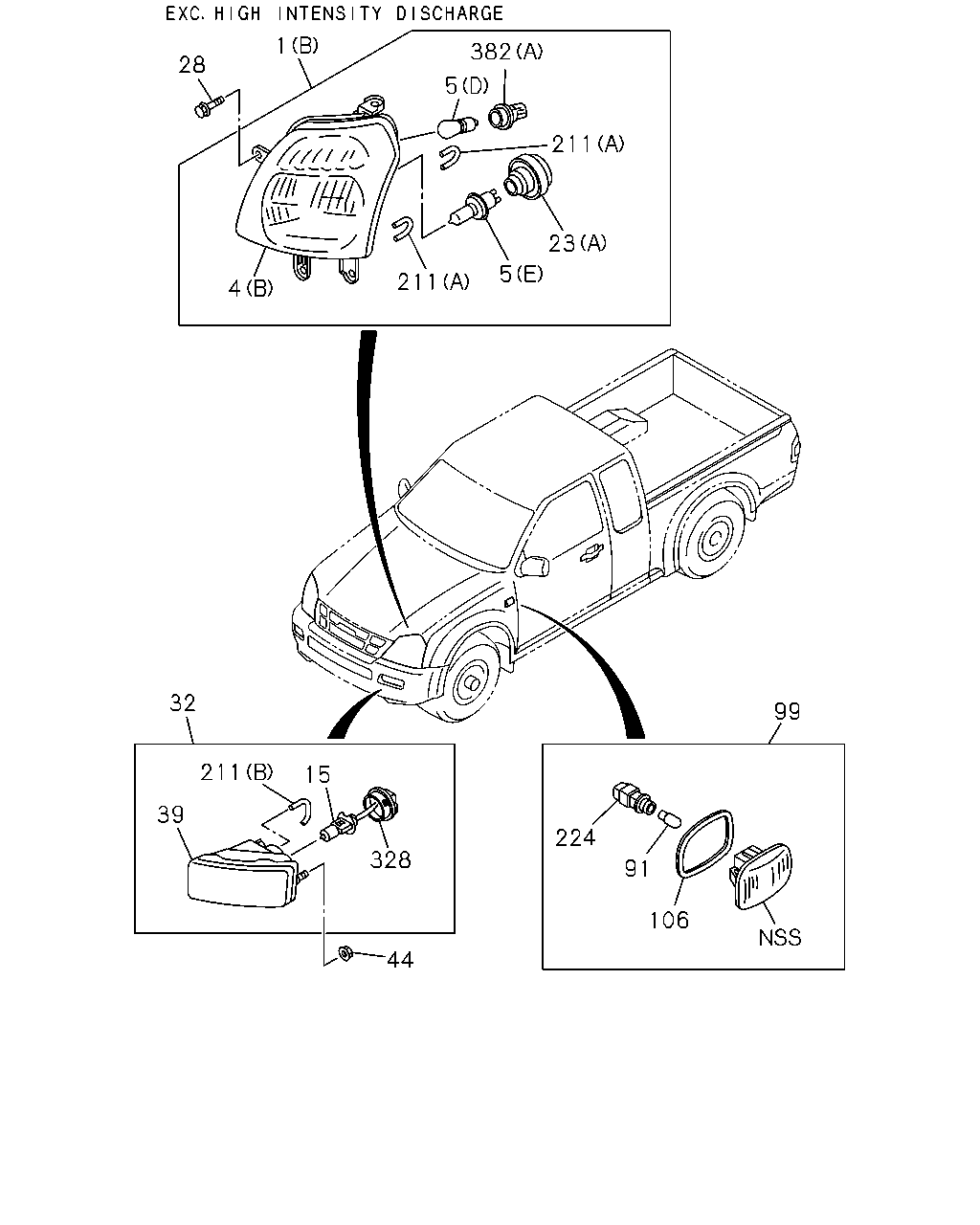

çizim 116655
1 382 28 5 211 23 5 211 4 32 99 211 15 39 224 328 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-804-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-043-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-043-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-661-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-661-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD

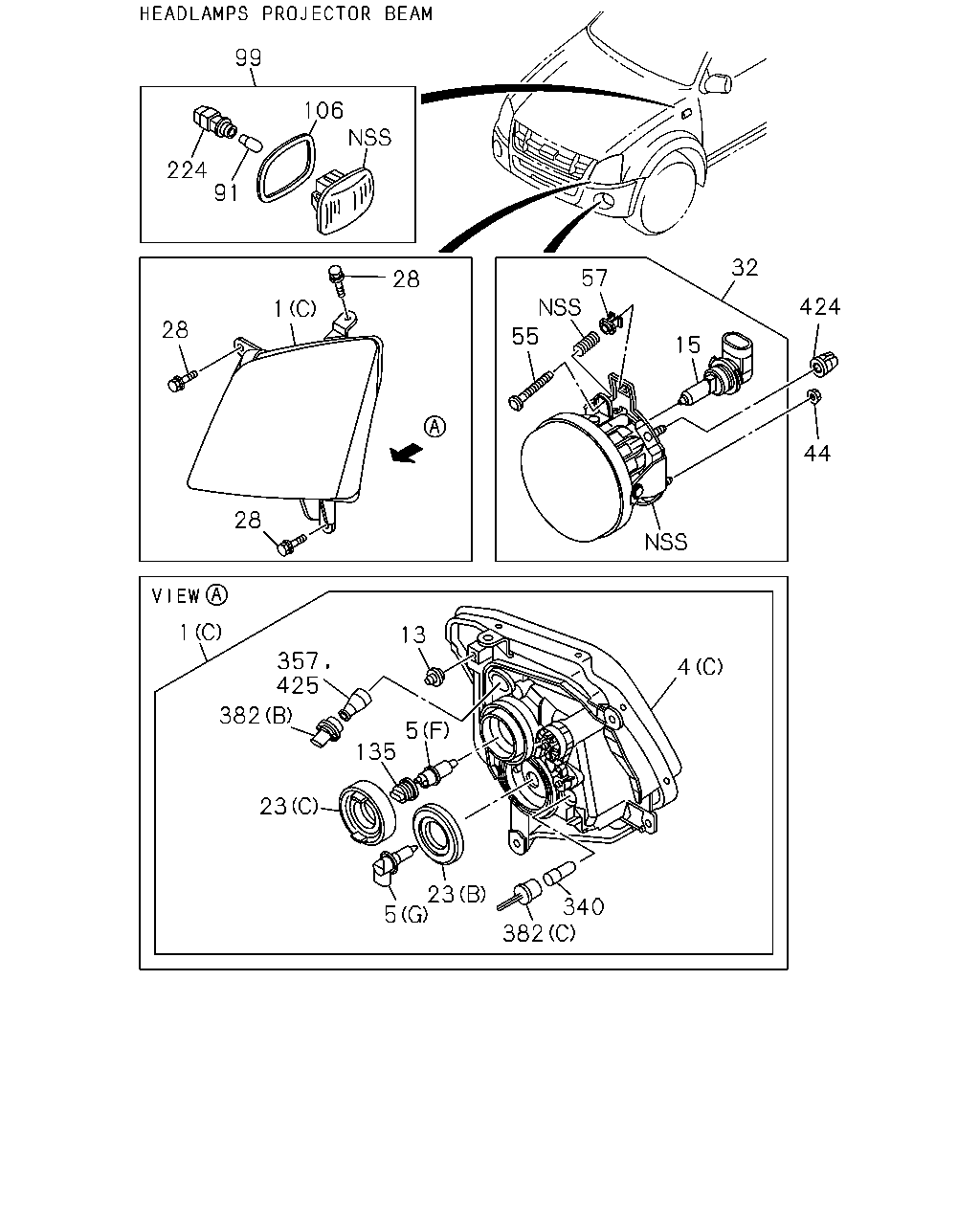

HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-002-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-002-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-320-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-320-0 01 1 0809- ●
1 LAMP ASM; HEAD

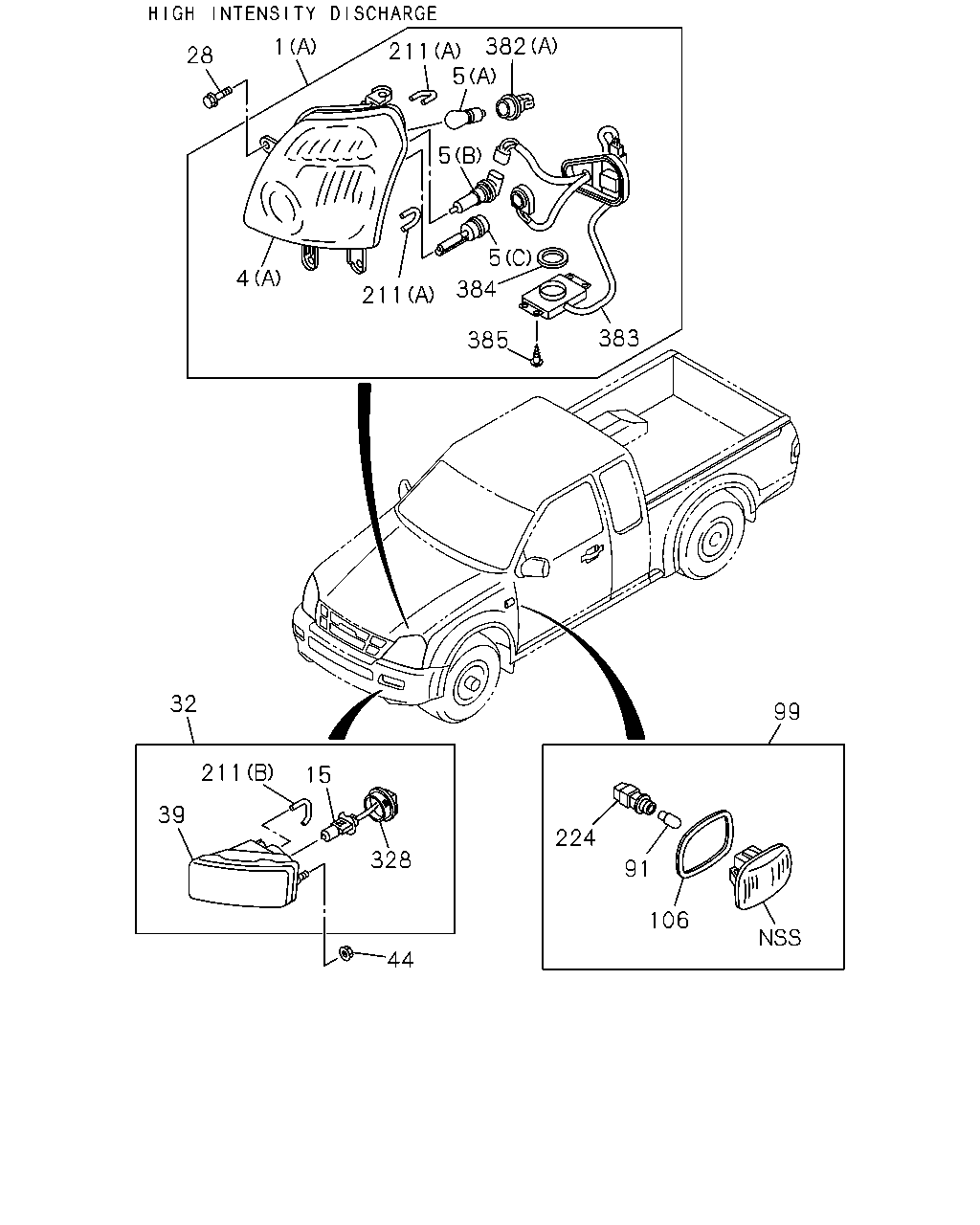

HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-803-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-042-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-042-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-660-3 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-660-3 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-001-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-001-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-319-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-319-0 01 1 0809- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-802-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-802-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-724-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-724-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-643-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-643-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-992-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-992-0 01 1 0705- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-801-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-801-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-723-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-723-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-642-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-642-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-991-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-991-0 01 1 0705- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-842-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-842-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-345-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-345-0 01 1 0809- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-841-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-841-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-344-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-344-0 01 1 0809- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-756-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-756-0 01 1 0607- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-755-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-755-0 01 1 0607- ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0409-0506 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0409-0506 ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (G) 12V 60W THA 		8-97289-997-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(G) 12V 60W THA 		8-97289-997-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (F) 12V 55W THA 		8-98011-475-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(F) 12V 55W THA 		8-98011-475-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) PHILIPS 12V 35W THA 		8-97920-254-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) STANLEY 12V 35W THA 		8-97921-486-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 21W THA 		8-97332-465-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0607- ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) 12V 35W THA 		8-97921-486-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0204-0207 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0208-0307 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0308-0507 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0308-0507 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0508-0606 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0508-0606 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W THA 		8-97286-998-0 02 1 0607- ● ● ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-97675-961-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(B) THA 		8-97675-961-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-477-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(C) THA 		8-98011-477-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0204-0207 ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0204-0207 ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0208-0408 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0208-0408 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-448-0 02 1 0409-0606 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0409-0606 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-448-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0607- ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0204-0207 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0208-0612 ● ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0701- ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0607-0904 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0204-0207 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0208-0307 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0308-0606 ● ● ●
39 UNIT; FOG LAMP
THA 		8-97333-415-0 01 1 0308-0606 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0204-0207 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0208-0307 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0308-0606 ● ● ●
39 UNIT; FOG LAMP
THA 		8-97333-414-0 01 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0204-0207 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0208-0307 ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ● ● ●
44 NUT; FOG LAMP
M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		8-97063-399-0 04 1 0607-0702 ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0204-0207 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0208-0507 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> 12V 5W THA 		8-97310-952-0 02 1 0508-0708 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0508-0708 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> 12V 5W THA 		8-97310-952-0 02 1 0709-0808 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0709-0808 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 12V 5W THA 		8-97310-952-0 02 1 0809- ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0809- ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0204-0207 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0208-0507 ● ● ● ● ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97237-378-1 02 1 0508-0708 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0508-0708 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97237-378-1 02 1 0709-0808 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0709-0808 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97237-378-1 02 1 0809- ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0809- ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0204-0207 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0208-0507 ● ● ● ● ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97333-420-0 02 1 0508-0708 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0508-0708 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97333-420-0 02 1 0709-0808 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0709-0808 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97333-420-0 02 1 0809- ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0809- ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0204-0207 ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0208-0307 ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0308-0606 ● ● ●
211 TUBE; HEADLAMP
(B) THA 		8-94451-175-0 02 1 0308-0606 ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0508-0606 ● ● ● ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97333-983-0 04 1 0607- ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0607- ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0204-0207 ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0208-0506 ● ● ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97333-983-0 04 1 0507-0507 ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0204-0207 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0208-0507 ● ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97310-953-0 02 1 0508-0708 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0508-0708 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97310-953-0 02 1 0709-0808 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0709-0808 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97310-953-0 02 1 0809- ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0809- ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0204-0207 ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0208-0307 ● ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0308-0606 ● ● ●
328 COVER; LAMP
THA 		8-97333-417-0 02 1 0308-0606 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98106-751-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98106-751-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0508-0606 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-380-0 02 1 0607- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0607- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0204-0207 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0208-0506 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-380-0 02 1 0507-0507 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98012-761-0 02 1 0607-0808 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98012-761-0 02 1 0607-0808 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98012-788-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98012-788-0 02 1 0809- ●
çizim 116663
99 106 224 91 32 57 28 424 1 28 55 15 44 28 1 13 357 425 4 382 5 135 23 23 340 382 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-804-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-043-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-043-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-661-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-661-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-002-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-002-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-320-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-320-0 01 1 0809- ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-803-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-042-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-042-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-660-3 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-660-3 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-001-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-001-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-319-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-319-0 01 1 0809- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-802-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-802-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-724-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-724-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-643-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-643-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-992-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-992-0 01 1 0705- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-801-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-801-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-723-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-723-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-642-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-642-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-991-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-991-0 01 1 0705- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-842-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-842-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-345-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-345-0 01 1 0809- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-841-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-841-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-344-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-344-0 01 1 0809- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-756-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-756-0 01 1 0607- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-755-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-755-0 01 1 0607- ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0409-0506 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0409-0506 ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (G) 12V 60W THA 		8-97289-997-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(G) 12V 60W THA 		8-97289-997-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (F) 12V 55W THA 		8-98011-475-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(F) 12V 55W THA 		8-98011-475-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) PHILIPS 12V 35W THA 		8-97920-254-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) STANLEY 12V 35W THA 		8-97921-486-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 21W THA 		8-97332-465-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0607- ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) 12V 35W THA 		8-97921-486-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ●
13 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-97378-145-0 02 1 0607- ● ● ●
13 CLIP; HEADLAMP
THA 		8-97378-145-0 02 1 0607- ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0204-0207 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0208-0307 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0308-0507 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0308-0507 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0508-0606 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0508-0606 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W THA 		8-97286-998-0 02 1 0607- ● ● ● ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-97675-961-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(B) THA 		8-97675-961-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-477-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(C) THA 		8-98011-477-0 02 1 0607- ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0204-0207 ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0204-0207 ●
23 COVER; BULB,HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-448-0 02 1 0208-0408 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0208-0408 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-448-0 02 1 0409-0606 ● ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0409-0606 ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-448-0 02 1 0607- ● ● ●
23 COVER; BULB,HEADLAMP
(A) THA 		8-97332-448-0 02 1 0607- ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0204-0207 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0208-0612 ● ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0701- ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0607-0904 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0204-0207 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0208-0307 ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ● ● ●
44 NUT; FOG LAMP
M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		8-97063-399-0 04 1 0607-0702 ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ● ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> THA 		8-98017-834-0 02 1 0607- ● ● ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> THA 		8-98017-835-0 02 1 0607- ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0204-0207 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0208-0507 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> 12V 5W THA 		8-97310-952-0 02 1 0508-0708 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0508-0708 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> 12V 5W THA 		8-97310-952-0 02 1 0709-0808 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0709-0808 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 12V 5W THA 		8-97310-952-0 02 1 0809- ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0809- ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0204-0207 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0208-0507 ● ● ● ● ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97237-378-1 02 1 0508-0708 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0508-0708 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97237-378-1 02 1 0709-0808 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0709-0808 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97237-378-1 02 1 0809- ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0809- ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0204-0207 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0208-0507 ● ● ● ● ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97333-420-0 02 1 0508-0708 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0508-0708 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97333-420-0 02 1 0709-0808 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0709-0808 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97333-420-0 02 1 0809- ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0809- ●
135 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98011-476-0 02 1 0607- ● ● ●
135 ADAPTER; HEADLAMP
THA 		8-98011-476-0 02 1 0607- ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0204-0207 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0208-0507 ● ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97310-953-0 02 1 0508-0708 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0508-0708 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97310-953-0 02 1 0709-0808 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0709-0808 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97310-953-0 02 1 0809- ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0809- ●
340 BULB; POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W THA 		8-94124-595-0 02 1 0809- ● ● ●
340 BULB; POSITION
12V 5W THA 		8-94124-595-0 02 1 0809- ●
357 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-98100-011-0 02 1 0809- ● ● ●
357 BULB; TURN SIGNAL
12V 21W THA 		8-98100-011-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98106-751-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98106-751-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0508-0606 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-380-0 02 1 0607- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0607- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0204-0207 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0208-0506 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-380-0 02 1 0507-0507 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98012-761-0 02 1 0607-0808 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98012-761-0 02 1 0607-0808 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98012-788-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98012-788-0 02 1 0809- ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> THA 		8-97372-854-0 02 1 0607-0608 ● ● ● ●
424 RETAINER; FOG LAMP
THA 		8-97372-854-0 02 1 0607-0608 ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> THA 		8-97372-854-0 02 1 0609- ● ● ● ● ●
425 BULB; TURN SIGNAL & POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-97332-381-0 02 1 0607-0808 ● ● ●
425 BULB; TURN SIGNAL & POSITION
12V 21W THA 		8-97332-381-0 02 1 0607-0808 ●
çizim 116684
382 1 211 5 28 5 5 4 384 211 383 385 32 99 211 15 39 224 328 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-099-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-804-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-043-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-043-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-844-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-661-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-661-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-002-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-002-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-320-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-320-0 01 1 0809- ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97302-098-4 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97364-803-0 01 1 0212-0305 ● ● ● ●
1 LAMP ASM; HEAD
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97368-042-0 01 1 0306-0408 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97368-042-0 01 1 0409-0507 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0508 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-98023-843-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-97388-660-3 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-97388-660-3 01 1 0607-0704 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98080-001-0 01 1 0705-0808 ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98080-001-0 01 1 0705-0808 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98101-319-0 01 1 0809- ● ● ●
1 LAMP ASM; HEAD
(C) THA 		8-98101-319-0 01 1 0809- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-496-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-496-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-802-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-802-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-724-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-724-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-724-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-829-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-829-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-643-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-643-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-992-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-992-0 01 1 0705- ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0204-0207 ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0204-0207 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97237-495-3 01 1 0208-0211 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97237-495-3 01 1 0208-0211 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97364-801-0 01 1 0212-0307 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97364-801-0 01 1 0212-0307 ●
1 LAMP ASM; HEAD
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97367-723-0 01 1 0308-0408 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0308-0408 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97367-723-0 01 1 0409-0506 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-97367-723-0 01 1 0409-0506 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0507-0507 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0507-0507 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-98023-828-0 01 1 0508-0606 ● ● ● ●
1 LAMP ASM; HEAD
(B) THA 		8-98023-828-0 01 1 0508-0606 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97374-642-2 01 1 0607-0704 ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-97374-642-2 01 1 0607-0704 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98079-991-0 01 1 0705- ● ● ●
1 LAMP ASM; HEAD
(D) THA 		8-98079-991-0 01 1 0705- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-842-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-842-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-345-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-345-0 01 1 0809- ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98011-841-0 01 1 0607-0808 ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98011-841-0 01 1 0607-0808 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98107-344-0 01 1 0809- ● ● ●
4 HEADLAMP UNIT
(C) THA 		8-98107-344-0 01 1 0809- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-756-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-756-0 01 1 0607- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0508-0606 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0508-0606 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-98011-755-0 01 1 0607- ● ● ●
4 HEADLAMP UNIT
(D) THA 		8-98011-755-0 01 1 0607- ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-371-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-371-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) THA 		8-97332-370-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-370-0 01 1 0409-0507 ● ● ● ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-445-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-445-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-445-0 01 1 0409-0506 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0204-0207 ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0204-0207 ●
4 HEADLAMP UNIT
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) THA 		8-97332-444-0 01 1 0208-0408 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0208-0408 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (B) THA 		8-97332-444-0 01 1 0409-0506 ● ● ● ●
4 HEADLAMP UNIT
(B) THA 		8-97332-444-0 01 1 0409-0506 ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (G) 12V 60W THA 		8-97289-997-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(G) 12V 60W THA 		8-97289-997-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (F) 12V 55W THA 		8-98011-475-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(F) 12V 55W THA 		8-98011-475-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) PHILIPS 12V 35W THA 		8-97920-254-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(H) 12V 60/55W THA 		8-98032-732-0 02 1 0607- ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) STANLEY 12V 35W THA 		8-97921-486-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 21W THA 		8-97332-465-0 02 1 0607- ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0607- ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0508-0606 ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (A) 12V 21W THA 		8-97332-381-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) 12V 21W THA 		8-97332-381-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (B) 12V 60W THA 		8-97920-253-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (B) 12V 60W THA 		8-97920-253-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (C) 12V 35W THA 		8-97921-486-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (C) 12V 35W THA 		8-97921-486-0 02 1 0409-0507 ● ● ● ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(D) 12V 21W THA 		8-97332-465-0 02 1 0409-0506 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0204-0207 ●
5 BULB; HEADLAMP
EXC. HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0208-0408 ●
5 BULB; HEADLAMP
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>, HEAD LAMP LEVELING MANUAL<T92> (E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ● ● ● ●
5 BULB; HEADLAMP
(E) 12V 60/55W THA 		8-97914-323-0 02 1 0409-0506 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0204-0207 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0208-0307 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-97333-416-0 02 1 0308-0507 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-97333-416-0 02 1 0308-0507 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W THA 		8-98024-386-0 02 1 0508-0606 ● ● ●
15 BULB; FOG LAMP
12V 55W THA 		8-98024-386-0 02 1 0508-0606 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W THA 		8-97286-998-0 02 1 0607- ● ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0204-0207 ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-94372-359-0 08 1 0208-0612 ● ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 0701- ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-590-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-012-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-012-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-125-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-125-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0204-0207 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97237-589-1 01 1 0208-0212 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0301-0307 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97363-011-0 01 1 0308-0509 ● ● ●
32 LAMP ASM; FOG
THA 		8-97363-011-0 01 1 0308-0509 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98030-124-0 01 1 0510-0606 ● ● ●
32 LAMP ASM; FOG
THA 		8-98030-124-0 01 1 0510-0606 ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-97374-661-1 02 1 0607-0904 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> THA 		8-98169-680-0 02 1 1102- ● ● ● ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0204-0207 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0208-0307 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-415-0 01 1 0308-0606 ● ● ●
39 UNIT; FOG LAMP
THA 		8-97333-415-0 01 1 0308-0606 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0204-0207 ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0208-0307 ● ●
39 UNIT; FOG LAMP
FOG LAMP<T96> THA 		8-97333-414-0 01 1 0308-0606 ● ● ●
39 UNIT; FOG LAMP
THA 		8-97333-414-0 01 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0204-0207 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0208-0307 ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ● ● ●
44 NUT; FOG LAMP
M6 FLANGE THA 		0-91180-106-0 04 1 0308-0606 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE THA 		8-97063-399-0 04 1 0607-0702 ● ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE IMA 		8-98055-704-0 04 1 0703- ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0204-0207 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0208-0507 ● ● ● ● ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> 12V 5W THA 		8-97310-952-0 02 1 0508-0708 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0508-0708 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> 12V 5W THA 		8-97310-952-0 02 1 0709-0808 ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0709-0808 ●
91 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 12V 5W THA 		8-97310-952-0 02 1 0809- ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 0809- ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0204-0207 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0208-0507 ● ● ● ● ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97237-378-1 02 1 0508-0708 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0508-0708 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97237-378-1 02 1 0709-0808 ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0709-0808 ●
99 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97237-378-1 02 1 0809- ● ● ●
99 LAMP; SIDE FLASHER
THA 		8-97237-378-1 02 1 0809- ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0204-0207 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0208-0507 ● ● ● ● ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97333-420-0 02 1 0508-0708 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0508-0708 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97333-420-0 02 1 0709-0808 ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0709-0808 ●
106 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97333-420-0 02 1 0809- ● ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 0809- ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0204-0207 ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0208-0307 ● ●
211 TUBE; HEADLAMP
FOG LAMP<T96> (B) THA 		8-94451-175-0 02 1 0308-0606 ● ● ●
211 TUBE; HEADLAMP
(B) THA 		8-94451-175-0 02 1 0308-0606 ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0508-0606 ● ● ● ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97333-983-0 04 1 0607- ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0607- ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0204-0207 ● ● ●
211 TUBE; HEADLAMP
(A) THA 		8-97333-983-0 04 1 0208-0506 ● ● ● ● ●
211 TUBE; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97333-983-0 04 1 0507-0507 ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0204-0207 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0208-0507 ● ● ● ● ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGN AL<DF9> THA 		8-97310-953-0 02 1 0508-0708 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0508-0708 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC PWR FOLDING TURN SIG IND COL OR<8ME> THA 		8-97310-953-0 02 1 0709-0808 ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0709-0808 ●
224 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> THA 		8-97310-953-0 02 1 0809- ● ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 0809- ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0204-0207 ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0208-0307 ● ●
328 COVER; LAMP
FOG LAMP<T96> THA 		8-97333-417-0 02 1 0308-0606 ● ● ●
328 COVER; LAMP
THA 		8-97333-417-0 02 1 0308-0606 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98106-751-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98106-751-0 02 1 0809- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0508-0606 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-97332-380-0 02 1 0607- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0607- ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0204-0207 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(A) THA 		8-97332-380-0 02 1 0208-0506 ● ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> (A) THA 		8-97332-380-0 02 1 0507-0507 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98012-761-0 02 1 0607-0808 ● ● ●
382 PLUG; SOCKET,HEADLAMP
(B) THA 		8-98012-761-0 02 1 0607-0808 ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98012-788-0 02 1 0809- ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98012-788-0 02 1 0809- ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-373-0 01 1 0204-0207 ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-373-0 01 1 0208-0408 ● ● ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97332-373-0 01 1 0409-0606 ● ● ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-372-0 01 1 0204-0207 ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-372-0 01 1 0208-0408 ● ● ● ●
383 STARTER ASM; DISCHARGE,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97332-372-0 01 1 0409-0606 ● ● ● ●
384 GASKET; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-374-0 02 1 0204-0207 ● ●
384 GASKET; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-374-0 02 1 0208-0408 ● ● ● ●
384 GASKET; DISCHARGE,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97332-374-0 02 1 0409-0606 ● ● ● ●
385 SCREW; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-375-0 08 1 0204-0207 ● ●
385 SCREW; DISCHARGE,HEADLAMP
HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97332-375-0 08 1 0208-0408 ● ● ● ●
385 SCREW; DISCHARGE,HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97332-375-0 08 1 0409-0606 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
