7-55 — REAR SEAT (#73862) — 202 parça

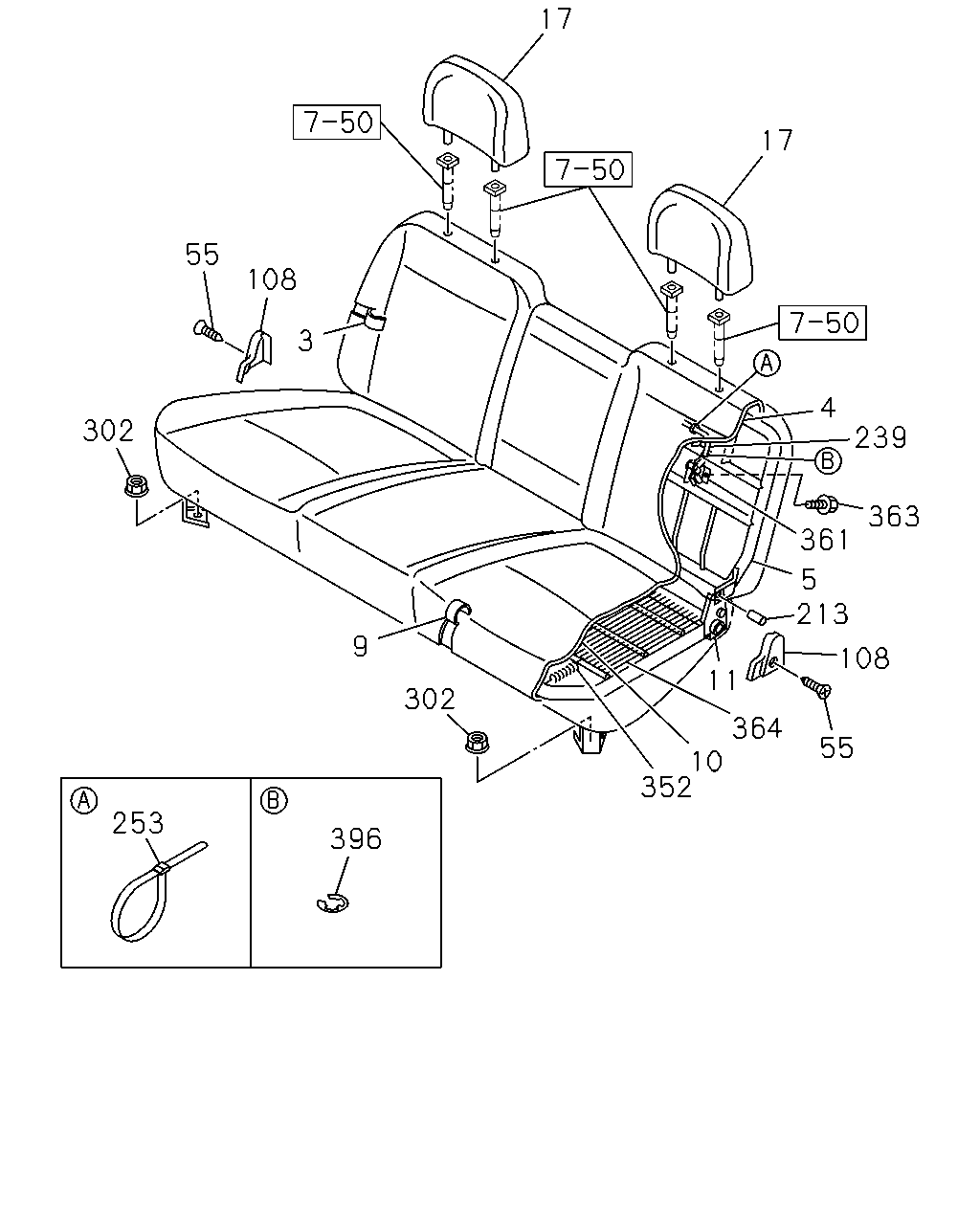

çizim 116553
17 17 55 108 3 4 302 239 363 361 5 213 9 108 11 302 364 10 352 55 253 396
BalonParca AdiParca NoAdetTipApplied Date A B C
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-516-0 01 1 1010- ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> RED THA 		8-97418-525-0 01 1 1010- ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-516-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> RED THA 		8-97418-525-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
SPACE CAB<TF**C*> THA 		8-97332-781-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-796-0 01 1 0208-0408 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-402-0 01 1 0409-0606 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-009-0 01 1 0607-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> GRAY THA 		8-97408-009-0 01 1 0909- ● ●
3 COVER; TRIM,RR SEAT BACK
4X2 SPACE CAB<TFB*C*> THA 		8-97332-782-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-797-0 01 1 0311-0408 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-406-0 01 1 0409-0606 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-012-0 01 1 0607-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> GRAY THA 		8-97408-012-0 01 1 0909- ● ●
3 COVER; TRIM,RR SEAT BACK
SPACE CAB<TF**C*> THA 		8-97332-783-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-798-0 01 1 0208-0408 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> GRAY THA 		8-97400-726-0 01 1 0409-0507 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-894-0 01 1 0508-0606 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-015-0 01 1 0607-0808 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97408-015-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-686-0 01 1 0709-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB> BEIGE THA 		8-97418-293-0 01 1 0909- ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 3<8LP> LIGHT GRAY THA 		8-97408-018-0 01 1 0607-0808 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97414-933-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X4 DOUBLE CAB<TFS*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97414-933-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-289-0 01 1 0909-1001 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-289-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-289-0 01 1 1009-1009 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-289-0 01 1 1010- ●
4 PAD; RR,SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97388-602-0 01 1 0607- ● ● ●
4 PAD; RR,SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-784-0 01 1 0208-0310 ● ●
4 PAD; RR,SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-784-0 01 1 0311-0507 ● ● ●
4 PAD; RR,SEAT BACK
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-784-0 01 1 0508-0606 ● ● ●
4 PAD; RR,SEAT BACK
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-602-0 01 1 0508-0606 ●
5 FRAME ASM; RR SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97388-601-0 01 1 0607- ● ● ●
5 FRAME ASM; RR SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-834-0 01 1 0208-0310 ● ●
5 FRAME ASM; RR SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-834-1 01 1 0311-0507 ● ● ●
5 FRAME ASM; RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-834-1 01 1 0508-0606 ● ● ●
5 FRAME ASM; RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-601-0 01 1 0508-0606 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-515-1 01 1 1010- ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> RED THA 		8-97418-518-0 01 1 1010- ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-515-1 01 1 1002-1008 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> RED THA 		8-97418-518-0 01 1 1002-1008 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-867-0 01 1 0208-0408 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-399-0 01 1 0409-0606 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-005-0 01 1 0607-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> GRAY THA 		8-97408-005-0 01 1 0909- ● ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-868-0 01 1 0311-0408 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-401-0 01 1 0409-0606 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-006-0 01 1 0607-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> GRAY THA 		8-97408-006-0 01 1 0909- ● ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> THA 		8-97332-869-0 01 1 0208-0408 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> GRAY THA 		8-97400-724-0 01 1 0409-0507 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-899-0 01 1 0508-0606 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-007-0 01 1 0607-0808 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97408-007-0 01 1 0809-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-683-1 01 1 0709-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB> BEIGE THA 		8-97418-287-1 01 1 0909- ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 3<8LP> LIGHT GRAY THA 		8-97408-008-0 01 1 0607-0808 ●
9 COVER ASM; TRIM,RR,CUSHION
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97414-931-0 01 1 0809-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
4X4 DOUBLE CAB<TFS*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97414-931-0 01 1 0809-0908 ●
9 COVER ASM; TRIM,RR,CUSHION
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-284-0 01 1 0909- ●
10 PAD; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-98022-690-0 01 1 0607- ● ● ●
10 PAD; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-862-0 01 1 0208-0310 ● ●
10 PAD; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-862-0 01 1 0311-0507 ● ● ●
10 PAD; CUSHION,RR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-862-0 01 1 0508-0606 ● ● ●
10 PAD; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98022-690-0 01 1 0508-0606 ●
11 FRAME ASM; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97388-622-0 01 1 0607- ● ● ●
11 FRAME ASM; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-856-0 01 1 0208-0310 ● ●
11 FRAME ASM; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-856-0 01 1 0311-0507 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-856-0 01 1 0508-0606 ● ● ●
11 FRAME ASM; CUSHION,RR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-622-0 01 1 0508-0606 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-687-0 02 1 1010- ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> BLACK THA 		8-97418-526-0 02 1 1010- ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-687-0 02 1 1002-1008 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> BLACK THA 		8-97418-526-0 02 1 1002-1008 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-840-0 02 1 0208-0408 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-403-0 02 1 0409-0606 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-010-0 02 1 0607-0908 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> GRAY THA 		8-97408-010-0 02 1 0909- ● ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-841-0 02 1 0311-0408 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-407-0 02 1 0409-0606 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-013-0 02 1 0607-0908 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> GRAY THA 		8-97408-013-0 02 1 0909- ● ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-842-0 02 1 0208-0408 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> GRAY THA 		8-97400-727-0 02 1 0409-0507 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-896-0 02 1 0508-0510 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97405-667-0 02 1 0511-0606 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-016-0 02 1 0607-0808 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97408-016-0 02 1 0809-0908 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-687-0 02 1 0709-0908 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB> BEIGE THA 		8-97418-294-0 02 1 0909- ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 3<8LP> LIGHT GRAY THA 		8-97408-019-0 02 1 0607-0808 ●
17 REST; HD,RR SEAT
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97414-934-0 02 1 0809-0908 ●
17 REST; HD,RR SEAT
4X4 DOUBLE CAB<TFS*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97414-934-0 02 1 0809-0908 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-290-0 02 1 0909-1001 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-290-0 02 1 1002-1008 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-290-0 02 1 1009-1009 ●
17 REST; HD,RR SEAT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-290-0 02 1 1010- ●
55 BOLT; HINGE,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97388-627-0 02 1 0607- ● ● ●
55 BOLT; HINGE,RR SEAT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-881-0 02 1 0208-0310 ● ●
55 BOLT; HINGE,RR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-881-0 02 1 0311-0507 ● ● ●
55 BOLT; HINGE,RR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-881-0 02 1 0508-0606 ● ● ●
55 BOLT; HINGE,RR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-627-0 02 1 0508-0606 ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-285-0 01 1 0909- ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-286-0 01 1 0909- ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97404-901-0 01 1 0607-0607 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97408-685-0 01 1 0608-0908 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-685-0 01 1 0909-1001 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-685-0 01 1 1002-1008 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-685-0 01 1 1002-1008 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-685-0 01 1 1009-1009 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-685-0 01 1 1010- ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-685-0 01 1 1010- ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97404-900-0 01 1 0607-0607 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97408-684-0 01 1 0608-0908 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-684-0 01 1 0909-1001 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-684-0 01 1 1002-1008 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-684-0 01 1 1002-1008 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-684-0 01 1 1009-1009 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY THA 		8-97408-684-0 01 1 1010- ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-684-0 01 1 1010- ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA 		8-97394-208-0 01 1 0208-0310 ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97394-208-0 01 1 0311-0507 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> DARK GRAY THA 		8-97394-208-0 01 1 0508-0606 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA 		8-97394-207-0 01 1 0208-0310 ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97394-207-0 01 1 0311-0507 ● ● ●
108 COVER; HINGE BRKT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> DARK GRAY THA 		8-97394-207-0 01 1 0508-0606 ● ● ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA 		8-97404-901-0 01 1 0508-0606 ●
108 COVER; HINGE BRKT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> DARK GRAY THA 		8-97404-900-0 01 1 0508-0606 ●
213 BUSHING; RR SEAT HINGE
DOUBLE CAB<TF**W*> THA 		8-98023-152-0 02 1 0607- ● ● ●
213 BUSHING; RR SEAT HINGE
DOUBLE CAB<TF**W*> THA 		8-97354-675-0 02 1 0208-0310 ● ●
213 BUSHING; RR SEAT HINGE
DOUBLE CAB<TF**W*> THA 		8-97354-675-0 02 1 0311-0507 ● ● ●
213 BUSHING; RR SEAT HINGE
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97354-675-0 02 1 0508-0606 ● ● ●
213 BUSHING; RR SEAT HINGE
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-152-0 02 1 0508-0606 ●
239 CABLE; CONT,LEVER
DOUBLE CAB<TF**W*> THA 		8-98023-151-0 01 1 0607- ● ● ●
239 CABLE; CONT,LEVER
DOUBLE CAB<TF**W*> THA 		8-97332-828-0 01 1 0208-0310 ● ●
239 CABLE; CONT,LEVER
DOUBLE CAB<TF**W*> THA 		8-97332-828-0 01 1 0311-0507 ● ● ●
239 CABLE; CONT,LEVER
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-828-0 01 1 0508-0606 ● ● ●
239 CABLE; CONT,LEVER
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-151-0 01 1 0508-0606 ●
253 CLIP; CABLE
DOUBLE CAB<TF**W*> THA 		8-98024-098-0 02 1 0607- ● ● ●
253 CLIP; CABLE
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98024-098-0 02 1 0508-0606 ●
302 NUT; RR SEAT
DOUBLE CAB<TF**W*> M12 FLANGE THA 		0-91150-212-0 04 1 0208-0310 ● ●
302 NUT; RR SEAT
DOUBLE CAB<TF**W*> M12 FLANGE THA 		0-91150-212-0 04 1 0311-0603 ● ● ●
302 NUT; RR SEAT
DOUBLE CAB<TF**W*> M12 FLANGE THA 		0-91180-212-0 04 1 0604- ● ● ●
352 SPRING; RR CUSHION
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-877-0 11 1 0208-0310 ● ●
352 SPRING; RR CUSHION
DOUBLE CAB<TF**W*> THA 		8-97332-877-0 11 1 0311-0507 ● ● ●
352 SPRING; RR CUSHION
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-877-0 11 1 0508-0606 ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-97388-621-1 01 1 0607-0803 ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-98112-968-0 01 1 0804- ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-97388-620-1 01 1 0607-0803 ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-98112-967-0 01 1 0804- ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-811-0 02 1 0208-0310 ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-811-0 02 1 0311-0507 ● ● ●
361 LATCH; REAR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-811-0 02 1 0508-0508 ● ● ●
361 LATCH; REAR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-98004-027-0 02 1 0509-0606 ● ● ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-621-1 01 1 0508-0606 ●
361 LATCH; REAR SEAT
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-97388-620-1 01 1 0508-0606 ●
363 BOLT; REAR SEAT LATCH
DOUBLE CAB<TF**W*> THA 		8-98023-150-0 04 1 0607- ● ● ●
363 BOLT; REAR SEAT LATCH
DOUBLE CAB<TF**W*> THA 		8-97332-815-0 04 1 0208-0310 ● ●
363 BOLT; REAR SEAT LATCH
DOUBLE CAB<TF**W*> THA 		8-97332-815-0 04 1 0311-0507 ● ● ●
363 BOLT; REAR SEAT LATCH
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-815-0 04 1 0508-0606 ● ● ●
363 BOLT; REAR SEAT LATCH
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-150-0 04 1 0508-0606 ●
364 MAT; SUSPENSION,REAR SEAT
DOUBLE CAB<TF**W*> VINYL SEAT W/RECLINING<A83>,CLOTH SEAT MOQUETTE<8EP> THA 		8-97332-874-0 01 1 0208-0310 ● ●
364 MAT; SUSPENSION,REAR SEAT
DOUBLE CAB<TF**W*> THA 		8-97332-874-0 01 1 0311-0507 ● ● ●
364 MAT; SUSPENSION,REAR SEAT
4X2 DOUBLE CAB<TFB*W*> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> THA 		8-97332-874-0 01 1 0508-0606 ● ● ●
396 E-RING; CABLE
DOUBLE CAB<TF**W*> THA 		8-98023-156-0 02 1 0607- ● ● ●
396 E-RING; CABLE
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> THA 		8-98023-156-0 02 1 0508-0606 ●
çizim 116559
16 3 52 6 52 6 52
BalonParca AdiParca NoAdetTipApplied Date A B C
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-516-0 01 1 1010- ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> RED THA 		8-97418-525-0 01 1 1010- ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB> RED THA 		8-97418-516-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> SEAT COLOR RED<6SJ> RED THA 		8-97418-525-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
SPACE CAB<TF**C*> THA 		8-97332-781-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-796-0 01 1 0208-0408 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-402-0 01 1 0409-0606 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-009-0 01 1 0607-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> GRAY THA 		8-97408-009-0 01 1 0909- ● ●
3 COVER; TRIM,RR SEAT BACK
4X2 SPACE CAB<TFB*C*> THA 		8-97332-782-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> THA 		8-97332-797-0 01 1 0311-0408 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97399-406-0 01 1 0409-0606 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> GRAY THA 		8-97408-012-0 01 1 0607-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> GRAY THA 		8-97408-012-0 01 1 0909- ● ●
3 COVER; TRIM,RR SEAT BACK
SPACE CAB<TF**C*> THA 		8-97332-783-0 01 1 0204-0310 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> THA 		8-97332-798-0 01 1 0208-0408 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> GRAY THA 		8-97400-726-0 01 1 0409-0507 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH SEAT MOQUETTE<8EP> GRAY THA 		8-97404-894-0 01 1 0508-0606 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97408-015-0 01 1 0607-0808 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97408-015-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> LEATHER SEAT<6TB> DARK GRAY THA 		8-97408-686-0 01 1 0709-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB> BEIGE THA 		8-97418-293-0 01 1 0909- ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 3<8LP> LIGHT GRAY THA 		8-97408-018-0 01 1 0607-0808 ●
3 COVER; TRIM,RR SEAT BACK
4X2 DOUBLE CAB<TFB*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> HIGH RIDE SUSPENSION<7YC> DARK GRAY THA 		8-97414-933-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
4X4 DOUBLE CAB<TFS*W*> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY THA 		8-97414-933-0 01 1 0809-0908 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-289-0 01 1 0909-1001 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-289-0 01 1 1002-1008 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> BEIGE THA 		8-97418-289-0 01 1 1009-1009 ●
3 COVER; TRIM,RR SEAT BACK
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. SEAT COLOR RED<6SJ> BEIGE THA 		8-97418-289-0 01 1 1010- ●
6 BOLT; RR SEAT
SPACE CAB<TF**C*> THA 		8-97248-987-0 04 1 0409-0612 ● ● ●
16 PAD & FRAME ASM; RR BACK SIDE
SPACE CAB<TF**C*> THA 		8-97332-775-0 01 1 0204-0310 ● ● ●
52 BOLT; RR SEAT
SPACE CAB<TF**C*> (A) M6X20 W/PL WASHER THA 		8-97808-622-0 08 1 0409-1201 ● ● ●
52 BOLT; RR SEAT
SPACE CAB<TF**C*> (A) M6X20 W/PL WASHER THA 		8-98167-540-0 08 1 1202- ● ● ●
52 BOLT; RR SEAT
SPACE CAB<TF**C*> (B) M12X27.5 W/PL WASHER THA 		8-98050-319-0 04 1 0701- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
