7-45 — CONSOLE BOX (#73860) — 633 parça

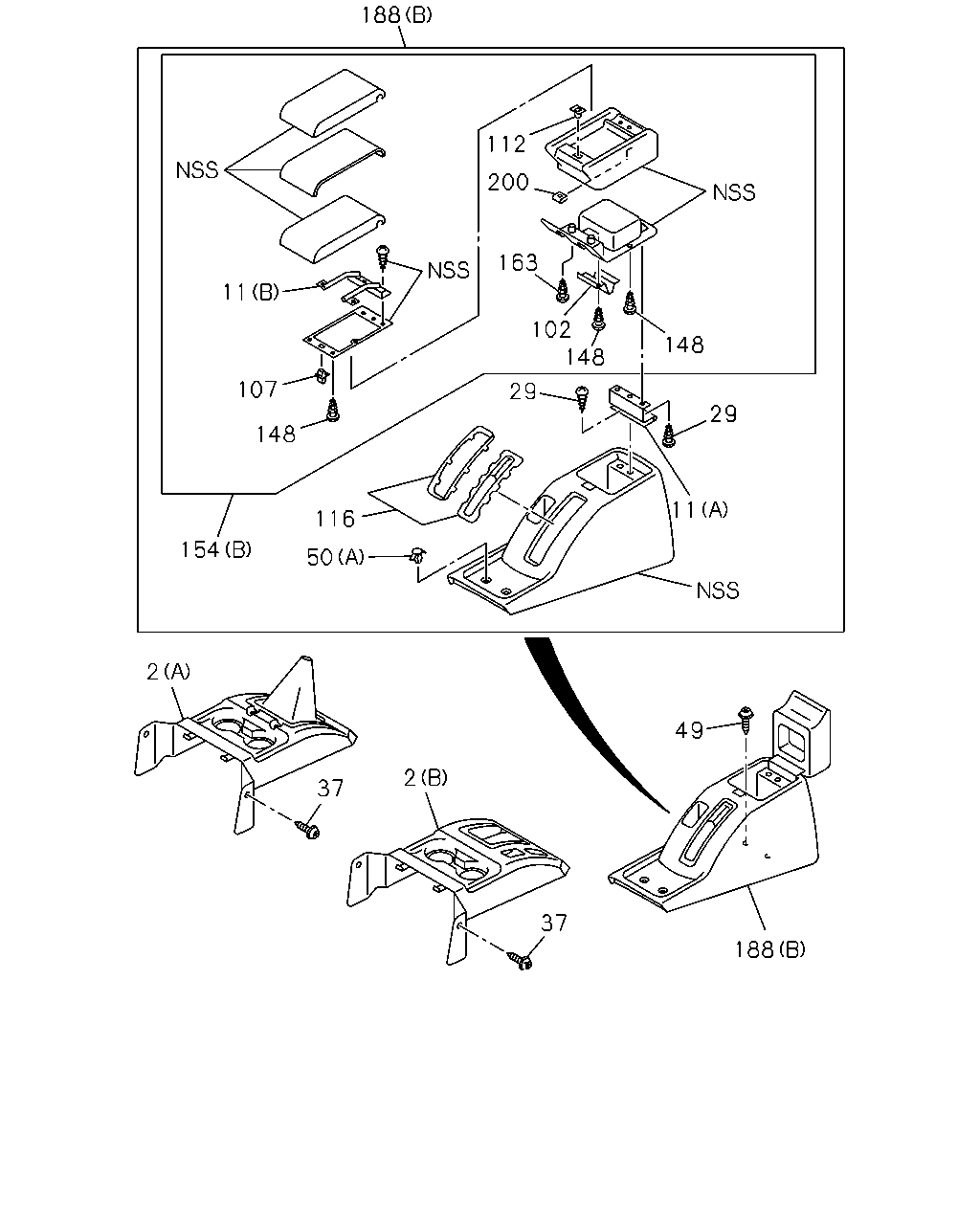

çizim 116556
188 112 200 163 11 102 148 148 107 29 29 148 11 116 154 50 2 49 2 37 37 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97422-762-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-1 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97418-192-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97418-192-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97418-190-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 0907-0912 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
(A) DARK GRAY THA 		8-97293-887-1 01 1 0204-0408 ● ●
2 CONSOLE; CENTER
FLOOR REMOTE SHIFT<M11> (A) DARK GRAY THA 		8-97293-887-1 01 1 0204-0408 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA 		8-97400-586-0 01 1 0409-0412 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA 		8-97400-586-0 01 1 0501-0606 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97403-343-0 01 1 0607-0802 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0710-0802 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0803-0906 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 0907-0908 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 SPACE CAB<TFS*C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97293-884-1 01 1 0204-0606 ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0607-0608 ● ● ●
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0609-0708 ● ● ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0709-0709 ● ● ●
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0710-0908 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0609-0708 ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0204-0408 ● ● ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0409-0908 ● ● ●
11 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0909- ● ● ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0204-0408 ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0409-0606 ●
11 HINGE; CONSOLE LID
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) THA 		8-97349-646-0 01 1 0607-0607 ●
11 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0608-0708 ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0709-0810 ●
11 HINGE; CONSOLE LID
EXC. CHROME PACKAGE<8GX> (B) THA 		8-97349-646-0 01 1 0811- ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 05 1 0701-0810 ● ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 05 1 0811-1001 ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> M5X16 TAPPING THA 		8-98061-683-0 05 1 0811-1001 ●
29 SCREW; HINGE
INTERIOR COLOR VERY DARK GRAY<116> M5X16 TAPPING THA 		8-98061-683-0 05 1 1002-1009 ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> M5X16 TAPPING THA 		8-98061-683-0 05 1 1002-1009 ●
29 SCREW; HINGE
INTERIOR COLOR VERY DARK GRAY<116> M5X16 TAPPING THA 		8-98061-683-0 05 1 1010- ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> M5X16 TAPPING THA 		8-98061-683-0 05 1 1010- ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0204-0311 ● ● ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 11 1 0312-0408 ● ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0312-0408 ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0409-0411 ● ● ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 05 1 0412-0606 ● ●
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 05 1 0607-0612 ● ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 06 1 0701-0708 ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 TAPPING THA 		8-98061-683-0 06 1 0709-0810 ●
29 SCREW; HINGE
EXC. CHROME PACKAGE<8GX> M5X16 TAPPING THA 		8-98061-683-0 06 1 0811- ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0412-0606 ●
29 SCREW; HINGE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M5X16 THA 		8-94279-312-0 06 1 0607-0607 ●
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 06 1 0608-0612 ●
37 SCREW; CONSOLE
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0206 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-94358-694-0 02 1 0207-0702 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-98061-684-0 02 1 0703-1005 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-98167-220-0 02 1 1006- ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0206 ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> M5X16 THA 		8-94358-694-0 02 1 0207-0408 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94358-694-0 02 1 0409-0702 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-98061-684-0 02 1 0703-1005 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-98167-220-0 02 1 1006- ● ● ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1010- ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1002-1008 ●
50 CLIP; CONSOLE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (B) BEIGE THA 		8-97404-621-0 02 1 0909- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0508- ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0508-0606 ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0607-0908 ● ● ●
50 CLIP; CONSOLE
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 1002- ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-533-0 02 1 0204-0209 ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0210-0408 ● ● ●
50 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0409-0908 ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0909- ● ● ●
102 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0701-0708 ●
102 LOCK ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-650-0 01 1 0709-0810 ●
102 LOCK ASM; RR CONSOLE
EXC. CHROME PACKAGE<8GX> THA 		8-97349-650-0 01 1 0811- ●
102 LOCK ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-650-0 01 1 0204-0408 ●
102 LOCK ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-650-0 01 1 0409-0606 ●
102 LOCK ASM; RR CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> THA 		8-97349-650-0 01 1 0607-0607 ●
102 LOCK ASM; RR CONSOLE
THA 		8-97349-650-0 01 1 0608-0612 ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0204-0408 ● ● ●
107 LOCK; LID,RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0409-0908 ● ● ●
107 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0909- ● ● ●
112 LOCK; HOLE,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0204-0408 ● ● ●
112 LOCK; HOLE,RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0409-0908 ● ● ●
112 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0909- ● ● ●
116 COVER; HOLE,CONSOLE,RR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-959-0 01 1 0909-1104 ●
116 COVER; HOLE,CONSOLE,RR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97422-809-0 01 1 1105- ●
116 COVER; HOLE,CONSOLE,RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97394-454-0 01 1 0204-0408 ● ● ●
116 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97394-454-0 01 1 0409-0606 ● ● ●
116 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97403-966-0 01 1 0607-0908 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 0909-1001 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1002-1008 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1009-1009 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1010-1104 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-799-0 01 1 1105- ● ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0701-0810 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0811-1001 ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> M4X14 THA 		8-97349-647-0 08 1 0811-1001 ●
148 SCREW; LID,CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> M4X14 THA 		8-97349-647-0 08 1 1002-1009 ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> M4X14 THA 		8-97349-647-0 08 1 1002-1009 ●
148 SCREW; LID,CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> M4X14 THA 		8-97349-647-0 08 1 1010- ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> M4X14 THA 		8-97349-647-0 08 1 1010- ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 08 1 0204-0408 ● ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 08 1 0409-0606 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0607-0612 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 13 1 0701-0708 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0709-0810 ●
148 SCREW; LID,CONSOLE
EXC. CHROME PACKAGE<8GX> M4X14 THA 		8-97349-647-0 13 1 0811- ●
148 SCREW; LID,CONSOLE
M5X14 THA 		8-97349-872-0 03 1 0701-0708 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0709-0810 ●
148 SCREW; LID,CONSOLE
EXC. CHROME PACKAGE<8GX> M5X14 THA 		8-97349-872-0 03 1 0811- ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0204-0408 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0409-0606 ●
148 SCREW; LID,CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M4X14 THA 		8-97349-647-0 13 1 0607-0607 ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 13 1 0608-0612 ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0204-0408 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0409-0606 ●
148 SCREW; LID,CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M5X14 THA 		8-97349-872-0 03 1 0607-0607 ●
148 SCREW; LID,CONSOLE
M5X14 THA 		8-97349-872-0 03 1 0608-0612 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) THA 		8-97418-205-0 01 1 0909-1104 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) BEIGE THA 		8-97422-812-0 01 1 1105- ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-206-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
4X4 DOUBLE CAB<TFS*W*> (B) THA 		8-97418-206-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-206-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BEIGE<184> (B) THA 		8-97418-206-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0701-0810 ● ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0811-0908 ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97403-968-0 01 1 0811-0908 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 0909-1009 ● ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97403-968-0 01 1 0909-1009 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 1010-1104 ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 1010-1104 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) BLACK THA 		8-97422-810-0 01 1 1105- ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) BLACK THA 		8-97422-810-0 01 1 1105- ●
154 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97394-455-0 01 1 0204-0408 ● ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97394-455-0 01 1 0409-0606 ● ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0607-0612 ● ●
154 LID ASM; RR CONSOLE
(B) DARK GRAY THA 		8-97404-945-0 01 1 0701-0708 ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97404-945-0 01 1 0709-0810 ●
154 LID ASM; RR CONSOLE
EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-0 01 1 0811-0908 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97394-475-0 01 1 0204-0408 ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (B) GRAY THA 		8-97400-183-0 01 1 0409-0606 ●
154 LID ASM; RR CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) DARK GRAY THA 		8-97404-945-0 01 1 0607-0607 ●
154 LID ASM; RR CONSOLE
(B) DARK GRAY THA 		8-97404-945-0 01 1 0608-0612 ●
163 RUBBER; CUSHION,PARCEL BOX LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0204-0408 ● ● ●
163 RUBBER; CUSHION,PARCEL BOX LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0409-0908 ● ● ●
163 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0909- ● ● ●

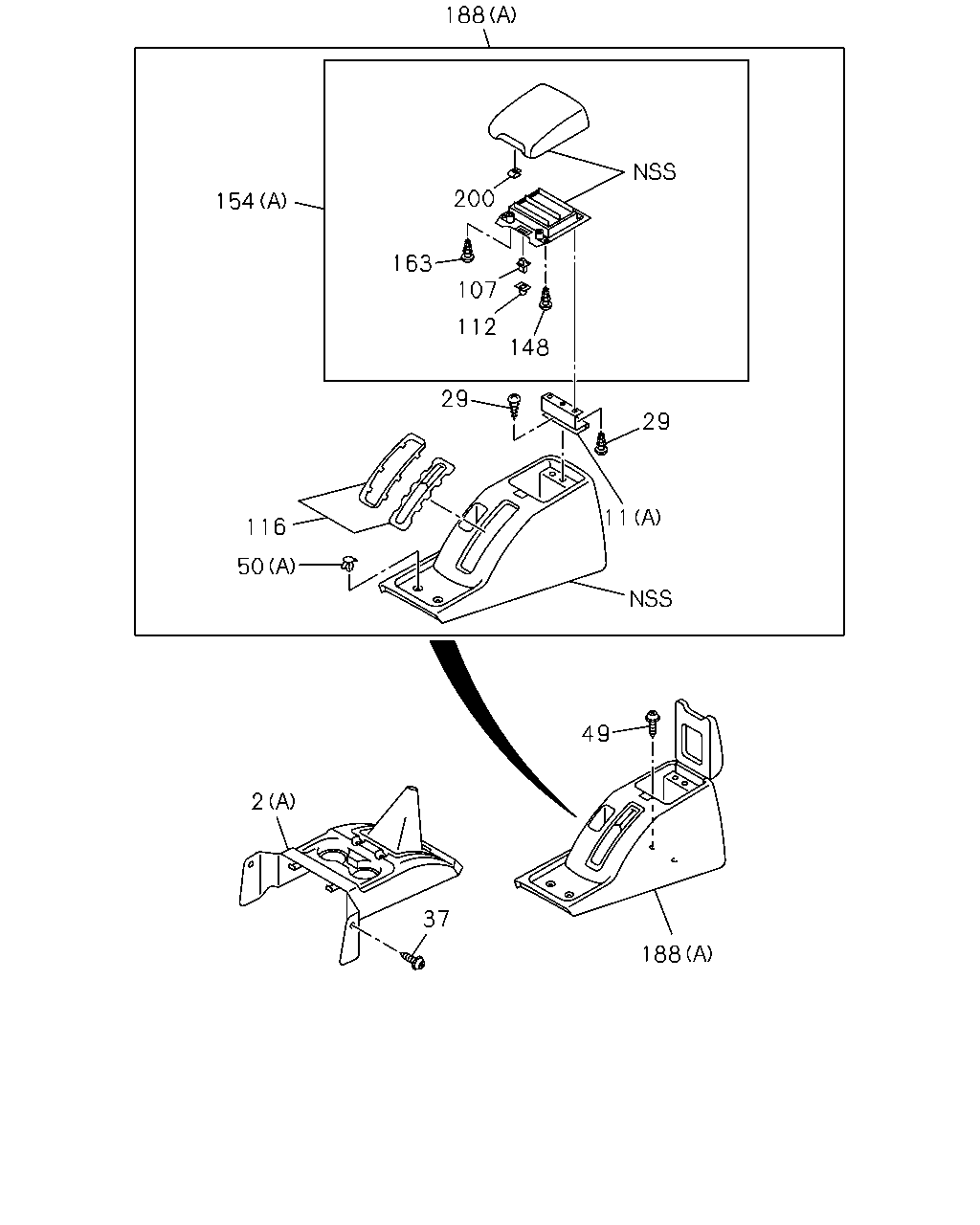

188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) THA 		8-97418-193-1 01 1 0909- ●
188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-194-0 01 1 0909-1001 ●
188 CONSOLE; RR
4X4 DOUBLE CAB<TFS*W*> (B) THA 		8-97418-194-0 01 1 0909-1001 ●
188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-194-1 01 1 1002- ●
188 CONSOLE; RR
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BEIGE<184> (B) THA 		8-97418-194-1 01 1 1002- ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97293-891-1 01 1 0204-0209 ● ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97395-405-0 01 1 0210-0408 ● ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97395-405-0 01 1 0409-0606 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97403-362-0 01 1 0607-0612 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97409-184-0 01 1 0701-0810 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97409-184-0 01 1 0811-0908 ● ●
188 CONSOLE; RR
CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97409-184-0 01 1 0811-0908 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-0 01 1 0909-1009 ● ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97409-184-0 01 1 0909-1009 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-1 01 1 1010- ● ●
188 CONSOLE; RR
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-1 01 1 1010- ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97293-892-3 01 1 0204-0209 ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97395-406-0 01 1 0210-0305 ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97397-321-0 01 1 0306-0408 ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97398-500-0 01 1 0409-0606 ●
188 CONSOLE; RR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) DARK GRAY THA 		8-97403-365-0 01 1 0607-0607 ●
188 CONSOLE; RR
(B) DARK GRAY THA 		8-97403-365-0 01 1 0608-0612 ●
188 CONSOLE; RR
(B) DARK GRAY THA 		8-97409-186-0 01 1 0701-0708 ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97409-186-0 01 1 0709-0810 ●
188 CONSOLE; RR
EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-0 01 1 0811-0908 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-0 01 1 0909-1001 ●
188 CONSOLE; RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-1 01 1 1002- ●
200 NUT; SPIRE,SPR LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0204-0408 ● ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0409-0606 ● ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0607-0810 ● ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0811-1001 ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> THA 		8-97349-642-0 06 1 0811-1001 ●
200 NUT; SPIRE,SPR LID
INTERIOR COLOR VERY DARK GRAY<116> THA 		8-97349-642-0 06 1 1002-1009 ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> THA 		8-97349-642-0 06 1 1002-1009 ●
200 NUT; SPIRE,SPR LID
INTERIOR COLOR VERY DARK GRAY<116> THA 		8-97349-642-0 06 1 1010- ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> THA 		8-97349-642-0 06 1 1010- ●
200 NUT; SPIRE,SPR LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0204-0408 ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0409-0606 ●
200 NUT; SPIRE,SPR LID
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> THA 		8-97349-642-0 03 1 0607-0607 ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0608-0708 ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0709-0810 ●
200 NUT; SPIRE,SPR LID
EXC. CHROME PACKAGE<8GX> THA 		8-97349-642-0 03 1 0811- ●

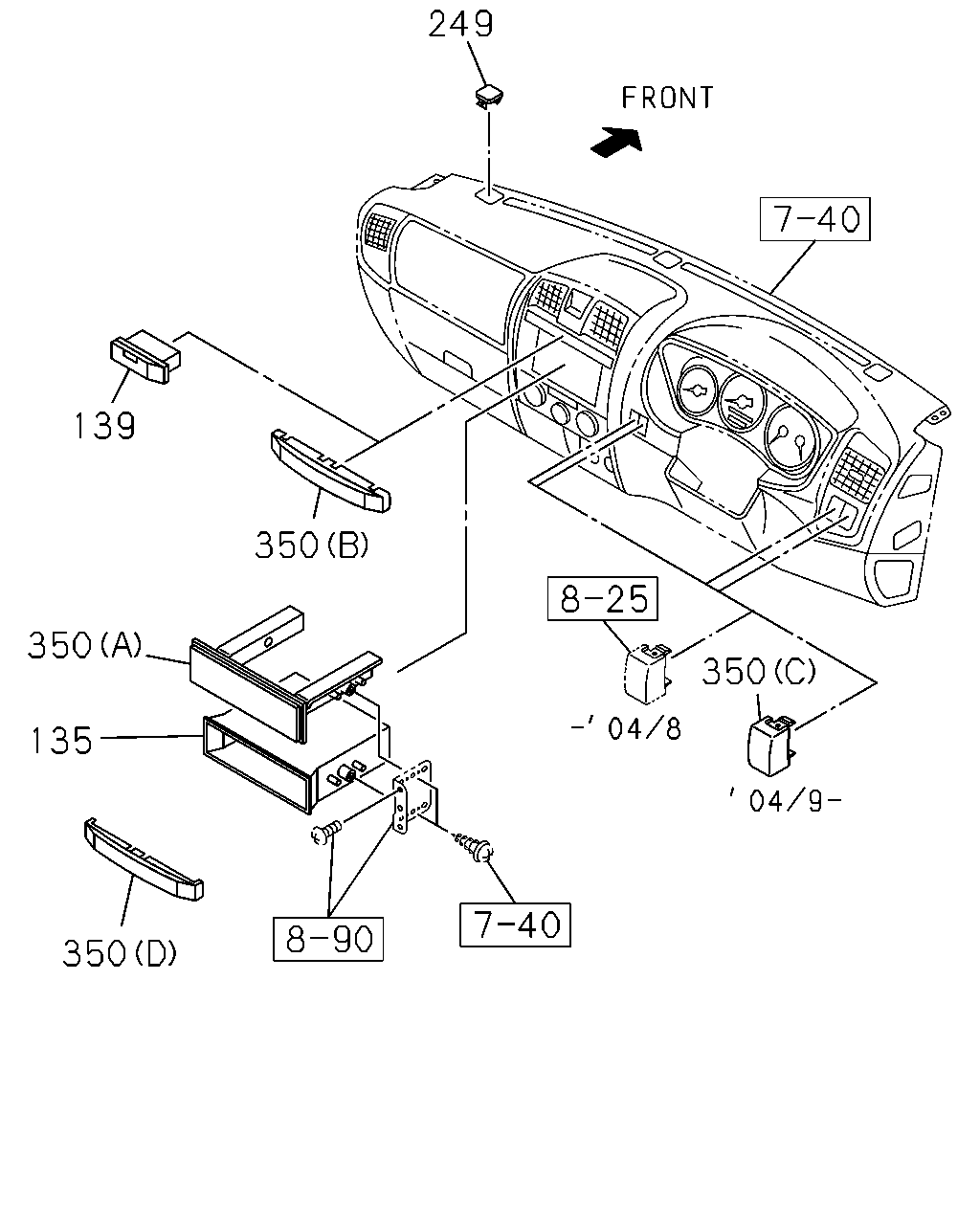

çizim 116645
249 139 350 350 350 135 350
BalonParca AdiParca NoAdetTipApplied Date A B C
135 BOX; CONSOLE,LWR
DARK GRAY THA 		8-97298-419-0 01 1 0204-0408 ● ●
135 BOX; CONSOLE,LWR
EXC. CHANGER 6CD 1DIN TYPE<8CH> DARK GRAY THA 		8-97298-419-0 01 1 0204-0408 ●
135 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> DARK GRAY THA 		8-97298-419-0 01 1 0409-0507 ● ● ●
135 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> DARK GRAY THA 		8-97298-419-0 01 1 0508-0606 ● ● ●
135 BOX; CONSOLE,LWR
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> DARK GRAY THA 		8-97396-595-0 01 1 0607- ● ● ●
139 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> DARK GRAY THA 		8-97298-417-0 01 1 0204-0309 ● ●
139 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> DARK GRAY THA 		8-97398-205-0 01 1 0310-0408 ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> DIGITAL CLOCK<UE8> DARK GRAY THA 		8-97398-205-0 01 1 0409-0409 ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97398-205-0 01 1 0410-0606 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0607-0906 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 0907-0908 ● ● ●
139 BOX; CONSOLE,UPR
4X2 DOUBLE CAB<TFB*W*> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0907-0908 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 0909-0912 ● ● ●
139 BOX; CONSOLE,UPR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97403-312-2 01 1 0909-0912 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 1001-1001 ● ● ●
139 BOX; CONSOLE,UPR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 1001-1001 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR VERY DARK GRAY<116> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 1002-1009 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DIGITAL CLOCK<UE8> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97403-312-2 01 1 1010- ● ● ●
139 BOX; CONSOLE,UPR
DIGITAL CLOCK<UE8> EXC. TRANSFER CONTROL SW TYPE HIGH-LOW<8CE> LIGHT GRAY THA 		8-97298-418-0 01 1 0204-0408 ●
139 BOX; CONSOLE,UPR
4X2<TFB***> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97298-418-0 01 1 0409-0409 ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97298-418-0 01 1 0410-0606 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 0607-0906 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 0907-0908 ● ● ●
139 BOX; CONSOLE,UPR
4X2 DOUBLE CAB<TFB*W*> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 0907-0908 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 0907-0908 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 0909-0912 ● ● ●
139 BOX; CONSOLE,UPR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 0909-0912 ● ● ●
139 BOX; CONSOLE,UPR
4X2 SPACE CAB<TFB*C*> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 0909-0912 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 1001-1001 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 1001-1001 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 1002-1002 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 1002-1002 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 1003-1008 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 1003-1008 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 1009-1009 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 1009-1009 ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> DIGITAL CLOCK<UE8> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97403-311-2 01 1 1010- ● ● ●
139 BOX; CONSOLE,UPR
4X2<TFB***> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> DIGITAL CLOCK<UE8> LIGHT GRAY THA 		8-97403-311-2 01 1 1010- ● ● ●
249 COVER
DARK GRAY THA 		8-97293-913-0 03 1 0204-0606 ● ● ●
249 COVER
DARK GRAY THA 		8-97403-309-0 03 1 0607-1104 ● ● ●
249 COVER
BLACK THA 		8-97422-663-0 03 1 1105- ● ● ●
350 COVER; CONSOLE
4X2<TFB***> EXC. DIGITAL CLOCK<UE8> (A) DARK GRAY THA 		8-97298-416-0 01 1 0204-0606 ●
350 COVER; CONSOLE
4X2<TFB***> EXC. DIGITAL CLOCK<UE8> (D) DARK GRAY THA 		8-97403-320-0 01 1 0607-1001 ●
350 COVER; CONSOLE
4X2<TFB***> INTERIOR COLOR VERY DARK GRAY<116> EXC. DIGITAL CLOCK<UE8> (D) DARK GRAY THA 		8-97403-320-0 01 1 1002- ● ● ●
350 COVER; CONSOLE
(C) DARK GRAY THA 		8-97298-962-0 01 1 0409-0606 ● ● ●
350 COVER; CONSOLE
EXC. HEAD LAMP LEVELING MANUAL<T92> (C) DARK GRAY THA 		8-97298-962-0 01 1 0409-0606 ● ●
350 COVER; CONSOLE
(C) DARK GRAY THA 		8-97396-598-0 02 1 0607- ● ● ●
350 COVER; CONSOLE
(C) DARK GRAY THA 		8-97396-598-0 02 1 0607- ● ● ●
350 COVER; CONSOLE
(C) DARK GRAY THA 		8-97298-962-0 02 1 0409-0606 ● ● ●
350 COVER; CONSOLE
EXC. AM/FM W/CASSETTE 4 SPEAKERS<UM6>,AM/FM ASIA/OCEANIA BAND W/CASSETTE FULL LOGIC<UX5>,AM/FM ASIA/OCEANIA BAND W/CASSETTE SEMI LOGIC<7AU> (B) DARK GRAY THA 		8-97298-421-0 01 1 0204-0408 ● ● ●
350 COVER; CONSOLE
RADIO DELETE<UL5> (B) DARK GRAY THA 		8-97298-421-0 01 1 0409-0606 ● ● ●
350 COVER; CONSOLE
RADIO DELETE<UL5> (B) DARK GRAY THA 		8-97396-597-0 01 1 0607-0907 ● ● ●
350 COVER; CONSOLE
RADIO DELETE<UL5> (B) DARK GRAY THA 		8-97396-597-0 01 1 0908-1001 ● ●
350 COVER; CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> RADIO DELETE<UL5> (B) DARK GRAY THA 		8-97396-597-0 01 1 1002- ● ●
çizim 116662
188 200 154 163 107 112 148 29 29 11 116 50 49 2 37 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97422-761-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97422-762-0 01 1 1105- ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (B) BLACK THA 		8-97419-958-1 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97419-959-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97416-873-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97418-192-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97418-192-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUX 5 SPEED 5S<MZJ> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (A) BEIGE THA 		8-97418-192-1 01 1 1002- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) BEIGE THA 		8-97418-190-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> EXC. INTERIOR LUXURY<B20> (B) BEIGE THA 		8-97418-190-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BEIGE<184> (B) BEIGE THA 		8-97418-190-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 0907-0912 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> INTERIOR LUXURY<B20> (A) BLACK THA 		8-97417-588-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
(A) DARK GRAY THA 		8-97293-887-1 01 1 0204-0408 ● ●
2 CONSOLE; CENTER
FLOOR REMOTE SHIFT<M11> (A) DARK GRAY THA 		8-97293-887-1 01 1 0204-0408 ●
2 CONSOLE; CENTER
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA 		8-97400-586-0 01 1 0409-0412 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) DARK GRAY THA 		8-97400-586-0 01 1 0501-0606 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97403-343-0 01 1 0607-0802 ● ● ●
2 CONSOLE; CENTER
DOUBLE CAB<TF**W*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0710-0802 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0803-0906 ● ● ●
2 CONSOLE; CENTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 0907-0908 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X4 SPACE CAB<TFS*C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB*C*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1009-1009 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (A) DARK GRAY THA 		8-97407-083-0 01 1 1010- ● ● ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97293-884-1 01 1 0204-0606 ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0607-0608 ● ● ●
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0609-0708 ● ● ●
2 CONSOLE; CENTER
A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0709-0709 ● ● ●
2 CONSOLE; CENTER
A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (B) DARK GRAY THA 		8-97403-357-1 01 1 0710-0908 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 0909-0912 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1001-1001 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1002-1008 ● ● ●
2 CONSOLE; CENTER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-357-1 01 1 1009-1104 ● ● ●
2 CONSOLE; CENTER
SPACE CAB<TF**C*> A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA 		8-97403-357-1 01 1 1105- ● ● ●
2 CONSOLE; CENTER
4X4 DOUBLE CAB<TFS*W*> M/T MUX 5 SPEED 5S<MZJ> (A) DARK GRAY THA 		8-97407-083-0 01 1 0609-0708 ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0204-0408 ● ● ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-645-0 01 1 0409-0908 ● ● ●
11 HINGE; CONSOLE LID
(A) THA 		8-97349-645-0 01 1 0909- ● ● ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0204-0408 ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0409-0606 ●
11 HINGE; CONSOLE LID
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) THA 		8-97349-646-0 01 1 0607-0607 ●
11 HINGE; CONSOLE LID
(B) THA 		8-97349-646-0 01 1 0608-0708 ●
11 HINGE; CONSOLE LID
PARKING BRAKE FLOOR<7XW> (B) THA 		8-97349-646-0 01 1 0709-0810 ●
11 HINGE; CONSOLE LID
EXC. CHROME PACKAGE<8GX> (B) THA 		8-97349-646-0 01 1 0811- ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 05 1 0701-0810 ● ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 05 1 0811-1001 ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> M5X16 TAPPING THA 		8-98061-683-0 05 1 0811-1001 ●
29 SCREW; HINGE
INTERIOR COLOR VERY DARK GRAY<116> M5X16 TAPPING THA 		8-98061-683-0 05 1 1002-1009 ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> M5X16 TAPPING THA 		8-98061-683-0 05 1 1002-1009 ●
29 SCREW; HINGE
INTERIOR COLOR VERY DARK GRAY<116> M5X16 TAPPING THA 		8-98061-683-0 05 1 1010- ● ●
29 SCREW; HINGE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> M5X16 TAPPING THA 		8-98061-683-0 05 1 1010- ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0204-0311 ● ● ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 11 1 0312-0408 ● ●
29 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0312-0408 ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0409-0411 ● ● ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 05 1 0412-0606 ● ●
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 05 1 0607-0612 ● ●
29 SCREW; HINGE
M5X16 TAPPING THA 		8-98061-683-0 06 1 0701-0708 ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 TAPPING THA 		8-98061-683-0 06 1 0709-0810 ●
29 SCREW; HINGE
EXC. CHROME PACKAGE<8GX> M5X16 TAPPING THA 		8-98061-683-0 06 1 0811- ●
29 SCREW; HINGE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94279-312-0 06 1 0412-0606 ●
29 SCREW; HINGE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M5X16 THA 		8-94279-312-0 06 1 0607-0607 ●
29 SCREW; HINGE
M5X16 THA 		8-94279-312-0 06 1 0608-0612 ●
37 SCREW; CONSOLE
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0206 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-94358-694-0 02 1 0207-0702 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-98061-684-0 02 1 0703-1005 ● ● ●
37 SCREW; CONSOLE
M5X16 THA 		8-98167-220-0 02 1 1006- ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0206 ● ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> M5X16 THA 		8-94358-694-0 02 1 0207-0408 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-94358-694-0 02 1 0409-0702 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-98061-684-0 02 1 0703-1005 ● ● ●
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> M5X16 THA 		8-98167-220-0 02 1 1006- ● ● ●

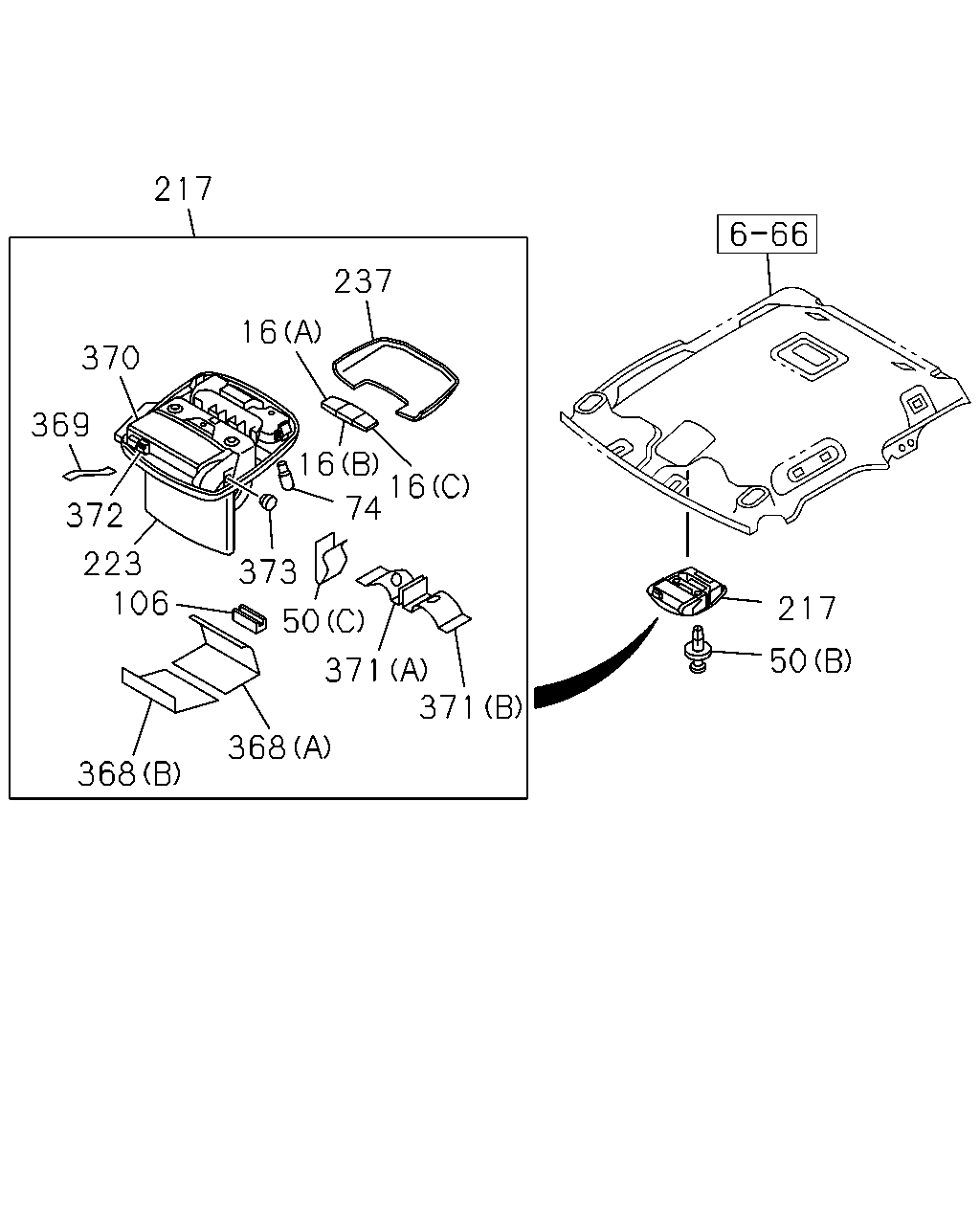

50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1010- ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1002-1008 ●
50 CLIP; CONSOLE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (B) BEIGE THA 		8-97404-621-0 02 1 0909- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0508- ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0508-0606 ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0607-0908 ● ● ●
50 CLIP; CONSOLE
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 1002- ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-533-0 02 1 0204-0209 ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0210-0408 ● ● ●
50 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0409-0908 ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0909- ● ● ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0204-0408 ● ● ●
107 LOCK; LID,RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-644-0 01 1 0409-0908 ● ● ●
107 LOCK; LID,RR CONSOLE
THA 		8-97349-644-0 01 1 0909- ● ● ●
112 LOCK; HOLE,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0204-0408 ● ● ●
112 LOCK; HOLE,RR CONSOLE
PARKING BRAKE FLOOR<7XW> THA 		8-97349-643-0 01 1 0409-0908 ● ● ●
112 LOCK; HOLE,RR CONSOLE
THA 		8-97349-643-0 01 1 0909- ● ● ●
116 COVER; HOLE,CONSOLE,RR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-959-0 01 1 0909-1104 ●
116 COVER; HOLE,CONSOLE,RR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97422-809-0 01 1 1105- ●
116 COVER; HOLE,CONSOLE,RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97394-454-0 01 1 0204-0408 ● ● ●
116 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97394-454-0 01 1 0409-0606 ● ● ●
116 COVER; HOLE,CONSOLE,RR
PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97403-966-0 01 1 0607-0908 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 0909-1001 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1002-1008 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1009-1009 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-966-0 01 1 1010-1104 ● ● ●
116 COVER; HOLE,CONSOLE,RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-799-0 01 1 1105- ● ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0701-0810 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0811-1001 ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> M4X14 THA 		8-97349-647-0 08 1 0811-1001 ●
148 SCREW; LID,CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> M4X14 THA 		8-97349-647-0 08 1 1002-1009 ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> M4X14 THA 		8-97349-647-0 08 1 1002-1009 ●
148 SCREW; LID,CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> M4X14 THA 		8-97349-647-0 08 1 1010- ● ●
148 SCREW; LID,CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> M4X14 THA 		8-97349-647-0 08 1 1010- ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 08 1 0204-0408 ● ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 08 1 0409-0606 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 08 1 0607-0612 ● ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 13 1 0701-0708 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0709-0810 ●
148 SCREW; LID,CONSOLE
EXC. CHROME PACKAGE<8GX> M4X14 THA 		8-97349-647-0 13 1 0811- ●
148 SCREW; LID,CONSOLE
M5X14 THA 		8-97349-872-0 03 1 0701-0708 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0709-0810 ●
148 SCREW; LID,CONSOLE
EXC. CHROME PACKAGE<8GX> M5X14 THA 		8-97349-872-0 03 1 0811- ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0204-0408 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M4X14 THA 		8-97349-647-0 13 1 0409-0606 ●
148 SCREW; LID,CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M4X14 THA 		8-97349-647-0 13 1 0607-0607 ●
148 SCREW; LID,CONSOLE
M4X14 THA 		8-97349-647-0 13 1 0608-0612 ●
148 SCREW; LID,CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0204-0408 ●
148 SCREW; LID,CONSOLE
PARKING BRAKE FLOOR<7XW> M5X14 THA 		8-97349-872-0 03 1 0409-0606 ●
148 SCREW; LID,CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> M5X14 THA 		8-97349-872-0 03 1 0607-0607 ●
148 SCREW; LID,CONSOLE
M5X14 THA 		8-97349-872-0 03 1 0608-0612 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) THA 		8-97418-205-0 01 1 0909-1104 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) BEIGE THA 		8-97422-812-0 01 1 1105- ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-206-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
4X4 DOUBLE CAB<TFS*W*> (B) THA 		8-97418-206-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-206-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BEIGE<184> (B) THA 		8-97418-206-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0701-0810 ● ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0811-0908 ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97403-968-0 01 1 0811-0908 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 0909-1009 ● ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97403-968-0 01 1 0909-1009 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 1010-1104 ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97403-968-0 01 1 1010-1104 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> (A) BLACK THA 		8-97422-810-0 01 1 1105- ● ●
154 LID ASM; RR CONSOLE
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) BLACK THA 		8-97422-810-0 01 1 1105- ●
154 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97394-455-0 01 1 0204-0408 ● ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97394-455-0 01 1 0409-0606 ● ●
154 LID ASM; RR CONSOLE
(A) DARK GRAY THA 		8-97403-968-0 01 1 0607-0612 ● ●
154 LID ASM; RR CONSOLE
(B) DARK GRAY THA 		8-97404-945-0 01 1 0701-0708 ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97404-945-0 01 1 0709-0810 ●
154 LID ASM; RR CONSOLE
EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-0 01 1 0811-0908 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-0 01 1 0909-1001 ●
154 LID ASM; RR CONSOLE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97404-945-1 01 1 1002- ●
154 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97394-475-0 01 1 0204-0408 ●
154 LID ASM; RR CONSOLE
PARKING BRAKE FLOOR<7XW> (B) GRAY THA 		8-97400-183-0 01 1 0409-0606 ●
154 LID ASM; RR CONSOLE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) DARK GRAY THA 		8-97404-945-0 01 1 0607-0607 ●
154 LID ASM; RR CONSOLE
(B) DARK GRAY THA 		8-97404-945-0 01 1 0608-0612 ●
163 RUBBER; CUSHION,PARCEL BOX LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0204-0408 ● ● ●
163 RUBBER; CUSHION,PARCEL BOX LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-682-0 02 1 0409-0908 ● ● ●
163 RUBBER; CUSHION,PARCEL BOX LID
THA 		8-97349-682-0 02 1 0909- ● ● ●
188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> CHROME PACKAGE<8GX> (A) THA 		8-97418-193-1 01 1 0909- ●
188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-194-0 01 1 0909-1001 ●
188 CONSOLE; RR
4X4 DOUBLE CAB<TFS*W*> (B) THA 		8-97418-194-0 01 1 0909-1001 ●
188 CONSOLE; RR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BEIGE<184> EXC. CHROME PACKAGE<8GX> (B) THA 		8-97418-194-1 01 1 1002- ●
188 CONSOLE; RR
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BEIGE<184> (B) THA 		8-97418-194-1 01 1 1002- ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97293-891-1 01 1 0204-0209 ● ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97395-405-0 01 1 0210-0408 ● ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97395-405-0 01 1 0409-0606 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97403-362-0 01 1 0607-0612 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97409-184-0 01 1 0701-0810 ● ●
188 CONSOLE; RR
(A) DARK GRAY THA 		8-97409-184-0 01 1 0811-0908 ● ●
188 CONSOLE; RR
CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97409-184-0 01 1 0811-0908 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-0 01 1 0909-1009 ● ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> CHROME PACKAGE<8GX> (A) DARK GRAY THA 		8-97409-184-0 01 1 0909-1009 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-1 01 1 1010- ● ●
188 CONSOLE; RR
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (A) DARK GRAY THA 		8-97409-184-1 01 1 1010- ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97293-892-3 01 1 0204-0209 ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97395-406-0 01 1 0210-0305 ●
188 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97397-321-0 01 1 0306-0408 ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97398-500-0 01 1 0409-0606 ●
188 CONSOLE; RR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> (B) DARK GRAY THA 		8-97403-365-0 01 1 0607-0607 ●
188 CONSOLE; RR
(B) DARK GRAY THA 		8-97403-365-0 01 1 0608-0612 ●
188 CONSOLE; RR
(B) DARK GRAY THA 		8-97409-186-0 01 1 0701-0708 ●
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97409-186-0 01 1 0709-0810 ●
188 CONSOLE; RR
EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-0 01 1 0811-0908 ●
188 CONSOLE; RR
INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-0 01 1 0909-1001 ●
188 CONSOLE; RR
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. CHROME PACKAGE<8GX> (B) DARK GRAY THA 		8-97409-186-1 01 1 1002- ●
200 NUT; SPIRE,SPR LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0204-0408 ● ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 06 1 0409-0606 ● ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0607-0810 ● ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 06 1 0811-1001 ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> THA 		8-97349-642-0 06 1 0811-1001 ●
200 NUT; SPIRE,SPR LID
INTERIOR COLOR VERY DARK GRAY<116> THA 		8-97349-642-0 06 1 1002-1009 ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLORBEIGE<184> THA 		8-97349-642-0 06 1 1002-1009 ●
200 NUT; SPIRE,SPR LID
INTERIOR COLOR VERY DARK GRAY<116> THA 		8-97349-642-0 06 1 1010- ● ●
200 NUT; SPIRE,SPR LID
CHROME PACKAGE<8GX> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> THA 		8-97349-642-0 06 1 1010- ●
200 NUT; SPIRE,SPR LID
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0204-0408 ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0409-0606 ●
200 NUT; SPIRE,SPR LID
CLOTH TRIM SUPER DELUXE, VAR 1<8LM>,CLOTH TRIM SUPER DELUXE, VAR 3<8LP> THA 		8-97349-642-0 03 1 0607-0607 ●
200 NUT; SPIRE,SPR LID
THA 		8-97349-642-0 03 1 0608-0708 ●
200 NUT; SPIRE,SPR LID
PARKING BRAKE FLOOR<7XW> THA 		8-97349-642-0 03 1 0709-0810 ●
200 NUT; SPIRE,SPR LID
EXC. CHROME PACKAGE<8GX> THA 		8-97349-642-0 03 1 0811- ●
çizim 116737
217 237 16 370 369 16 16 74 372 223 106 373 217 50 50 371 371 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (A) BLACK THA 		8-97418-464-1 01 1 1010- ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-465-1 01 1 1010- ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (C) BLACK THA 		8-97418-486-1 01 1 1010- ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (A) BLACK THA 		8-97418-464-1 01 1 1002-1008 ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-465-1 01 1 1002-1008 ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (C) BLACK THA 		8-97418-486-1 01 1 1002-1008 ●
16 KNOB ASM
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (A) BEIGE THA 		8-97404-793-1 01 1 0909- ●
16 KNOB ASM
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (B) BEIGE THA 		8-97404-794-1 01 1 0909- ●
16 KNOB ASM
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (C) BEIGE THA 		8-97404-795-1 01 1 0909- ●
16 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97401-422-1 01 1 0508-0606 ● ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97403-995-1 01 1 0607-0908 ● ● ●
16 KNOB ASM
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97403-995-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97403-995-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (A) LIGHT GRAY THA 		8-97403-995-1 01 1 1002- ● ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-426-1 01 1 0508-0606 ● ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-997-1 01 1 0607-0908 ● ● ●
16 KNOB ASM
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-997-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-997-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-997-1 01 1 1002- ● ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97401-429-1 01 1 0508-0606 ● ● ●
16 KNOB ASM
HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97403-999-1 01 1 0607-0908 ● ● ●
16 KNOB ASM
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97403-999-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97403-999-1 01 1 0909-1001 ●
16 KNOB ASM
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (C) LIGHT GRAY THA 		8-97403-999-1 01 1 1002- ● ● ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1010- ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> (B) BLACK THA 		8-97418-440-0 02 1 1002-1008 ●
50 CLIP; CONSOLE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> (B) BEIGE THA 		8-97404-621-0 02 1 0909- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (C) THA 		8-97388-958-0 02 1 0508- ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97401-114-0 02 1 0508-0606 ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0607-0908 ● ● ●
50 CLIP; CONSOLE
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 0909-1001 ●
50 CLIP; CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> (B) LIGHT GRAY THA 		8-97403-529-0 02 1 1002- ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97349-533-0 02 1 0204-0209 ● ● ●
50 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAKE<7WH> PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0210-0408 ● ● ●
50 CLIP; CONSOLE
PARKING BRAKE FLOOR<7XW> (A) THA 		8-97355-734-0 02 1 0409-0908 ● ● ●
50 CLIP; CONSOLE
(A) THA 		8-97355-734-0 02 1 0909- ● ● ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-953-0 02 1 0508- ● ● ●
106 LOCK; CONSOLE LID
HEADER CONSOLE<DK6> THA 		8-97388-944-0 01 1 0508- ● ● ●
217 CONSOLE; HEADER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-439-3 01 1 1010- ●
217 CONSOLE; HEADER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-439-3 01 1 1002-1008 ●
217 CONSOLE; HEADER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> BEIGE THA 		8-97404-620-3 01 1 0909- ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97401-113-3 01 1 0508-0606 ● ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-527-3 01 1 0607-0908 ● ● ●
217 CONSOLE; HEADER
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-527-3 01 1 0909-1001 ●
217 CONSOLE; HEADER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-527-3 01 1 0909-1001 ●
217 CONSOLE; HEADER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-527-3 01 1 1002- ● ● ●
223 LID; HEADER CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-463-0 01 1 1010- ●
223 LID; HEADER CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-463-0 01 1 1002-1008 ●
223 LID; HEADER CONSOLE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> BEIGE THA 		8-97404-792-0 01 1 0909- ●
223 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97401-418-0 01 1 0508-0606 ● ● ●
223 LID; HEADER CONSOLE
HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-993-0 01 1 0607-0908 ● ● ●
223 LID; HEADER CONSOLE
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-993-0 01 1 0909-1001 ●
223 LID; HEADER CONSOLE
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-993-0 01 1 0909-1001 ●
223 LID; HEADER CONSOLE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97403-993-0 01 1 1002- ● ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97371-299-0 01 1 0508- ● ● ●
368 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-97388-945-0 01 1 0508- ● ● ●
368 SHEET; CASE,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-97388-948-0 01 1 0508- ● ● ●
369 SPRING; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-946-0 01 1 0508- ● ● ●
370 CASE; HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-947-0 01 1 0508- ● ● ●
371 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-97388-949-0 01 1 0508- ● ● ●
371 REFLECTOR; LAMP,HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-97388-950-0 01 1 0508- ● ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-951-0 01 1 0508- ● ● ●
373 DAMPER; LID,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-97388-954-0 01 1 0508- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
