2-35C — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#7386) — 29 parça

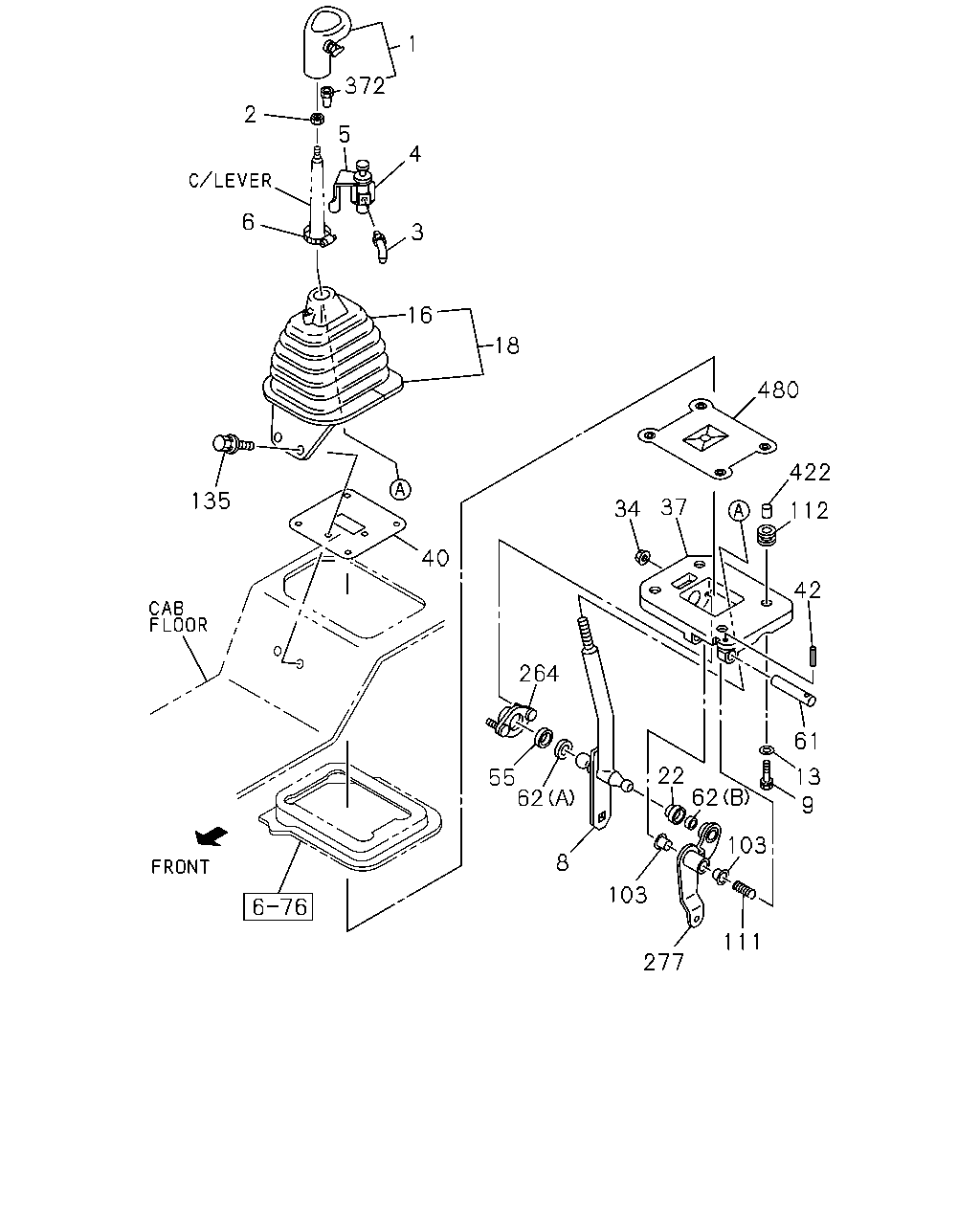

çizim 43080
1 372 2 5 4 6 3 16 18 480 422 135 37 34 112 40 42 264 61 22 62 13 55 62 9 103 8 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-118-0 01 1 9905- ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9905- ● ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 9905- ● ●
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 9905- ● ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 9905- ● ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 9905- ● ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9905- ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9812- ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9812- ● ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9905- ● ●
18 BOOT; CHANGE LEVER 1-79996-435-1 01 1 9905- ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905- ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905- ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905- ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905- ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905- ● ●
111 SPRING 1-09585-136-0 01 1 9905- ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905- ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9812- ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905- ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905- ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9905- ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905- ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905- ● ●
