◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#73858) — 86 parça

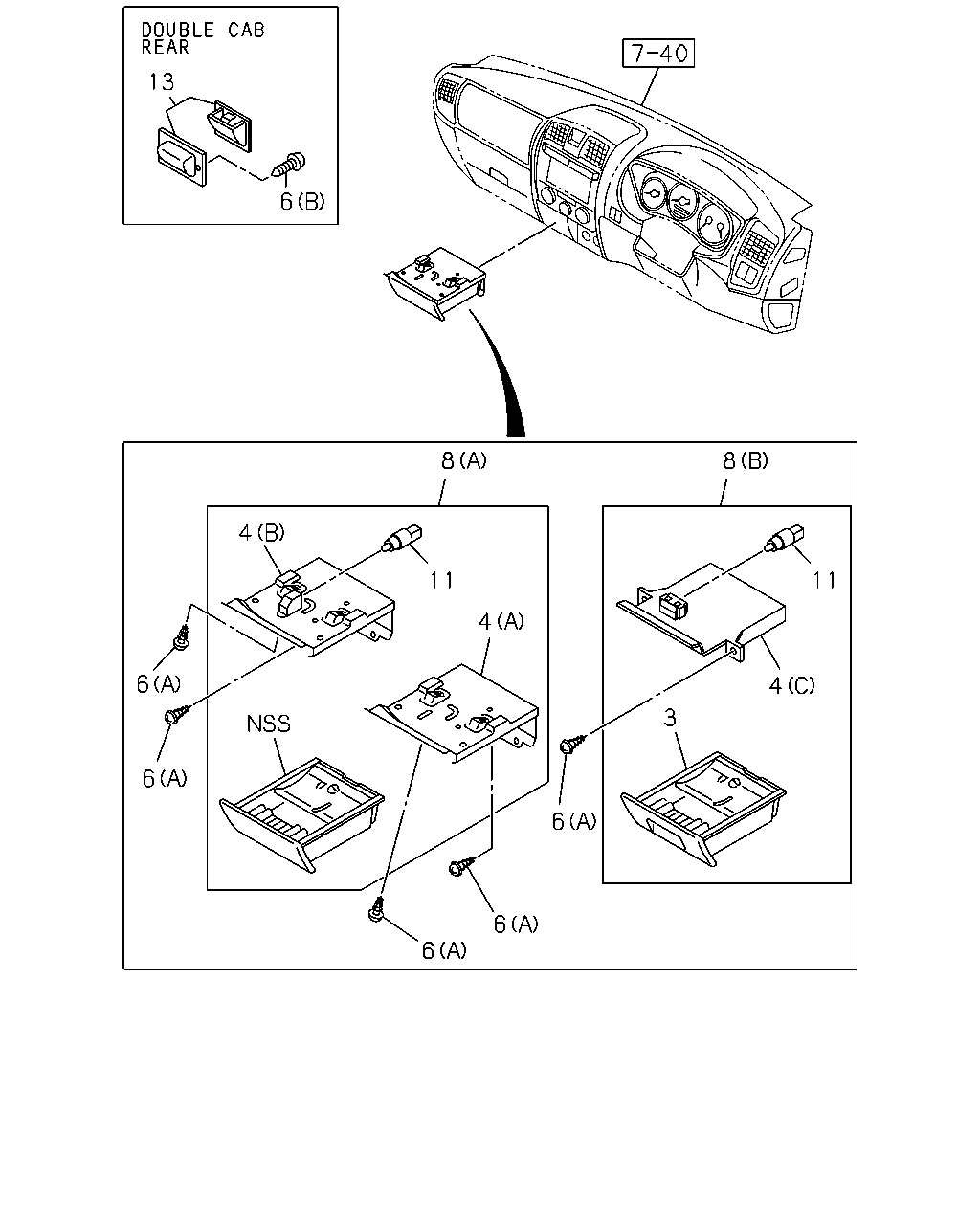

çizim 116554
13 6 8 8 4 11 11 4 6 4 3 6 6 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> INTERIOR LUXURY<B20> THA 		8-98134-997-0 01 1 0907-0912 ●
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> INTERIOR LUXURY<B20> THA 		8-98134-997-0 01 1 1001- ● ● ● ●
3 CASE ASM; ASH TRAY INNER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97407-836-0 01 1 0607-0906 ● ●
3 CASE ASM; ASH TRAY INNER
GRADE EXL/EX/SL/S<RBA> DARK GRAY THA 		8-97407-836-0 01 1 0607-0906 ●
3 CASE ASM; ASH TRAY INNER
GRADE EXL/EX/SL/S<RBA>,GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97407-836-0 01 1 0607-0906 ●
3 CASE ASM; ASH TRAY INNER
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97407-836-0 01 1 0907-1009 ● ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE SX<RBB>,GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97407-836-0 01 1 0907-1009 ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97407-836-0 01 1 1010- ● ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE SX<RBB>,GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97407-836-0 01 1 1010- ● ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> LIGHT GRAY THA 		8-97407-837-0 01 1 0607-0906 ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> LIGHT GRAY THA 		8-97407-837-0 01 1 0607-0906 ●
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> LIGHT GRAY THA 		8-97407-837-0 01 1 0907-0908 ● ● ● ●
3 CASE ASM; ASH TRAY INNER
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> BLACK THA 		8-97418-203-0 01 1 0909- ● ● ● ●
4 CASE ASM; ASH TRAY OUTER
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97308-648-0 01 1 0204-0207 ● ●
4 CASE ASM; ASH TRAY OUTER
(A) THA 		8-97308-648-0 01 1 0204-0207 ●
4 CASE ASM; ASH TRAY OUTER
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97308-648-0 01 1 0208-0409 ● ● ●
4 CASE ASM; ASH TRAY OUTER
(A) THA 		8-97308-648-0 01 1 0208-0409 ●
4 CASE ASM; ASH TRAY OUTER
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA 		8-97308-648-0 01 1 0410-0507 ● ● ●
4 CASE ASM; ASH TRAY OUTER
(A) THA 		8-97308-648-0 01 1 0410-0507 ●
4 CASE ASM; ASH TRAY OUTER
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA 		8-97308-648-0 01 1 0508-0606 ● ● ●
4 CASE ASM; ASH TRAY OUTER
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97308-648-0 01 1 0508-0606 ●
4 CASE ASM; ASH TRAY OUTER
(C) THA 		8-98044-027-0 01 1 0607- ● ● ● ● ●
4 CASE ASM; ASH TRAY OUTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97308-647-0 01 1 0204-0207 ● ●
4 CASE ASM; ASH TRAY OUTER
GRADE SX<RBB>,GRADE SLX/LS<RBD> (B) THA 		8-97308-647-0 01 1 0208-0606 ● ● ●
4 CASE ASM; ASH TRAY OUTER
(B) THA 		8-97308-647-0 01 1 0208-0606 ●
6 SCREW; ASH TRAY
(A) M5X16 TAPPING THA 		9-09829-323-1 03 1 0204-0207 ● ● ●
6 SCREW; ASH TRAY
(A) M5X16 TAPPING THA 		9-09829-323-1 03 1 0208-0606 ● ● ● ● ●
6 SCREW; ASH TRAY
(A) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0702 ● ● ● ● ●
6 SCREW; ASH TRAY
(A) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ● ● ● ●
6 SCREW; ASH TRAY
(A) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ● ● ●
6 SCREW; ASH TRAY
(B) M4X16 TAPPING OVAL-HEAD THA 		9-07037-416-0 04 1 0208-0610 ● ●
6 SCREW; ASH TRAY
(B) M4X16 TAPPING OVAL-HEAD THA 		0-70540-416-0 04 1 0611- ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR LUXURY<B20> (B) THA 		8-98134-996-0 01 1 0907-0912 ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR LUXURY<B20> (B) THA 		8-98134-996-0 01 1 1001- ● ● ● ●
8 TRAY ASM; ASH
GRADE SX<RBB> (A) DARK GRAY THA 		8-97392-978-0 01 1 0204-0307 ●
8 TRAY ASM; ASH
GRADE SX<RBB> (A) DARK GRAY THA 		8-97392-978-0 01 1 0308-0409 ● ●
8 TRAY ASM; ASH
GRADE SX<RBB> EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY THA 		8-97392-978-0 01 1 0410-0606 ● ●
8 TRAY ASM; ASH
GRADE SX<RBB>,GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-297-0 01 1 0607-0906 ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-297-0 01 1 0607-0906 ●
8 TRAY ASM; ASH
GRADE SX<RBB>,GRADE SLX/LS<RBD> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97403-297-0 01 1 0907- ● ● ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (A) DARK GRAY THA 		8-97293-901-0 01 1 0204-0207 ● ●
8 TRAY ASM; ASH
(A) DARK GRAY THA 		8-97293-901-0 01 1 0204-0207 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (A) DARK GRAY THA 		8-97293-901-0 01 1 0208-0409 ● ● ●
8 TRAY ASM; ASH
(A) DARK GRAY THA 		8-97293-901-0 01 1 0208-0409 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY THA 		8-97293-901-0 01 1 0410-0507 ● ● ●
8 TRAY ASM; ASH
(A) DARK GRAY THA 		8-97293-901-0 01 1 0410-0507 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY THA 		8-97293-901-0 01 1 0508-0606 ● ● ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (A) DARK GRAY THA 		8-97293-901-0 01 1 0508-0606 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-296-0 01 1 0607-0908 ● ● ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (B) DARK GRAY THA 		8-97403-296-0 01 1 0607-0908 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-296-0 01 1 0909-1001 ● ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (B) DARK GRAY THA 		8-97403-296-0 01 1 0909-1001 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-296-0 01 1 0909-1001 ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-296-0 01 1 1002- ● ● ●
8 TRAY ASM; ASH
GRADE EXL/EX/SL/S<RBA> (B) DARK GRAY THA 		8-97403-296-0 01 1 1002- ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97392-979-0 01 1 0204-0207 ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97392-979-0 01 1 0208-0409 ● ● ●
8 TRAY ASM; ASH
(A) LIGHT GRAY THA 		8-97392-979-0 01 1 0208-0409 ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> (A) LIGHT GRAY THA 		8-97392-979-0 01 1 0410-0507 ● ● ●
8 TRAY ASM; ASH
(A) LIGHT GRAY THA 		8-97392-979-0 01 1 0410-0507 ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> (A) LIGHT GRAY THA 		8-97392-979-0 01 1 0508-0606 ● ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97392-979-0 01 1 0508-0606 ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY THA 		8-97403-299-0 01 1 0607-0906 ● ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> (B) LIGHT GRAY THA 		8-97403-299-0 01 1 0607-0906 ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (B) LIGHT GRAY THA 		8-97403-299-0 01 1 0907-0908 ● ● ● ●
8 TRAY ASM; ASH
GRADE SLX/LS<RBD> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97418-182-0 01 1 0909- ● ● ● ●
11 BULB; ASH TRAY
GRADE SX<RBB>,GRADE SLX/LS<RBD> THA 		8-97308-651-0 01 1 0204-0207 ● ●
11 BULB; ASH TRAY
GRADE SX<RBB>,GRADE SLX/LS<RBD> THA 		8-97308-651-0 01 1 0208-0606 ● ● ●
11 BULB; ASH TRAY
THA 		8-97308-651-0 01 1 0208-0606 ●
11 BULB; ASH TRAY
GRADE SX<RBB>,GRADE SLX/LS<RBD> THA 		8-97308-651-0 01 1 0607- ● ● ● ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR BEIGE<184> POWER WINDOW<A31> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-254-0 02 1 0909-1001 ●
13 TRAY ASM; ASH,RR
LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-254-0 02 1 0909-1001 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR BEIGE<184> POWER WINDOW<A31> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-254-0 02 1 1002- ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR BEIGE<184> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> THA 		8-97418-254-0 02 1 1002- ●
13 TRAY ASM; ASH,RR
DARK GRAY THA 		8-97393-945-1 02 1 0208-0606 ● ●
13 TRAY ASM; ASH,RR
DARK GRAY THA 		8-97403-923-1 02 1 0607-0612 ● ●
13 TRAY ASM; ASH,RR
DARK GRAY THA 		8-97409-355-0 02 1 0701-0908 ● ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 0909-1001 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 0909-1001 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1002-1008 ● ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1002-1008 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1002-1008 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97409-355-0 02 1 1009-1009 ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR BLACK<101> LEATHER SEAT<6TB>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1010- ● ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> VINYL TRIM<8LJ> EXC. POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1010- ●
13 TRAY ASM; ASH,RR
INTERIOR COLOR VERY DARK GRAY<116> CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW<A31> DARK GRAY THA 		8-97409-355-0 02 1 1010- ●
