7-40 — INSTRUMENT PANEL AND BOX (#73857) — 534 parça

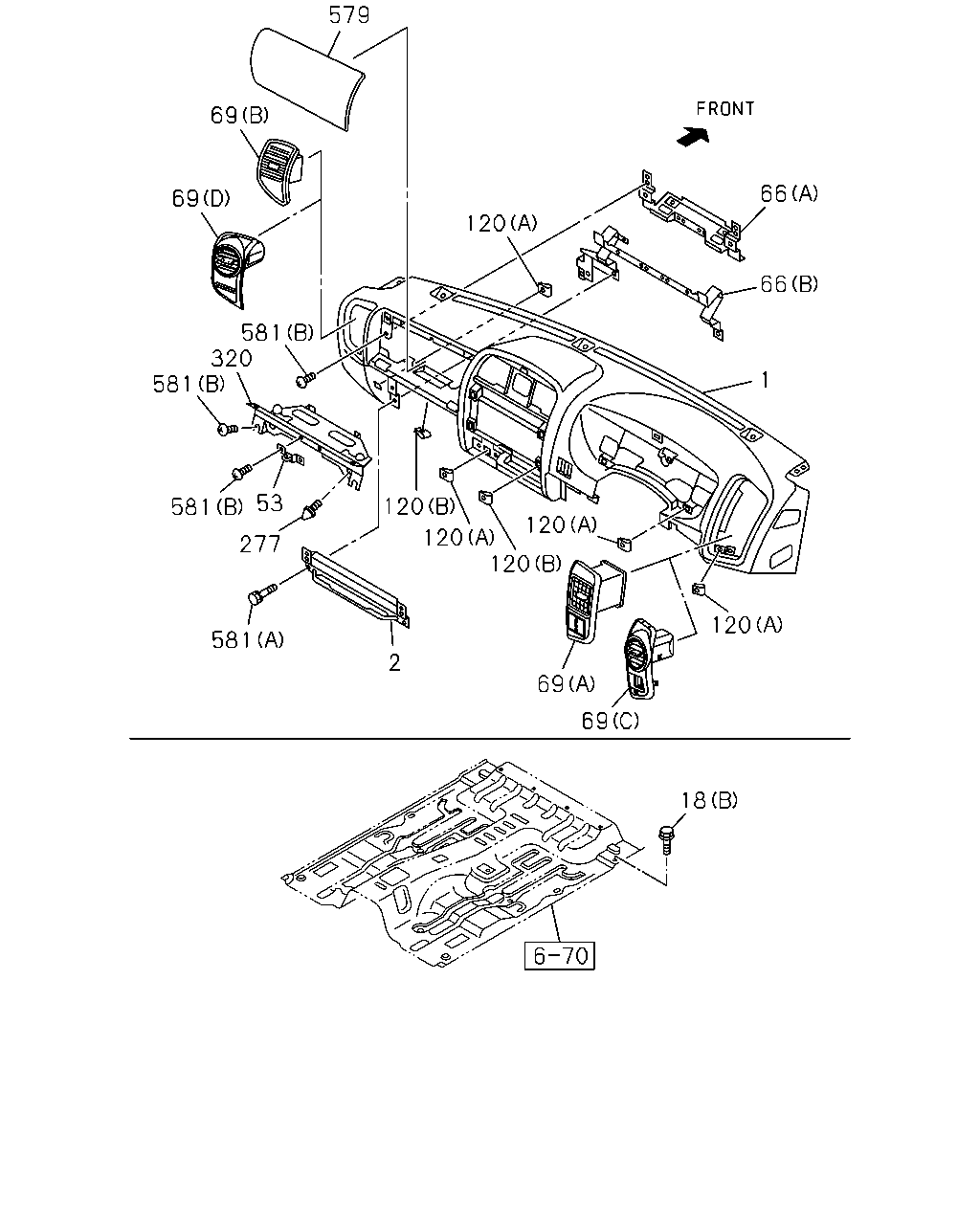

çizim 116558
579 69 66 69 120 66 581 320 581 1 53 120 581 120 120 120 277 120 581 2 69 69 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0204-0207 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0208-0606 ● ● ● ● ●
1 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 0607-0906 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-0 01 1 0607-0906 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1008 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1008 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1009-1009 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1009-1009 ● ● ● ●
1 PANEL; INST
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1010-1103 ● ● ● ●
1 PANEL; INST
INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1010-1103 ● ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-0 01 1 1104- ● ● ● ● ●
1 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-962-0 01 1 0607-0906 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-962-0 01 1 0607-0906 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-962-0 01 1 0907-0912 ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 1001-1009 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 1010-1103 ● ● ● ● ●
2 REINFORCEMENT; INST PNL,LWR
THA 		8-97308-645-0 01 1 0204-0207 ● ● ●
2 REINFORCEMENT; INST PNL,LWR
THA 		8-97308-645-0 01 1 0208- ● ● ● ● ●
18 BOLT; BRKT
(B) THA 		8-97248-987-0 02 1 0204-0408 ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 0204-0207 ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 0208-0210 ● ● ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97353-832-0 02 1 0211-0408 ● ● ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/LK&PL WASHER THA 		8-97353-832-0 02 1 0409- ● ● ● ●
18 BOLT; BRKT
(B) THA 		8-97248-987-0 01 1 0208-0408 ● ●
53 STRIKER; GLOVE BOX
THA 		8-97308-646-0 01 1 0204-0207 ● ● ●
53 STRIKER; GLOVE BOX
THA 		8-97308-646-0 01 1 0208- ● ● ● ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97308-643-0 01 1 0204-0207 ● ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97308-643-0 01 1 0208-0910 ● ● ● ● ●
66 REINFORCEMENT; INST PANEL
(B) THA 		8-97308-643-0 01 1 0910- ● ● ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<7FA> (A) THA 		8-97308-641-0 01 1 0204-0207 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<7FA> (A) THA 		8-97308-641-0 01 1 0208-0408 ● ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) THA 		8-97308-641-0 01 1 0409- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (C) THA 		8-98135-002-0 01 1 0907-0910 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (C) THA 		8-98154-836-0 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (C) THA 		8-98154-836-0 01 1 1001- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY THA 		8-97299-327-1 01 1 0204-0207 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY THA 		8-97299-327-1 01 1 0208-0307 ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY THA 		8-97396-253-0 01 1 0308-0606 ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY THA 		8-97405-970-3 01 1 0607-0906 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(D) LIGHT GRAY THA 		8-97405-970-3 01 1 0607-0906 ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> (D) LIGHT GRAY THA 		8-97405-970-3 01 1 0907-0908 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (D) LIGHT GRAY THA 		8-97405-970-3 01 1 0907-0908 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> (D) BLACK THA 		8-97418-202-0 01 1 0909-0910 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (D) BLACK THA 		8-97418-202-0 01 1 0909-0910 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (D) DARK GRAY THA 		8-97405-963-3 01 1 0911-0912 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA 		8-97405-963-3 01 1 0911-0912 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (D) DARK GRAY THA 		8-97405-963-3 01 1 1001-1009 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (D) DARK GRAY THA 		8-97405-963-3 01 1 1010- ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (D) THA 		8-98134-995-0 01 1 0907-0910 ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (D) THA 		8-98156-365-0 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (D) THA 		8-98156-365-0 01 1 1001-1001 ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (D) THA 		8-98156-365-0 01 1 1001-1001 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR LUXURY<B20> (D) THA 		8-98156-365-0 01 1 1001- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> (D) BLACK THA 		8-97418-990-3 01 1 0911-0912 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (D) BLACK THA 		8-97418-990-3 01 1 0911-0912 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (D) BLACK THA 		8-97418-990-3 01 1 1001- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA 		8-97405-963-3 01 1 0607-0906 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(D) DARK GRAY THA 		8-97405-963-3 01 1 0607-0906 ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (D) DARK GRAY THA 		8-97405-963-3 01 1 0907- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERIOR SILVER BEZEL<BY9> (D) DARK GRAY THA 		8-97405-963-3 01 1 0907- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97403-327-3 01 1 0607-0906 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 0607-0906 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 0907-0908 ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 0907-0908 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97403-327-3 01 1 0907-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97416-130-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97416-130-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97416-130-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97416-130-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97403-327-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY THA 		8-97403-327-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 1001-1001 ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 1001-1001 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 1001-1001 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 1002-1009 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 1002-1009 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 1010- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) DARK GRAY THA 		8-97403-327-3 01 1 1010- ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK<101> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (C) DARK GRAY THA 		8-97403-327-3 01 1 1010- ●
69 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY THA 		8-97391-965-1 01 1 0204-0207 ● ●
69 GRILLE; SIDE,AIR OUTLET
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY THA 		8-97391-965-1 01 1 0208-0209 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY THA 		8-97293-900-1 01 1 0204-0207 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY THA 		8-97293-900-1 01 1 0204-0207 ●
69 GRILLE; SIDE,AIR OUTLET
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) DARK GRAY THA 		8-97293-900-1 01 1 0208-0209 ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY THA 		8-97293-900-1 01 1 0208-0209 ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY THA 		8-97293-900-1 01 1 0210-0307 ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY THA 		8-97396-252-0 01 1 0308-0606 ● ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY THA 		8-97403-331-3 01 1 0607-0906 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) LIGHT GRAY THA 		8-97403-331-3 01 1 0607-0906 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (C) LIGHT GRAY THA 		8-97403-331-3 01 1 0907-0908 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY THA 		8-97403-331-3 01 1 0907-0908 ● ●
69 GRILLE; SIDE,AIR OUTLET
(C) LIGHT GRAY THA 		8-97403-331-3 01 1 0907-0908 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (C) BLACK THA 		8-97418-185-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> (C) BLACK THA 		8-97418-185-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) BLACK THA 		8-97418-185-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK THA 		8-97418-185-0 01 1 0909-0910 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (C) BLACK THA 		8-97418-546-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> (C) BLACK THA 		8-97418-546-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> (C) BLACK THA 		8-97418-546-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK THA 		8-97418-546-3 01 1 0911-0912 ●
69 GRILLE; SIDE,AIR OUTLET
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> (C) BLACK THA 		8-97418-546-3 01 1 1001- ● ● ● ●
120 NUT; SPIRE,INST PNL
(B) THA 		8-97025-251-0 07 1 0204- ● ● ● ● ●
120 NUT; SPIRE,INST PNL
(A) THA 		8-97185-781-0 06 1 0204- ● ● ● ● ●
277 RUBBER; STOPPER GLOVE LID
THA 		8-97308-650-0 03 1 0204-0207 ● ● ●
277 RUBBER; STOPPER GLOVE LID
THA 		8-97308-650-0 03 1 0208- ● ● ● ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97299-328-1 01 1 0204-0207 ● ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97299-328-1 01 1 0208-0606 ● ● ● ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97405-960-1 01 1 0607-0910 ● ● ● ● ●
320 COVER; GLOVE BOX
DARK GRAY THA 		8-97405-960-1 01 1 0912- ● ● ● ● ●
579 COVER; INST PNL
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97299-329-0 01 1 0204-0207 ● ●
579 COVER; INST PNL
DARK GRAY THA 		8-97299-329-0 01 1 0204-0207 ●
579 COVER; INST PNL
EXC. AIR BAG DRIVER & PASSENGER<7FA> DARK GRAY THA 		8-97299-329-0 01 1 0208-0408 ● ● ● ●
579 COVER; INST PNL
DARK GRAY THA 		8-97299-329-0 01 1 0208-0408 ●
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97299-329-0 01 1 0409-0606 ● ● ● ●
579 COVER; INST PNL
DARK GRAY THA 		8-97299-329-0 01 1 0409-0606 ●
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97405-961-0 01 1 0607-0910 ● ● ● ●
579 COVER; INST PNL
DARK GRAY THA 		8-97405-961-0 01 1 0607-0910 ●
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> DARK GRAY THA 		8-97405-961-0 01 1 0909- ● ● ● ●
579 COVER; INST PNL
DARK GRAY THA 		8-97405-961-0 01 1 0909- ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-94112-987-1 03 1 0204-0207 ● ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-94112-987-1 03 1 0208-0610 ● ● ● ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-98056-282-0 03 1 0611- ● ● ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 13 1 0204-0207 ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 13 1 0208-0411 ● ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 THA 		8-94279-312-0 11 1 0412-0610 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 0611-0910 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0909-0910 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 0910-0912 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ● ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ● ● ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1009-1009 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1009-1009 ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ● ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 0911-1008 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1009- ● ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA 		8-94279-312-0 15 1 0412-0610 ● ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 15 1 0412-0610 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0611-0912 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0611-0912 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1001-1008 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1001-1008 ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 1009- ● ● ● ●
581 SCREW
EXC. CHANGER 6CD 1DIN TYPE<8CH> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
EXC. CHANGER 6CD 1DIN TYPE<8CH> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ● ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ● ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0409-0504 ● ● ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0409-0504 ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0505-0507 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0505-0507 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0508-0606 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0508-0606 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ● ●
581 SCREW
(C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ●
581 SCREW
RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ●
581 SCREW
RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ●
581 SCREW
RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ●
581 SCREW
RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ●
çizim 116689
11 124 178 18 537 341 176 11 11 1 176 11 170 42 61 125 11 16 500 182 581 341 176 285 111 136 182 581 111 500 247 136 338 622 341 336 338 341 622 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0204-0207 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97299-326-0 01 1 0208-0606 ● ● ● ● ●
1 PANEL; INST
INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 0607-0906 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-0 01 1 0607-0906 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 0907-0912 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1001 ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1008 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1001-1008 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1009-1009 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1009-1009 ● ● ● ●
1 PANEL; INST
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1010-1103 ● ● ● ●
1 PANEL; INST
INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-969-0 01 1 1010-1103 ● ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-969-0 01 1 1104- ● ● ● ● ●
1 PANEL; INST
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-962-0 01 1 0607-0906 ● ● ●
1 PANEL; INST
DARK GRAY THA 		8-97405-962-0 01 1 0607-0906 ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 0907-0912 ● ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY THA 		8-97405-962-0 01 1 0907-0912 ● ● ●
1 PANEL; INST
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 1001-1009 ● ● ● ●
1 PANEL; INST
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> DARK GRAY THA 		8-97405-962-0 01 1 1010-1103 ● ● ● ● ●
11 BOLT; INST PNL
(C) M6X25 W/LK&PL WASHER THA 		8-94416-136-0 04 1 0409-0612 ● ● ● ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 04 1 0701- ● ● ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-94112-987-1 06 1 0204-0207 ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-94112-987-1 06 1 0208-0210 ● ● ● ● ●
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X20 W/WASHER THA 		8-94112-987-1 06 1 0211-0408 ● ● ● ●
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X20 W/WASHER THA 		8-94112-987-1 06 1 0409-0612 ● ● ● ●
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X20 W/WASHER THA 		8-98056-282-0 06 1 0701- ● ● ● ●
11 BOLT; INST PNL
(B) M8X25 W/LK&PL WASHER THA 		8-94411-977-0 04 1 0204-0207 ● ● ●
11 BOLT; INST PNL
(B) M8X25 W/LK&PL WASHER THA 		8-94411-977-0 04 1 0208-0612 ● ● ● ● ●
11 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER THA 		8-98057-964-0 04 1 0701- ● ● ● ● ●
11 BOLT; INST PNL
EXC. AIR BAG DRIVER & PASSENGER<7FA> (A) M6X20 W/WASHER THA 		8-94112-987-1 04 1 0211-0408 ● ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-94112-987-1 04 1 0211-0408 ●
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M6X20 W/WASHER THA 		8-94112-987-1 04 1 0409-0612 ● ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-94112-987-1 04 1 0409-0612 ●
11 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) M6X20 W/WASHER THA 		8-98056-282-0 04 1 0701- ● ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER THA 		8-98056-282-0 04 1 0701- ●
16 BRACKET; INST PNL
THA 		8-97302-051-0 01 1 0204-0207 ● ● ●
16 BRACKET; INST PNL
THA 		8-97302-051-0 01 1 0208-0606 ● ● ● ● ●
16 BRACKET; INST PNL
THA 		8-98043-124-0 01 1 0607- ● ● ● ● ●
18 BOLT; BRKT
(B) THA 		8-97248-987-0 02 1 0204-0408 ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 0204-0207 ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 0208-0210 ● ● ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> (A) M6X18 W/LK&PL WASHER THA 		8-97353-832-0 02 1 0211-0408 ● ● ● ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/LK&PL WASHER THA 		8-97353-832-0 02 1 0409- ● ● ● ●
18 BOLT; BRKT
(B) THA 		8-97248-987-0 01 1 0208-0408 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97293-941-2 01 1 0204-0207 ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97293-941-2 01 1 0208-0304 ● ● ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97396-878-0 01 1 0305-0405 ● ● ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97293-941-2 01 1 0406-0507 ● ● ● ● ●
42 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY THA 		8-97293-941-2 01 1 0508-0606 ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97293-941-2 01 1 0508-0606 ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97403-321-2 01 1 0607-0612 ● ● ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97409-179-0 01 1 0701-0805 ● ● ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY THA 		8-97415-658-0 01 1 0806- ● ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 THA 		8-94279-312-0 02 1 0204-0207 ● ● ●
61 SCREW; GLOVE BOX
M5X16 THA 		8-94279-312-0 02 1 0208-0702 ● ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING THA 		8-98061-683-0 02 1 0703-1005 ● ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING THA 		8-98167-214-0 02 1 1006- ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-97137-828-0 06 1 0204-0207 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-97137-828-0 06 1 0208-0307 ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-97137-828-0 06 1 0308-0408 ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> T=0.5 THA 		8-97137-828-0 06 1 0409-0507 ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1>,RADIO AM/FM W/CASSETTE,W/CD<UU5> T=0.5 THA 		8-97137-828-0 06 1 0508-0606 ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> T=0.5 THA 		8-97137-828-0 06 1 0607-0608 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> T=0.5 THA 		8-97137-828-0 06 1 0607-0608 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> T=0.5 THA 		8-97137-828-0 06 1 0607-0608 ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-97137-828-0 06 1 0607-0608 ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> T=0.5 THA 		8-97137-828-0 06 1 0609-0612 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> T=0.5 THA 		8-97137-828-0 06 1 0609-0612 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> T=0.5 THA 		8-97137-828-0 06 1 0609-0612 ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3> T=0.5 THA 		8-97137-828-0 06 1 0609-0612 ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> T=0.5 THA 		8-98061-356-0 06 1 0701-0708 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> T=0.5 THA 		8-98061-356-0 06 1 0701-0708 ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> T=0.5 THA 		8-98061-356-0 06 1 0701-0708 ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3> T=0.5 THA 		8-98061-356-0 06 1 0701-0708 ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> T=0.5 THA 		8-98061-356-0 06 1 0709-0908 ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> T=0.5 THA 		8-98061-356-0 06 1 0709-0908 ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM W/CD,W/MP3<ULA>,RADIO DELETE<UL5>, RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> T=0.5 THA 		8-98061-356-0 06 1 0909-1009 ● ● ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 THA 		8-98061-356-0 06 1 1010- ● ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW> THA 		8-98023-084-0 01 1 0709-0709 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> THA 		8-98023-084-0 01 1 0710-0808 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> THA 		8-98110-189-0 01 1 0809- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97237-252-1 01 1 0204-0207 ● ●
124 REINFORCEMENT; INST PNL,UPR
PARKING BRAKE FLOOR<7XW> THA 		8-97237-252-1 01 1 0208-0507 ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97237-252-1 01 1 0208-0507 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98023-081-0 01 1 0508-0606 ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98023-081-0 01 1 0508-0606 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98023-081-0 01 1 0607-0708 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<AP5> PARKING BRAKE FLOOR<7XW> THA 		8-98023-068-0 01 1 0709-0709 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<AP5> THA 		8-98023-068-0 01 1 0710-0808 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<AP5> THA 		8-98110-168-0 01 1 0809- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97237-250-1 01 1 0204-0207 ●
124 REINFORCEMENT; INST PNL,UPR
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97237-250-1 01 1 0208-0507 ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-97237-250-1 01 1 0208-0507 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98023-083-0 01 1 0508-0606 ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98023-083-0 01 1 0508-0606 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98023-083-0 01 1 0607-0708 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> PARKING BRAKE FLOOR<7XW> EXC. REMOTE CONT DOOR LOCK<AP5> THA 		8-98023-083-0 01 1 0709-0709 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. REMOTE CONT DOOR LOCK<AP5> THA 		8-98023-083-0 01 1 0710-0808 ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. REMOTE CONT DOOR LOCK<AP5> THA 		8-98110-179-0 01 1 0809- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-98023-082-0 01 1 0508-0708 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. REMOTE CONT DOOR LOCK<AP5>,PARKING BRAKE FLOOR<7XW> THA 		8-98023-082-0 01 1 0709-0709 ● ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-98023-082-0 01 1 0710-0808 ●
124 REINFORCEMENT; INST PNL,UPR
THA 		8-98110-178-0 01 1 0809- ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> IMMOBILIZER SYSTEM<7KC> THA 		8-98023-084-0 01 1 0508-0606 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> THA 		8-98023-084-0 01 1 0508-0606 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM<7KC> THA 		8-98023-068-0 01 1 0508-0606 ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98023-068-0 01 1 0508-0606 ●
125 CLIP; INST PANEL
THA 		8-97310-401-0 01 1 0204-0207 ● ● ●
125 CLIP; INST PANEL
THA 		8-97310-401-0 01 1 0208- ● ● ● ● ●
136 CLIP; INST COVER
T=0.5 THA 		8-97137-828-0 04 1 0204-0207 ● ● ●
136 CLIP; INST COVER
T=0.5 THA 		8-97137-828-0 04 1 0208-0612 ● ● ● ● ●
136 CLIP; INST COVER
T=0.5 THA 		8-98061-356-0 04 1 0701- ● ● ● ● ●
170 COVER; HOLE
EXC. LAMP GLOVE BOX<U27> THA 		8-97238-439-0 01 1 0204-0207 ● ●
170 COVER; HOLE
THA 		8-97238-439-0 01 1 0204-0207 ●
170 COVER; HOLE
EXC. LAMP GLOVE BOX<U27> THA 		8-97238-439-0 01 1 0208-0212 ● ● ●
170 COVER; HOLE
THA 		8-97238-439-0 01 1 0208-0212 ●
176 BOLT; CROSS BEAM
M6X25 W/LK&PL WASHER THA 		8-94416-136-0 04 1 0204-0207 ● ● ●
176 BOLT; CROSS BEAM
M6X25 W/LK&PL WASHER THA 		8-94416-136-0 04 1 0208-0408 ● ● ● ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		8-97063-399-0 03 1 0204-0207 ● ● ●
178 NUT; INST PANEL
M6 FLANGE THA 		8-97063-399-0 03 1 0208-0702 ● ● ● ● ●
178 NUT; INST PANEL
M6 FLANGE IMA 		8-98055-704-0 03 1 0703- ● ● ● ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER THA 		8-94112-987-1 04 1 0204-0207 ● ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER THA 		8-94112-987-1 04 1 0208-0612 ● ● ● ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER THA 		8-98056-282-0 04 1 0701- ● ● ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
DARK GRAY THA 		8-97393-916-0 01 1 0204-0207 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97393-916-0 01 1 0208-0408 ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> DARK GRAY THA 		8-97393-916-0 01 1 0208-0408 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97393-916-0 01 1 0208-0408 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97393-916-0 01 1 0409-0507 ● ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
DARK GRAY THA 		8-97393-916-0 01 1 0508-0606 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
DARK GRAY THA 		8-97403-950-0 01 1 0607-0708 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY THA 		8-97403-950-0 01 1 0709-0709 ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
DARK GRAY THA 		8-97403-950-0 01 1 0710-1104 ●
247 COVER; HAND BRAKE LEVER,INST PANEL
BLACK THA 		8-97422-831-0 01 1 1105- ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 THA 		1-71997-513-1 01 1 0204-0207 ● ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 THA 		1-71997-513-1 01 1 0208-1008 ● ● ● ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=500 IMA 		1-79937-746-0 01 1 1009- ● ● ● ● ●
336 COVER; INST PANEL SIDE
(A) DARK GRAY THA 		8-97393-913-0 01 1 0204-0207 ● ●
336 COVER; INST PANEL SIDE
4JH1 ENG<RJX>,4JA1 ENG<RLE> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97393-913-0 01 1 0208-0408 ● ●
336 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97393-913-0 01 1 0208-0408 ●
336 COVER; INST PANEL SIDE
(A) DARK GRAY THA 		8-97393-913-0 01 1 0208-0408 ●
336 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97393-913-0 01 1 0409-0507 ● ● ● ●
336 COVER; INST PANEL SIDE
(A) DARK GRAY THA 		8-97393-913-0 01 1 0508-0606 ● ● ● ●
336 COVER; INST PANEL SIDE
(A) DARK GRAY THA 		8-97403-940-0 01 1 0607-0708 ● ● ● ●
336 COVER; INST PANEL SIDE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> PARKING BRAKE FLOOR<7XW> (A) DARK GRAY THA 		8-97403-940-0 01 1 0709-0709 ● ● ● ●
336 COVER; INST PANEL SIDE
(A) DARK GRAY THA 		8-97403-940-0 01 1 0710-1104 ● ● ● ●
336 COVER; INST PANEL SIDE
(A) BLACK THA 		8-97422-814-0 01 1 1105- ● ● ● ●
336 COVER; INST PANEL SIDE
(B) DARK GRAY THA 		8-97393-912-0 01 1 0204-0207 ●
336 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97393-912-0 01 1 0208-0507 ● ● ● ●
336 COVER; INST PANEL SIDE
(B) DARK GRAY THA 		8-97393-912-0 01 1 0508-0606 ●
336 COVER; INST PANEL SIDE
(B) DARK GRAY THA 		8-97403-942-0 01 1 0607-0708 ●
336 COVER; INST PANEL SIDE
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY THA 		8-97403-942-0 01 1 0709-0709 ● ●
336 COVER; INST PANEL SIDE
(B) DARK GRAY THA 		8-97403-942-0 01 1 0710-1104 ●
336 COVER; INST PANEL SIDE
(B) BLACK THA 		8-97422-822-0 01 1 1105- ●
338 SCREW; COVER
M5X16 THA 		8-94279-312-0 01 1 0204-0207 ● ● ●
338 SCREW; COVER
M5X16 THA 		8-94279-312-0 01 1 0208-0702 ● ● ● ● ●
338 SCREW; COVER
M5X16 TAPPING THA 		8-98061-683-0 01 1 0703-1005 ● ● ● ● ●
338 SCREW; COVER
M5X16 TAPPING THA 		8-98167-214-0 01 1 1006- ● ● ● ● ●
341 LID; FUSE BOX
(A) DARK GRAY THA 		8-97393-914-0 01 1 0204-0207 ● ● ●
341 LID; FUSE BOX
(A) DARK GRAY THA 		8-97393-914-0 01 1 0208-0606 ● ● ● ● ●
341 LID; FUSE BOX
(A) DARK GRAY THA 		8-97403-945-0 01 1 0607-1104 ● ● ● ● ●
341 LID; FUSE BOX
(A) BLACK THA 		8-97422-818-0 01 1 1105- ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97293-915-1 01 1 0204-0207 ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97293-915-1 01 1 0208-0303 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97396-877-0 01 1 0304-0606 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-049-0 01 1 0607-0910 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-049-0 01 1 0909- ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97293-914-1 01 1 0204-0207 ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97293-914-1 01 1 0208-0303 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97396-876-0 01 1 0304-0606 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-048-0 01 1 0607-0910 ● ● ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY THA 		8-97408-048-0 01 1 0909- ● ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO DELETE<UL5> (B) THA 		8-98154-833-0 01 1 1001- ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98146-229-0 01 1 0907-0910 ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98154-832-0 01 1 0911-0912 ●
500 CLUSTER; INST CENTER
INTERIOR LUXURY<B20> RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98154-832-0 01 1 1001- ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) LIGHT GRAY THA 		8-97403-316-4 01 1 0607-0608 ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) LIGHT GRAY THA 		8-97403-316-4 01 1 0609-0612 ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (B) LIGHT GRAY THA 		8-97403-316-4 01 1 0609-0612 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) LIGHT GRAY THA 		8-97409-174-0 01 1 0701-0709 ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (B) LIGHT GRAY THA 		8-97409-174-0 01 1 0701-0709 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) LIGHT GRAY THA 		8-97409-174-0 01 1 0710-0808 ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) LIGHT GRAY THA 		8-97409-174-0 01 1 0809-0908 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97418-183-0 01 1 0909-0910 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97418-544-0 01 1 0911-0912 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97418-544-0 01 1 1001-1009 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) BLACK THA 		8-97418-544-0 01 1 1010- ● ● ● ●
500 CLUSTER; INST CENTER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (A) DARK GRAY THA 		8-97293-909-2 01 1 0204-0207 ● ●
500 CLUSTER; INST CENTER
(A) DARK GRAY THA 		8-97293-909-2 01 1 0204-0207 ●
500 CLUSTER; INST CENTER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (A) DARK GRAY THA 		8-97293-909-2 01 1 0208-0307 ● ● ●
500 CLUSTER; INST CENTER
(A) DARK GRAY THA 		8-97293-909-2 01 1 0208-0307 ●
500 CLUSTER; INST CENTER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (A) DARK GRAY THA 		8-97396-250-0 01 1 0308-0408 ● ●
500 CLUSTER; INST CENTER
(A) DARK GRAY THA 		8-97396-250-0 01 1 0308-0408 ●
500 CLUSTER; INST CENTER
GRADE EXL/EX/SL/S<RBA> (A) DARK GRAY THA 		8-97396-250-0 01 1 0308-0408 ●
500 CLUSTER; INST CENTER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) DARK GRAY THA 		8-97396-250-0 01 1 0409-0409 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY THA 		8-97396-250-0 01 1 0410-0606 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97403-315-4 01 1 0607-0612 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97409-173-0 01 1 0701-0908 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97416-125-0 01 1 0909-0910 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY THA 		8-97409-173-0 01 1 0911-0912 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97409-173-0 01 1 1001-1001 ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97409-173-0 01 1 1002-1008 ● ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR COLOR VERY DARK GRAY<116> RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20> (B) DARK GRAY THA 		8-97409-173-0 01 1 1009- ● ● ● ●
500 CLUSTER; INST CENTER
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97293-910-2 01 1 0204-0207 ● ●
500 CLUSTER; INST CENTER
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97293-910-2 01 1 0208-0307 ● ● ●
500 CLUSTER; INST CENTER
(A) LIGHT GRAY THA 		8-97293-910-2 01 1 0208-0307 ●
500 CLUSTER; INST CENTER
GRADE SLX/LS<RBD> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0308-0408 ● ● ●
500 CLUSTER; INST CENTER
(A) LIGHT GRAY THA 		8-97398-208-0 01 1 0308-0408 ●
500 CLUSTER; INST CENTER
GRADE SLX/LS<RBD> RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0409-0409 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0410-0507 ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0410-0507 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO DELETE<UL5>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1>,RADIO AM/FM W/CASSETTE, W/CD<UU5> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0508-0606 ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE<UL5>,RADIO AM/FM W/CASSETTE, W/CD<UU5> (A) LIGHT GRAY THA 		8-97398-208-0 01 1 0508-0606 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97403-319-4 01 1 0607-0608 ● ● ●
500 CLUSTER; INST CENTER
(B) LIGHT GRAY THA 		8-97403-319-4 01 1 0607-0608 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97403-319-4 01 1 0609-0612 ● ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97403-319-4 01 1 0609-0612 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0701-0709 ● ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0701-0709 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0710-0808 ● ● ●
500 CLUSTER; INST CENTER
(B) LIGHT GRAY THA 		8-97409-176-0 01 1 0710-0808 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0809-0906 ● ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CD,W/MP3<ULA> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0809-0906 ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> EXC. INTERIOR LUXURY<B20> (B) LIGHT GRAY THA 		8-97409-176-0 01 1 0907-0908 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> EXC. INTERIOR LUXURY<B20> (B) THA 		8-97418-184-0 01 1 0909-0910 ● ● ● ●
500 CLUSTER; INST CENTER
INTERIOR SILVER BEZEL<BY9> RADIO AM/FM W/CD,W/MP3<ULA> EXC. INTERIOR LUXURY<B20> (B) BLACK THA 		8-97418-545-0 01 1 0911- ● ● ● ●
537 NUT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> M6 W/DISHED WASHER THA 		8-97018-399-1 02 1 0204-0207 ● ●
537 NUT; BRKT
AIR BAG DRIVER & PASSENGER<7FA> M6 W/DISHED WASHER THA 		8-97018-399-1 02 1 0208-0408 ● ● ● ●
537 NUT; BRKT
AIR BAG DRIVER & PASSENGER<AK5> M6 W/DISHED WASHER THA 		8-97018-399-1 02 1 0409-0702 ● ● ● ●
537 NUT; BRKT
AIR BAG DRIVER & PASSENGER<AK5> M6 W/DISHED WASHER THA 		8-98073-372-0 02 1 0703- ● ● ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-94112-987-1 03 1 0204-0207 ● ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-94112-987-1 03 1 0208-0610 ● ● ● ● ●
581 SCREW
(A) M6X20 W/WASHER THA 		8-98056-282-0 03 1 0611- ● ● ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 13 1 0204-0207 ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 13 1 0208-0411 ● ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 THA 		8-94279-312-0 11 1 0412-0610 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 0611-0910 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0909-0910 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 0910-0912 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ● ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ● ● ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1001-1001 ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1002-1008 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1009-1009 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1009-1009 ●
581 SCREW
INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ● ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ● ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ●
581 SCREW
INTERIOR COLOR BLACK<101>,INTERIOR COLOR BEIGE<184> AIR BAG DRIVER & PASSENGER DELETE<AK6> INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 17 1 1010- ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 0911-1008 ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1009- ● ● ● ● ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 THA 		8-94279-312-0 15 1 0412-0610 ● ● ● ●
581 SCREW
(B) M5X16 THA 		8-94279-312-0 15 1 0412-0610 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0611-0912 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 15 1 0611-0912 ●
581 SCREW
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. INTERIOR LUXURY<B20> (B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1001-1008 ● ● ● ●
581 SCREW
(B) M5X16 TAPPING THA 		8-98061-683-0 15 1 1001-1008 ●
581 SCREW
AIR BAG DRIVER & PASSENGER<AK5> (B) M5X16 TAPPING THA 		8-98061-683-0 11 1 1009- ● ● ● ●
581 SCREW
EXC. CHANGER 6CD 1DIN TYPE<8CH> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ●
581 SCREW
EXC. CHANGER 6CD 1DIN TYPE<8CH> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ● ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ● ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ●
581 SCREW
(C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0408 ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0409-0504 ● ● ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0409-0504 ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0505-0507 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> EXC. MULTI CD PLAYER<U1S> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0505-0507 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0508-0606 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,AM/FM W/CASSETTE 2 SPEAKERS<UN6>,AM/FM W/CASSETTE AUTO LOUDNESS 4 SPEAKERS<UU1> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0508-0606 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0607-0608 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		9-09829-323-1 02 1 0609-0702 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-0708 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ● ● ●
581 SCREW
EXC. DIGITAL CLOCK<UE8> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ● ●
581 SCREW
(C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0709-0709 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0710-0808 ●
581 SCREW
RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ● ● ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ● ● ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ●
581 SCREW
RADIO DELETE<UL5>,RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0809-0907 ●
581 SCREW
RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ● ●
581 SCREW
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ●
581 SCREW
RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98061-685-0 02 1 0908-1005 ●
581 SCREW
RADIO AM/FM W/CD<UT3>,RADIO AM/FM W/CD, W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
GRADE EXL/EX/SL/S<RBA> RADIO DELETE<UL5> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ●
581 SCREW
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ●
581 SCREW
RADIO AM/FM W/CD<UT3> (C) M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ●
622 BOX; IDLE CONT
4JH1 ENG<RJX> DARK GRAY THA 		8-97393-915-0 01 1 0204-0207 ● ●
622 BOX; IDLE CONT
DARK GRAY THA 		8-97393-915-0 01 1 0204-0207 ●
622 BOX; IDLE CONT
4JH1 ENG<RJX> DARK GRAY THA 		8-97393-915-0 01 1 0208-0408 ● ● ●
622 BOX; IDLE CONT
DARK GRAY THA 		8-97393-915-0 01 1 0208-0408 ● ●
622 BOX; IDLE CONT
4JJ1-TCS ENG<LFB> DARK GRAY THA 		8-97393-915-0 01 1 0409-0412 ● ● ● ●
622 BOX; IDLE CONT
DARK GRAY THA 		8-97393-915-0 01 1 0501-0606 ● ● ● ● ●
622 BOX; IDLE CONT
DARK GRAY THA 		8-97403-947-0 01 1 0607-1104 ● ● ● ● ●
622 BOX; IDLE CONT
BLACK THA 		8-97422-820-0 01 1 1105- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
