◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#73856) — 373 parça

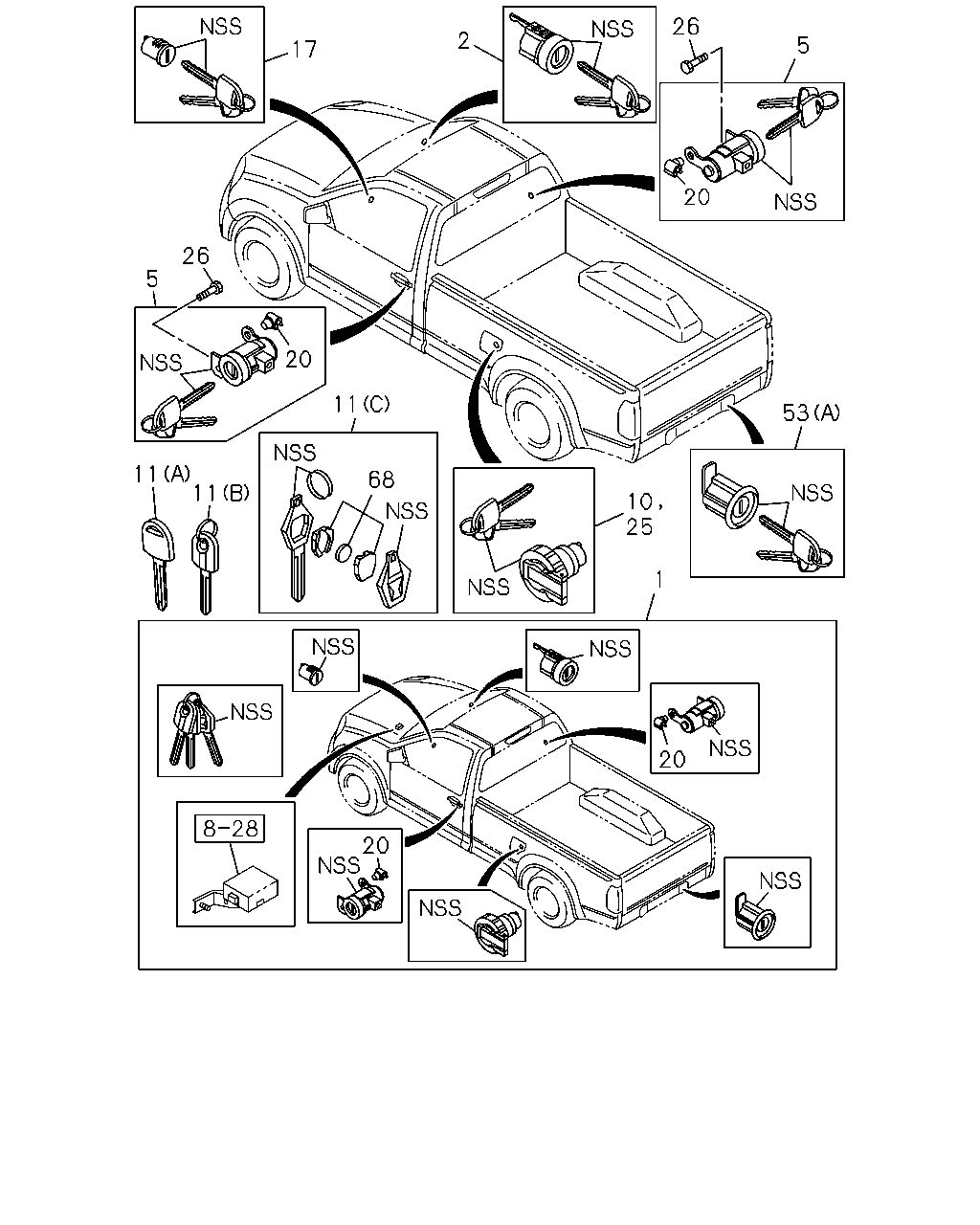

çizim 116643
26 2 5 17 20 26 5 20 11 53 11 11 68 10 25 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> CHROME PACKAGE<8GX> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98156-438-0 01 1 0911-1008 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-398-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-398-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-383-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-643-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-445-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-471-0 01 1 0409-0507 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-471-0 01 1 0508-0606 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98034-092-1 01 1 0607-0608 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98034-092-1 01 1 0609-0609 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0610-0708 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0709-0709 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0710- ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-401-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-401-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-384-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-644-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-446-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-472-0 01 1 0409-0507 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-472-0 01 1 0508-0606 ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97238-404-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97238-404-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97359-381-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97364-641-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97376-443-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97238-407-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97238-407-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-382-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-642-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-444-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-942-0 01 1 0508-0606 ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98008-717-1 01 1 0607-0609 ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-429-0 01 1 0610-0708 ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 0709-0709 ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 0710-0910 ● ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC>,CHROME PACKAGE<8GX> THA 		8-98052-754-4 01 1 0911-1008 ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 1009- ● ● ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-943-0 01 1 0508-0606 ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-943-0 01 1 0508-0606 ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98052-716-3 01 1 0709-0709 ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98052-716-3 01 1 0710- ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97349-980-0 01 1 0204-0207 ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97349-980-0 01 1 0208-0302 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97359-446-0 01 1 0303-0303 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97364-706-0 01 1 0304-0403 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97376-564-0 01 1 0404-0408 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97376-611-0 01 1 0409-0507 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-611-0 01 1 0508-0606 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JK1 ENG<LKZ> THA 		8-97376-611-0 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-611-0 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-724-0 01 1 0607-0608 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-724-0 01 1 0609-0609 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0610-0708 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0709-0709 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0710- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-650-1 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-650-1 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-745-0 01 1 0607-0609 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-589-0 01 1 0610-0708 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98095-187-0 01 1 0709-0709 ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98095-187-0 01 1 0710- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98095-175-0 01 1 0709-0709 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98095-175-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97349-977-0 01 1 0204-0207 ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97349-977-0 01 1 0208-0302 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97359-442-0 01 1 0303-0303 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97364-702-0 01 1 0304-0403 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-560-0 01 1 0404-0408 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-607-0 01 1 0409-0507 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-607-0 01 1 0508-0606 ● ●
5 CYLINDER ASM; DOOR LOCK
4JK1 ENG<LKZ> THA 		8-97376-607-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-607-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-721-0 01 1 0607-0608 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-721-0 01 1 0609-0609 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0610-0708 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0709-0709 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97350-042-0 01 1 0204-0207 ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97350-042-0 01 1 0208-0302 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97359-443-0 01 1 0303-0303 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97364-703-0 01 1 0304-0403 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-561-0 01 1 0404-0408 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-608-0 01 1 0409-0507 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-608-0 01 1 0508-0606 ● ●
5 CYLINDER ASM; DOOR LOCK
4JK1 ENG<LKZ> THA 		8-97376-608-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-608-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-722-0 01 1 0607-0608 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-722-0 01 1 0609-0609 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0610-0708 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0709-0709 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-590-0 01 1 0709-0709 ● ● ●
5 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-590-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-589-0 01 1 0709-0709 ● ● ●
5 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-589-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-649-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-649-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-736-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0610-0708 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0709-0709 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-648-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-648-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-735-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0610-0708 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0709-0709 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0710- ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> THA 		8-97349-979-0 01 1 0204-0207 ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
FUEL TANK CAP W/LOCK<N05> THA 		8-97349-979-0 01 1 0204-0207 ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> THA 		8-97349-979-0 01 1 0208-0302 ● ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
FUEL TANK CAP W/LOCK<N05> THA 		8-97349-979-0 01 1 0208-0302 ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-445-0 01 1 0303-0303 ● ● ● ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> THA 		8-97364-705-0 01 1 0304-0403 ● ● ●
10 CYLINDER ASM; W/KEY,FUEL FILLER
FUEL TANK CAP W/LOCK<N05> THA 		8-97364-705-0 01 1 0304-0403 ● ●
11 KEY; BLANK
(A) THA 		8-97350-342-0 AR 1 0204-0207 ● ● ●
11 KEY; BLANK
(A) THA 		8-97350-342-0 AR 1 0208-0303 ● ● ● ● ●
11 KEY; BLANK
(A) THA 		8-97364-902-0 AR 1 0304-0408 ● ● ● ● ●
11 KEY; BLANK
(A) THA 		8-97378-105-0 AR 1 0409-0507 ● ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97378-105-0 AR 1 0508-0606 ● ●
11 KEY; BLANK
4JK1 ENG<LKZ> (A) THA 		8-97378-105-0 AR 1 0508-0606 ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> (A) THA 		8-97378-105-0 AR 1 0508-0606 ●
11 KEY; BLANK
EXC. IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0607-0608 ● ● ● ●
11 KEY; BLANK
EXC. IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0609-0708 ● ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0709-0709 ● ● ● ●
11 KEY; BLANK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97350-352-0 AR 1 0709-0709 ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97350-352-0 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK WO/IMMOBILIZER THA 		8-98046-774-1 AR 1 0709-0709 ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK WO/IMMOBILIZER THA 		8-98046-774-1 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> (A) IMMOBILIZER THA 		8-97378-106-0 AR 1 0508-0606 ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB> (A) IMMOBILIZER THA 		8-97378-106-0 AR 1 0508-0606 ●
11 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0607-0708 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0709-0709 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0710- ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98046-772-1 AR 1 0709-0709 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98046-772-1 AR 1 0710- ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97349-976-0 01 1 0204-0207 ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97349-976-0 01 1 0208-0302 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97359-441-0 01 1 0303-0303 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97364-701-1 01 1 0304-0408 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97375-927-0 01 1 0409-0507 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97375-927-0 01 1 0508-0606 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JK1 ENG<LKZ> THA 		8-97375-927-0 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97375-927-0 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-720-0 01 1 0607-0608 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-720-0 01 1 0609-0609 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0610-0708 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0709-0709 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0710- ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97368-946-0 01 1 0709-0709 ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97368-946-0 01 1 0710- ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-647-1 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-647-1 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-734-0 01 1 0607-0609 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0610-0708 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0709-0709 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0204-0207 ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0208-0708 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0709- ● ● ● ●
20 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> YELLOW THA 		8-97350-043-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC> YELLOW THA 		8-97350-043-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0204-0207 ● ● ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0208-0708 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0709- ● ● ● ●
20 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> WHITE THA 		8-97350-044-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC> WHITE THA 		8-97350-044-0 01 1 0709- ●
25 CAP; FUEL TANK,W/KEY
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> THA 		8-97376-563-0 01 1 0404-0408 ● ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> THA 		8-97376-563-0 01 1 0404-0408 ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-445-0 01 1 0303-0303 ● ● ● ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE THA 		8-97175-668-0 04 1 0204-0207 ● ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE THA 		8-97175-668-0 04 1 0208-0701 ● ● ● ● ●
26 BOLT; KEY CYL,DOOR
THA 		8-98062-137-0 04 1 0702- ● ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97349-978-0 01 1 0204-0207 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0204-0207 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0204-0207 ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-609-0 01 1 0409-0507 ● ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
LOCK GLOVE BOX<A99> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97376-609-0 01 1 0508-0606 ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA 		8-97388-416-0 01 1 0508-0606 ● ●
68 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> THA 		8-98053-166-0 01 1 0709- ● ● ● ● ●

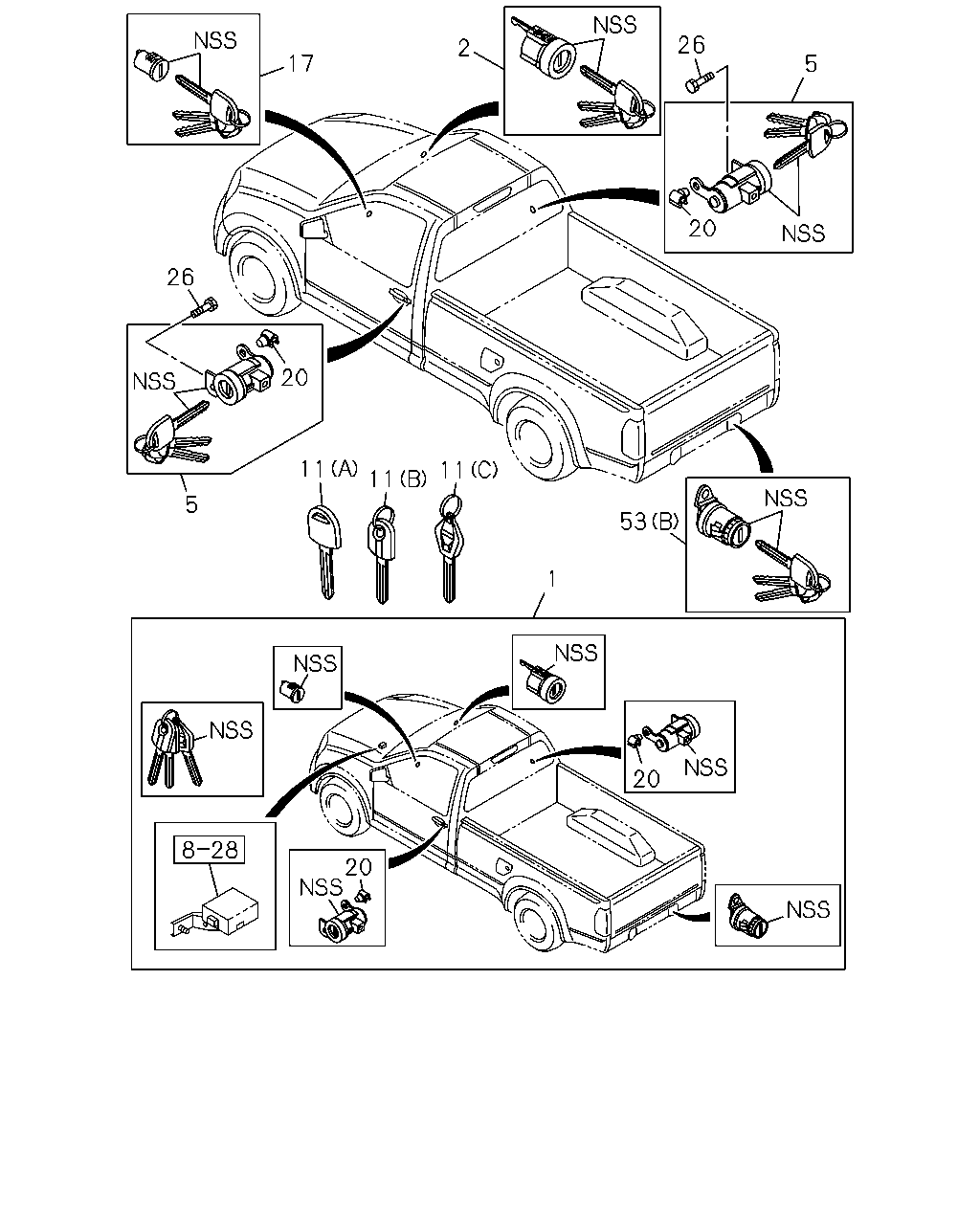

çizim 116646
26 2 17 5 20 26 20 11 11 11 5 53 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> CHROME PACKAGE<8GX> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98156-438-0 01 1 0911-1008 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-398-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-398-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-383-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-643-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-445-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-471-0 01 1 0409-0507 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-471-0 01 1 0508-0606 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98034-092-1 01 1 0607-0608 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98034-092-1 01 1 0609-0609 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0610-0708 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0709-0709 ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-505-1 01 1 0710- ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-401-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97246-401-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-384-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-644-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-446-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-472-0 01 1 0409-0507 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-472-0 01 1 0508-0606 ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97238-404-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97238-404-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97359-381-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97364-641-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> THA 		8-97376-443-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97238-407-0 01 1 0204-0207 ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97238-407-0 01 1 0208-0302 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97359-382-0 01 1 0303-0303 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97364-642-0 01 1 0304-0403 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97376-444-0 01 1 0404-0408 ● ● ● ● ●
1 CYLINDER SET; CAR LOCK
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-942-0 01 1 0508-0606 ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98008-717-1 01 1 0607-0609 ● ●
1 CYLINDER SET; CAR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-429-0 01 1 0610-0708 ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 0709-0709 ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 0710-0910 ● ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC>,CHROME PACKAGE<8GX> THA 		8-98052-754-4 01 1 0911-1008 ● ● ●
1 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98052-754-4 01 1 1009- ● ● ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-943-0 01 1 0508-0606 ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF> THA 		8-97386-943-0 01 1 0508-0606 ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98052-716-3 01 1 0709-0709 ● ●
1 CYLINDER SET; CAR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98052-716-3 01 1 0710- ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97349-980-0 01 1 0204-0207 ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97349-980-0 01 1 0208-0302 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97359-446-0 01 1 0303-0303 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97364-706-0 01 1 0304-0403 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97376-564-0 01 1 0404-0408 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
THA 		8-97376-611-0 01 1 0409-0507 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-611-0 01 1 0508-0606 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JK1 ENG<LKZ> THA 		8-97376-611-0 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-611-0 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-724-0 01 1 0607-0608 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-724-0 01 1 0609-0609 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0610-0708 ● ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0709-0709 ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-570-0 01 1 0710- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-650-1 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-650-1 01 1 0508-0606 ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-745-0 01 1 0607-0609 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-589-0 01 1 0610-0708 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98095-187-0 01 1 0709-0709 ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98095-187-0 01 1 0710- ● ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98095-175-0 01 1 0709-0709 ● ●
2 BARREL ASM; W/KEY,STRG LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98095-175-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97349-977-0 01 1 0204-0207 ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97349-977-0 01 1 0208-0302 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97359-442-0 01 1 0303-0303 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97364-702-0 01 1 0304-0403 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-560-0 01 1 0404-0408 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-607-0 01 1 0409-0507 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-607-0 01 1 0508-0606 ● ●
5 CYLINDER ASM; DOOR LOCK
4JK1 ENG<LKZ> THA 		8-97376-607-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-607-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-721-0 01 1 0607-0608 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-721-0 01 1 0609-0609 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0610-0708 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0709-0709 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-567-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97350-042-0 01 1 0204-0207 ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97350-042-0 01 1 0208-0302 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97359-443-0 01 1 0303-0303 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97364-703-0 01 1 0304-0403 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-561-0 01 1 0404-0408 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
THA 		8-97376-608-0 01 1 0409-0507 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-608-0 01 1 0508-0606 ● ●
5 CYLINDER ASM; DOOR LOCK
4JK1 ENG<LKZ> THA 		8-97376-608-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97376-608-0 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-722-0 01 1 0607-0608 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-722-0 01 1 0609-0609 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0610-0708 ● ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0709-0709 ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-568-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-590-0 01 1 0709-0709 ● ● ●
5 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-590-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-589-0 01 1 0709-0709 ● ● ●
5 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97376-589-0 01 1 0710- ● ● ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-649-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-649-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-736-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0610-0708 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0709-0709 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-582-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-648-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-648-1 01 1 0508-0606 ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-735-0 01 1 0607-0609 ● ●
5 CYLINDER ASM; DOOR LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0610-0708 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0709-0709 ● ●
5 CYLINDER ASM; DOOR LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-581-0 01 1 0710- ● ●
11 KEY; BLANK
(A) THA 		8-97350-342-0 AR 1 0204-0207 ● ● ●
11 KEY; BLANK
(A) THA 		8-97350-342-0 AR 1 0208-0303 ● ● ● ● ●
11 KEY; BLANK
(A) THA 		8-97364-902-0 AR 1 0304-0408 ● ● ● ● ●
11 KEY; BLANK
(A) THA 		8-97378-105-0 AR 1 0409-0507 ● ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97378-105-0 AR 1 0508-0606 ● ●
11 KEY; BLANK
4JK1 ENG<LKZ> (A) THA 		8-97378-105-0 AR 1 0508-0606 ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> (A) THA 		8-97378-105-0 AR 1 0508-0606 ●
11 KEY; BLANK
EXC. IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0607-0608 ● ● ● ●
11 KEY; BLANK
EXC. IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0609-0708 ● ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0709-0709 ● ● ● ●
11 KEY; BLANK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> (B) WO/IMMOBILIZER THA 		8-98030-087-1 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97350-352-0 AR 1 0709-0709 ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97350-352-0 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK WO/IMMOBILIZER THA 		8-98046-774-1 AR 1 0709-0709 ● ● ●
11 KEY; BLANK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK WO/IMMOBILIZER THA 		8-98046-774-1 AR 1 0710- ● ● ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> (A) IMMOBILIZER THA 		8-97378-106-0 AR 1 0508-0606 ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB> (A) IMMOBILIZER THA 		8-97378-106-0 AR 1 0508-0606 ●
11 KEY; BLANK
IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0607-0708 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0709-0709 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER THA 		8-98007-939-1 AR 1 0710- ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98046-772-1 AR 1 0709-0709 ● ●
11 KEY; BLANK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER THA 		8-98046-772-1 AR 1 0710- ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97349-976-0 01 1 0204-0207 ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97349-976-0 01 1 0208-0302 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97359-441-0 01 1 0303-0303 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97364-701-1 01 1 0304-0408 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
THA 		8-97375-927-0 01 1 0409-0507 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97375-927-0 01 1 0508-0606 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JK1 ENG<LKZ> THA 		8-97375-927-0 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB> LOCK GLOVE BOX<A99> THA 		8-97375-927-0 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-720-0 01 1 0607-0608 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98049-720-0 01 1 0609-0609 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0610-0708 ● ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0709-0709 ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> THA 		8-98060-566-0 01 1 0710- ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97368-946-0 01 1 0709-0709 ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. IMMOBILIZER SYSTEM<7KC> THA 		8-97368-946-0 01 1 0710- ● ● ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> THA 		8-97376-647-1 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB> THA 		8-97376-647-1 01 1 0508-0606 ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98049-734-0 01 1 0607-0609 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0610-0708 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0709-0709 ● ●
17 CYLINDER ASM; W/KEY,GLOVE BOX LOCK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98060-580-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0204-0207 ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0208-0708 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW THA 		8-97350-043-0 01 1 0709- ● ● ● ●
20 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> YELLOW THA 		8-97350-043-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC> YELLOW THA 		8-97350-043-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0204-0207 ● ● ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0208-0708 ● ● ● ● ●
20 SNAP; DOOR LOCK CYL
WHITE THA 		8-97350-044-0 01 1 0709- ● ● ● ●
20 SNAP; DOOR LOCK CYL
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> WHITE THA 		8-97350-044-0 01 1 0709- ●
20 SNAP; DOOR LOCK CYL
EXC. IMMOBILIZER SYSTEM<7KC> WHITE THA 		8-97350-044-0 01 1 0709- ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE THA 		8-97175-668-0 04 1 0204-0207 ● ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE THA 		8-97175-668-0 04 1 0208-0701 ● ● ● ● ●
26 BOLT; KEY CYL,DOOR
THA 		8-98062-137-0 04 1 0702- ● ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97349-978-0 01 1 0204-0207 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0204-0207 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0204-0207 ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97349-978-0 01 1 0208-0302 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97359-444-0 01 1 0303-0303 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97364-704-0 01 1 0304-0403 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
4JH1 ENG<RJX>,4JA1 ENG<RLE> FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-562-0 01 1 0404-0408 ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
ANTI THEFT SYSTEM SPARE TIRE<8CF> (A) THA 		8-97376-609-0 01 1 0409-0507 ● ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
LOCK GLOVE BOX<A99> ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-97376-609-0 01 1 0508-0606 ● ● ● ●
53 CYLINDER ASM; W/KEY,SPARE TIRE
LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> ANTI THEFT SYSTEM SPARE TIRE<8CF> (B) THA 		8-97388-416-0 01 1 0508-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
