◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#73854) — 90 parça

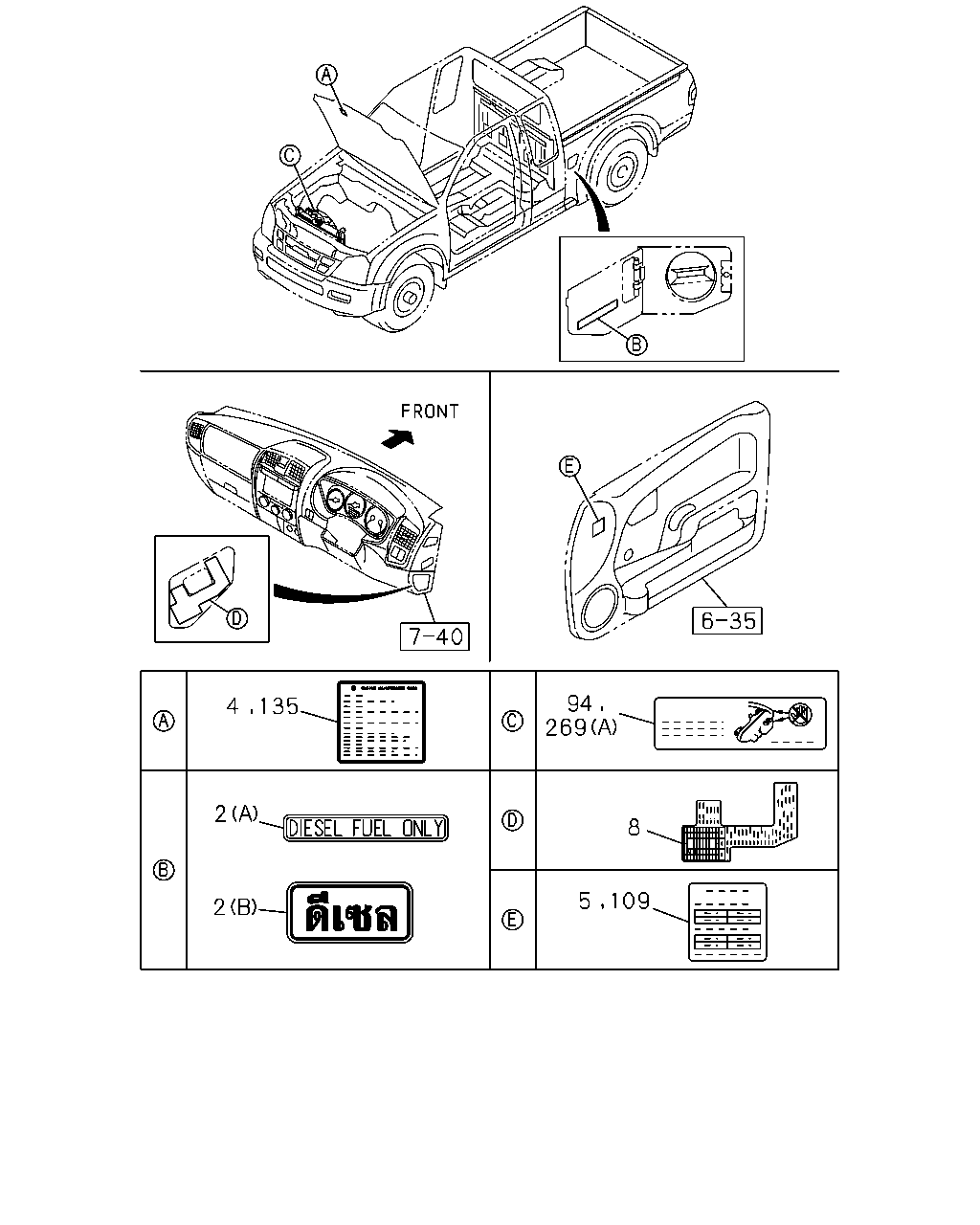

çizim 116549
94 269 135 4 2 8 5 109 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97911-415-1 01 1 0204-0207 ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-415-1 01 1 0204-0207 ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97911-415-1 01 1 0208-0402 ● ● ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-415-1 01 1 0208-0402 ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97944-098-0 01 1 0403-0408 ● ● ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97944-098-0 01 1 0403-0408 ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97944-098-0 01 1 0409- ● ● ● ● ●
2 LABEL; FUEL CAUTION
(C) THA 		8-97945-777-0 01 1 0607- ● ● ● ● ●
4 LABEL; ENG MAINTENANCE
4JA1 ENG<RLE> THA 		8-97942-963-1 01 1 0204-0207 ● ●
4 LABEL; ENG MAINTENANCE
4JA1 ENG<RLE> THA 		8-97942-963-1 01 1 0208-0408 ● ● ●
4 LABEL; ENG MAINTENANCE
4JH1 ENG<RJX> THA 		8-97942-964-1 01 1 0204-0207 ● ●
4 LABEL; ENG MAINTENANCE
THA 		8-97942-964-1 01 1 0204-0207 ●
4 LABEL; ENG MAINTENANCE
4JH1 ENG<RJX> THA 		8-97942-964-1 01 1 0208-0408 ● ● ●
4 LABEL; ENG MAINTENANCE
THA 		8-97942-964-1 01 1 0208-0408 ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-833-2 01 1 0204-0207 ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-833-2 01 1 0208-0301 ● ● ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-833-2 01 1 0302-0307 ● ●
5 LABEL; TIRE AIR PRESSURE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97301-833-2 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-833-2 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97943-361-0 01 1 0302-0307 ●
5 LABEL; TIRE AIR PRESSURE
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDESUSPENSION<7YC> THA 		8-97943-361-0 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-97943-908-0 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97943-908-0 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97943-907-0 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-834-1 01 1 0204-0207 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-834-1 01 1 0208-0307 ● ●
5 LABEL; TIRE AIR PRESSURE
HIGH RIDE SUSPENSION<7YC> THA 		8-97301-834-1 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97301-834-1 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
THA 		8-97301-834-1 01 1 0308-0408 ●
5 LABEL; TIRE AIR PRESSURE
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97301-834-1 01 1 0308-0408 ●
8 LABEL; FUSE
THA 		8-97321-675-1 01 1 0204-0207 ● ● ●
8 LABEL; FUSE
THA 		8-97321-675-1 01 1 0208-0408 ● ● ● ● ●
8 LABEL; FUSE
4JA1-T ENG<LP0> THA 		8-97321-675-1 01 1 0409-0410 ● ● ●
8 LABEL; FUSE
4JA1-T ENG<LP0> THA 		8-98003-075-0 01 1 0411-0412 ● ● ●
8 LABEL; FUSE
4JJ1-TCS ENG<LFB> THA 		8-97378-477-0 01 1 0409-0412 ● ● ● ●
8 LABEL; FUSE
THA 		8-97378-477-0 01 1 0501-0606 ● ● ● ● ●
8 LABEL; FUSE
THA 		8-98007-668-1 01 1 0607- ● ● ● ● ●
94 PLATE; CAUTION,EGR PIPE
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97910-374-0 01 1 0204-0207 ● ●
94 PLATE; CAUTION,EGR PIPE
THA 		8-97910-374-0 01 1 0204-0207 ●
94 PLATE; CAUTION,EGR PIPE
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97910-374-0 01 1 0208-0408 ● ● ●
94 PLATE; CAUTION,EGR PIPE
THA 		8-97910-374-0 01 1 0208-0408 ● ●
109 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION<7YC> THA 		8-97301-834-1 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION<7YC> EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97301-834-1 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-97301-834-1 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97301-834-1 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97301-833-2 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
THA 		8-97301-833-2 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-97943-908-0 01 1 0409-0706 ●
109 PLATE; CAUTION,TIRE PLACARD
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-97943-908-0 01 1 0409-0706 ●
109 PLATE; CAUTION,TIRE PLACARD
SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION<7YC> THA 		8-98083-039-0 01 1 0707- ●
109 PLATE; CAUTION,TIRE PLACARD
SOFT RIDE SUSPENSION SYSTEM<FE1> THA 		8-98083-039-0 01 1 0707- ●
109 PLATE; CAUTION,TIRE PLACARD
SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97943-907-0 01 1 0409- ●
109 PLATE; CAUTION,TIRE PLACARD
EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDESUSPENSION<7YC> THA 		8-97943-361-0 01 1 0409- ●
135 PLATE; CAUTION,ENGINE
4JA1-T ENG<LP0> THA 		8-97942-963-1 01 1 0409-0412 ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-97370-541-0 01 1 0501-0507 ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-98029-484-0 01 1 0508-0606 ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1 ENG<LKZ> THA 		8-98036-187-0 01 1 0607- ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB> THA 		8-97370-540-1 01 1 0409-0507 ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB> THA 		8-98029-482-0 01 1 0508-0606 ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB> THA 		8-98036-186-0 01 1 0607-0608 ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98036-186-0 01 1 0609-0708 ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB> THA 		8-98036-186-0 01 1 0709-0709 ● ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98036-186-0 01 1 0710- ● ● ● ●
269 LABEL; CAUTION,EGR
4JA1-T ENG<LP0> EURO2 SPECIFICATION<NT2> (A) THA 		8-97910-374-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
4JA1-T ENG<LP0> (A) THA 		8-97910-374-0 01 1 0409-0412 ●
269 LABEL; CAUTION,EGR
4JJ1-TCS ENG<LFB> EURO3 SPECIFICATION<NT3> (B) THA 		8-97374-989-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
4JJ1-TCS ENG<LFB> (B) THA 		8-97374-989-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
(B) THA 		8-97374-989-0 01 1 0501- ● ● ● ● ●

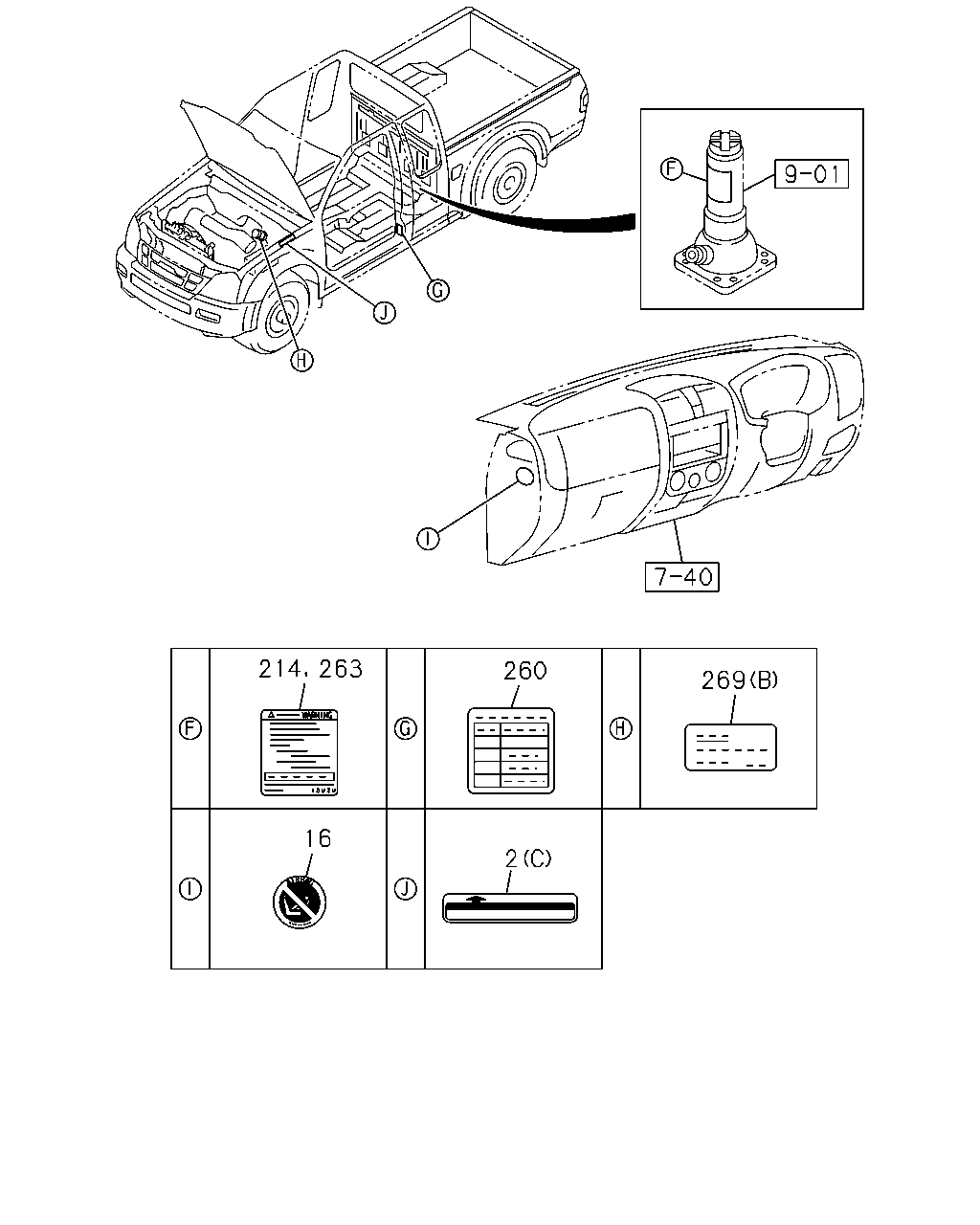

çizim 116552
260 269 16 2 214 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97911-415-1 01 1 0204-0207 ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-415-1 01 1 0204-0207 ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97911-415-1 01 1 0208-0402 ● ● ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97911-415-1 01 1 0208-0402 ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97944-098-0 01 1 0403-0408 ● ● ● ●
2 LABEL; FUEL CAUTION
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97944-098-0 01 1 0403-0408 ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97944-098-0 01 1 0409- ● ● ● ● ●
2 LABEL; FUEL CAUTION
(C) THA 		8-97945-777-0 01 1 0607- ● ● ● ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97357-163-0 01 1 0303-0402 ● ● ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97378-569-0 01 1 0403-0408 ● ● ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-97378-569-0 01 1 0409- ● ● ● ●
214 LABEL; JACK
THA 		8-97942-649-0 01 1 0409- ● ● ● ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
ADJUST HEADLAMP<6RC> HIGH INTENSITY DISCHARGE HEAD LAMPS<7US> THA 		8-97943-123-0 01 1 0208-0408 ● ● ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97943-123-0 01 1 0409-0507 ● ● ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> HEAD LAMP LEVELING MANUAL<T92> THA 		8-97943-123-0 01 1 0508-0606 ● ● ● ●
263 PLATE; CAUTION,JACK
THA 		8-97942-649-0 01 1 0204-0207 ● ● ●
263 PLATE; CAUTION,JACK
THA 		8-97942-649-0 01 1 0208-0408 ● ● ● ● ●
269 LABEL; CAUTION,EGR
4JA1-T ENG<LP0> EURO2 SPECIFICATION<NT2> (A) THA 		8-97910-374-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
4JA1-T ENG<LP0> (A) THA 		8-97910-374-0 01 1 0409-0412 ●
269 LABEL; CAUTION,EGR
4JJ1-TCS ENG<LFB> EURO3 SPECIFICATION<NT3> (B) THA 		8-97374-989-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
4JJ1-TCS ENG<LFB> (B) THA 		8-97374-989-0 01 1 0409-0412 ● ●
269 LABEL; CAUTION,EGR
(B) THA 		8-97374-989-0 01 1 0501- ● ● ● ● ●
