◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#73852) — 136 parça

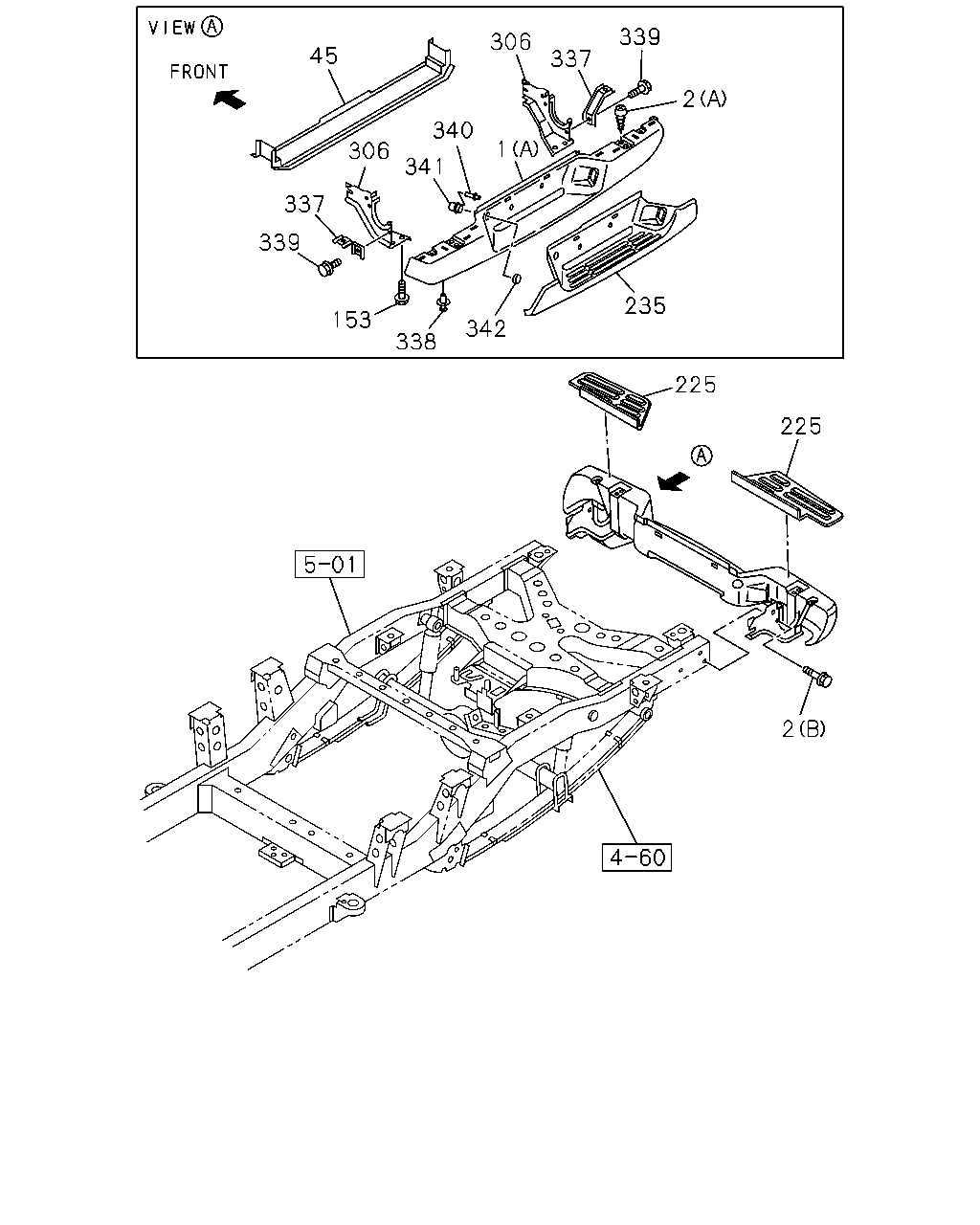

çizim 116548
339 306 45 337 2 340 1 306 341 337 339 235 153 342 338 225 225 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> (A) THA 		8-97352-581-0 01 1 0409-0606 ● ● ●
1 BUMPER; RR
(A) THA 		8-97352-581-0 01 1 0409-0606 ●
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> (B) THA 		8-98030-185-3 01 1 0607- ● ● ●
1 BUMPER; RR
(B) THA 		8-98030-185-3 01 1 0607- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (B) M12X30 FLANGE THA 		8-97161-815-1 06 1 0409-0612 ● ● ●
2 BOLT; BACK BAR
(B) M12X30 FLANGE THA 		8-97161-815-1 06 1 0409-0612 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (B) M12X30 THA 		8-98062-142-0 06 1 0701- ● ● ●
2 BOLT; BACK BAR
(B) M12X30 THA 		8-98062-142-0 06 1 0701- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (A) M10X22 HEX SOCKET THA 		8-97352-591-0 08 1 0409-0606 ● ● ●
2 BOLT; BACK BAR
(A) M10X22 HEX SOCKET THA 		8-97352-591-0 08 1 0409-0606 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (A) M10X22 HEX SOCKET THA 		8-97352-591-0 04 1 0607- ● ● ●
2 BOLT; BACK BAR
(A) M10X22 HEX SOCKET THA 		8-97352-591-0 04 1 0607- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (C) M10X20 FLANGE THA 		0-28051-020-0 04 1 0607- ● ● ●
2 BOLT; BACK BAR
(C) M10X20 FLANGE THA 		0-28051-020-0 04 1 0607- ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97244-951-1 01 1 0409-0603 ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-97244-951-1 01 1 0409-0603 ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98023-416-0 01 1 0604-0606 ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-98023-416-0 01 1 0604-0606 ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-170-0 01 1 0607- ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-98030-170-0 01 1 0607- ●
153 BOLT; BRKT
REAR STEP BUMPER CHROME<V42> THA 		8-97352-592-0 04 1 0409- ● ● ●
153 BOLT; BRKT
THA 		8-97352-592-0 04 1 0409- ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97357-925-0 01 1 0409-0606 ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-97357-925-0 01 1 0409-0606 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-416-0 01 1 0607- ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-98030-416-0 01 1 0607- ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97357-924-0 01 1 0409-0606 ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-97357-924-0 01 1 0409-0606 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-415-0 01 1 0607- ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-98030-415-0 01 1 0607- ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-604-1 01 1 0409-0606 ● ● ●
235 PAD; CENTER,BUMPER RR
THA 		8-97240-604-1 01 1 0409-0606 ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-174-1 01 1 0607- ● ● ●
235 PAD; CENTER,BUMPER RR
THA 		8-98030-174-1 01 1 0607- ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-603-1 01 1 0409-0606 ● ● ●
306 BAR; BACK,RR
THA 		8-97240-603-1 01 1 0409-0606 ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-173-1 01 1 0607- ● ● ●
306 BAR; BACK,RR
THA 		8-98030-173-1 01 1 0607- ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-602-1 01 1 0409-0606 ● ● ●
306 BAR; BACK,RR
THA 		8-97240-602-1 01 1 0409-0606 ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-172-1 01 1 0607- ● ● ●
306 BAR; BACK,RR
THA 		8-98030-172-1 01 1 0607- ●
337 BRACE; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97352-583-0 02 1 0409-0606 ● ● ●
337 BRACE; RR BUMPER
THA 		8-97352-583-0 02 1 0409-0606 ●
338 PIN; PUSH
REAR STEP BUMPER CHROME<V42> THA 		8-97352-595-0 02 1 0409-1008 ● ● ●
338 PIN; PUSH
THA 		8-97352-595-0 02 1 0409-1008 ●
338 PIN; PUSH
REAR STEP BUMPER CHROME<V42> THA 		8-97352-595-0 02 1 1009- ● ● ●
338 PIN; PUSH
THA 		8-97352-595-0 02 1 1009- ●
339 BOLT; BRACE
REAR STEP BUMPER CHROME<V42> THA 		8-97352-593-0 04 1 0409-0606 ● ● ●
339 BOLT; BRACE
THA 		8-97352-593-0 04 1 0409-0606 ●
339 BOLT; BRACE
REAR STEP BUMPER CHROME<V42> THA 		8-97352-593-0 02 1 0607- ● ● ●
339 BOLT; BRACE
THA 		8-97352-593-0 02 1 0607- ●
340 RIVET
REAR STEP BUMPER CHROME<V42> THA 		8-97352-594-0 03 1 0409-0606 ● ● ●
340 RIVET
THA 		8-97352-594-0 03 1 0409-0606 ●
340 RIVET
REAR STEP BUMPER CHROME<V42> THA 		8-97352-594-0 02 1 0607- ● ● ●
340 RIVET
THA 		8-97352-594-0 02 1 0607- ●
341 CASE; LOCK CYLINDER
REAR STEP BUMPER CHROME<V42> THA 		8-97352-584-1 01 1 0409-0606 ● ● ●
341 CASE; LOCK CYLINDER
THA 		8-97352-584-1 01 1 0409-0606 ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME<V42> THA 		8-97352-585-2 01 1 0409-0606 ● ● ●
342 CAP; LOCK CYLINDER
THA 		8-97352-585-2 01 1 0409-0606 ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-190-0 01 1 0607- ● ● ●
342 CAP; LOCK CYLINDER
THA 		8-98030-190-0 01 1 0607- ●

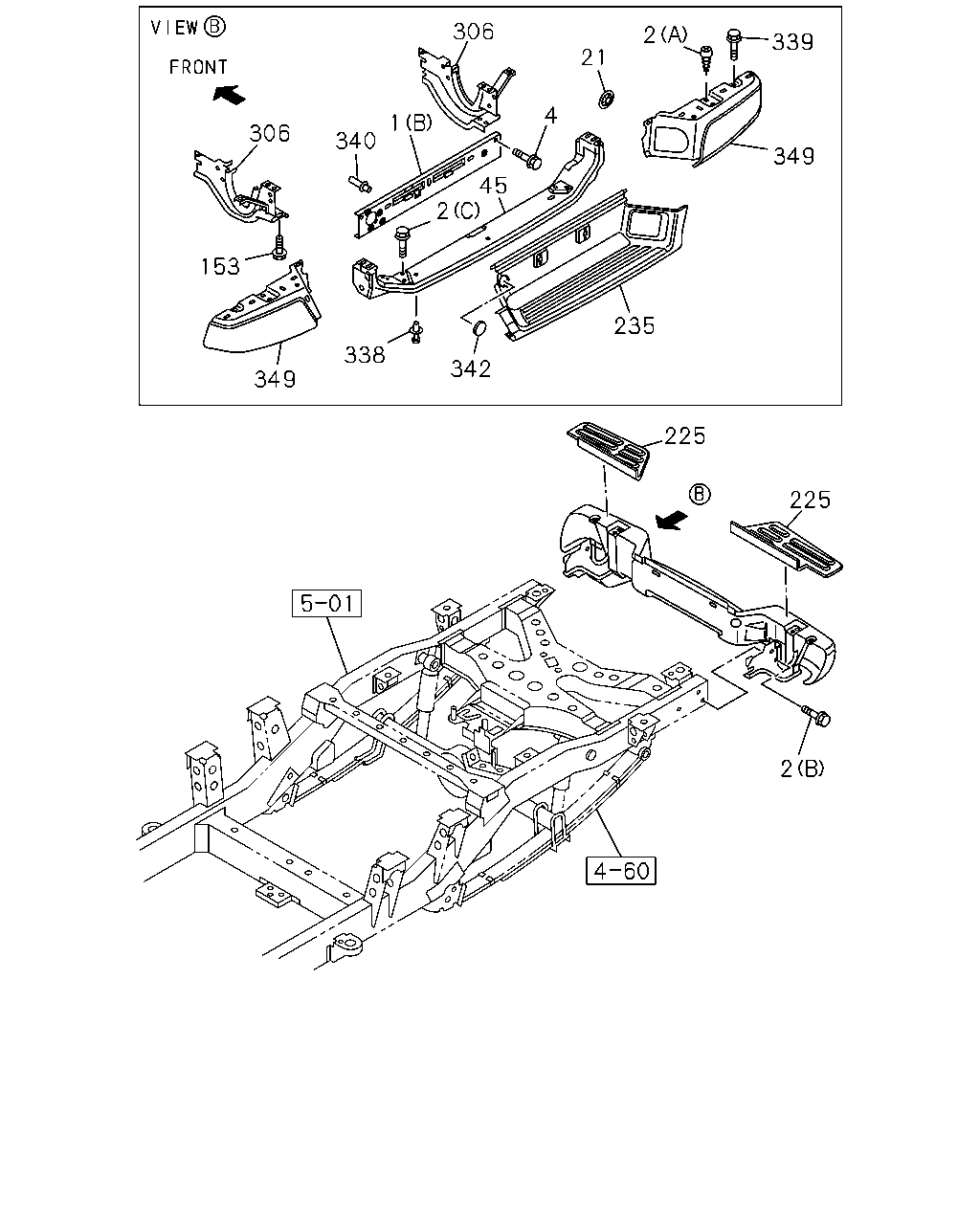

çizim 116560
306 338 342 235 349 153 340 1 45 2 306 21 2 339 349 225 225 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> (A) THA 		8-97352-581-0 01 1 0409-0606 ● ● ●
1 BUMPER; RR
(A) THA 		8-97352-581-0 01 1 0409-0606 ●
1 BUMPER; RR
REAR STEP BUMPER CHROME<V42> (B) THA 		8-98030-185-3 01 1 0607- ● ● ●
1 BUMPER; RR
(B) THA 		8-98030-185-3 01 1 0607- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (B) M12X30 FLANGE THA 		8-97161-815-1 06 1 0409-0612 ● ● ●
2 BOLT; BACK BAR
(B) M12X30 FLANGE THA 		8-97161-815-1 06 1 0409-0612 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (B) M12X30 THA 		8-98062-142-0 06 1 0701- ● ● ●
2 BOLT; BACK BAR
(B) M12X30 THA 		8-98062-142-0 06 1 0701- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (A) M10X22 HEX SOCKET THA 		8-97352-591-0 08 1 0409-0606 ● ● ●
2 BOLT; BACK BAR
(A) M10X22 HEX SOCKET THA 		8-97352-591-0 08 1 0409-0606 ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (A) M10X22 HEX SOCKET THA 		8-97352-591-0 04 1 0607- ● ● ●
2 BOLT; BACK BAR
(A) M10X22 HEX SOCKET THA 		8-97352-591-0 04 1 0607- ●
2 BOLT; BACK BAR
REAR STEP BUMPER CHROME<V42> (C) M10X20 FLANGE THA 		0-28051-020-0 04 1 0607- ● ● ●
2 BOLT; BACK BAR
(C) M10X20 FLANGE THA 		0-28051-020-0 04 1 0607- ●
4 BOLT; BUMPER
REAR STEP BUMPER CHROME<V42> M6X16 FLANGE THA 		0-28650-616-0 02 1 0607- ● ● ●
4 BOLT; BUMPER
M6X16 FLANGE THA 		0-28650-616-0 02 1 0607- ●
21 WASHER; LK,BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97182-223-0 02 1 0607- ● ● ●
21 WASHER; LK,BUMPER
THA 		8-97182-223-0 02 1 0607- ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97244-951-1 01 1 0409-0603 ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-97244-951-1 01 1 0409-0603 ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98023-416-0 01 1 0604-0606 ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-98023-416-0 01 1 0604-0606 ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-170-0 01 1 0607- ● ● ●
45 REINFORCEMENT; RR BUMPER
THA 		8-98030-170-0 01 1 0607- ●
153 BOLT; BRKT
REAR STEP BUMPER CHROME<V42> THA 		8-97352-592-0 04 1 0409- ● ● ●
153 BOLT; BRKT
THA 		8-97352-592-0 04 1 0409- ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97357-925-0 01 1 0409-0606 ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-97357-925-0 01 1 0409-0606 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-416-0 01 1 0607- ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-98030-416-0 01 1 0607- ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-97357-924-0 01 1 0409-0606 ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-97357-924-0 01 1 0409-0606 ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-415-0 01 1 0607- ● ● ●
225 PAD; STEP,RR BUMPER
THA 		8-98030-415-0 01 1 0607- ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-604-1 01 1 0409-0606 ● ● ●
235 PAD; CENTER,BUMPER RR
THA 		8-97240-604-1 01 1 0409-0606 ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-174-1 01 1 0607- ● ● ●
235 PAD; CENTER,BUMPER RR
THA 		8-98030-174-1 01 1 0607- ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-603-1 01 1 0409-0606 ● ● ●
306 BAR; BACK,RR
THA 		8-97240-603-1 01 1 0409-0606 ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-173-1 01 1 0607- ● ● ●
306 BAR; BACK,RR
THA 		8-98030-173-1 01 1 0607- ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-97240-602-1 01 1 0409-0606 ● ● ●
306 BAR; BACK,RR
THA 		8-97240-602-1 01 1 0409-0606 ●
306 BAR; BACK,RR
REAR STEP BUMPER CHROME<V42> THA 		8-98030-172-1 01 1 0607- ● ● ●
306 BAR; BACK,RR
THA 		8-98030-172-1 01 1 0607- ●
338 PIN; PUSH
REAR STEP BUMPER CHROME<V42> THA 		8-97352-595-0 02 1 0409-1008 ● ● ●
338 PIN; PUSH
THA 		8-97352-595-0 02 1 0409-1008 ●
338 PIN; PUSH
REAR STEP BUMPER CHROME<V42> THA 		8-97352-595-0 02 1 1009- ● ● ●
338 PIN; PUSH
THA 		8-97352-595-0 02 1 1009- ●
339 BOLT; BRACE
REAR STEP BUMPER CHROME<V42> THA 		8-97352-593-0 04 1 0409-0606 ● ● ●
339 BOLT; BRACE
THA 		8-97352-593-0 04 1 0409-0606 ●
339 BOLT; BRACE
REAR STEP BUMPER CHROME<V42> THA 		8-97352-593-0 02 1 0607- ● ● ●
339 BOLT; BRACE
THA 		8-97352-593-0 02 1 0607- ●
340 RIVET
REAR STEP BUMPER CHROME<V42> THA 		8-97352-594-0 03 1 0409-0606 ● ● ●
340 RIVET
THA 		8-97352-594-0 03 1 0409-0606 ●
340 RIVET
REAR STEP BUMPER CHROME<V42> THA 		8-97352-594-0 02 1 0607- ● ● ●
340 RIVET
THA 		8-97352-594-0 02 1 0607- ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME<V42> THA 		8-97352-585-2 01 1 0409-0606 ● ● ●
342 CAP; LOCK CYLINDER
THA 		8-97352-585-2 01 1 0409-0606 ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-190-0 01 1 0607- ● ● ●
342 CAP; LOCK CYLINDER
THA 		8-98030-190-0 01 1 0607- ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-167-1 01 1 0607- ● ● ●
349 SHELL; RR BUMPER
THA 		8-98030-167-1 01 1 0607- ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME<V42> THA 		8-98030-181-1 01 1 0607- ● ● ●
349 SHELL; RR BUMPER
THA 		8-98030-181-1 01 1 0607- ●

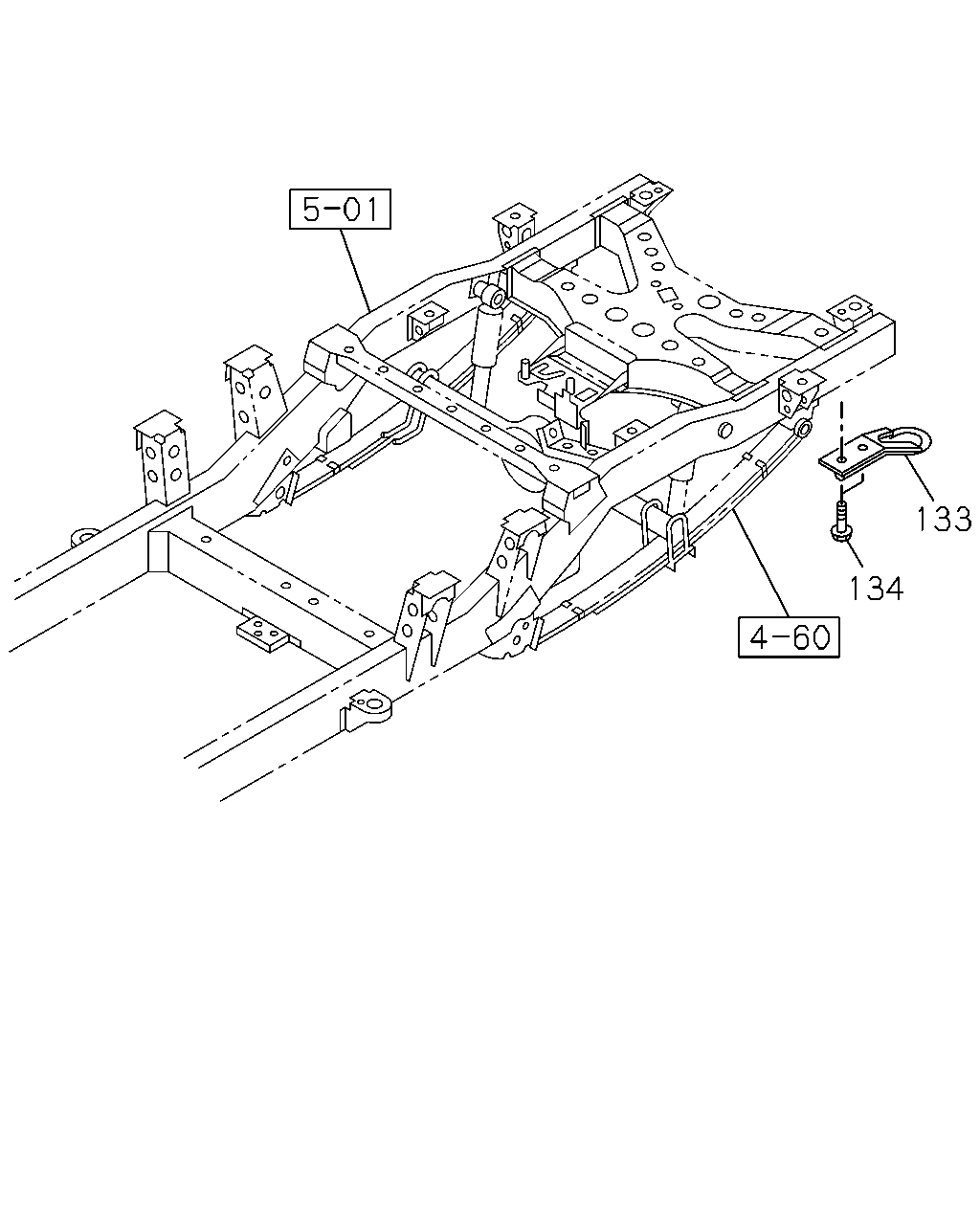

çizim 116562
133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E
133 HOOK
TOW HOOK RR ONLY<7TK> THA 		8-97942-766-0 01 1 0204-0207 ● ●
133 HOOK
THA 		8-97942-766-0 01 1 0204-0207 ●
133 HOOK
TOW HOOK RR ONLY<7TK> THA 		8-97942-766-0 01 1 0208-0408 ● ● ●
133 HOOK
THA 		8-97942-766-0 01 1 0208-0408 ● ●
134 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE THA 		0-28661-030-0 02 1 0204-0207 ● ●
134 BOLT; HOOK
M10X30 FLANGE THA 		0-28661-030-0 02 1 0204-0207 ●
134 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE THA 		0-28661-030-0 02 1 0208-0408 ● ● ●
134 BOLT; HOOK
M10X30 FLANGE THA 		0-28661-030-0 02 1 0208-0408 ● ●
