◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#73851) — 46 parça

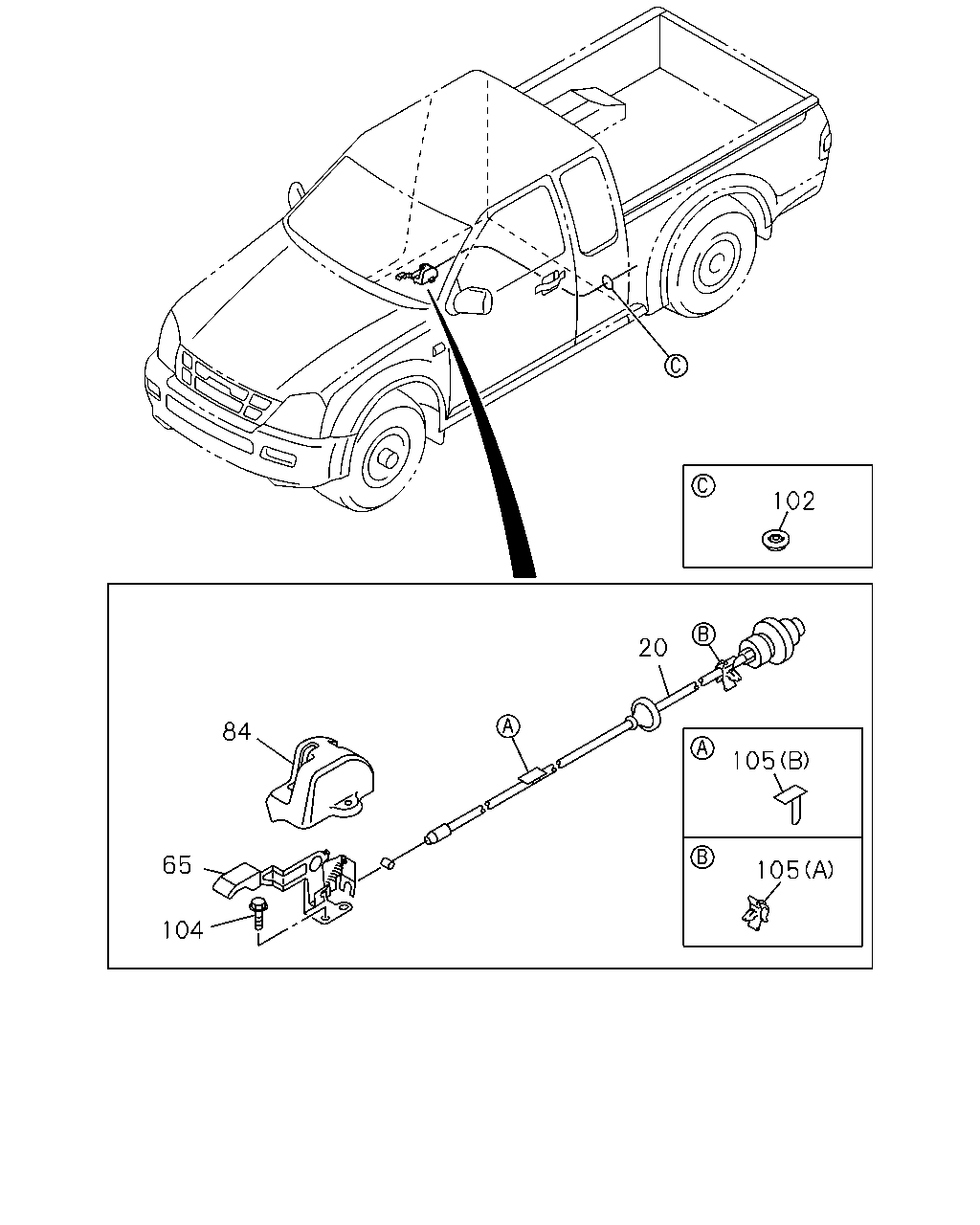

çizim 116672
102 20 84 105 65 105 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> THA 		8-97235-478-2 01 1 0204-0408 ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-97235-478-2 01 1 0409-0612 ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-98072-757-0 01 1 0701- ● ●
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> THA 		8-97235-476-2 01 1 0204-0308 ●
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> THA 		8-97368-368-0 01 1 0309-0408 ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-97368-368-0 01 1 0409-0612 ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-98072-755-0 01 1 0701- ●
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97235-477-4 01 1 0208-0211 ● ●
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> THA 		8-97235-477-4 01 1 0212-0408 ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-97235-477-4 01 1 0409-0612 ● ●
20 CABLE; TRUNK LID & FUEL FILLER
THA 		8-98072-759-0 01 1 0701- ● ●
65 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY THA 		8-97298-468-0 01 1 0204-0207 ● ● ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY THA 		8-97298-468-0 01 1 0409-0510 ● ● ● ● ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY THA 		8-97405-950-0 01 1 0511-0606 ● ● ● ● ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY THA 		8-97405-953-0 01 1 0607-1008 ● ● ● ● ●
65 KNOB; FUEL FILLER DOOR
INTERIOR COLOR VERY DARK GRAY<116>,INTERIOR COLOR BEIGE<184> DARK GRAY THA 		8-97405-953-0 01 1 1009-1009 ● ● ● ● ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY THA 		8-97405-953-0 01 1 1010- ● ● ● ● ●
84 COVER; BRKT
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-676-2 01 1 0909-1001 ●
84 COVER; BRKT
BEIGE THA 		8-97404-676-2 01 1 0909-1001 ●
84 COVER; BRKT
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-676-2 01 1 1002- ● ●
84 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY THA 		8-97294-052-2 01 1 0204-0207 ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97294-052-2 01 1 0409-0606 ● ● ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97403-681-2 01 1 0607-0908 ● ● ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97403-681-2 01 1 0909-1001 ● ● ●
84 COVER; BRKT
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-681-2 01 1 0909-1001 ●
84 COVER; BRKT
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-681-2 01 1 1002-1008 ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97403-681-2 01 1 1002-1008 ●
84 COVER; BRKT
INTERIOR COLOR BLACK<101> DARK GRAY THA 		8-97403-681-2 01 1 1002-1008 ●
84 COVER; BRKT
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-681-2 01 1 1009-1009 ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97403-681-2 01 1 1009-1009 ●
84 COVER; BRKT
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-681-2 01 1 1010- ● ● ●
84 COVER; BRKT
DARK GRAY THA 		8-97403-681-2 01 1 1010- ●
84 COVER; BRKT
INTERIOR COLOR BLACK<101> DARK GRAY THA 		8-97403-681-2 01 1 1010- ●
102 GROMMET
EXC. FUEL LID OPENER<N08> THA 		8-97321-645-1 01 1 0204-0207 ● ● ●
102 GROMMET
EXC. FUEL LID OPENER<N08> THA 		8-97321-645-1 01 1 0208-0408 ● ● ● ● ●
104 BOLT; KNOB
FUEL LID OPENER<N08> M6X16 FLANGE THA 		0-28650-616-0 02 1 0204-0207 ● ● ●
104 BOLT; KNOB
M6X16 FLANGE THA 		0-28650-616-0 02 1 0409- ● ● ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 THA 		1-09987-055-0 05 1 0204-0408 ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 THA 		1-09987-055-0 05 1 0409-1110 ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 THA 		8-98158-303-0 05 1 1111- ● ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 THA 		1-09987-055-0 04 1 0204-0207 ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 THA 		1-09987-055-0 04 1 0208-0408 ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 THA 		1-09987-055-0 04 1 0409-1110 ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 THA 		8-98158-303-0 04 1 1111- ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (A) D=5.8 THA 		5-09709-081-0 02 1 0204-0408 ●
105 CLIP; CABLE,FUEL LID OPENER
(A) D=5.8 THA 		5-09709-081-0 02 1 0409- ●
