Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10796 - EXZ LHD FUEL TANK 400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

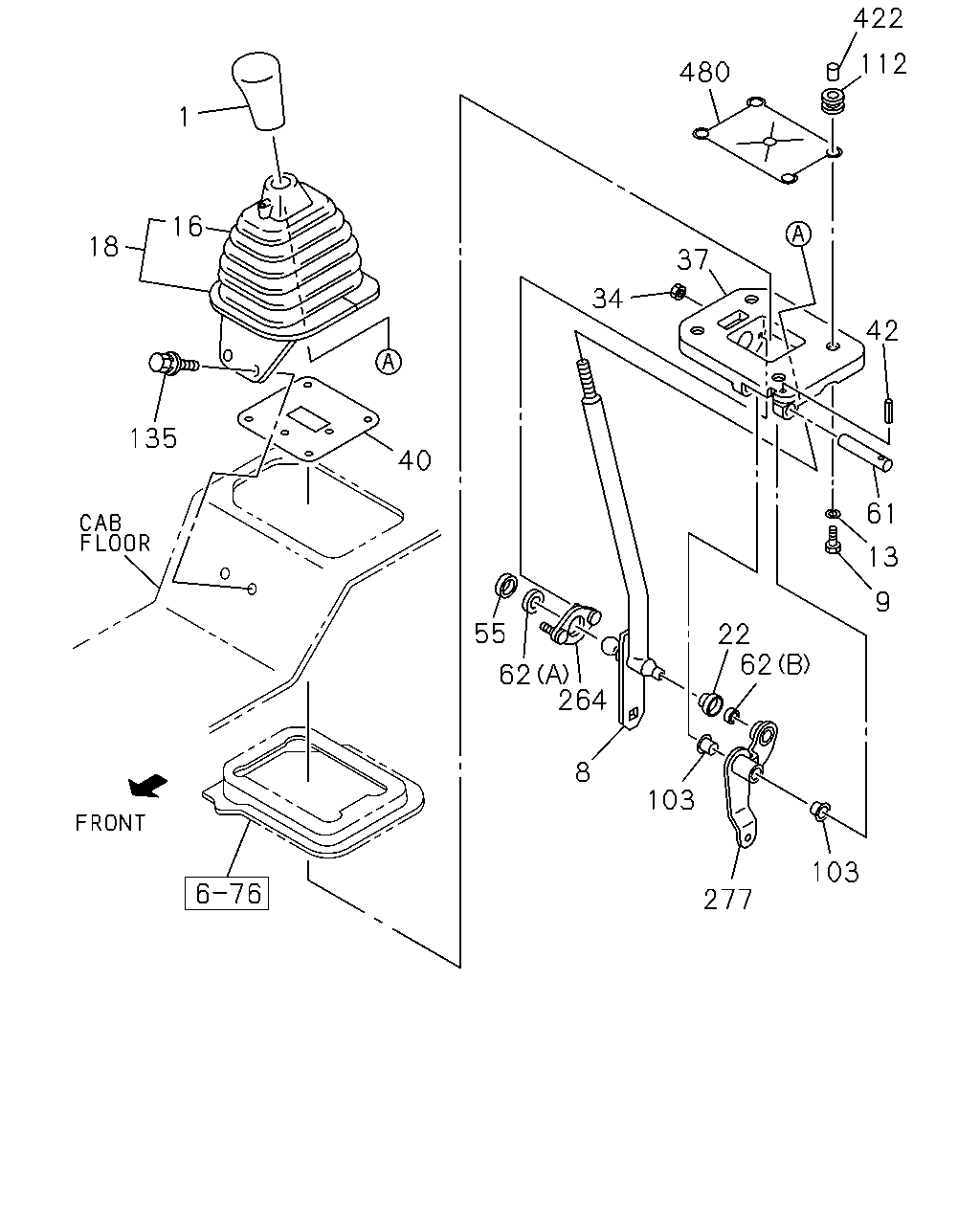

2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#7385) — 22 parça
422
112
480
1
16
18
37
34
42
135
40
61
13
9
55
22
62
62
264
8
103
103
277
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-092-0
01
1
9905-
8
LEVER; CHANGE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33613-344-0
01
1
9905-
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28680-825-0
04
1
9812-
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9812-
16
BOOT; CHANGE LEVER
1-79996-368-0
01
1
9905-
18
BOOT; CHANGE LEVER
1-79996-436-2
01
1
9905-
22
COVER; DUST,CHANGE LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-573-0
01
1
9905-
34
NUT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M6 FLANGE
0-91150-106-0
02
1
9905-
37
BRACKET; CHANGE LEVER SUPPORT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-467-0
01
1
9905-
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79996-345-0
01
1
9905-
42
PIN; SPRING,SELECT LEVER PIN
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> D=5 L=28
8-94252-581-0
01
1
9905-
55
SEAT; RUBBER,SELECT SPRING
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-429-0
01
1
9905-
61
PIN; SELECT LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-470-0
01
1
9905-
62
SEAT; BALL,CHANGE LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)
1-33619-427-0
01
1
9905-
62
SEAT; BALL,CHANGE LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)
8-97011-900-0
01
1
9905-
103
BUSHING; RELAY LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=14 OD=16
8-94252-671-0
02
1
9905-
112
RUBBER; CUSHION
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
8-97091-426-0
04
1
9905-
135
BOLT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9812-
264
PLATE; COVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-469-0
01
1
9905-
277
LEVER; RELAY
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33651-636-0
01
1
9905-
422
BUSHING; CHANGE LEVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
8-97091-427-0
04
1
9905-
480
RUBBER; COVER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48>
1-33619-554-0
01
1
9905-
