◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#73849) — 25 parça

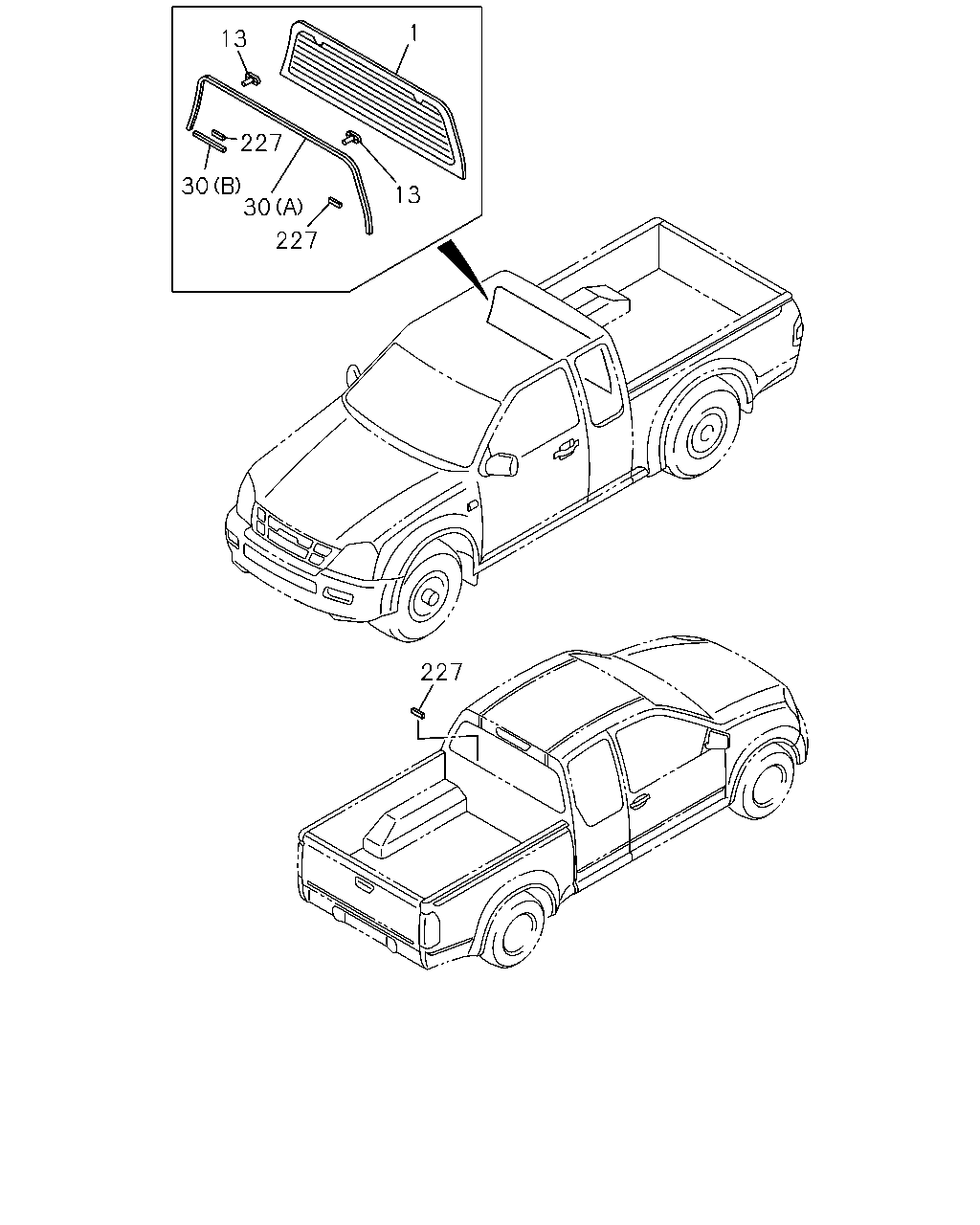

çizim 116547
1 13 227 30 30 13 227 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GLASS; BACKLIGHT
REAR DEFOGGER<C49> THA 		8-97331-610-0 01 1 0204-0207 ● ●
1 GLASS; BACKLIGHT
REAR DEFOGGER<C49> THA 		8-97331-610-0 01 1 0208-0808 ● ● ●
1 GLASS; BACKLIGHT
THA 		8-97331-610-0 01 1 0208-0808 ●
1 GLASS; BACKLIGHT
REAR DEFOGGER<C49> THA 		8-98134-282-0 01 1 0809- ● ● ●
1 GLASS; BACKLIGHT
THA 		8-98134-282-0 01 1 0809- ●
1 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> THA 		8-97331-609-0 01 1 0204-0207 ● ●
1 GLASS; BACKLIGHT
THA 		8-97331-609-0 01 1 0204-0207 ●
1 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> THA 		8-97331-609-0 01 1 0208-0808 ● ● ●
1 GLASS; BACKLIGHT
THA 		8-97331-609-0 01 1 0208-0808 ●
1 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> THA 		8-98134-281-0 01 1 0809- ● ● ●
1 GLASS; BACKLIGHT
THA 		8-98134-281-0 01 1 0809- ●
13 SUPPORT; BACKLIGHT GLASS
THA 		8-97244-819-0 02 1 0204-0207 ● ● ●
13 SUPPORT; BACKLIGHT GLASS
THA 		8-97244-819-0 02 1 0208- ● ● ● ● ●
30 SEAL; BACKLIGHT GLASS
(A) THA 		8-97312-630-0 01 1 0204-0207 ● ● ●
30 SEAL; BACKLIGHT GLASS
(A) THA 		8-97312-630-0 01 1 0208-0309 ● ● ● ● ●
30 SEAL; BACKLIGHT GLASS
(A) THA 		8-97371-385-0 01 1 0310- ● ● ● ● ●
30 SEAL; BACKLIGHT GLASS
(B) THA 		8-97312-631-0 01 1 0204-0204 ● ● ●
227 RETAINER; RR WINDOW
THA 		8-97165-818-0 02 1 0204-0207 ● ● ●
227 RETAINER; RR WINDOW
THA 		8-97165-818-0 02 1 0204-0207 ●
227 RETAINER; RR WINDOW
THA 		8-97165-818-0 02 1 0208-0211 ● ● ● ● ●
227 RETAINER; RR WINDOW
THA 		8-97165-818-0 02 1 0208-0211 ● ●
227 RETAINER; RR WINDOW
THA 		8-97362-301-0 02 1 0212-1101 ● ● ● ● ●
227 RETAINER; RR WINDOW
THA 		8-97362-301-0 02 1 0212-1101 ● ●
227 RETAINER; RR WINDOW
30X8 THA 		8-98187-720-0 02 1 1102- ● ● ● ● ●
227 RETAINER; RR WINDOW
30X8 THA 		8-98187-720-0 02 1 1102- ● ●
