◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#73846) — 14 parça

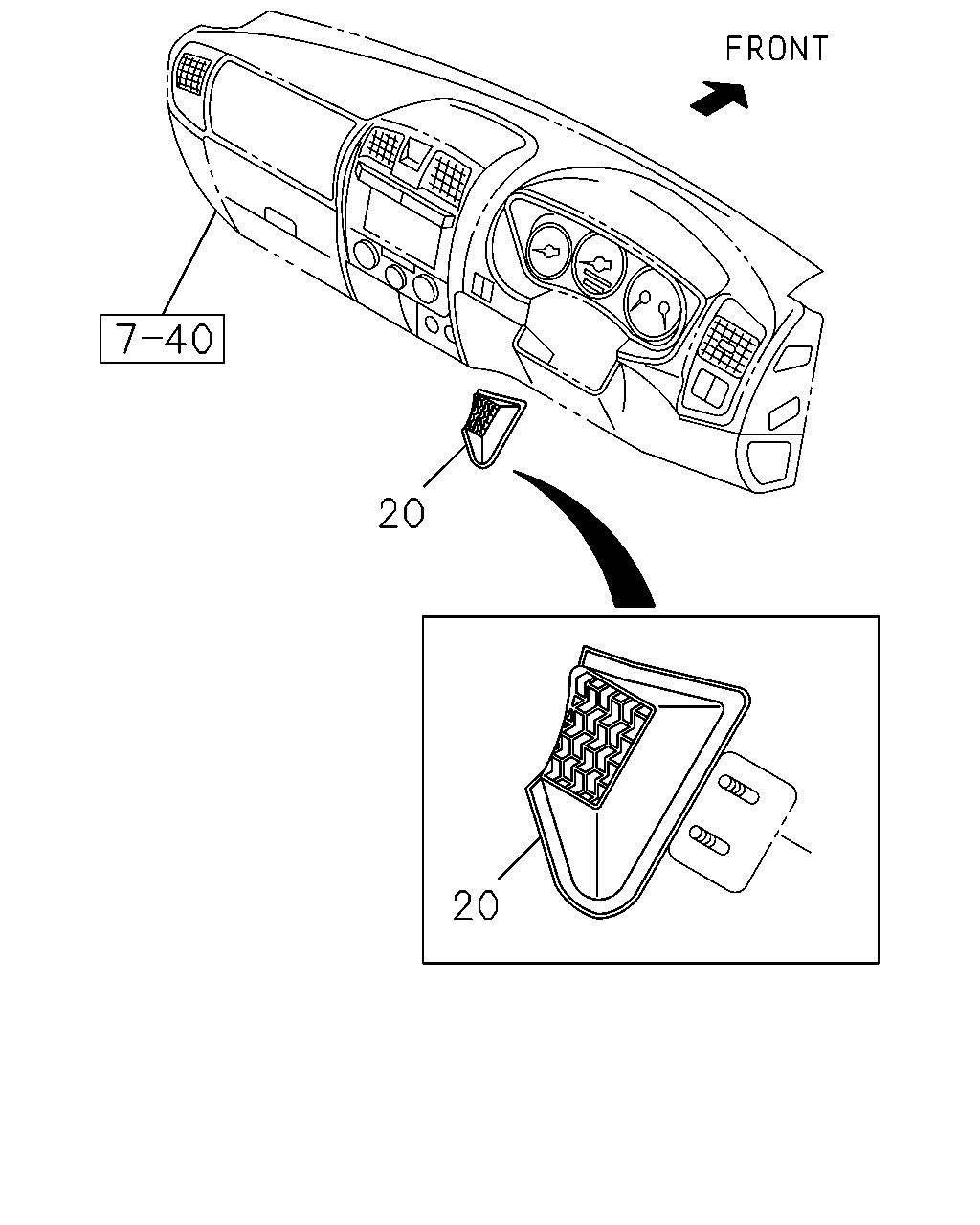

çizim 116544
20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0204-0207 ●
20 REST; FOOT
THA 		8-97236-450-1 01 1 0204-0207 ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0208-0408 ● ●
20 REST; FOOT
THA 		8-97236-450-1 01 1 0208-0408 ● ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> THA 		8-97236-450-1 01 1 0409-0507 ● ●
20 REST; FOOT
PARKING BRAKE FLOOR<7XW> THA 		8-97236-450-1 01 1 0409-0507 ●
20 REST; FOOT
THA 		8-97236-450-1 01 1 0409-0507 ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0508-0708 ● ●
20 REST; FOOT
THA 		8-97236-450-1 01 1 0508-0708 ● ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> THA 		8-97236-450-1 01 1 0709-0709 ● ● ● ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> THA 		8-97236-450-1 01 1 0710- ● ● ● ●
20 REST; FOOT
DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97365-724-0 01 1 0409-0507 ● ●
20 REST; FOOT
EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97365-724-0 01 1 0409-0507 ●
20 REST; FOOT
4JJ1-TCS ENG<LFB> EXC. PARKING BRAKE FLOOR<7XW> THA 		8-97365-724-0 01 1 0709-0709 ●
