6-70 — FLOOR PANEL (#73844) — 173 parça

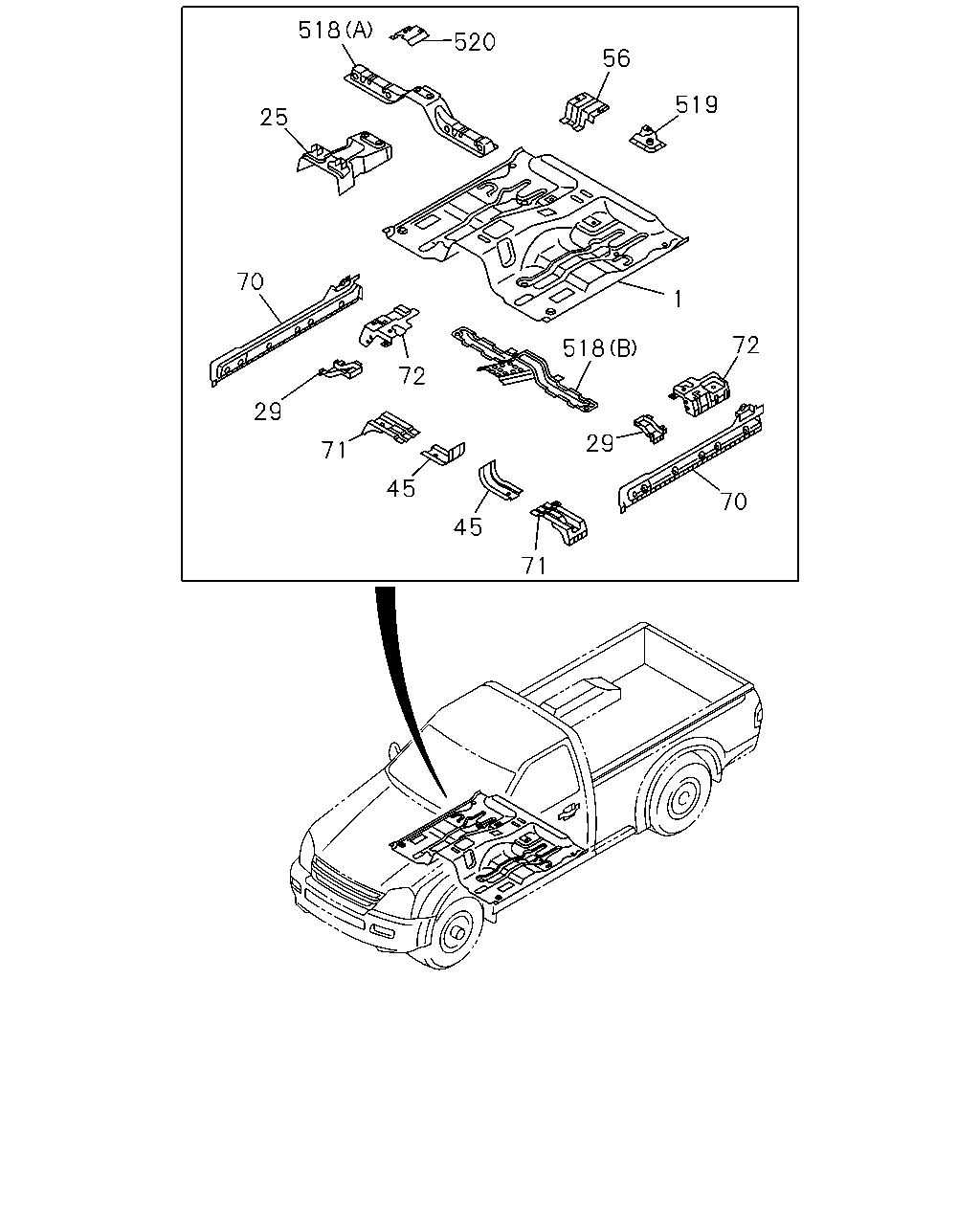

518 520 56 519 25 70 1 72 518 72 29 29 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PANEL; FLOOR THA	8-97233-497-4	01	1	0204-0208	●	●
1	PANEL; FLOOR THA	8-97357-508-0	01	1	0209-0709	●	●
1	PANEL; FLOOR THA	8-98096-346-0	01	1	0710-	●	●
1	PANEL; FLOOR THA	8-97235-533-4	01	1	0204-0208			●
1	PANEL; FLOOR THA	8-97357-507-0	01	1	0209-			●
1	PANEL; FLOOR THA	8-93290-893-3	01	1	0208-0208				●	●
1	PANEL; FLOOR THA	8-97357-509-0	01	1	0209-				●	●
25	REINFORCEMENT; FRAME FLOOR,FRT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-774-0	01	1	0911-	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-3	01	1	0204-0207	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0208-0402	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0403-0910	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97380-608-0	01	1	0911-	●	●		●	●
29	GUSSET THA	8-97349-433-0	02	1	0204-0207	●	●	●
29	GUSSET THA	8-97349-433-0	02	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0208-	●	●	●	●	●
56	BRACKET; JACK THA	8-97236-363-2	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0208-				●	●
70	PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0208-				●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0208-	●	●	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0208-	●	●	●	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0204-0207			●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0208-			●	●	●
72	BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0204-			●
72	BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0208-				●	●
518	SILL; FLOOR (C) THA	8-98096-345-0	01	1	0710-	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0204-0207	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0208-0709	●	●	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0710-0710			●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-4	01	1	0204-0207	●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-5	01	1	0208-	●	●	●	●	●
518	SILL; FLOOR (C) THA	8-97236-099-4	01	1	0204-0709	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-0710	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0204-0207	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0208-0401	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0402-0408	●	●		●	●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97246-499-2	01	1	0409-0412	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0409-0412		●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97246-499-2	01	1	0501-0606	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0501-0606		●			●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0204-0207	●	●	●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0208-	●	●	●	●	●

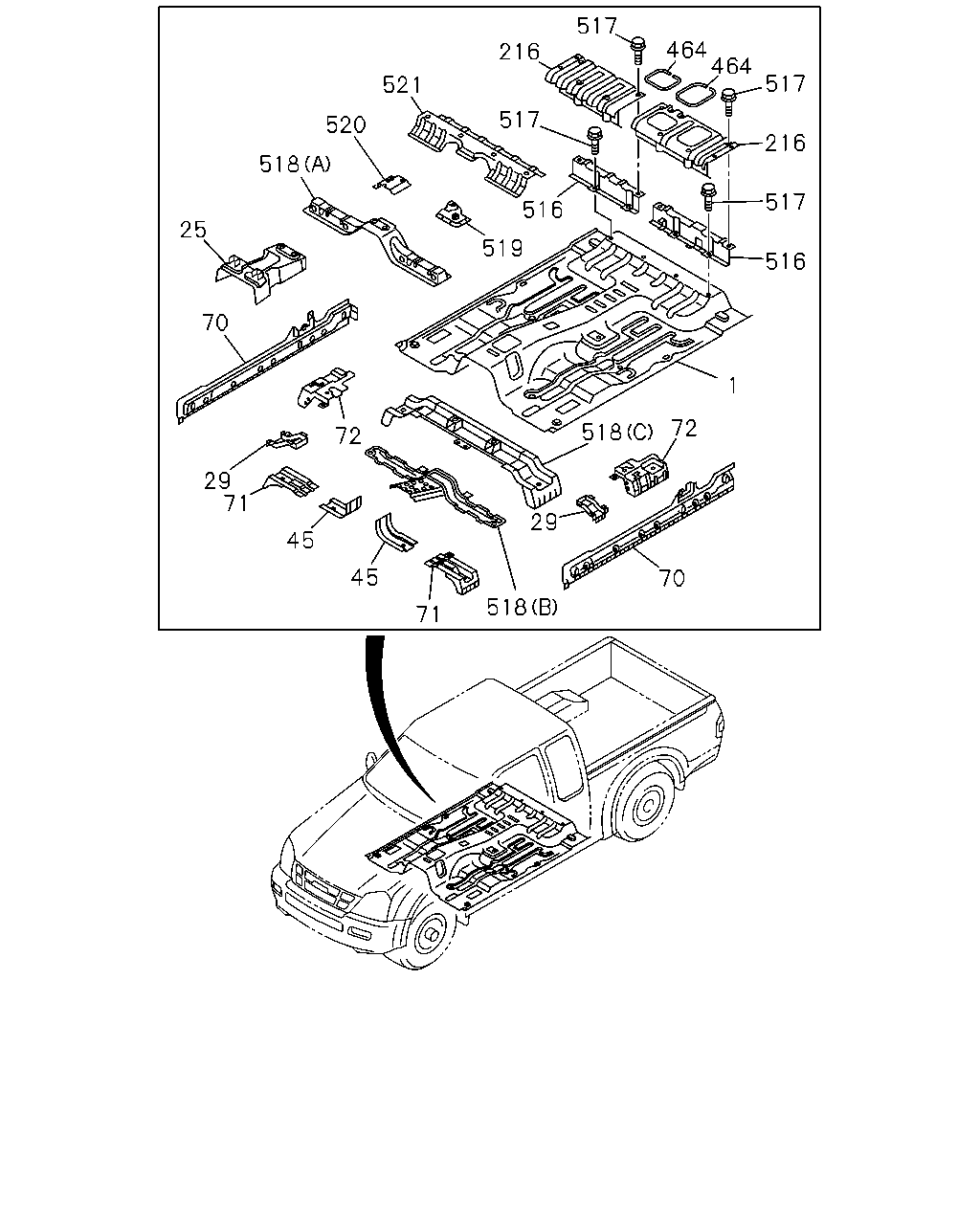

517 464 464 216 517 521 517 520 216 518 517 516 25 519 516 70 1 72 518 72 29 71 29 45 45 70 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PANEL; FLOOR THA	8-97233-497-4	01	1	0204-0208	●	●
1	PANEL; FLOOR THA	8-97357-508-0	01	1	0209-0709	●	●
1	PANEL; FLOOR THA	8-98096-346-0	01	1	0710-	●	●
1	PANEL; FLOOR THA	8-97235-533-4	01	1	0204-0208			●
1	PANEL; FLOOR THA	8-97357-507-0	01	1	0209-			●
1	PANEL; FLOOR THA	8-93290-893-3	01	1	0208-0208				●	●
1	PANEL; FLOOR THA	8-97357-509-0	01	1	0209-				●	●
25	REINFORCEMENT; FRAME FLOOR,FRT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-774-0	01	1	0911-	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-3	01	1	0204-0207	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0208-0402	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0403-0910	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97380-608-0	01	1	0911-	●	●		●	●
29	GUSSET THA	8-97349-433-0	02	1	0204-0207	●	●	●
29	GUSSET THA	8-97349-433-0	02	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0208-	●	●	●	●	●
70	PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0208-				●	●
70	PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0208-				●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0208-	●	●	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0208-	●	●	●	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0204-0207			●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0208-			●	●	●
72	BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0204-			●
72	BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0208-				●	●
216	PANEL; SEAT RISER THA	8-97310-357-1	01	1	0204-	●	●
216	PANEL; SEAT RISER THA	8-97310-356-1	01	1	0204-	●	●
464	FINISHER; FLOOR PANEL THA	8-97329-366-0	02	1	0204-0311	●	●
464	FINISHER; FLOOR PANEL THA	8-97371-042-0	02	1	0312-	●	●
516	BRACKET; SEAT RISER THA	8-97310-367-2	01	1	0204-0609	●	●
516	BRACKET; SEAT RISER THA	8-98053-568-0	01	1	0610-	●	●
516	BRACKET; SEAT RISER THA	8-97310-366-0	01	1	0204-0609	●	●
516	BRACKET; SEAT RISER THA	8-98053-567-0	01	1	0610-	●	●
517	BOLT; SEAT RISER M6X20 W/PL WASHER THA	8-97808-622-0	08	1	0204-0408	●	●
518	SILL; FLOOR (C) THA	8-98096-345-0	01	1	0710-	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0204-0207	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0208-0709	●	●	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0710-0710			●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-4	01	1	0204-0207	●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-5	01	1	0208-	●	●	●	●	●
518	SILL; FLOOR (C) THA	8-97236-099-4	01	1	0204-0709	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-0710	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0204-0207	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0208-0401	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0402-0408	●	●		●	●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97246-499-2	01	1	0409-0412	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0409-0412		●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97246-499-2	01	1	0501-0606	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0501-0606		●			●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0204-0207	●	●	●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0208-	●	●	●	●	●
521	BRACKET; RR STORAGE THA	8-97259-225-3	01	1	0204-	●	●

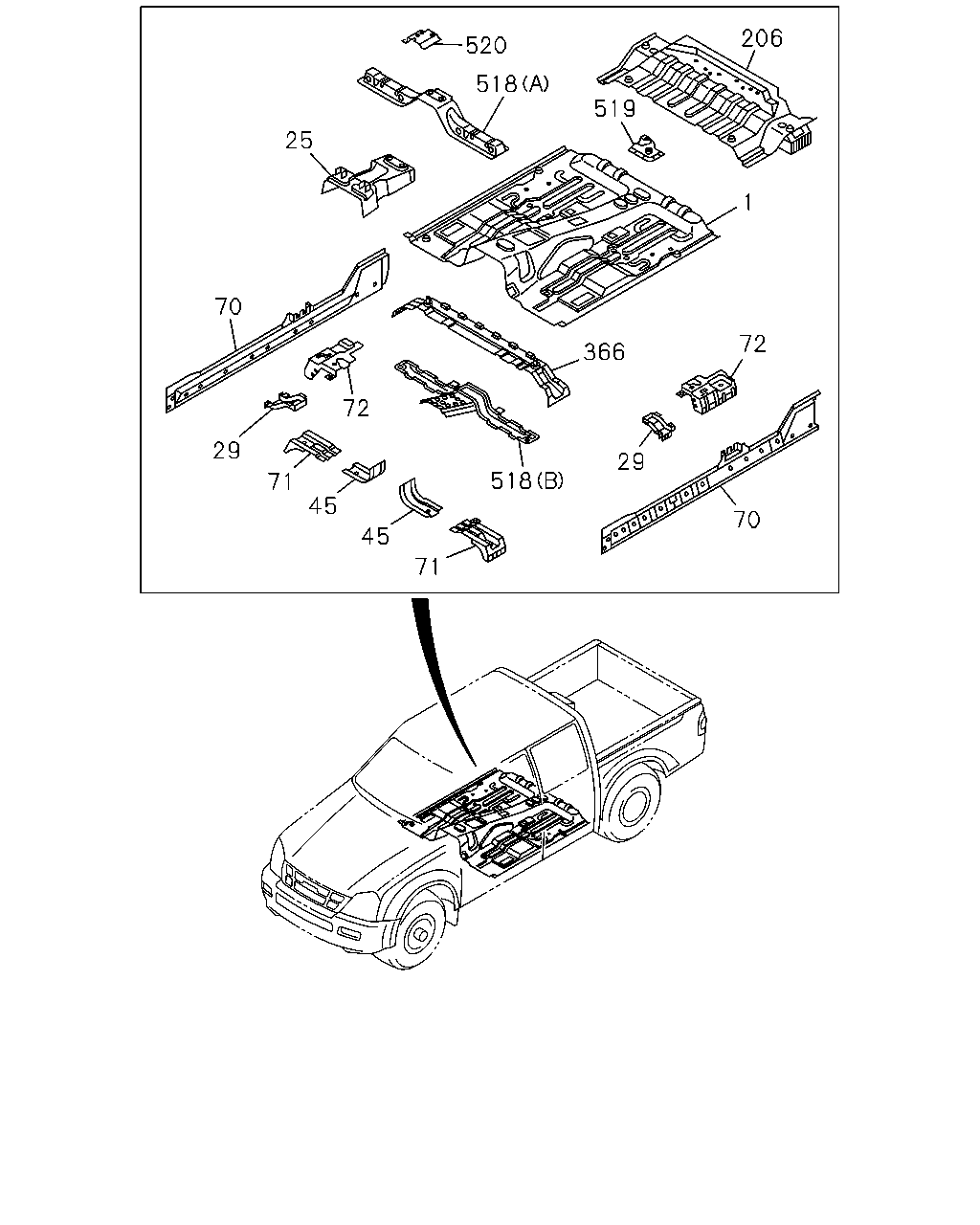

206 520 518 519 25 1 70 72 366 72 29 29 518 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PANEL; FLOOR THA	8-97233-497-4	01	1	0204-0208	●	●
1	PANEL; FLOOR THA	8-97357-508-0	01	1	0209-0709	●	●
1	PANEL; FLOOR THA	8-98096-346-0	01	1	0710-	●	●
1	PANEL; FLOOR THA	8-97235-533-4	01	1	0204-0208			●
1	PANEL; FLOOR THA	8-97357-507-0	01	1	0209-			●
1	PANEL; FLOOR THA	8-93290-893-3	01	1	0208-0208				●	●
1	PANEL; FLOOR THA	8-97357-509-0	01	1	0209-				●	●
25	REINFORCEMENT; FRAME FLOOR,FRT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98152-774-0	01	1	0911-	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-3	01	1	0204-0207	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97235-751-4	01	1	0208-0402	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT THA	8-97380-608-0	01	1	0403-0910	●	●	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-97380-608-0	01	1	0911-	●	●		●	●
29	GUSSET THA	8-97349-433-0	02	1	0204-0207	●	●	●
29	GUSSET THA	8-97349-433-0	02	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-811-1	01	1	0208-	●	●	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0204-0207	●	●	●
45	REINFORCEMENT; TUNNEL,FRT THA	8-97235-810-1	01	1	0208-	●	●	●	●	●
70	PANEL; ROCKER INNER THA	8-97262-347-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97262-346-4	01	1	0204-	●	●
70	PANEL; ROCKER INNER THA	8-97235-546-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-97235-542-4	01	1	0204-			●
70	PANEL; ROCKER INNER THA	8-93333-636-3	01	1	0208-				●	●
70	PANEL; ROCKER INNER THA	8-93333-637-3	01	1	0208-				●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-861-3	01	1	0208-	●	●	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0204-0207	●	●	●
71	BRACKET; CAB MTG,CENTER THA	8-97235-857-4	01	1	0208-	●	●	●	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-883-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-859-3	01	1	0204-	●	●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0204-0207			●
72	BRACKET; CAB MTG,RR THA	8-97235-871-4	01	1	0208-			●	●	●
72	BRACKET; CAB MTG,RR THA	8-97248-001-4	01	1	0204-			●
72	BRACKET; CAB MTG,RR THA	8-97235-858-4	01	1	0208-				●	●
206	PANEL; FLOOR BOARD RR M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98162-029-0	01	1	0911-1003				●	●
206	PANEL; FLOOR BOARD RR THA	8-98162-029-0	01	1	1004-				●	●
206	PANEL; FLOOR BOARD RR THA	8-93299-457-6	01	1	0208-0410				●	●
206	PANEL; FLOOR BOARD RR THA	8-98004-450-0	01	1	0411-0910				●	●
206	PANEL; FLOOR BOARD RR A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA	8-98004-450-0	01	1	0911-1003				●	●
366	BAR ASM; FRT SEAT MTG THA	8-93333-631-3	01	1	0208-				●	●
518	SILL; FLOOR (C) THA	8-98096-345-0	01	1	0710-	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0204-0207	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0208-0709	●	●	●	●	●
518	SILL; FLOOR (A) THA	8-97235-794-3	01	1	0710-0710			●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-4	01	1	0204-0207	●	●	●
518	SILL; FLOOR (B) THA	8-97235-819-5	01	1	0208-	●	●	●	●	●
518	SILL; FLOOR (C) THA	8-97236-099-4	01	1	0204-0709	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-0710	●	●
518	SILL; FLOOR (A) THA	8-98048-087-0	01	1	0710-	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0204-0207	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0208-0401	●	●	●	●	●
519	BRACKET; CONTROLLER 4WD THA	8-97246-499-2	01	1	0402-0408	●	●		●	●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> THA	8-97246-499-2	01	1	0409-0412	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0409-0412		●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THA	8-97246-499-2	01	1	0501-0606	●			●
519	BRACKET; CONTROLLER 4WD 4JJ1-TCS ENG<LFB> THA	8-97246-499-2	01	1	0501-0606		●			●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0204-0207	●	●	●
520	BRACKET; FUEL LID OPENER THA	8-97236-152-2	01	1	0208-	●	●	●	●	●
