◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#73843) — 116 parça
çizim 116526
1 7 1 7 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-441-0 01 1 1010- ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-442-0 01 1 1010- ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-441-0 01 1 1002-1008 ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-442-0 01 1 1002-1008 ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> BEIGE THA 		8-97418-210-0 01 1 0909- ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> EXC. HEADER CONSOLE<DK6> BEIGE THA 		8-97418-209-0 01 1 0909- ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97298-439-3 01 1 0204-0408 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97401-435-0 01 1 0409-0501 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97402-840-0 01 1 0502-0603 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97405-896-0 01 1 0604-0606 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97405-897-0 01 1 0607- ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-437-3 01 1 0204-0408 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97401-433-0 01 1 0409-0501 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97402-860-0 01 1 0502-0507 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-860-0 01 1 0508-0603 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-884-0 01 1 0604-0606 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-885-0 01 1 0607-1001 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-885-0 01 1 1002- ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-440-5 01 1 0208-0408 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97401-436-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97402-862-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-862-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-906-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-907-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-907-0 01 1 0909- ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-438-3 01 1 0204-0408 ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<C74> LIGHT GRAY THA 		8-97401-434-0 01 1 0409-0501 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<C74> LIGHT GRAY THA 		8-97402-861-0 01 1 0502-0507 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-841-0 01 1 0508-0603 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-886-0 01 1 0604-0606 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-887-0 01 1 0607-1001 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-887-0 01 1 1002- ● ● ●
1 LINING; HD
DOUBLE CAB<TF**W*> MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-441-5 01 1 0208-0408 ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> MAP LAMP<C74> LIGHT GRAY THA 		8-97401-437-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97401-437-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> MAP LAMP<C74> LIGHT GRAY THA 		8-97402-863-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97402-863-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-842-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97402-842-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-908-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97405-908-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-909-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97405-909-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-909-0 01 1 0909-1008 ● ● ●
7 RETAINER; HEADLINING RAIL
(A) LIGHT GRAY THA 		8-97298-442-0 02 1 0204-0408 ● ● ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST GRIP PASSENGER<EG5> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0204-0408 ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0409-0507 ● ● ●
7 RETAINER; HEADLINING RAIL
4X2 SPACE CAB<TFB5CF> 4X2 SINGLE CAB<TFB5SF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0508-0606 ● ● ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97403-535-0 02 1 0607- ● ● ●
7 RETAINER; HEADLINING RAIL
(B) THA 		8-97301-381-1 02 1 0204- ● ● ●

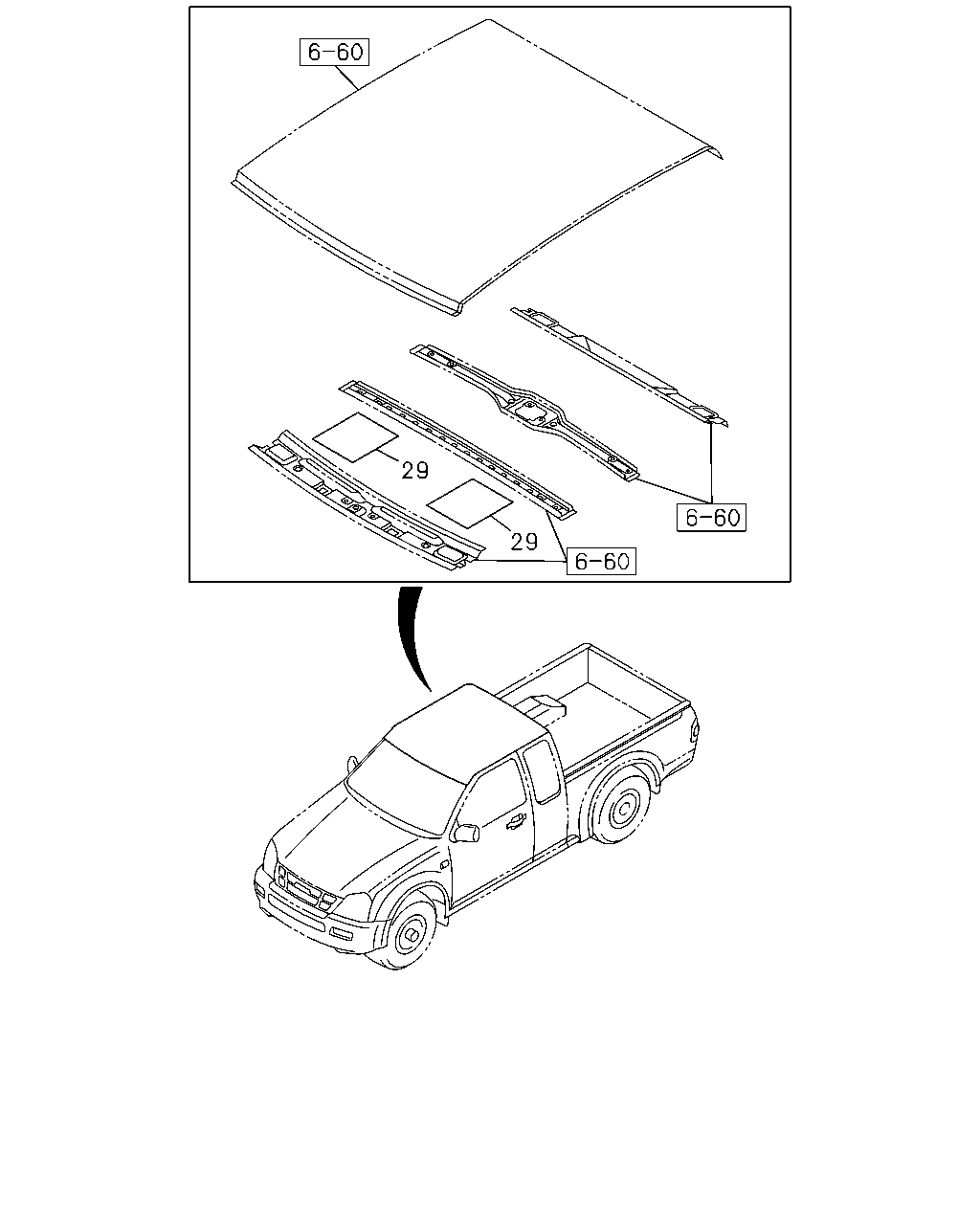

çizim 116541
29 29
BalonParca AdiParca NoAdetTipApplied Date A B C
29 DEADENER; ROOF PANEL
4JJ1-TCS ENG<LFB> THA 		8-97369-873-1 02 1 0409-0608 ● ● ●
29 DEADENER; ROOF PANEL
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-97369-873-1 02 1 0609-0708 ● ● ●
29 DEADENER; ROOF PANEL
4JJ1-TCS ENG<LFB> THA 		8-97369-873-1 02 1 0709-0709 ● ● ●
29 DEADENER; ROOF PANEL
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-97369-873-1 02 1 0710- ● ● ●

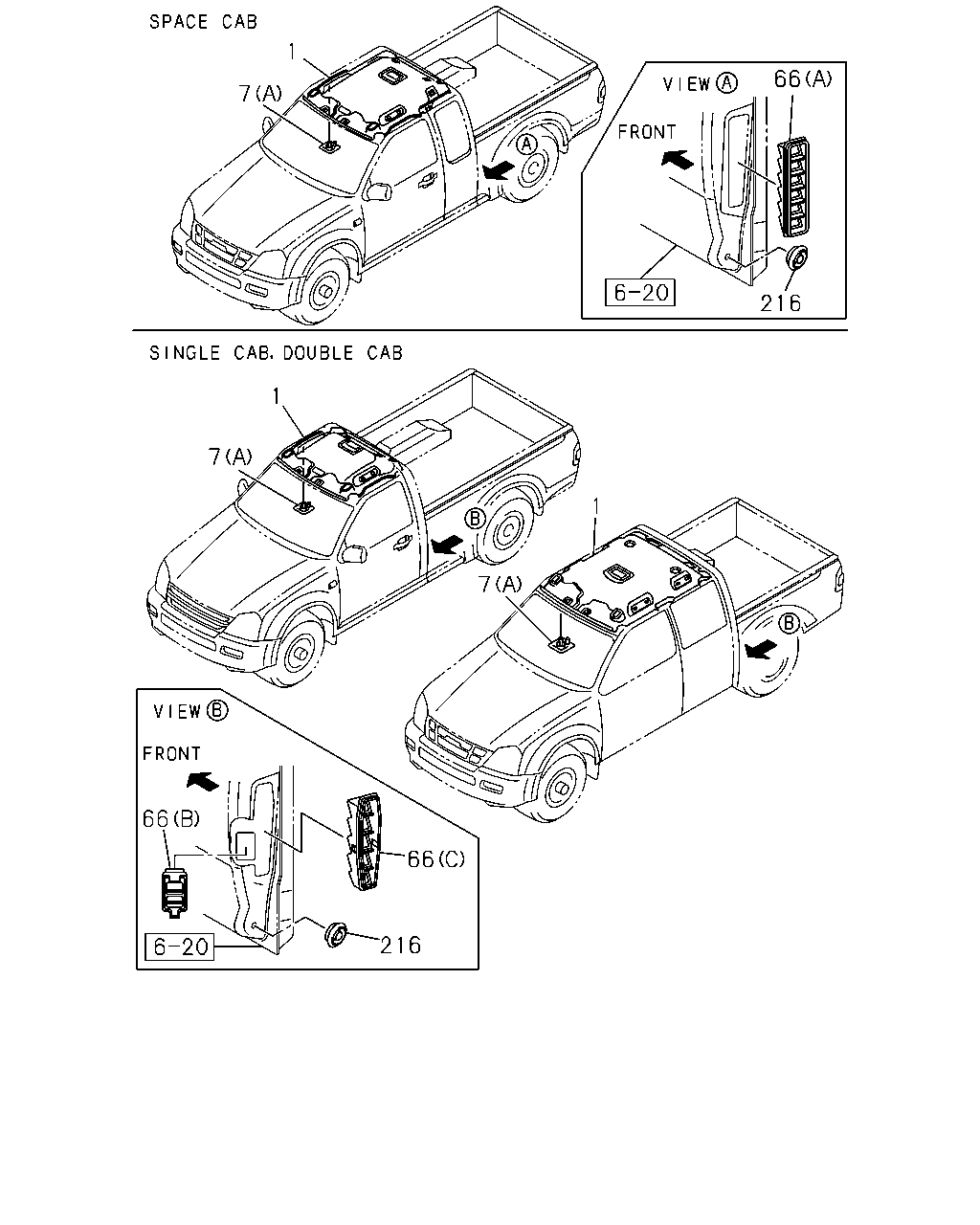

çizim 116551
1 66 7 216 1 7 1 7 66 66 216
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-441-0 01 1 1010- ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-442-0 01 1 1010- ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-441-0 01 1 1002-1008 ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> HEADER CONSOLE<DK6> BLACK THA 		8-97418-442-0 01 1 1002-1008 ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> HEADER CONSOLE<DK6> BEIGE THA 		8-97418-210-0 01 1 0909- ●
1 LINING; HD
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> EXC. HEADER CONSOLE<DK6> BEIGE THA 		8-97418-209-0 01 1 0909- ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97298-439-3 01 1 0204-0408 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97401-435-0 01 1 0409-0501 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97402-840-0 01 1 0502-0603 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97405-896-0 01 1 0604-0606 ●
1 LINING; HD
SINGLE CAB<TF**S*> LIGHT GRAY THA 		8-97405-897-0 01 1 0607- ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-437-3 01 1 0204-0408 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97401-433-0 01 1 0409-0501 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97402-860-0 01 1 0502-0507 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-860-0 01 1 0508-0603 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-884-0 01 1 0604-0606 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-885-0 01 1 0607-1001 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-885-0 01 1 1002- ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-440-5 01 1 0208-0408 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97401-436-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. MAP LAMP<C74> LIGHT GRAY THA 		8-97402-862-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-862-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-906-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-907-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> EXC. HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-907-0 01 1 0909- ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-438-3 01 1 0204-0408 ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<C74> LIGHT GRAY THA 		8-97401-434-0 01 1 0409-0501 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> MAP LAMP<C74> LIGHT GRAY THA 		8-97402-861-0 01 1 0502-0507 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-841-0 01 1 0508-0603 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-886-0 01 1 0604-0606 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-887-0 01 1 0607-1001 ● ● ●
1 LINING; HD
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-887-0 01 1 1002- ● ● ●
1 LINING; HD
DOUBLE CAB<TF**W*> MAP LAMP<UF3> LIGHT GRAY THA 		8-97298-441-5 01 1 0208-0408 ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> MAP LAMP<C74> LIGHT GRAY THA 		8-97401-437-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97401-437-0 01 1 0409-0502 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> MAP LAMP<C74> LIGHT GRAY THA 		8-97402-863-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97402-863-0 01 1 0503-0507 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97402-842-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97402-842-0 01 1 0508-0603 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-908-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97405-908-0 01 1 0604-0606 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-909-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X4 DOUBLE CAB<TFS*W*> LIGHT GRAY THA 		8-97405-909-0 01 1 0607-0908 ● ● ●
1 LINING; HD
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR VERY DARK GRAY<116> HEADER CONSOLE<DK6> LIGHT GRAY THA 		8-97405-909-0 01 1 0909-1008 ● ● ●
7 RETAINER; HEADLINING RAIL
(A) LIGHT GRAY THA 		8-97298-442-0 02 1 0204-0408 ● ● ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST GRIP PASSENGER<EG5> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0204-0408 ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0409-0507 ● ● ●
7 RETAINER; HEADLINING RAIL
4X2 SPACE CAB<TFB5CF> 4X2 SINGLE CAB<TFB5SF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97298-442-0 02 1 0508-0606 ● ● ●
7 RETAINER; HEADLINING RAIL
SINGLE CAB<TF**S*> EXC. ASSIST HANDLE<E28> (A) LIGHT GRAY THA 		8-97403-535-0 02 1 0607- ● ● ●
7 RETAINER; HEADLINING RAIL
(B) THA 		8-97301-381-1 02 1 0204- ● ● ●
66 GRILLE; AIR OUTLET
SINGLE CAB<TF**S*> (B) THA 		8-97251-682-1 02 1 0204- ●
66 GRILLE; AIR OUTLET
SINGLE CAB<TF**S*> (C) THA 		8-97311-440-2 02 1 0204- ●
66 GRILLE; AIR OUTLET
SPACE CAB<TF**C*> (A) THA 		8-97235-353-2 02 1 0204-0207 ● ● ●
66 GRILLE; AIR OUTLET
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> (A) THA 		8-97235-353-2 02 1 0208-0211 ● ● ●
66 GRILLE; AIR OUTLET
SPACE CAB<TF**C*> (A) THA 		8-97361-476-0 02 1 0212- ● ● ●
66 GRILLE; AIR OUTLET
DOUBLE CAB<TF**W*> (B) THA 		8-97251-688-2 02 1 0208-0301 ● ●
66 GRILLE; AIR OUTLET
DOUBLE CAB<TF**W*> (B) THA 		8-97365-208-0 02 1 0302-0408 ● ●
66 GRILLE; AIR OUTLET
DOUBLE CAB<TF**W*> (B) THA 		8-97365-208-0 02 1 0409- ● ● ●
66 GRILLE; AIR OUTLET
DOUBLE CAB<TF**W*> (A) THA 		8-97361-477-0 02 1 0212-0408 ● ●
66 GRILLE; AIR OUTLET
DOUBLE CAB<TF**W*> (A) THA 		8-97361-477-0 02 1 0409- ● ● ●
216 GROMMET; HOLE
OD=19 THA 		8-94279-055-0 02 1 0204-0305 ● ● ●
216 GROMMET; HOLE
OD=19 THA 		8-97365-823-0 02 1 0306- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
