◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#73842) — 69 parça

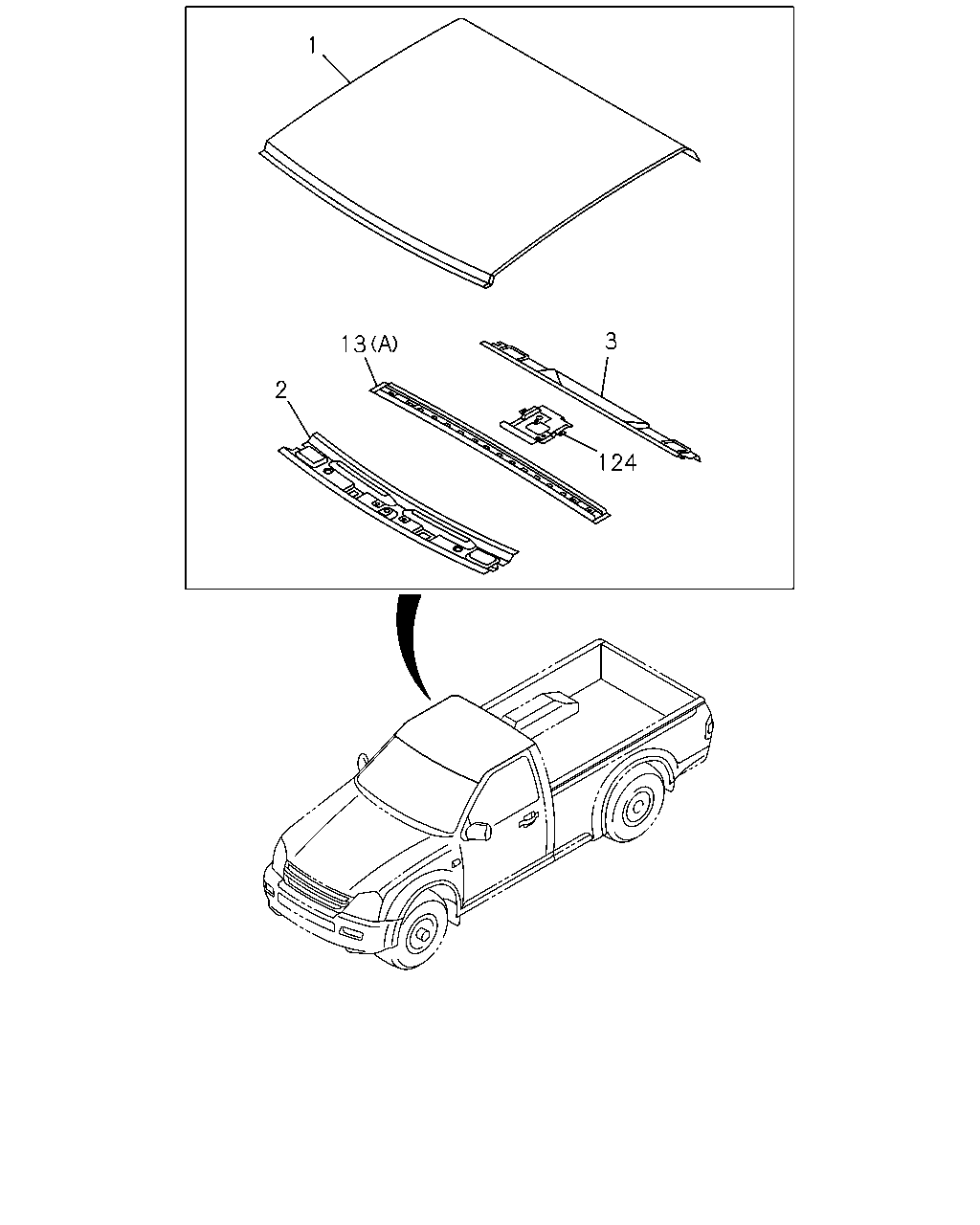

çizim 116515
1 3 13 2 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
THA 		8-97235-107-3 01 1 0204-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97235-107-3 01 1 0709- ● ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-830-0 01 1 0709- ● ●
1 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-330-3 01 1 0204-0208 ●
1 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-326-3 01 1 0204-0208 ●
1 PANEL; ROOF
THA 		8-97235-326-3 01 1 0209- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-93290-859-1 01 1 0208-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93290-859-1 01 1 0709- ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0204-0207 ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0208-0708 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98050-942-0 01 1 0709- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0204-0207 ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0204-0207 ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0204-0207 ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0208- ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-93291-041-1 01 1 0208- ● ●
124 BRACKET; ROOM LAMP
THA 		8-97235-999-1 01 1 0204- ●

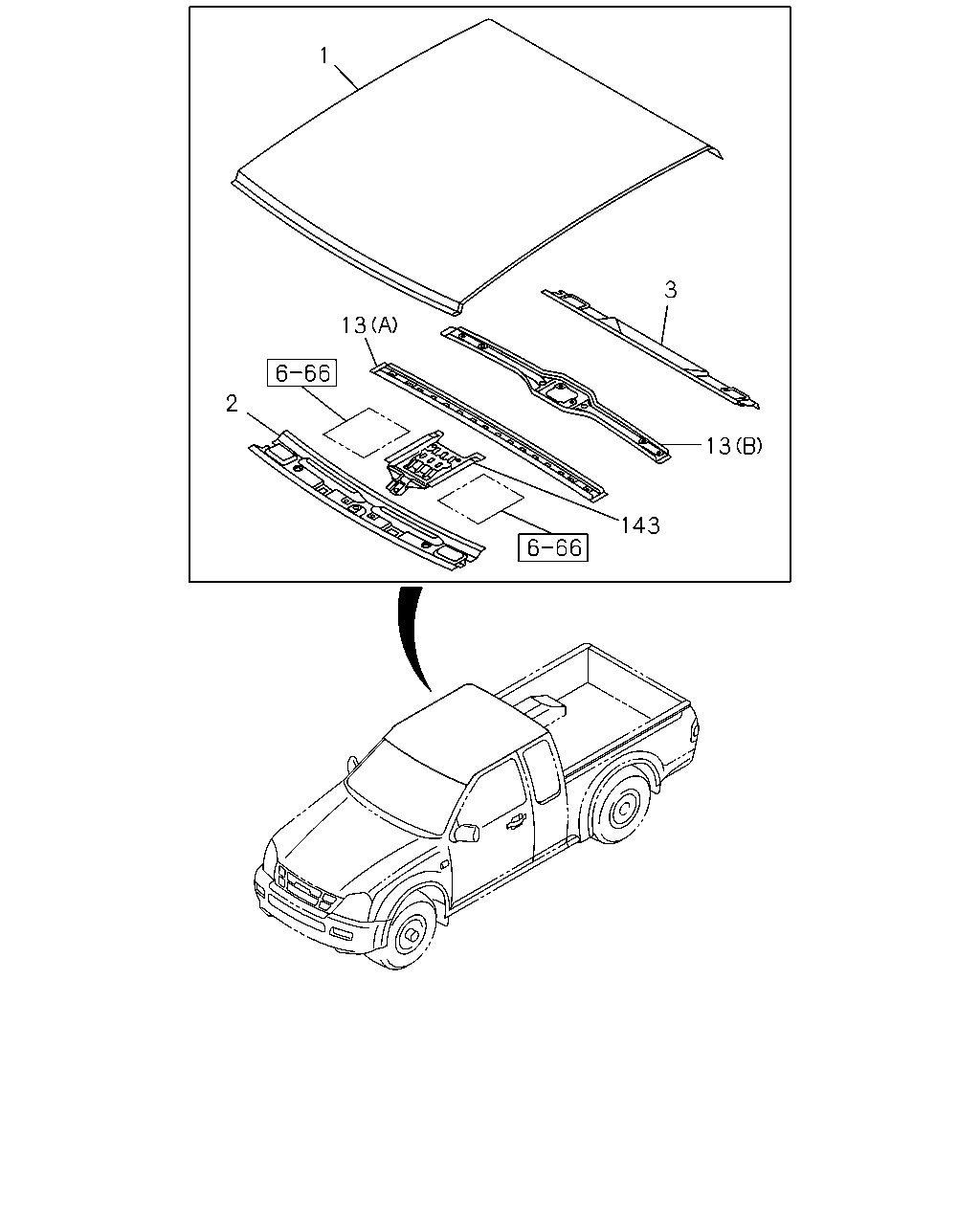

çizim 116538
1 3 13 2 13 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
THA 		8-97235-107-3 01 1 0204-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97235-107-3 01 1 0709- ● ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-830-0 01 1 0709- ● ●
1 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-330-3 01 1 0204-0208 ●
1 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-326-3 01 1 0204-0208 ●
1 PANEL; ROOF
THA 		8-97235-326-3 01 1 0209- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-93290-859-1 01 1 0208-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93290-859-1 01 1 0709- ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0204-0207 ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0208-0708 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98050-942-0 01 1 0709- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0204-0207 ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0204-0207 ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0204-0207 ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0208- ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-93291-041-1 01 1 0208- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98011-826-0 01 1 0508-0708 ● ● ●
143 BRACKET; CONSOLE
THA 		8-98011-826-0 01 1 0508-0708 ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98050-943-0 01 1 0709- ● ● ●
143 BRACKET; CONSOLE
THA 		8-98050-943-0 01 1 0709- ●

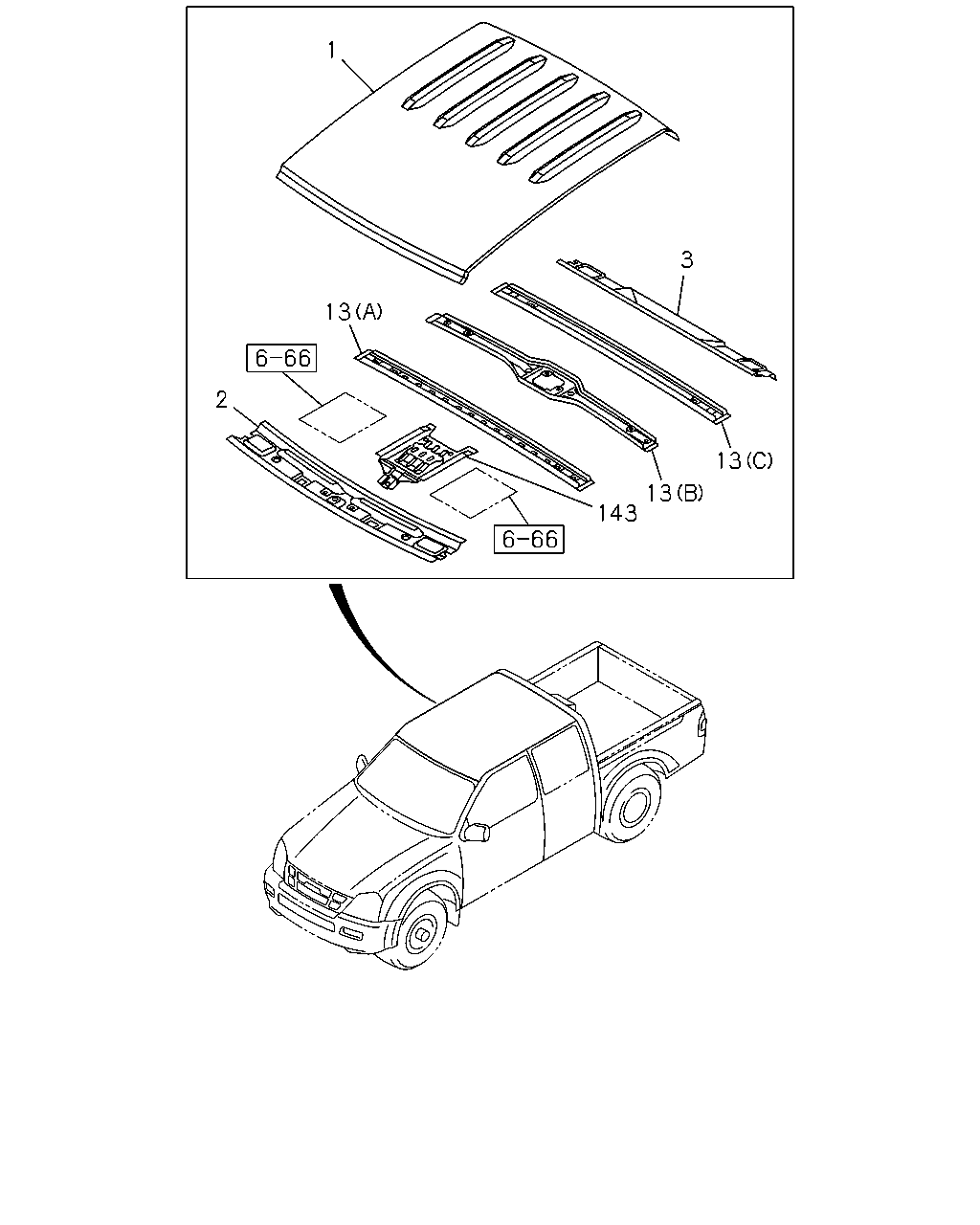

çizim 116542
1 3 13 2 13 13 143
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; ROOF
THA 		8-97235-107-3 01 1 0204-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-97235-107-3 01 1 0709- ● ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-830-0 01 1 0709- ● ●
1 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-330-3 01 1 0204-0208 ●
1 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> THA 		8-97235-326-3 01 1 0204-0208 ●
1 PANEL; ROOF
THA 		8-97235-326-3 01 1 0209- ●
1 PANEL; ROOF
ROOF RADIO ANTENNA<U71> THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-98051-828-0 01 1 0709- ●
1 PANEL; ROOF
THA 		8-93290-859-1 01 1 0208-0708 ● ●
1 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> THA 		8-93290-859-1 01 1 0709- ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0204-0207 ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-97235-276-4 01 1 0208-0708 ● ● ● ● ●
2 PANEL; ROOF,CENTER
THA 		8-98050-942-0 01 1 0709- ● ● ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0204-0207 ● ● ●
3 PANEL; ROOF,RR
THA 		8-97235-282-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0204-0207 ● ● ●
13 PANEL; ROOF SUPPORT
(A) THA 		8-97235-279-3 01 1 0208- ● ● ● ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0204-0207 ● ●
13 PANEL; ROOF SUPPORT
(B) THA 		8-97235-281-3 01 1 0208- ● ● ● ●
13 PANEL; ROOF SUPPORT
(C) THA 		8-93291-041-1 01 1 0208- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98011-826-0 01 1 0508-0708 ● ● ●
143 BRACKET; CONSOLE
THA 		8-98011-826-0 01 1 0508-0708 ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98050-943-0 01 1 0709- ● ● ●
143 BRACKET; CONSOLE
THA 		8-98050-943-0 01 1 0709- ●
