2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#7384) — 53 parça

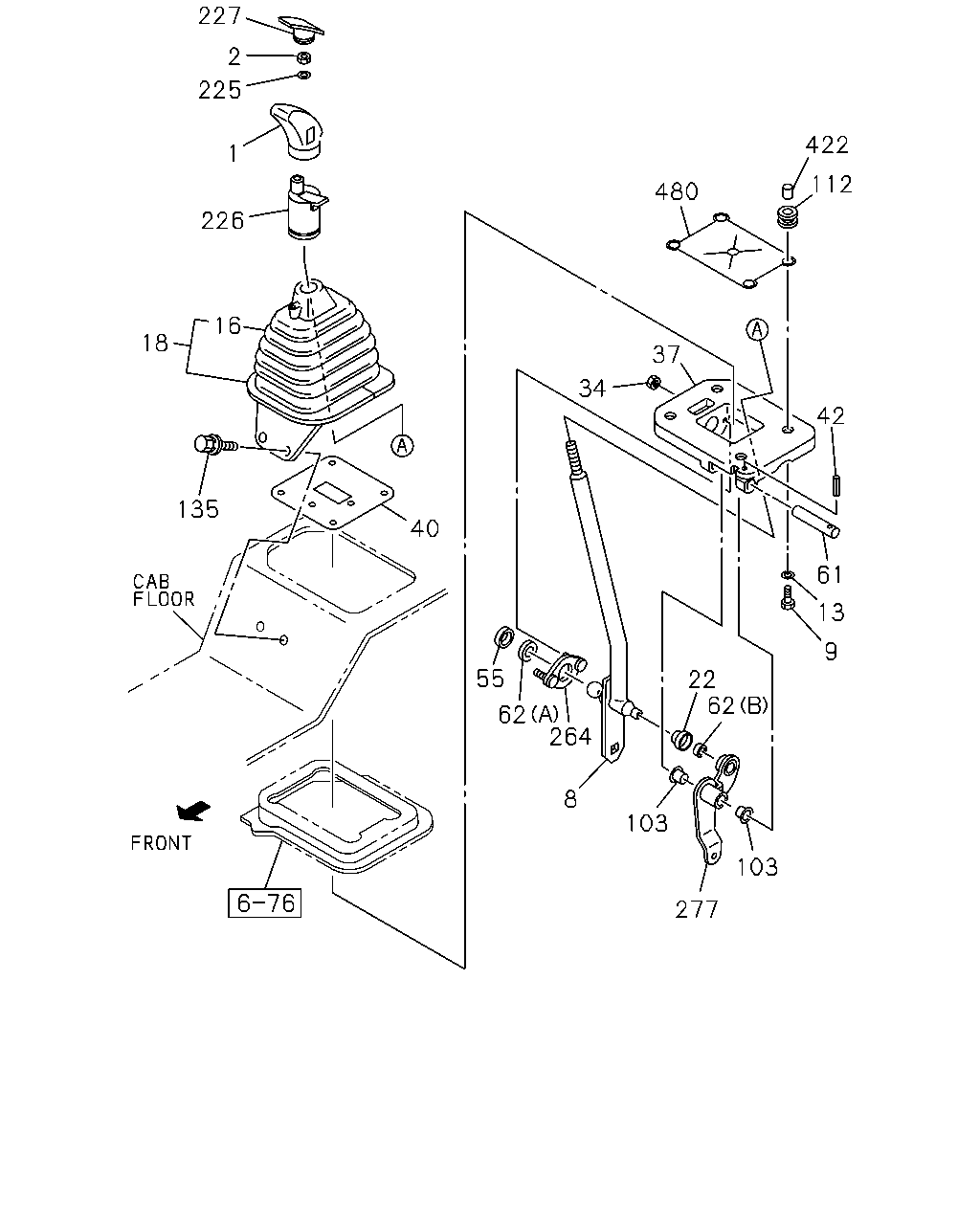

çizim 42663
227 2 225 422 1 112 480 226 16 18 37 34 42 135 40 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 9812-9901 ●
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 9902- ● ●
1 KNOB; CHANGE LEVER 1-33611-090-0 01 1 9902- ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 9812- ● ● ●
8 LEVER; CHANGE 1-33613-345-0 01 1 9812- ● ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9812- ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9812- ● ● ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 9812-9901 ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 9902- ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9902-9904 ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9905- ●
18 BOOT; CHANGE LEVER 1-79996-437-0 01 1 9812-9812 ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 9901-9901 ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 9902- ● ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9902-9904 ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9905- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9812-9904 ● ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905- ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9812-9904 ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9812-9904 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905- ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9812-9901 ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9902-9904 ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9812-9904 ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905- ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9812-9904 ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905- ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9812-9904 ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9812-9904 ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9812-9904 ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905- ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9812-9904 ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905- ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9812-9904 ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905- ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9812- ● ● ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 		9-09160-610-0 01 1 9812- ● ● ●
226 VALVE; SELECTOR 1-33710-006-0 01 1 9812-9901 ●
226 VALVE; SELECTOR 1-33710-006-0 01 1 9902-0004 ● ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0005- ● ●
227 COVER; KNOB 1-33619-219-0 01 1 9812- ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9812-9904 ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905- ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9812-9904 ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905- ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9812-9904 ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905- ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9812-9904 ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
