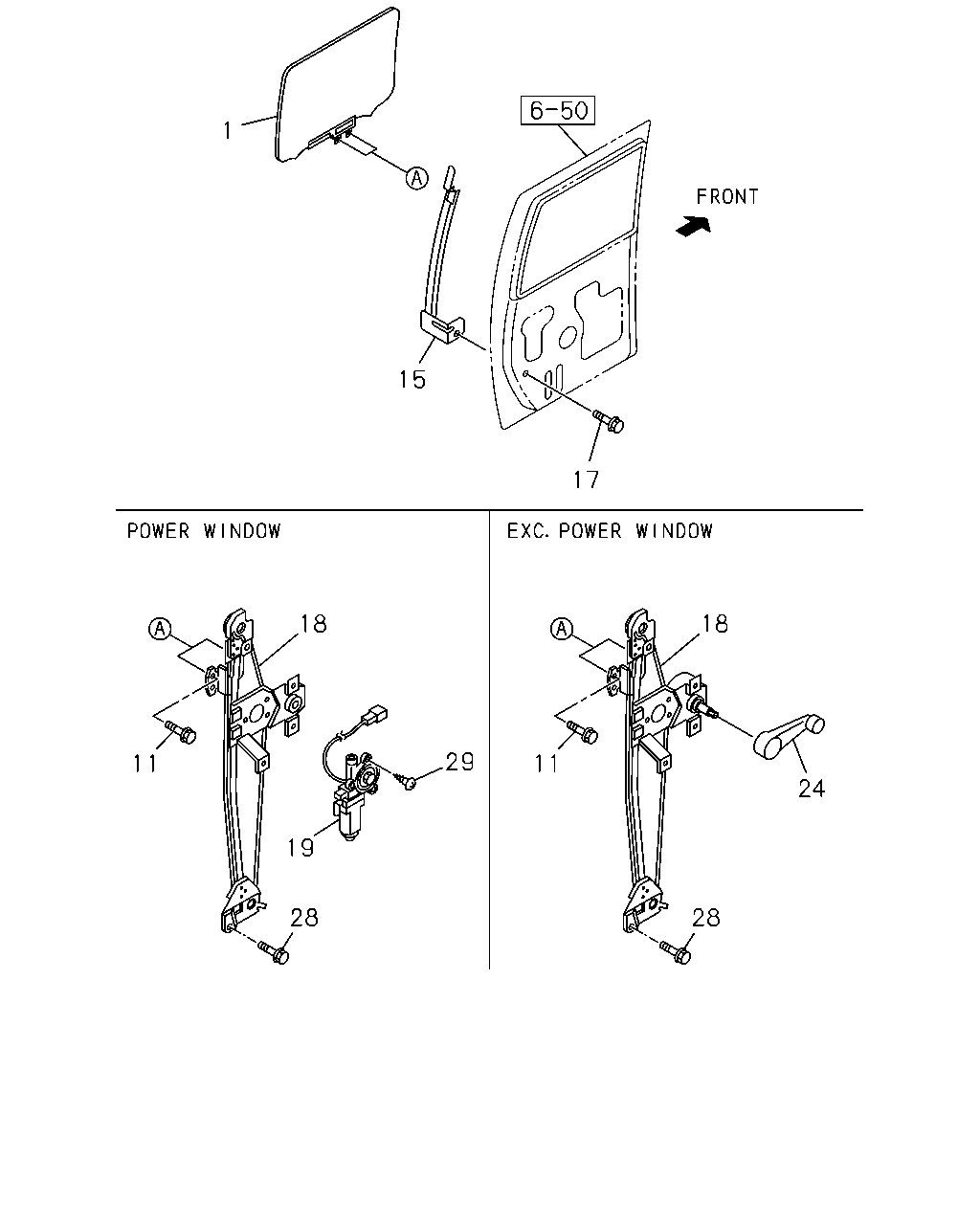

6-51 — REAR DOOR GLASS AND REGULATOR (#73839) — 85 parça

1 15 17 18 18 29 11 11 24 19 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; RR DOOR THA	8-93297-658-1	01	1	0208-0507	●	●
1	GLASS; RR DOOR THA	8-98002-757-0	01	1	0508-0808	●	●
1	GLASS; RR DOOR THA	8-98130-014-0	01	1	0809-	●	●
1	GLASS; RR DOOR THA	8-93297-659-1	01	1	0208-0507	●	●
1	GLASS; RR DOOR THA	8-98002-758-0	01	1	0508-0808	●	●
1	GLASS; RR DOOR THA	8-98130-015-0	01	1	0809-	●	●
11	BOLT; GLASS M6X16 FLANGE THA	0-28680-616-0	04	1	0208-0601	●	●
11	BOLT; GLASS M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
15	RAIL; RR GUIDE,RR DOOR THA	8-93298-412-0	01	1	0208-	●	●
15	RAIL; RR GUIDE,RR DOOR THA	8-93298-413-0	01	1	0208-	●	●
17	BOLT; RR GUIDE RAIL M6X8 THA	8-94155-893-0	02	1	0208-0609	●	●
17	BOLT; RR GUIDE RAIL M6X8 FLANGE THA	8-98048-996-0	02	1	0610-	●	●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> THA	8-97352-746-0	01	1	0208-0408	●
18	REGULATOR; WINDOW,RR DOOR THA	8-97352-746-0	01	1	0208-0408		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-97352-746-0	01	1	0409-0506	●
18	REGULATOR; WINDOW,RR DOOR THA	8-97352-746-0	01	1	0409-0506		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98020-412-0	01	1	0507-0605	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98020-412-0	01	1	0507-0605		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98009-813-0	01	1	0606-0908	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98009-813-0	01	1	0606-0908		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98150-526-0	01	1	0909-	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98150-526-0	01	1	0909-		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30> THA	8-97352-747-0	01	1	0208-0408	●
18	REGULATOR; WINDOW,RR DOOR THA	8-97352-747-0	01	1	0208-0408		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-97352-747-0	01	1	0409-0506	●
18	REGULATOR; WINDOW,RR DOOR THA	8-97352-747-0	01	1	0409-0506		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98020-411-0	01	1	0507-0605	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98020-411-0	01	1	0507-0605		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98009-812-0	01	1	0606-0908	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98009-812-0	01	1	0606-0908		●
18	REGULATOR; WINDOW,RR DOOR POWER WINDOW<A31> THA	8-98150-525-0	01	1	0909-	●
18	REGULATOR; WINDOW,RR DOOR THA	8-98150-525-0	01	1	0909-		●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30> THA	8-93290-871-2	01	1	0208-0408	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-93290-871-2	01	1	0409-0605	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-98005-169-3	01	1	0606-0906	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-98150-522-0	01	1	0907-	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30> THA	8-93290-872-2	01	1	0208-0408	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-93290-872-2	01	1	0409-0605	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-98005-168-3	01	1	0606-0906	●
18	REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A31> THA	8-98150-521-0	01	1	0907-	●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30> THA	8-97352-748-0	01	1	0208-0408	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97352-748-0	01	1	0208-0408		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-97352-748-0	01	1	0409-0506	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97352-748-0	01	1	0409-0506		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-97369-491-0	01	1	0507-0605	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97369-491-0	01	1	0507-0605		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98009-804-0	01	1	0606-0908	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98009-804-0	01	1	0606-0908		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98151-594-0	01	1	0909-1107	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98151-594-0	01	1	0909-1107		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98196-062-0	01	1	1108-	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98196-062-0	01	1	1108-		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30> THA	8-97352-749-0	01	1	0208-0408	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97352-749-0	01	1	0208-0408		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-97352-749-0	01	1	0409-0506	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97352-749-0	01	1	0409-0506		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-97369-492-0	01	1	0507-0605	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-97369-492-0	01	1	0507-0605		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98009-803-0	01	1	0606-0908	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98009-803-0	01	1	0606-0908		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98151-593-0	01	1	0909-1107	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98151-593-0	01	1	0909-1107		●
19	MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A31> THA	8-98196-061-0	01	1	1108-	●
19	MOTOR; POWER WINDOW REG,RR DOOR THA	8-98196-061-0	01	1	1108-		●
24	HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A30> DARK GRAY THA	8-97298-454-3	02	1	0208-0408	●
24	HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A31> DARK GRAY THA	8-97298-454-3	02	1	0409-0606	●
24	HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A31> DARK GRAY THA	8-97403-616-3	02	1	0607-0611	●
24	HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A31> DARK GRAY THA	8-97408-066-0	02	1	0612-0908	●
24	HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR VERY DARK GRAY<116> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97408-066-0	02	1	0909-1009	●
24	HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> EXC. POWER WINDOW<A31> DARK GRAY THA	8-97408-066-0	02	1	1010-	●
28	BOLT; WINDOW REG POWER WINDOW<A30> M6X8 THA	8-94155-893-0	06	1	0208-0408	●
28	BOLT; WINDOW REG M6X8 THA	8-94155-893-0	06	1	0208-0408		●
28	BOLT; WINDOW REG POWER WINDOW<A31> M6X8 THA	8-94155-893-0	06	1	0409-0609	●
28	BOLT; WINDOW REG M6X8 THA	8-94155-893-0	06	1	0409-0609		●
28	BOLT; WINDOW REG POWER WINDOW<A31> M6X8 FLANGE THA	8-98048-996-0	06	1	0610-	●
28	BOLT; WINDOW REG M6X8 FLANGE THA	8-98048-996-0	06	1	0610-		●
28	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X8 THA	8-94155-893-0	08	1	0208-0408	●
28	BOLT; WINDOW REG EXC. POWER WINDOW<A31> M6X8 THA	8-94155-893-0	08	1	0409-0609	●
28	BOLT; WINDOW REG EXC. POWER WINDOW<A31> M6X8 FLANGE THA	8-98048-996-0	08	1	0610-	●
29	SCREW; WINDOW REG POWER WINDOW<A30> THA	8-97351-770-0	06	1	0208-0408	●
29	SCREW; WINDOW REG THA	8-97351-770-0	06	1	0208-0408		●
29	SCREW; WINDOW REG POWER WINDOW<A31> THA	8-97351-770-0	06	1	0409-0605	●
29	SCREW; WINDOW REG THA	8-97351-770-0	06	1	0409-0605		●
29	SCREW; WINDOW REG POWER WINDOW<A31> THA	8-98009-809-0	06	1	0606-	●
29	SCREW; WINDOW REG THA	8-98009-809-0	06	1	0606-		●
