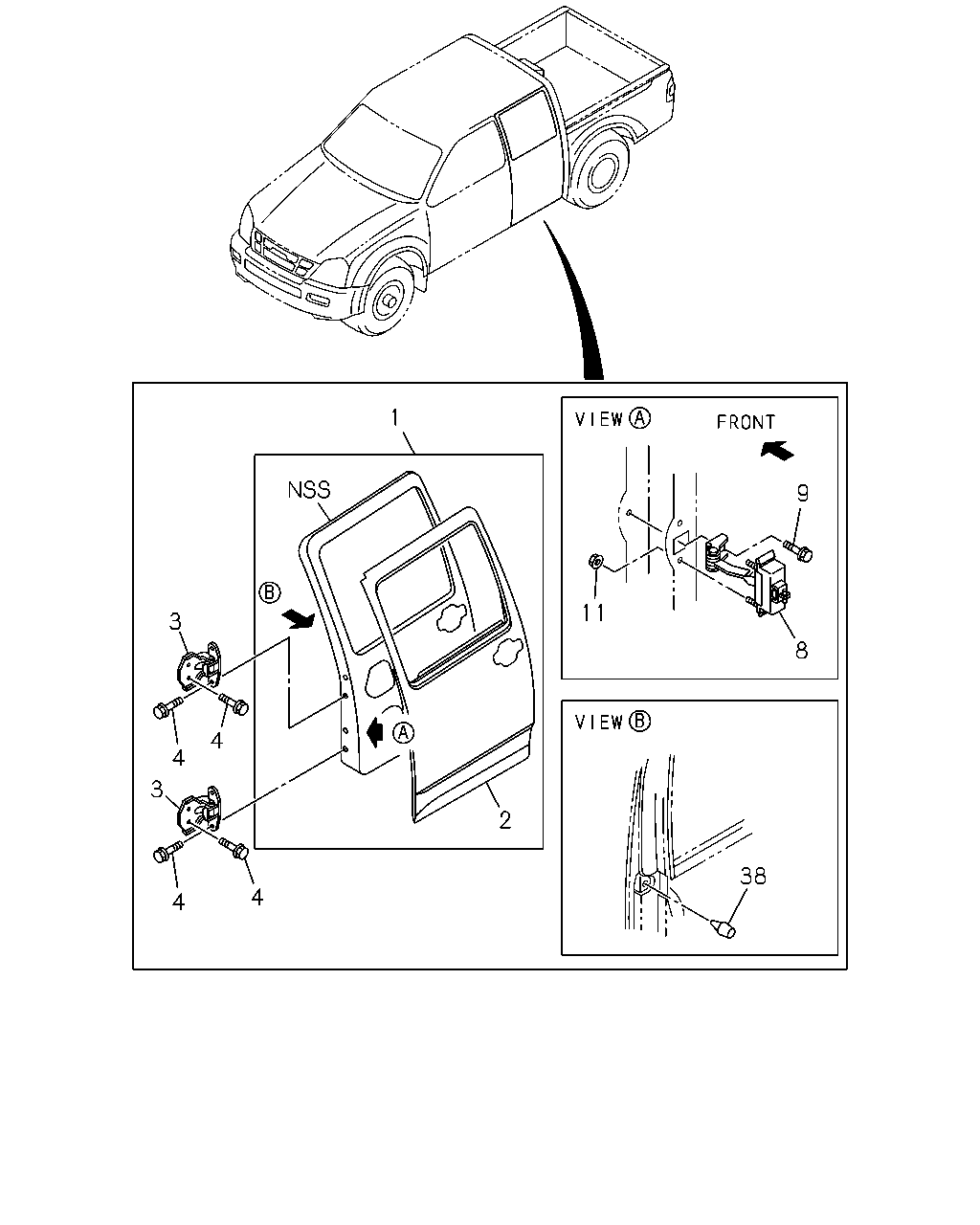

6-50 — REAR DOOR AND HINGE (#73838) — 26 parça

1 9 11 3 8 4 4 3 2 38 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DOOR ASM; REAR THA	8-93333-709-2	01	1	0208-0212	●	●
1	DOOR ASM; REAR THA	8-97359-171-0	01	1	0301-	●	●
1	DOOR ASM; REAR THA	8-93333-710-2	01	1	0208-0212	●	●
1	DOOR ASM; REAR THA	8-97359-170-0	01	1	0301-	●	●
2	PANEL; RR DOOR OUTER THA	8-93291-097-6	01	1	0208-	●	●
2	PANEL; RR DOOR OUTER THA	8-93291-098-6	01	1	0208-	●	●
3	HINGE; RR DOOR LH UPPER,RH LOWER THA	8-93299-816-2	02	1	0208-0611	●	●
3	HINGE; RR DOOR LH LOWER,RH UPPER THA	8-98057-550-0	02	1	0612-	●	●
3	HINGE; RR DOOR LH LOWER,RH UPPER THA	8-93299-817-2	02	1	0208-0611	●	●
3	HINGE; RR DOOR LH UPPER,RH LOWER THA	8-98057-551-0	02	1	0612-	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-94174-559-2	16	1	0208-0408	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-94174-559-2	08	1	0409-0507	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-94174-559-2	08	1	0409-0507	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-94174-559-2	16	1	0508-0606	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-98005-842-0	16	1	0607-1008	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-98005-842-0	08	1	1009-	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-98005-842-0	08	1	1009-	●	●
8	ARM; CHECK,RR DOOR THA	8-93290-877-1	02	1	0208-0307	●	●
8	ARM; CHECK,RR DOOR THA	8-97369-017-0	02	1	0308-	●	●
9	BOLT; CHECK ARM M8X23 IMA	8-97310-216-1	02	1	0208-0701	●	●
9	BOLT; CHECK ARM M8X23 THA	8-98062-206-0	02	1	0702-1110	●	●
9	BOLT; CHECK ARM M8X23 THA	8-98166-694-0	02	1	1111-	●	●
11	NUT M6 FLANGE IMA	5-09440-004-0	04	1	0208-0209	●	●
11	NUT M6 FLANGE THA	8-97943-101-0	04	1	0210-0610	●	●
11	NUT M6 FLANGE THA	8-98049-362-0	04	1	0611-	●	●
38	PROTECTOR; RR DOOR THA	8-97301-795-1	02	1	0208-	●	●
