6-47 — MUD GUARD AND INSULATOR (#73837) — 636 parça

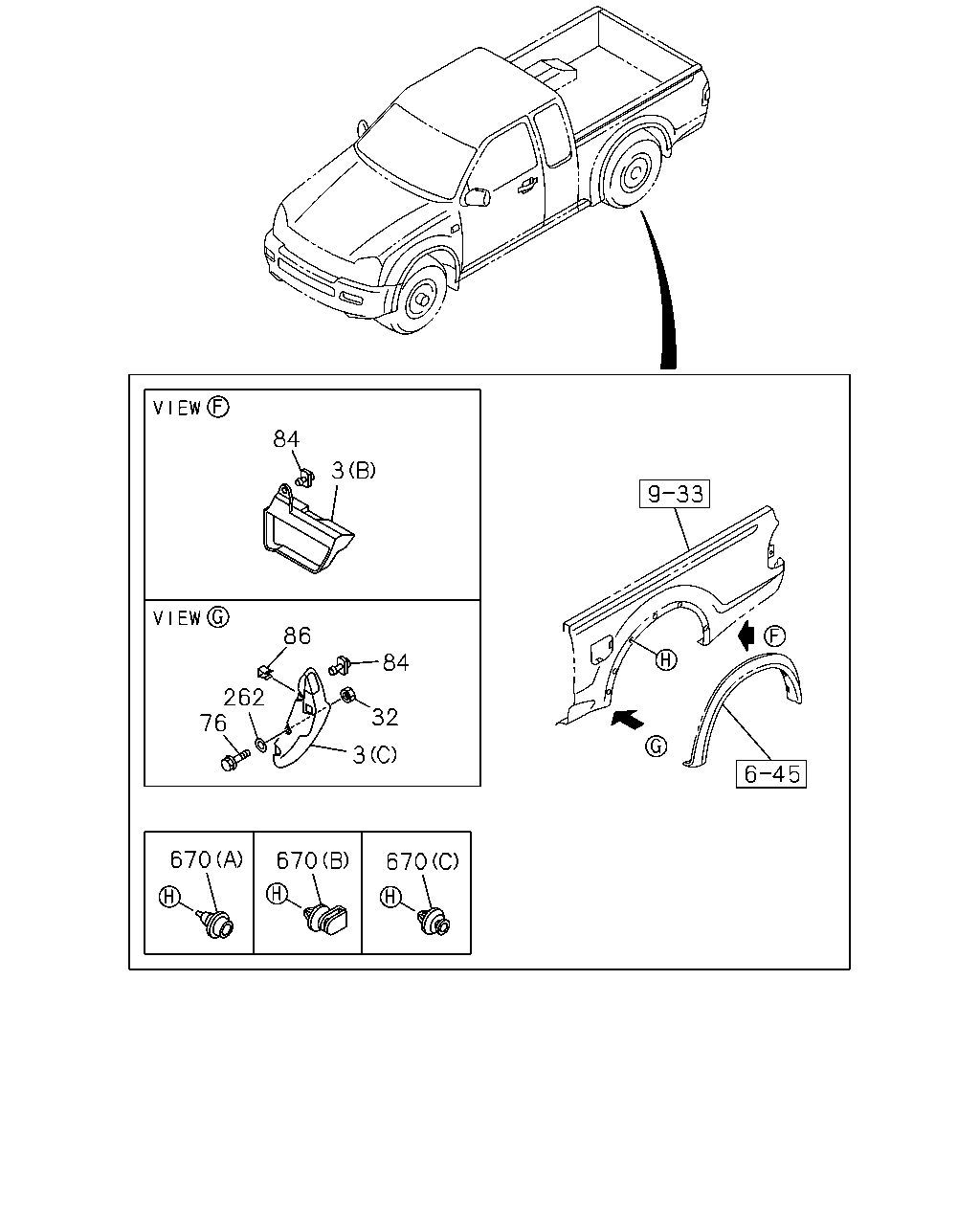

çizim 116513
84 3 86 84 262 76 32 3 670 670 670
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 0607-0708 ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-655-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 0709-1001 ● ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 1002-1008 ● ● ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (B) THA 		8-98023-655-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-655-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> EXC. COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-424-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-424-1 01 1 0208-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-424-1 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-97386-728-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-98007-160-2 01 1 0607- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-423-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-423-1 01 1 0208-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-423-1 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-97386-727-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-98007-159-2 01 1 0607- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-419-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-419-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-419-1 01 1 0208-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-419-1 01 1 0208-0408 ●
3 GUARD; MUD,RR
MUD FLAP<VH4> (A) THA 		8-97386-726-0 01 1 0409- ● ●
3 GUARD; MUD,RR
(A) THA 		8-97386-726-0 01 1 0409- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-418-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-418-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-418-1 01 1 0208-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-418-1 01 1 0208-0408 ●
3 GUARD; MUD,RR
MUD FLAP<VH4> (A) THA 		8-97386-725-0 01 1 0409- ● ●
3 GUARD; MUD,RR
(A) THA 		8-97386-725-0 01 1 0409- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-98002-242-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98002-242-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0607-0608 ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 0607-0608 ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 0607-0608 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0609-0708 ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 0609-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0709-1001 ● ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 1002-1008 ● ● ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (B) THA 		8-98023-656-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> EXC. COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-98002-241-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98002-241-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-98042-395-1 01 1 0607- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-98042-393-1 01 1 0607- ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-98023-658-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
(C) THA 		8-98023-658-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 0709-1001 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (C) THA 		8-98023-658-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 1009- ●
3 GUARD; MUD,RR
(C) THA 		8-98023-658-0 01 1 1009- ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-98023-657-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
(C) THA 		8-98023-657-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 0709-1001 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (C) THA 		8-98023-657-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 1009- ●
3 GUARD; MUD,RR
(C) THA 		8-98023-657-0 01 1 1009- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0204-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0204-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0212-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0212-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97350-475-0 01 1 0208-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-479-1 01 1 0208-0307 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (C) THA 		8-97350-479-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-479-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-97350-479-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
(C) THA 		8-97350-479-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-388-2 01 1 0607-0906 ●
3 GUARD; MUD,RR
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-388-2 01 1 0907- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97350-474-0 01 1 0208-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-478-1 01 1 0208-0307 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (C) THA 		8-97350-478-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-478-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-97350-478-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
(C) THA 		8-97350-478-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-387-2 01 1 0607-0906 ●
3 GUARD; MUD,RR
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-387-2 01 1 0907- ●
32 NUT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-679-0 01 1 0607-0608 ●
32 NUT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> THA 		8-98023-679-0 01 1 0607-0608 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98002-251-0 02 1 0409-0606 ●
32 NUT; MUD GUARD
THA 		8-98002-251-0 02 1 0409-0606 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 0607-0906 ●
32 NUT; MUD GUARD
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 0907- ●
32 NUT; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-679-0 02 1 0607-0708 ●
32 NUT; MUD GUARD
THA 		8-98023-679-0 02 1 0607-0708 ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 0709-1001 ● ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 1002-1008 ●
32 NUT; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> THA 		8-98023-679-0 02 1 1002-1008 ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 1009- ●
32 NUT; MUD GUARD
THA 		8-98023-679-0 02 1 1009- ●
32 NUT; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-98002-251-0 02 1 0204-0408 ● ●
76 BOLT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-680-0 01 1 0607-0608 ●
76 BOLT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> THA 		8-98023-680-0 01 1 0607-0608 ●
76 BOLT; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-680-0 02 1 0607-0708 ●
76 BOLT; MUD GUARD
THA 		8-98023-680-0 02 1 0607-0708 ●
76 BOLT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-680-0 02 1 0709-1001 ● ●
76 BOLT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-680-0 02 1 1002-1008 ●
76 BOLT; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> THA 		8-98023-680-0 02 1 1002-1008 ●
76 BOLT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-680-0 02 1 1009- ●
76 BOLT; MUD GUARD
THA 		8-98023-680-0 02 1 1009- ●
76 BOLT; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-98002-252-0 02 1 0204-0408 ● ●
76 BOLT; MUD GUARD
OVER FENDER<B74> THA 		8-98002-252-0 02 1 0409-0606 ●
76 BOLT; MUD GUARD
THA 		8-98002-252-0 02 1 0409-0606 ●
84 RIVET; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 08 1 0607-0608 ●
84 RIVET; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> BLACK THA 		8-98023-678-0 08 1 0607-0608 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0609-0611 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0609-0611 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0612- ● ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0612- ● ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 03 1 0609-0611 ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> NATURAL THA 		8-97384-015-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0409-0606 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0409-0606 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0409-0606 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0409-0606 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 16 1 0607-0608 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 16 1 0607-0608 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 13 1 0609-0611 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 13 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 10 1 0612-0708 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 10 1 0612-0708 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 0709-1001 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 1002-1008 ●
84 RIVET; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> BLACK THA 		8-98023-678-0 10 1 1002-1008 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 1009- ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 10 1 1009- ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> NATURAL THA 		8-97384-015-0 16 1 0204-0307 ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 16 1 0308-0408 ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> NATURAL THA 		8-97384-015-0 16 1 0308-0408 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 16 1 0409-0606 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 16 1 0409-0606 ●
86 CLIP; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-661-0 01 1 0607-0608 ●
86 CLIP; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> THA 		8-98023-661-0 01 1 0607-0608 ●
86 CLIP; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-661-0 02 1 0607-0708 ●
86 CLIP; MUD GUARD
THA 		8-98023-661-0 02 1 0607-0708 ●
86 CLIP; MUD GUARD
OVER FENDER<B74> THA 		8-98023-661-0 02 1 0709-1001 ● ●
86 CLIP; MUD GUARD
OVER FENDER<B74> THA 		8-98023-661-0 02 1 1002-1008 ●
86 CLIP; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> THA 		8-98023-661-0 02 1 1002-1008 ●
86 CLIP; MUD GUARD
OVER FENDER<B74> THA 		8-98023-661-0 02 1 1009- ●
86 CLIP; MUD GUARD
THA 		8-98023-661-0 02 1 1009- ●
86 CLIP; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97352-535-0 01 1 0208-0307 ●
86 CLIP; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97352-535-0 01 1 0308-0408 ●
86 CLIP; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97352-535-0 01 1 0308-0408 ●
86 CLIP; MUD GUARD
OVER FENDER<B74> THA 		8-97352-535-0 01 1 0409-0606 ●
86 CLIP; MUD GUARD
THA 		8-97352-535-0 01 1 0409-0606 ●
262 WASHER; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-98002-253-0 02 1 0204-0408 ● ●
262 WASHER; MUD GUARD
OVER FENDER<B74> THA 		8-98002-253-0 02 1 0409-0606 ●
262 WASHER; MUD GUARD
THA 		8-98002-253-0 02 1 0409-0606 ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) W/SEAL THA 		8-98023-676-0 03 1 0607-0608 ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> (C) W/SEAL THA 		8-98023-676-0 03 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> (B) WO/SEAL THA 		8-98057-417-0 06 1 0609- ● ●
670 FASTENER
(B) WO/SEAL THA 		8-98057-417-0 06 1 0609- ● ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 07 1 0607-0608 ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> (B) W/SEAL THA 		8-98023-691-0 07 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 12 1 0609-0708 ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 12 1 0609-0708 ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 0709-1001 ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 1002-1008 ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (B) W/SEAL THA 		8-98023-691-0 12 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 1009- ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 12 1 1009- ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 14 1 0607-0608 ● ● ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 14 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 0609-0708 ● ● ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (A) THA 		8-97359-942-0 02 1 0609-0708 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 0709-1001 ● ● ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 1002-1008 ● ● ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (A) THA 		8-97359-942-0 02 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 1009- ● ●
670 FASTENER
(A) THA 		8-97359-942-0 02 1 1009- ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 06 1 0607-0608 ● ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 06 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 13 1 0609- ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 13 1 0609- ●
670 FASTENER
OVER FENDER<6GH> (A) THA 		8-97359-942-0 05 1 0402-0408 ● ●
670 FASTENER
(A) THA 		8-97359-942-0 05 1 0402-0408 ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 05 1 0409-0606 ● ●
670 FASTENER
(A) THA 		8-97359-942-0 05 1 0409-0606 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 14 1 0607-0608 ● ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 14 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (C) WO/SEAL THA 		8-98057-416-0 14 1 0609- ● ●
670 FASTENER
(C) WO/SEAL THA 		8-98057-416-0 14 1 0609- ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 10 1 0508-0606 ● ● ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 12 1 0508-0606 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 12 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 11 1 0609- ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 11 1 0609- ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) W/SEAL THA 		8-98023-676-0 06 1 0607-0708 ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 06 1 0607-0708 ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 0709-1001 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 1002-1008 ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (C) W/SEAL THA 		8-98023-676-0 06 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 1009- ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 06 1 1009- ●

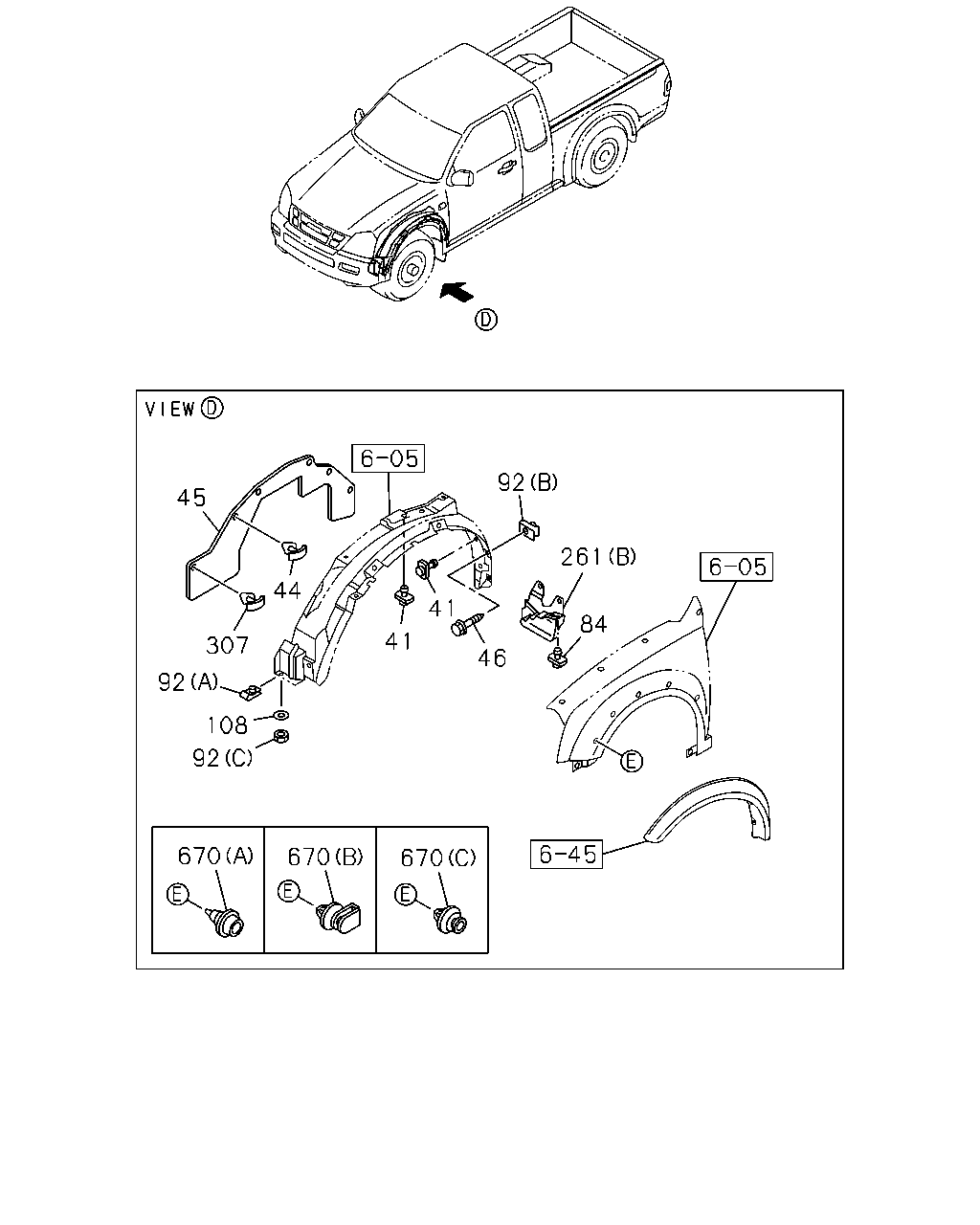

çizim 116514
92 45 261 44 41 84 41 307 46 92 108 92 670 670 670
BalonParca AdiParca NoAdetTipApplied Date A B C D E
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0204-0207 ● ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0208-0405 ● ● ● ● ●
41 RIVET; INNER LINER
OVER FENDER<6GH> THA 		8-94221-150-0 14 1 0406-0408 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0406-0408 ● ●
41 RIVET; INNER LINER
OVER FENDER<B74> THA 		8-94221-150-0 14 1 0409- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0409- ● ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> THA 		8-94221-150-0 16 1 0406-0408 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 16 1 0406-0408 ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-94221-150-0 16 1 0409- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 16 1 0409- ●
41 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> THA 		8-94221-150-0 22 1 0508- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0204-0207 ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0208-0606 ● ● ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 0607- ● ● ● ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0204-0207 ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0208-0307 ● ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-457-2 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0308- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0204-0207 ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0208-0307 ● ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-458-1 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0308- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0204-0207 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0208-0307 ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-462-0 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0204-0207 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0208-0307 ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-460-1 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0308- ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0204-0207 ● ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0208-0405 ● ● ● ● ●
46 SCREW; INNER LINER
OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0406-0408 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0406-0408 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0409-0612 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0409-0612 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 12 1 0701-1005 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 12 1 0701-1005 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1006- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1006- ● ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0406-0408 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0406-0408 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0409-0612 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0409-0612 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 10 1 0701-1005 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 10 1 0701-1005 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 10 1 1006- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 10 1 1006- ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 04 1 0508-0612 ● ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING THA 		8-98052-950-0 04 1 0701-1005 ● ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1006- ● ●
84 RIVET; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 08 1 0607-0608 ●
84 RIVET; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> BLACK THA 		8-98023-678-0 08 1 0607-0608 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0609-0611 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0609-0611 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0612- ● ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0612- ● ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 03 1 0609-0611 ● ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> NATURAL THA 		8-97384-015-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0409-0606 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 06 1 0409-0606 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0409-0606 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0409-0606 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 06 1 0607-0608 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 03 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 06 1 0204-0408 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 16 1 0607-0608 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 16 1 0607-0608 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 13 1 0609-0611 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 13 1 0609-0611 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> BLACK THA 		8-98023-678-0 10 1 0612-0708 ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 10 1 0612-0708 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 0709-1001 ● ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 1002-1008 ●
84 RIVET; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> BLACK THA 		8-98023-678-0 10 1 1002-1008 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> BLACK THA 		8-98023-678-0 10 1 1009- ●
84 RIVET; MUD GUARD
BLACK THA 		8-98023-678-0 10 1 1009- ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> NATURAL THA 		8-97384-015-0 16 1 0204-0307 ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> NATURAL THA 		8-97384-015-0 16 1 0308-0408 ●
84 RIVET; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> NATURAL THA 		8-97384-015-0 16 1 0308-0408 ●
84 RIVET; MUD GUARD
OVER FENDER<B74> NATURAL THA 		8-97384-015-0 16 1 0409-0606 ●
84 RIVET; MUD GUARD
NATURAL THA 		8-97384-015-0 16 1 0409-0606 ●
92 NUT; MUD COVER
(C) M6 CAP NUT THA 		8-98049-850-0 02 1 0607- ● ● ● ● ●
92 NUT; MUD COVER
(A) ID=5.2 H=10 THA 		8-97032-135-0 02 1 0204-0207 ● ● ●
92 NUT; MUD COVER
(A) ID=5.2 H=10 THA 		8-97032-135-0 02 1 0208-0302 ● ● ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0204-0207 ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0208-0302 ● ● ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0303-0405 ● ● ● ● ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (B) THA 		8-97125-519-0 12 1 0406-0408 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0406-0408 ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (B) THA 		8-97125-519-0 12 1 0409-0606 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0409-0606 ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (B) THA 		8-97125-519-0 10 1 0607- ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 10 1 0607- ●
92 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (B) THA 		8-97125-519-0 06 1 0508-0606 ● ●
92 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (B) THA 		8-97125-519-0 04 1 0607- ● ●
92 NUT; MUD COVER
OVER FENDER<6GH> (B) THA 		8-97125-519-0 14 1 0406-0408 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0406-0408 ● ●
92 NUT; MUD COVER
OVER FENDER<B74> (B) THA 		8-97125-519-0 14 1 0409-0606 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0409-0606 ● ●
92 NUT; MUD COVER
OVER FENDER<B74> (B) THA 		8-97125-519-0 12 1 0607- ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0607- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 0607- ● ● ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-474-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-474-1 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-474-1 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97386-724-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98007-120-2 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-473-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-473-1 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-473-1 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97386-723-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98007-119-2 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-472-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-472-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-472-1 01 1 0208-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-472-1 01 1 0208-0408 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97386-722-0 01 1 0409- ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97386-722-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-471-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-471-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-471-1 01 1 0208-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-471-1 01 1 0208-0408 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97386-721-0 01 1 0409- ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97386-721-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98002-239-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98024-149-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-149-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98002-237-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98024-148-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-148-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> (B) THA 		8-98002-239-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> (B) THA 		8-98002-237-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0308-0408 ● ●
307 RETAINER
THA 		8-98050-462-0 02 1 0607- ● ● ● ● ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) W/SEAL THA 		8-98023-676-0 03 1 0607-0608 ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> (C) W/SEAL THA 		8-98023-676-0 03 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> (B) WO/SEAL THA 		8-98057-417-0 06 1 0609- ● ●
670 FASTENER
(B) WO/SEAL THA 		8-98057-417-0 06 1 0609- ● ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 07 1 0607-0608 ●
670 FASTENER
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> (B) W/SEAL THA 		8-98023-691-0 07 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 12 1 0609-0708 ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 12 1 0609-0708 ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 0709-1001 ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 1002-1008 ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (B) W/SEAL THA 		8-98023-691-0 12 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 12 1 1009- ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 12 1 1009- ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 14 1 0607-0608 ● ● ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) W/SEAL THA 		8-98023-691-0 14 1 0607-0608 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 0609-0708 ● ● ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (A) THA 		8-97359-942-0 02 1 0609-0708 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 0709-1001 ● ● ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 1002-1008 ● ● ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (A) THA 		8-97359-942-0 02 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 02 1 1009- ● ●
670 FASTENER
(A) THA 		8-97359-942-0 02 1 1009- ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 06 1 0607-0608 ● ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 06 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (B) W/SEAL THA 		8-98023-691-0 13 1 0609- ●
670 FASTENER
(B) W/SEAL THA 		8-98023-691-0 13 1 0609- ●
670 FASTENER
OVER FENDER<6GH> (A) THA 		8-97359-942-0 05 1 0402-0408 ● ●
670 FASTENER
(A) THA 		8-97359-942-0 05 1 0402-0408 ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 05 1 0409-0606 ● ●
670 FASTENER
(A) THA 		8-97359-942-0 05 1 0409-0606 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 14 1 0607-0608 ● ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 14 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (C) WO/SEAL THA 		8-98057-416-0 14 1 0609- ● ●
670 FASTENER
(C) WO/SEAL THA 		8-98057-416-0 14 1 0609- ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 10 1 0508-0606 ● ● ● ●
670 FASTENER
OVER FENDER<B74> (A) THA 		8-97359-942-0 12 1 0508-0606 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 12 1 0607-0608 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 11 1 0609- ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 11 1 0609- ●
670 FASTENER
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) W/SEAL THA 		8-98023-676-0 06 1 0607-0708 ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 06 1 0607-0708 ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 0709-1001 ● ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 1002-1008 ●
670 FASTENER
EXC. GRAY PAINTED PACKAGE<7XA> (C) W/SEAL THA 		8-98023-676-0 06 1 1002-1008 ●
670 FASTENER
OVER FENDER<B74> (C) W/SEAL THA 		8-98023-676-0 06 1 1009- ●
670 FASTENER
(C) W/SEAL THA 		8-98023-676-0 06 1 1009- ●

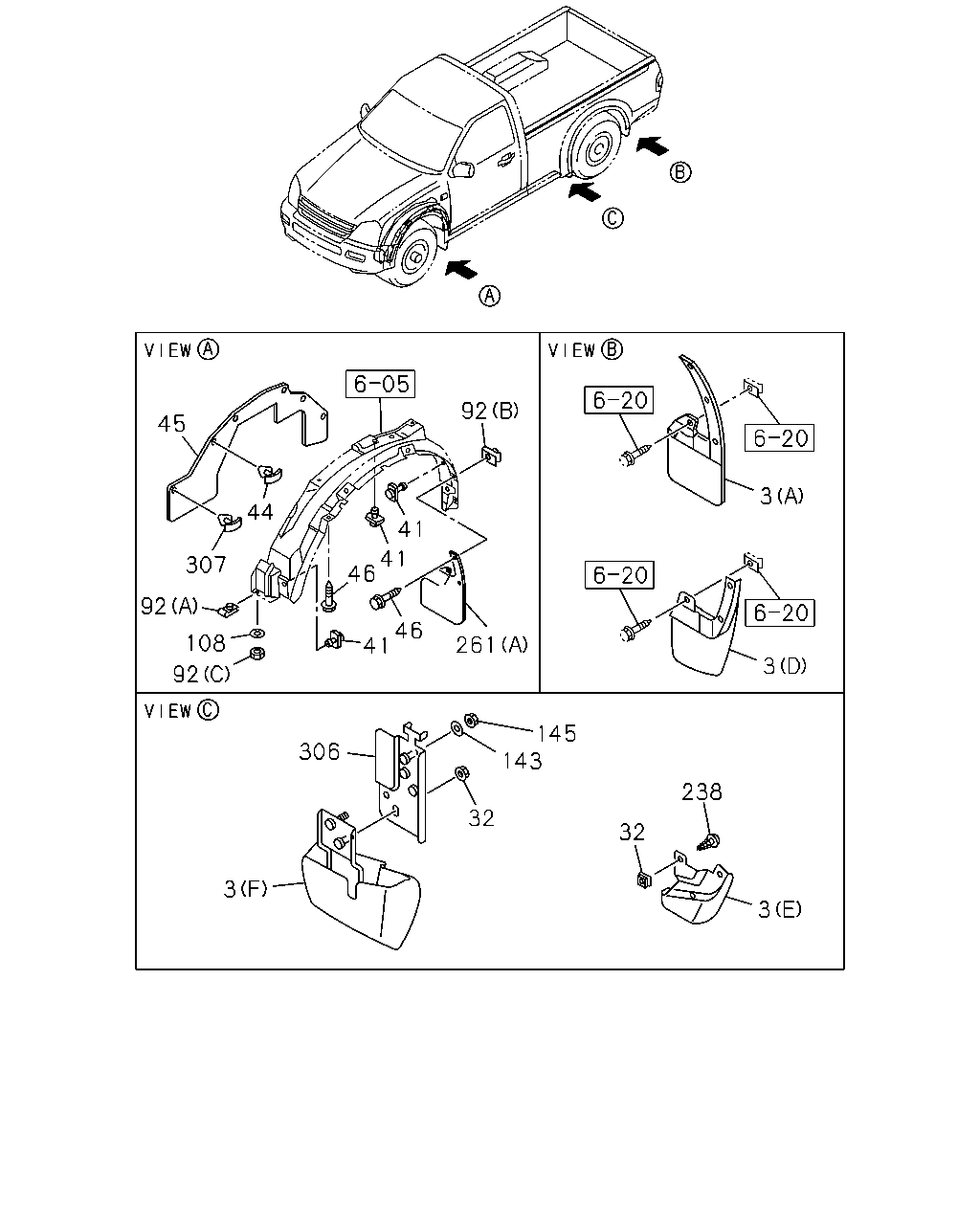

çizim 116529
92 45 3 44 41 41 46 307 92 46 41 108 261 3 92 145 143 306 238 32 32 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 0607-0708 ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-655-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 0709-1001 ● ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 1002-1008 ● ● ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (B) THA 		8-98023-655-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-655-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-655-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> EXC. COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-655-0 01 1 1011- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-424-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-424-1 01 1 0208-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-424-1 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-97386-728-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-98007-160-2 01 1 0607- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-423-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> (A) THA 		8-97235-423-1 01 1 0208-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-423-1 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-97386-727-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP<6WL> (D) THA 		8-98007-159-2 01 1 0607- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-419-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-419-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-419-1 01 1 0208-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-419-1 01 1 0208-0408 ●
3 GUARD; MUD,RR
MUD FLAP<VH4> (A) THA 		8-97386-726-0 01 1 0409- ● ●
3 GUARD; MUD,RR
(A) THA 		8-97386-726-0 01 1 0409- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-418-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-418-1 01 1 0204-0207 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> MUD FLAP<VH4> (A) THA 		8-97235-418-1 01 1 0208-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97235-418-1 01 1 0208-0408 ●
3 GUARD; MUD,RR
MUD FLAP<VH4> (A) THA 		8-97386-725-0 01 1 0409- ● ●
3 GUARD; MUD,RR
(A) THA 		8-97386-725-0 01 1 0409- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-98002-242-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98002-242-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98002-242-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0607-0608 ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 0607-0608 ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 0607-0608 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0609-0708 ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 0609-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 0709-1001 ● ● ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 1002-1008 ● ● ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (B) THA 		8-98023-656-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98023-656-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 1009-1010 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> EXC. COLOR KEYED BUMPER<VT4> (B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
(B) THA 		8-98023-656-0 01 1 1011- ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-98002-241-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0308-0408 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (B) THA 		8-98002-241-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
(B) THA 		8-98002-241-0 01 1 0409-0606 ● ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-98042-395-1 01 1 0607- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (F) THA 		8-98042-393-1 01 1 0607- ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-98023-658-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
(C) THA 		8-98023-658-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 0709-1001 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (C) THA 		8-98023-658-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-658-0 01 1 1009- ●
3 GUARD; MUD,RR
(C) THA 		8-98023-658-0 01 1 1009- ●
3 GUARD; MUD,RR
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> (C) THA 		8-98023-657-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
(C) THA 		8-98023-657-0 01 1 0607-0708 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 0709-1001 ● ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
EXC. GRAY PAINTED PACKAGE<7XA> (C) THA 		8-98023-657-0 01 1 1002-1008 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-98023-657-0 01 1 1009- ●
3 GUARD; MUD,RR
(C) THA 		8-98023-657-0 01 1 1009- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0204-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0204-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-242-0 01 1 0212-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-98002-241-0 01 1 0212-0307 ● ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97350-475-0 01 1 0208-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-479-1 01 1 0208-0307 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (C) THA 		8-97350-479-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-479-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-97350-479-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
(C) THA 		8-97350-479-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-388-2 01 1 0607-0906 ●
3 GUARD; MUD,RR
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-388-2 01 1 0907- ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97350-474-0 01 1 0208-0211 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-478-1 01 1 0208-0307 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (C) THA 		8-97350-478-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97350-478-1 01 1 0308-0408 ●
3 GUARD; MUD,RR
OVER FENDER<B74> (C) THA 		8-97350-478-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
(C) THA 		8-97350-478-1 01 1 0409-0606 ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-387-2 01 1 0607-0906 ●
3 GUARD; MUD,RR
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> (E) THA 		8-98024-387-2 01 1 0907- ●
32 NUT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-679-0 01 1 0607-0608 ●
32 NUT; MUD GUARD
BODY COLOR TOPAZ GOLD MET<501>,BODY COLOR CRYSTAL BLUE MET<937> THA 		8-98023-679-0 01 1 0607-0608 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98002-251-0 02 1 0409-0606 ●
32 NUT; MUD GUARD
THA 		8-98002-251-0 02 1 0409-0606 ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 0607-0906 ●
32 NUT; MUD GUARD
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 0907- ●
32 NUT; MUD GUARD
OVER FENDER<B74> COLOR KEYED BUMPER<VT4> THA 		8-98023-679-0 02 1 0607-0708 ●
32 NUT; MUD GUARD
THA 		8-98023-679-0 02 1 0607-0708 ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 0709-1001 ● ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 1002-1008 ●
32 NUT; MUD GUARD
EXC. GRAY PAINTED PACKAGE<7XA> THA 		8-98023-679-0 02 1 1002-1008 ●
32 NUT; MUD GUARD
OVER FENDER<B74> THA 		8-98023-679-0 02 1 1009- ●
32 NUT; MUD GUARD
THA 		8-98023-679-0 02 1 1009- ●
32 NUT; MUD GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-98002-251-0 02 1 0204-0408 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0204-0207 ● ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0208-0405 ● ● ● ● ●
41 RIVET; INNER LINER
OVER FENDER<6GH> THA 		8-94221-150-0 14 1 0406-0408 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0406-0408 ● ●
41 RIVET; INNER LINER
OVER FENDER<B74> THA 		8-94221-150-0 14 1 0409- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 14 1 0409- ● ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> THA 		8-94221-150-0 16 1 0406-0408 ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 16 1 0406-0408 ●
41 RIVET; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> THA 		8-94221-150-0 16 1 0409- ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 16 1 0409- ●
41 RIVET; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> THA 		8-94221-150-0 22 1 0508- ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0204-0207 ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 12 1 0208-0606 ● ● ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 0607- ● ● ● ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0204-0207 ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0208-0307 ● ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-457-2 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-457-2 01 1 0308- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0204-0207 ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0208-0307 ● ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97235-458-1 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-458-1 01 1 0308- ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0204-0207 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0208-0307 ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-462-0 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-462-0 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0204-0207 ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0208-0307 ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97235-460-1 01 1 0308- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-97235-460-1 01 1 0308- ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0204-0207 ● ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0208-0405 ● ● ● ● ●
46 SCREW; INNER LINER
OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0406-0408 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0406-0408 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0409-0612 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 12 1 0409-0612 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 12 1 0701-1005 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 12 1 0701-1005 ● ●
46 SCREW; INNER LINER
OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1006- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 12 1 1006- ● ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0406-0408 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0406-0408 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0409-0612 ● ●
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 10 1 0409-0612 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING THA 		8-98052-950-0 10 1 0701-1005 ● ●
46 SCREW; INNER LINER
M6X20 TAPPING THA 		8-98052-950-0 10 1 0701-1005 ●
46 SCREW; INNER LINER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 10 1 1006- ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 10 1 1006- ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 04 1 0508-0612 ● ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING THA 		8-98052-950-0 04 1 0701-1005 ● ●
46 SCREW; INNER LINER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1006- ● ●
92 NUT; MUD COVER
(C) M6 CAP NUT THA 		8-98049-850-0 02 1 0607- ● ● ● ● ●
92 NUT; MUD COVER
(A) ID=5.2 H=10 THA 		8-97032-135-0 02 1 0204-0207 ● ● ●
92 NUT; MUD COVER
(A) ID=5.2 H=10 THA 		8-97032-135-0 02 1 0208-0302 ● ● ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0204-0207 ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0208-0302 ● ● ● ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0303-0405 ● ● ● ● ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (B) THA 		8-97125-519-0 12 1 0406-0408 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0406-0408 ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (B) THA 		8-97125-519-0 12 1 0409-0606 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0409-0606 ●
92 NUT; MUD COVER
MUD FLAP<VH4>,FORMED MUD FLAP<6WL> EXC. OVER FENDER<B74> (B) THA 		8-97125-519-0 10 1 0607- ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 10 1 0607- ●
92 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (B) THA 		8-97125-519-0 06 1 0508-0606 ● ●
92 NUT; MUD COVER
EXC. OVER FENDER<B74>,MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (B) THA 		8-97125-519-0 04 1 0607- ● ●
92 NUT; MUD COVER
OVER FENDER<6GH> (B) THA 		8-97125-519-0 14 1 0406-0408 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0406-0408 ● ●
92 NUT; MUD COVER
OVER FENDER<B74> (B) THA 		8-97125-519-0 14 1 0409-0606 ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 14 1 0409-0606 ● ●
92 NUT; MUD COVER
OVER FENDER<B74> (B) THA 		8-97125-519-0 12 1 0607- ● ●
92 NUT; MUD COVER
(B) THA 		8-97125-519-0 12 1 0607- ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 0607- ● ● ● ● ●
143 WASHER; PL,BRKT
EXC. HIGH RIDE SUSPENSION<7YC> ID=6.4 OD=18 IMA 		0-91610-706-0 04 1 0607- ●
145 NUT; BRKT
EXC. HIGH RIDE SUSPENSION<7YC> M6 FLANGE THA 		0-91180-106-0 04 1 0607- ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 W/PL WASHER TAPPING THA 		8-94321-767-1 06 1 0607-0612 ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING THA 		8-98052-950-0 06 1 0701-0906 ●
238 SCREW; MUD GUARD
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING THA 		8-98052-950-0 06 1 0907-1005 ●
238 SCREW; MUD GUARD
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1006- ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X16 FLANGE THA 		0-28650-616-0 02 1 0607- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-474-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-474-1 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-474-1 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97386-724-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98007-120-2 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-473-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97235-473-1 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> EXC. OVER FENDER<6GH> (A) THA 		8-97235-473-1 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-97386-723-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP<6WL> (A) THA 		8-98007-119-2 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-472-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-472-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-472-1 01 1 0208-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-472-1 01 1 0208-0408 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97386-722-0 01 1 0409- ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97386-722-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-471-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-471-1 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97235-471-1 01 1 0208-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97235-471-1 01 1 0208-0408 ●
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> (A) THA 		8-97386-721-0 01 1 0409- ● ●
261 RUBBER; FRT,MUD GUARD
(A) THA 		8-97386-721-0 01 1 0409- ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98002-239-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98024-149-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-149-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98002-237-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0409-0606 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<B74> (B) THA 		8-98024-148-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98024-148-0 01 1 0607- ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> (B) THA 		8-98002-239-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-239-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0204-0207 ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0208-0307 ● ●
261 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> (B) THA 		8-98002-237-0 01 1 0308-0408 ● ●
261 RUBBER; FRT,MUD GUARD
(B) THA 		8-98002-237-0 01 1 0308-0408 ● ●
306 BRACKET; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98042-415-1 01 1 0607- ●
306 BRACKET; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98042-414-1 01 1 0607- ●
307 RETAINER
THA 		8-98050-462-0 02 1 0607- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
