◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#73835) — 372 parça

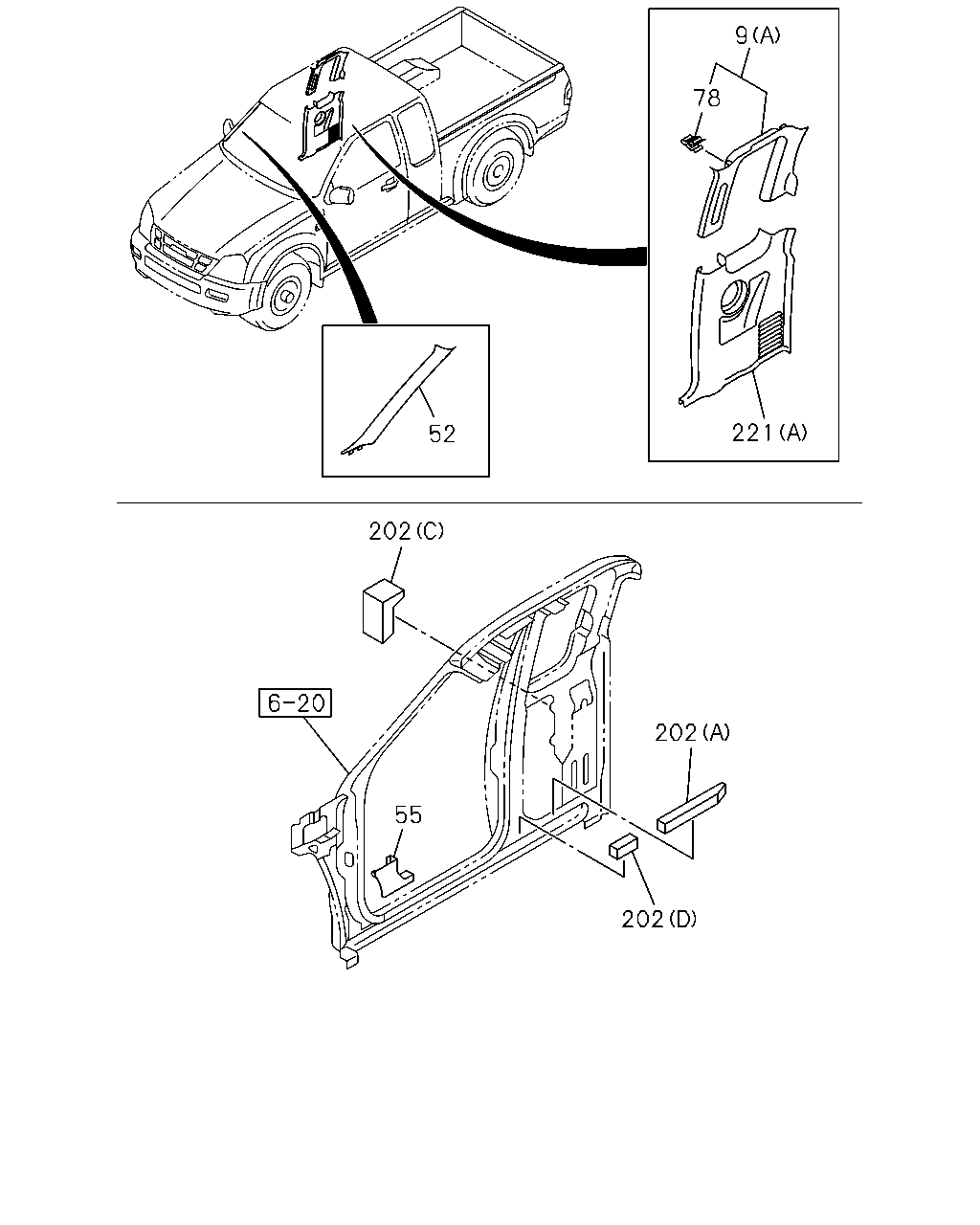

çizim 116524
9 78 221 52 202 202 55 202
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-215-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-216-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-449-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-570-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-894-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-450-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-572-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-896-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-452-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-566-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-453-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-568-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-562-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0909- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-564-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-874-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-875-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-464-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-871-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-871-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-466-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-873-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-873-0 01 1 0909- ● ● ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-610-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-611-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-896-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-086-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-459-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1010- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-897-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-087-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-461-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1010- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-97319-704-0 06 1 0204-0612 ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-98057-469-0 06 1 0701- ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-97319-704-0 14 1 0204-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 0701-1001 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> THA 		8-98057-469-0 14 1 1002-1008 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 1009- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 04 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 04 1 0701- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 12 1 0208-0408 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 08 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 08 1 0701- ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97350-306-0 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97252-082-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97362-560-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97252-083-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97362-562-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97351-018-0 04 1 0208-0211 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0212-0408 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0409- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-213-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-214-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-987-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-558-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-882-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-988-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-560-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-884-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-981-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-552-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-982-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-554-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-548-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1010- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-550-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1010- ● ● ●

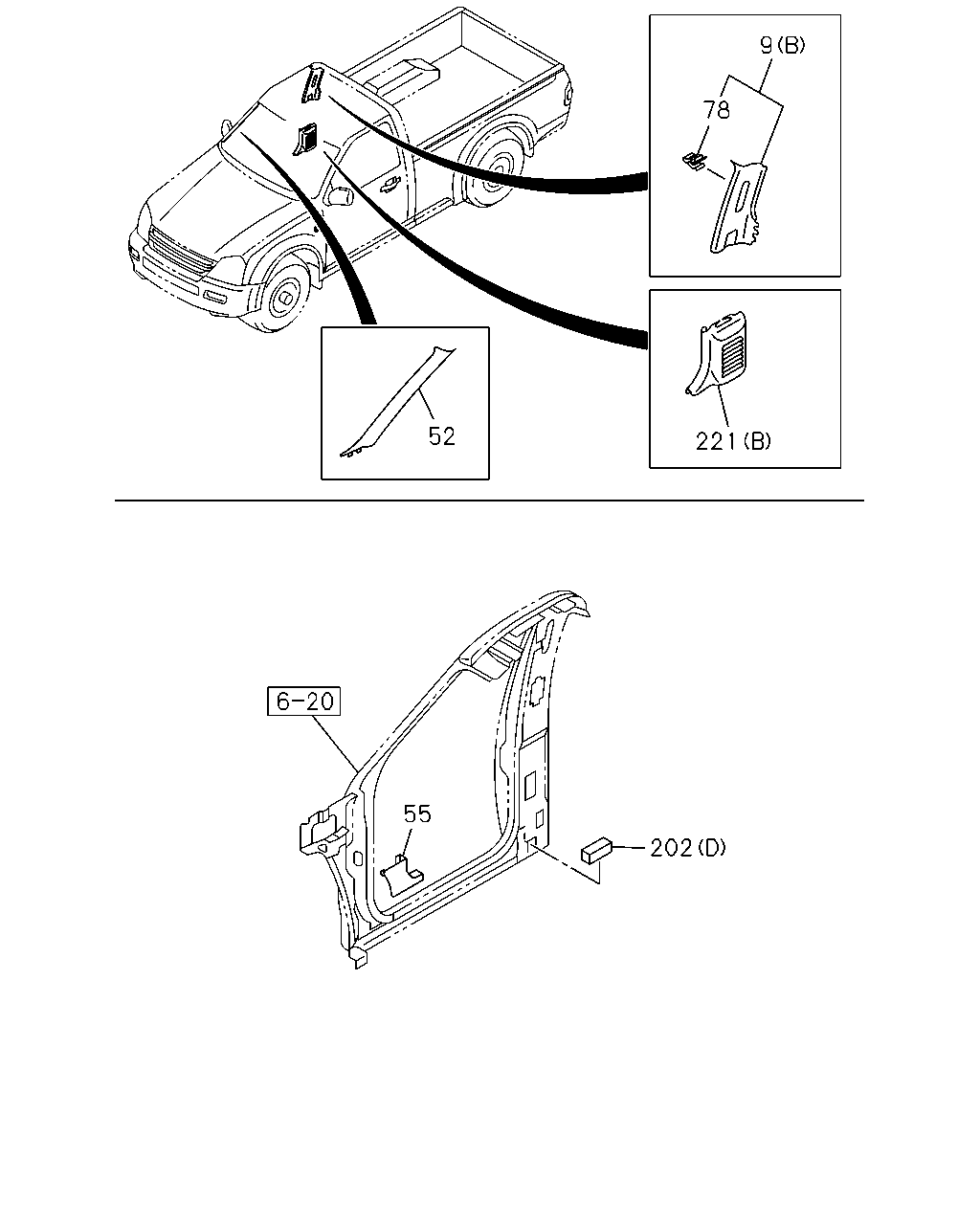

çizim 116527
9 78 52 221 55 202
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-215-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-216-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-449-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-570-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-894-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-450-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-572-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-896-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-452-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-566-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-453-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-568-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-562-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0909- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-564-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-874-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-875-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-464-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-871-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-871-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-466-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-873-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-873-0 01 1 0909- ● ● ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-610-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-611-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-896-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-086-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-459-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1010- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-897-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-087-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-461-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1010- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-97319-704-0 06 1 0204-0612 ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-98057-469-0 06 1 0701- ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-97319-704-0 14 1 0204-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 0701-1001 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> THA 		8-98057-469-0 14 1 1002-1008 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 1009- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 04 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 04 1 0701- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 12 1 0208-0408 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 08 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 08 1 0701- ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97350-306-0 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97252-082-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97362-560-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97252-083-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97362-562-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97351-018-0 04 1 0208-0211 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0212-0408 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0409- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-213-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-214-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-987-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-558-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-882-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-988-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-560-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-884-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-981-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-552-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-982-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-554-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-548-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1010- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-550-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1010- ● ● ●

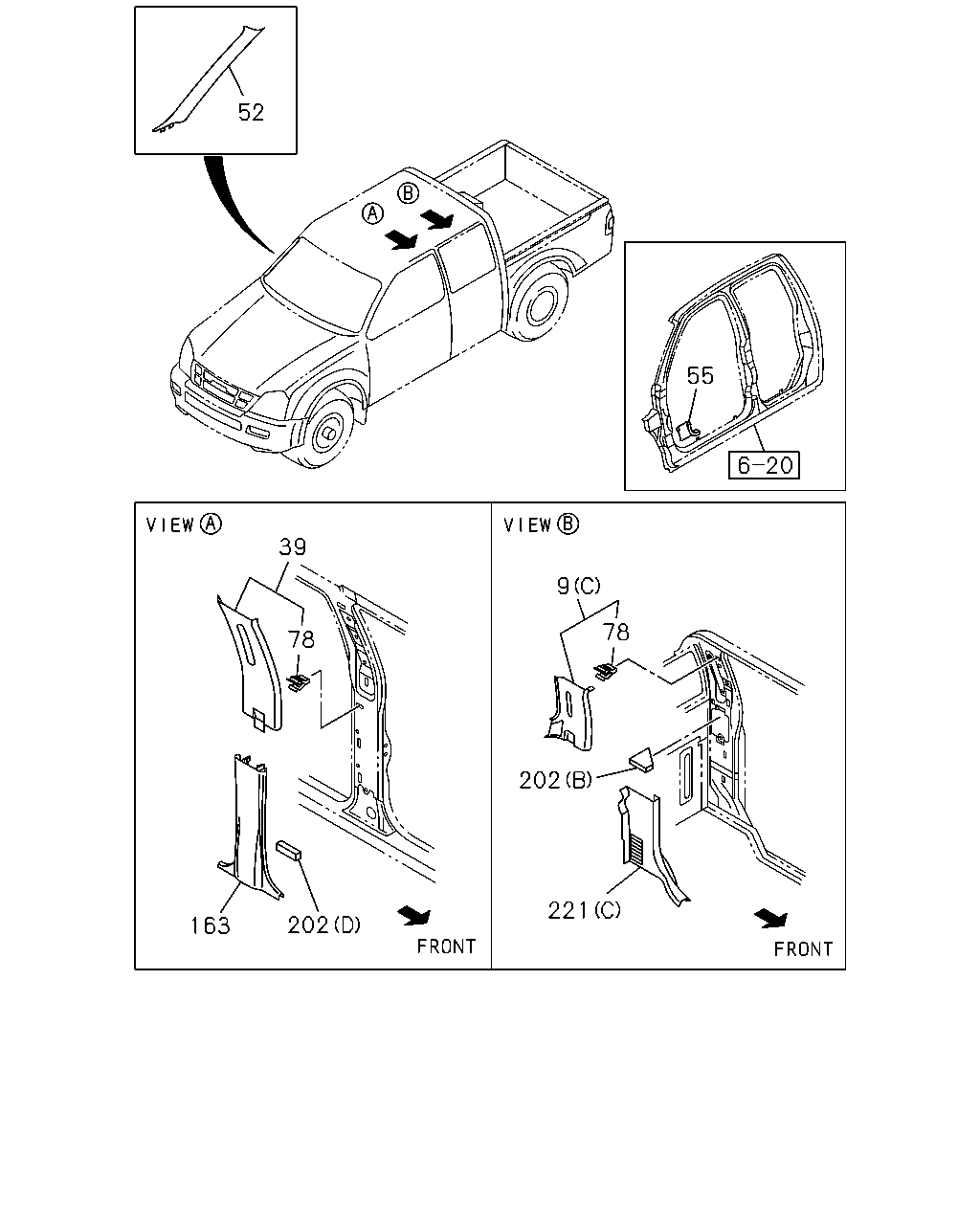

çizim 116531
52 55 39 9 78 78 202 221 202 163
BalonParca AdiParca NoAdetTipApplied Date A B C
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1010- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-449-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101> (A) BLACK THA 		8-97418-450-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-447-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> (C) BLACK THA 		8-97418-448-0 01 1 1002-1008 ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-215-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) BEIGE THA 		8-97418-216-0 01 1 0909- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-449-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-570-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-894-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97298-450-5 01 1 0204-0606 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97403-572-5 01 1 0607-0612 ●
9 TRIM; SIDE PANEL,UPR
SINGLE CAB<TF**S*> (B) LIGHT GRAY THA 		8-97408-896-0 01 1 0701- ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-452-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-566-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-890-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97298-453-5 01 1 0204-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97403-568-5 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 0701-1001 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> INTERIOR COLOR VERY DARK GRAY<116> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1002-1008 ● ● ●
9 TRIM; SIDE PANEL,UPR
SPACE CAB<TF**C*> (A) LIGHT GRAY THA 		8-97408-892-0 01 1 1009- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-973-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-562-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-886-0 01 1 0909- ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0208-0408 ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-974-2 01 1 0409-0606 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97403-564-2 01 1 0607-0612 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0701-0908 ● ● ●
9 TRIM; SIDE PANEL,UPR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) LIGHT GRAY THA 		8-97408-888-0 01 1 0909- ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-445-0 01 1 1010- ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-446-0 01 1 1010- ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-445-0 01 1 1002-1008 ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-446-0 01 1 1002-1008 ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97418-211-0 01 1 0909- ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97418-212-0 01 1 0909- ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-447-1 01 1 0208-0408 ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-447-1 01 1 0409-0606 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> LIGHT GRAY THA 		8-97403-540-1 01 1 0607-0612 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> LIGHT GRAY THA 		8-97408-878-0 01 1 0701-0908 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-878-0 01 1 0909- ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-448-1 01 1 0208-0408 ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-448-1 01 1 0409-0606 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> LIGHT GRAY THA 		8-97403-542-1 01 1 0607-0612 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> LIGHT GRAY THA 		8-97408-880-0 01 1 0701-0908 ● ● ●
39 COVER; TRIM,CENTER PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-880-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1010- ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-431-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> INTERIOR COLOR BLACK<101> BLACK THA 		8-97418-432-0 01 1 1002-1008 ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-874-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-875-0 01 1 0909- ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-426-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-464-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-871-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-871-0 01 1 0909- ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97298-427-5 01 1 0204-0606 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97403-466-5 01 1 0607-0612 ● ● ●
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97408-873-0 01 1 0701-0908 ● ● ●
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> LIGHT GRAY THA 		8-97408-873-0 01 1 0909- ● ● ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-610-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-611-0 01 1 0909- ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-896-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-086-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-459-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1010- ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97293-897-1 01 1 0204-0211 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97396-087-0 01 1 0212-0606 ● ● ●
55 PAD; TRIM,DASH SIDE
DARK GRAY THA 		8-97403-461-0 01 1 0607-0908 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 0909-1001 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1002-1008 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1009-1009 ● ● ●
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1010- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-97319-704-0 06 1 0204-0612 ●
78 CLIP; TRIM PAD,SIDE PANEL
SINGLE CAB<TF**S*> THA 		8-98057-469-0 06 1 0701- ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-97319-704-0 14 1 0204-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 0701-1001 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> THA 		8-98057-469-0 14 1 1002-1008 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
SPACE CAB<TF**C*> THA 		8-98057-469-0 14 1 1009- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 04 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 04 1 0701- ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 12 1 0208-0408 ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-97319-704-0 08 1 0409-0612 ● ● ●
78 CLIP; TRIM PAD,SIDE PANEL
DOUBLE CAB<TF**W*> THA 		8-98057-469-0 08 1 0701- ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-631-3 01 1 0909- ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-632-3 01 1 0909- ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-445-3 01 1 0208-0408 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-445-3 01 1 0409-0606 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97403-544-3 01 1 0607-1001 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-544-3 01 1 1002-1008 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> DARK GRAY THA 		8-97403-544-3 01 1 1002-1008 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97403-544-3 01 1 1009- ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-446-3 01 1 0208-0408 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97298-446-3 01 1 0409-0606 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97403-546-3 01 1 0607-1001 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-546-3 01 1 1002-1008 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> DARK GRAY THA 		8-97403-546-3 01 1 1002-1008 ● ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
DOUBLE CAB<TF**W*> DARK GRAY THA 		8-97403-546-3 01 1 1009- ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97350-306-0 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
(D) THA 		8-97362-561-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97252-082-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (A) THA 		8-97362-560-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97252-083-1 02 1 0204-0211 ● ● ●
202 SEAL; CENTER PILLAR
SPACE CAB<TF**C*> (C) THA 		8-97362-562-0 02 1 0212- ● ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97351-018-0 04 1 0208-0211 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0212-0408 ● ●
202 SEAL; CENTER PILLAR
DOUBLE CAB<TF**W*> (B) THA 		8-97362-563-0 04 1 0409- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-213-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BEIGE<184> (C) THA 		8-97418-214-1 01 1 0909- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-987-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-558-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-882-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97293-988-1 01 1 0204-0606 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97403-560-1 01 1 0607-0612 ●
221 TRIM; SIDE PANEL,LOWER
SINGLE CAB<TF**S*> (B) DARK GRAY THA 		8-97408-884-0 01 1 0701- ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-981-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-552-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97293-982-2 01 1 0204-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
SPACE CAB<TF**C*> (A) DARK GRAY THA 		8-97403-554-2 01 1 0607- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-979-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-548-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-548-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-548-1 01 1 1010- ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0208-0408 ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97293-980-1 01 1 0409-0606 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> (C) DARK GRAY THA 		8-97403-550-1 01 1 0607-0908 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 0909-1001 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X2 DOUBLE CAB<TFB*W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
4X4 DOUBLE CAB<TFS*W*> INTERIOR COLOR BLACK<101> (C) DARK GRAY THA 		8-97403-550-1 01 1 1002-1008 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1009-1009 ● ● ●
221 TRIM; SIDE PANEL,LOWER
DOUBLE CAB<TF**W*> INTERIOR COLOR BLACK<101>,INTERIOR COLOR VERY DARK GRAY<116> (C) DARK GRAY THA 		8-97403-550-1 01 1 1010- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
