Isuzu WW
▶
PICKUP
▶
TFR
▶
50931 - TFR/TFS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

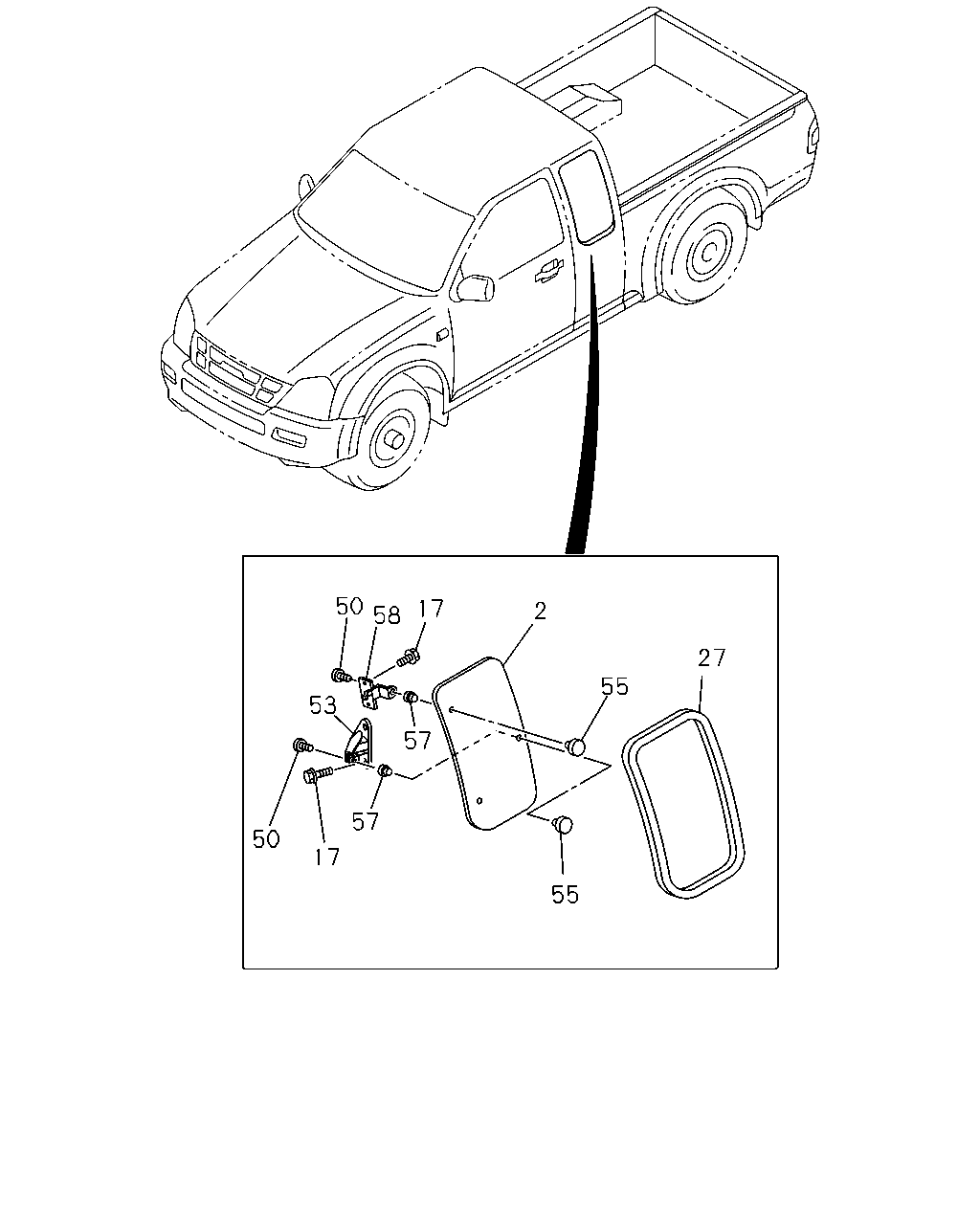

6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP
▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP
(#73834) — 18 parça
Tümü
A - GRADE EXL/EX/SL/S
B - GRADE SX
C - GRADE SLX/LS
50
17
2
58
27
55
53
57
57
50
17
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GLASS; RR QUARTER
SPACE CAB<TF**C*> THA
8-97252-932-0
01
1
0204-0808
●
●
●
2
GLASS; RR QUARTER
SPACE CAB<TF**C*> THA
8-98134-040-0
01
1
0809-
●
●
●
2
GLASS; RR QUARTER
SPACE CAB<TF**C*> THA
8-97252-931-0
01
1
0204-0808
●
●
●
2
GLASS; RR QUARTER
SPACE CAB<TF**C*> THA
8-98134-039-0
01
1
0809-
●
●
●
17
SCREW; SIDE WINDOW LOCK
SPACE CAB<TF**C*> THA
8-97301-764-2
14
1
0204-0612
●
●
●
17
SCREW; SIDE WINDOW LOCK
SPACE CAB<TF**C*> M6X19 W/WASHER THA
8-98062-136-0
14
1
0701-
●
●
●
27
WEATHERSTRIP; RR QUARTER
SPACE CAB<TF**C*> THA
8-97235-379-1
02
1
0204-0301
●
●
●
27
WEATHERSTRIP; RR QUARTER
SPACE CAB<TF**C*> THA
8-97365-180-0
02
1
0302-0412
●
●
●
27
WEATHERSTRIP; RR QUARTER
SPACE CAB<TF**C*> THA
8-98004-235-0
02
1
0501-0507
●
●
●
27
WEATHERSTRIP; RR QUARTER
SPACE CAB<TF**C*> THA
8-98023-144-1
02
1
0508-
●
●
●
50
SCREW; HINGE
SPACE CAB<TF**C*> M5X10 IMA
9-03810-510-0
06
1
0204-
●
●
●
53
FASTENER; RR QUARTER
SPACE CAB<TF**C*> THA
8-97252-938-0
02
1
0204-0308
●
●
●
53
FASTENER; RR QUARTER
SPACE CAB<TF**C*> DARK GRAY THA
8-97398-490-0
02
1
0309-0606
●
●
●
53
FASTENER; RR QUARTER
SPACE CAB<TF**C*> DARK GRAY THA
8-97398-491-0
02
1
0607-0708
●
●
●
53
FASTENER; RR QUARTER
SPACE CAB<TF**C*> DARK GRAY THA
8-97408-834-0
02
1
0709-
●
●
●
55
NUT; SPECIAL,HINGE
SPACE CAB<TF**C*> THA
8-97305-953-1
06
1
0204-
●
●
●
57
GROMMET; HINGE
SPACE CAB<TF**C*> THA
8-94480-192-0
04
1
0204-
●
●
●
58
HINGE; RR QUARTER WINDOW
SPACE CAB<TF**C*> THA
8-97252-936-1
04
1
0204-
●
●
●
