◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#73832) — 106 parça

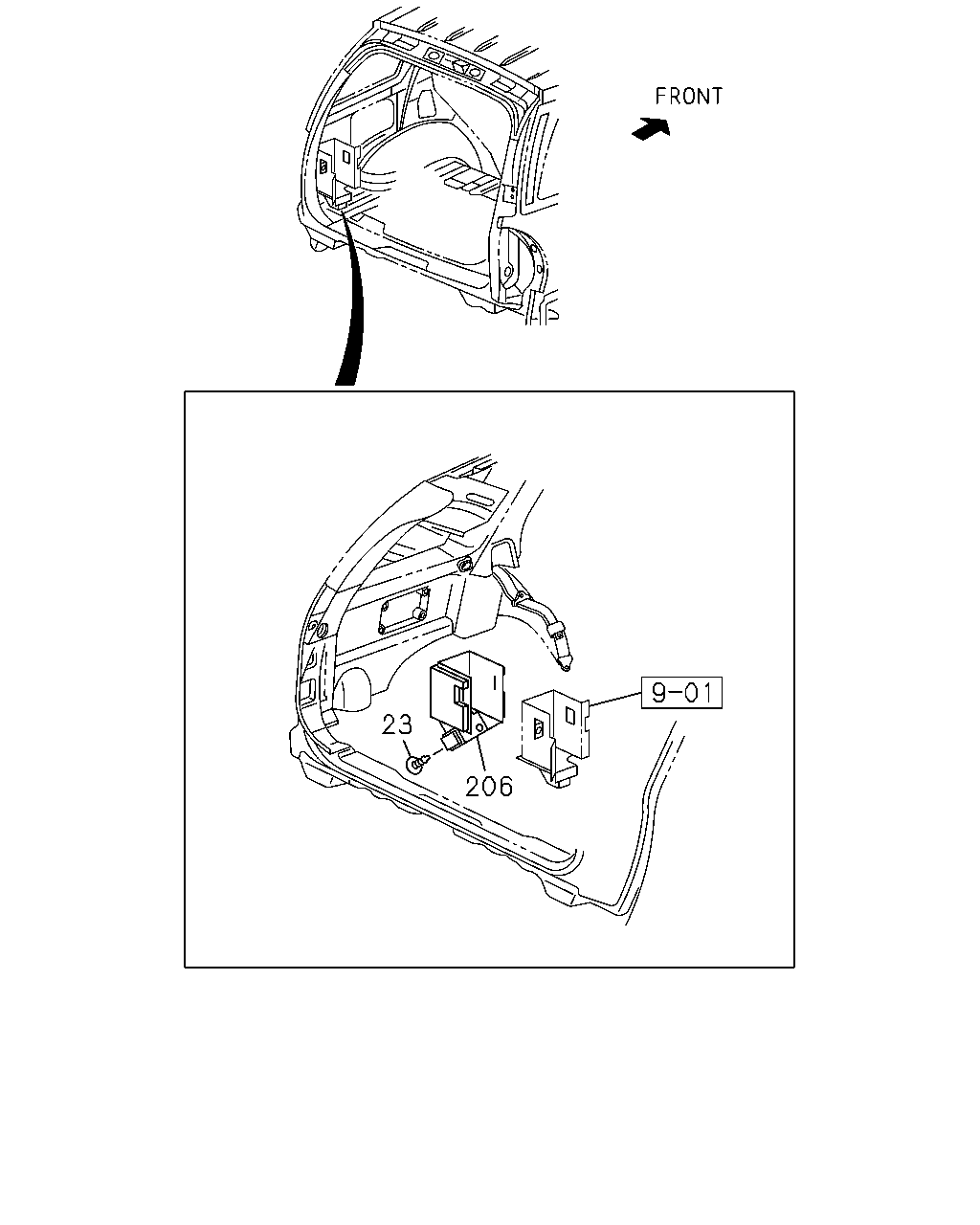

çizim 130656
23 206
BalonParca AdiParca NoAdetTipApplied Date
23 RETAINER; QTR
L=19 BLACK IMA 		8-94363-776-0 02 1 0411-
206 INSULATOR; QTR TRIM
THA 		8-97376-625-1 01 1 0411-

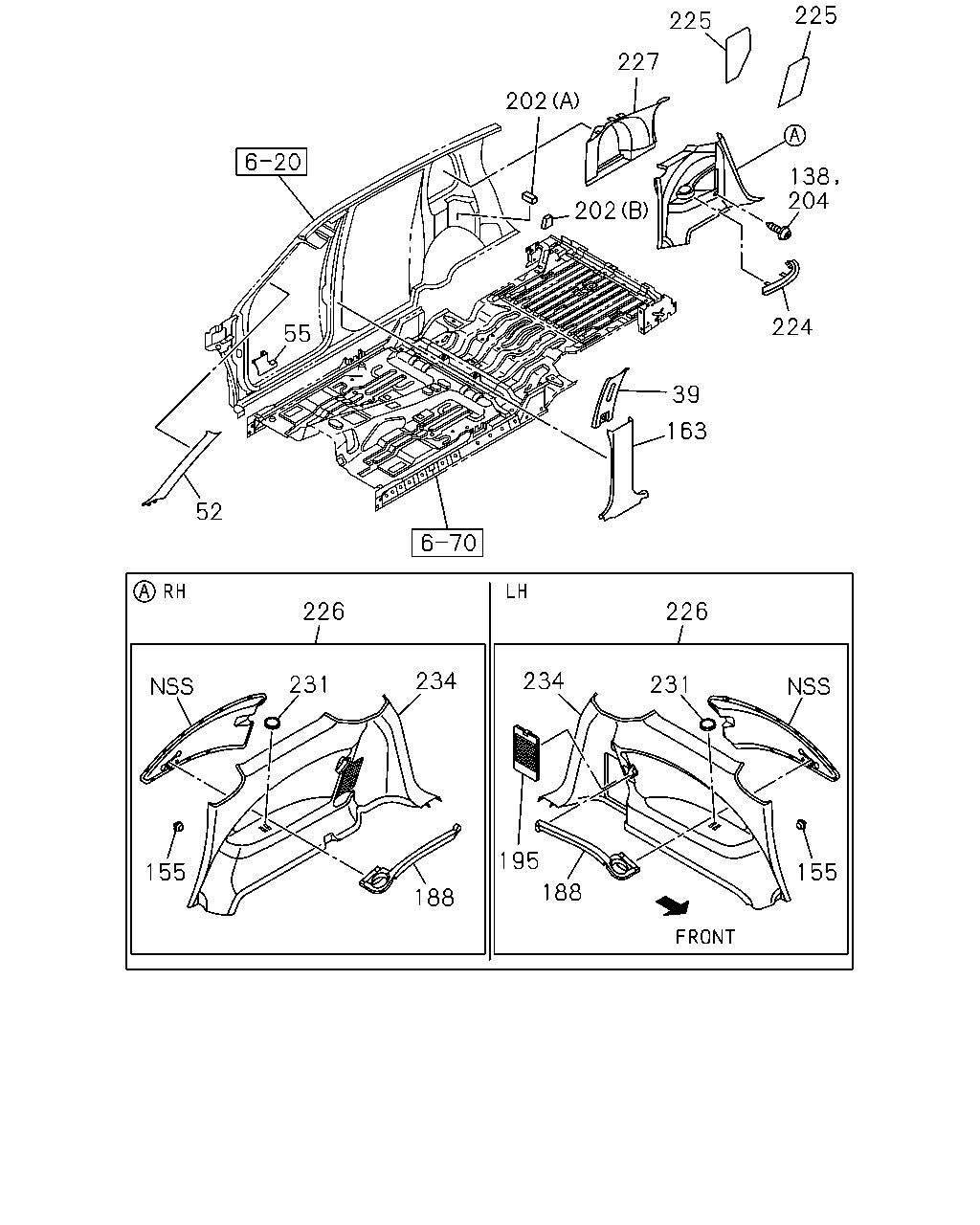

çizim 131548
155 231 226 234 234 195 188 188 231 155 52 226 55 163 39 224 204 138 225 225 227 202 202
BalonParca AdiParca NoAdetTipApplied Date
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-909-0 01 1 1101-
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-910-0 01 1 1101-
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY THA 		8-97398-985-0 01 1 0411-0606
39 COVER; TRIM,CENTER PILLAR
BEIGE THA 		8-97404-629-0 01 1 0607-1010
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-629-0 01 1 1011-
39 COVER; TRIM,CENTER PILLAR
LIGHT GRAY THA 		8-97398-986-0 01 1 0411-0606
39 COVER; TRIM,CENTER PILLAR
BEIGE THA 		8-97404-630-0 01 1 0607-1010
39 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-630-0 01 1 1011-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97418-431-0 01 1 1101-
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97418-432-0 01 1 1101-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97399-492-5 01 1 0411-0606
52 COVER; TRIM,FRT PILLAR
BEIGE THA 		8-97404-612-5 01 1 0607-0612
52 COVER; TRIM,FRT PILLAR
BEIGE THA 		8-97408-874-0 01 1 0701-1010
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-874-0 01 1 1011-
52 COVER; TRIM,FRT PILLAR
LIGHT GRAY THA 		8-97398-974-5 01 1 0411-0606
52 COVER; TRIM,FRT PILLAR
BEIGE THA 		8-97404-613-5 01 1 0607-0612
52 COVER; TRIM,FRT PILLAR
BEIGE THA 		8-97408-875-0 01 1 0701-1010
52 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97408-875-0 01 1 1011-
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-459-0 01 1 1101-
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-461-0 01 1 1101-
55 PAD; TRIM,DASH SIDE
LIGHT GRAY THA 		8-97398-972-0 01 1 0411-0606
55 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97404-610-0 01 1 0607-1010
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-610-0 01 1 1011-
55 PAD; TRIM,DASH SIDE
LIGHT GRAY THA 		8-97398-973-0 01 1 0411-0606
55 PAD; TRIM,DASH SIDE
BEIGE THA 		8-97404-611-0 01 1 0607-1010
55 PAD; TRIM,DASH SIDE
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-611-0 01 1 1011-
138 SCREW; TRIM COVER
M6X20 W/PL WASHER THA 		1-09981-376-0 06 1 1009-
155 CLIP; TRIM,QUARTER
INTERIOR COLOR VERY DARK GRAY<116> EXC. CLOTH TRIM COVER<7PG> H=16.7 THA 		8-97022-017-0 10 1 0411-
155 CLIP; TRIM,QUARTER
INTERIOR COLOR BEIGE<184> H=16.7 THA 		8-97022-017-0 10 1 0411-
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-544-3 01 1 1101-
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97403-546-3 01 1 1101-
163 COVER; TRIM,CENTER PILLAR,LWR
LIGHT GRAY THA 		8-97398-987-3 01 1 0411-0606
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE THA 		8-97404-631-3 01 1 0607-1010
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-631-3 01 1 1011-
163 COVER; TRIM,CENTER PILLAR,LWR
LIGHT GRAY THA 		8-97398-988-3 01 1 0411-0606
163 COVER; TRIM,CENTER PILLAR,LWR
BEIGE THA 		8-97404-632-3 01 1 0607-1010
163 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-632-3 01 1 1011-
188 BAR; GUARD
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97425-954-2 01 1 1101-
188 BAR; GUARD
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97425-959-2 01 1 1101-
188 BAR; GUARD
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97425-956-2 01 1 0607-
188 BAR; GUARD
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97425-962-2 01 1 0607-
188 BAR; GUARD
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-949-2 01 1 0411-0606
188 BAR; GUARD
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-952-2 01 1 0411-0606
188 BAR; GUARD
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-949-2 01 1 0509-0606
188 BAR; GUARD
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-952-2 01 1 0509-0606
195 LID; JACK & TOOL
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97425-958-2 01 1 1101-
195 LID; JACK & TOOL
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-951-2 01 1 0411-0606
195 LID; JACK & TOOL
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-951-2 01 1 0411-0606
195 LID; JACK & TOOL
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97425-961-2 01 1 0607-
202 SEAL; CENTER PILLAR
(A) THA 		8-97362-561-0 04 1 0411-
202 SEAL; CENTER PILLAR
(B) THA 		8-97362-563-0 02 1 0411-
204 BOLT
M6X20 W/PL WASHER THA 		1-09981-376-0 06 1 0411-1008
224 COVER; ARM REST,RR QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-911-1 01 1 1101-
224 COVER; ARM REST,RR QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-912-1 01 1 1101-
224 COVER; ARM REST,RR QTR
LIGHT GRAY THA 		8-97398-989-1 01 1 0411-0606
224 COVER; ARM REST,RR QTR
BEIGE THA 		8-97404-633-1 01 1 0607-1010
224 COVER; ARM REST,RR QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-633-1 01 1 1011-
224 COVER; ARM REST,RR QTR
LIGHT GRAY THA 		8-97398-990-1 01 1 0411-0606
224 COVER; ARM REST,RR QTR
BEIGE THA 		8-97404-634-1 01 1 0607-1010
224 COVER; ARM REST,RR QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-634-1 01 1 1011-
225 COVER; ARM REST,FT QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-913-0 01 1 1101-
225 COVER; ARM REST,FT QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-914-0 01 1 1101-
225 COVER; ARM REST,FT QTR
LIGHT GRAY THA 		8-97398-991-0 01 1 0411-0606
225 COVER; ARM REST,FT QTR
BEIGE THA 		8-97404-635-0 01 1 0607-1010
225 COVER; ARM REST,FT QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-635-0 01 1 1011-
225 COVER; ARM REST,FT QTR
LIGHT GRAY THA 		8-97398-992-0 01 1 0411-0606
225 COVER; ARM REST,FT QTR
BEIGE THA 		8-97404-636-0 01 1 0607-1010
225 COVER; ARM REST,FT QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-636-0 01 1 1011-
226 TRIM ASM; QTR LWR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97422-915-0 01 1 1101-
226 TRIM ASM; QTR LWR
INTERIOR COLOR VERY DARK GRAY<116> DARK GRAY THA 		8-97422-916-0 01 1 1101-
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97398-994-2 01 1 0411-0606
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97405-027-0 01 1 0607-1010
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97405-027-0 01 1 1011-
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97398-993-2 01 1 0411-0606
226 TRIM ASM; QTR LWR
CLOTH TRIM COVER<7PG> BEIGE THA 		8-97405-026-0 01 1 0607-1010
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA 		8-97405-026-0 01 1 1011-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> THA 		8-97402-351-0 01 1 0411-0508
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97404-979-0 01 1 0509-0606
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-957-0 01 1 0607-1010
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-957-0 01 1 1011-
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> THA 		8-97402-350-0 01 1 0411-0508
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97404-978-0 01 1 0509-0606
226 TRIM ASM; QTR LWR
EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-956-0 01 1 0607-1010
226 TRIM ASM; QTR LWR
INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA 		8-97406-956-0 01 1 1011-
227 TRIM ASM; QTR UPR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-917-0 01 1 1101-
227 TRIM ASM; QTR UPR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97422-918-0 01 1 1101-
227 TRIM ASM; QTR UPR
LIGHT GRAY THA 		8-97398-996-3 01 1 0411-0508
227 TRIM ASM; QTR UPR
LIGHT GRAY THA 		8-97404-498-0 01 1 0509-0606
227 TRIM ASM; QTR UPR
BEIGE THA 		8-97404-642-0 01 1 0607-1010
227 TRIM ASM; QTR UPR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-642-0 01 1 1011-
227 TRIM ASM; QTR UPR
LIGHT GRAY THA 		8-97398-995-3 01 1 0411-0508
227 TRIM ASM; QTR UPR
LIGHT GRAY THA 		8-97404-497-0 01 1 0509-0606
227 TRIM ASM; QTR UPR
BEIGE THA 		8-97404-641-0 01 1 0607-1010
227 TRIM ASM; QTR UPR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97404-641-0 01 1 1011-
231 RUBBER
INTERIOR COLOR VERY DARK GRAY<116> EXC. CLOTH TRIM COVER<7PG> THA 		8-97371-339-0 02 1 0411-
231 RUBBER
INTERIOR COLOR BEIGE<184> THA 		8-97371-339-0 02 1 0411-
234 TRIM; QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97425-953-2 01 1 1101-
234 TRIM; QTR
INTERIOR COLOR VERY DARK GRAY<116> BLACK THA 		8-97425-957-2 01 1 1101-
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-948-2 01 1 0411-0606
234 TRIM; QTR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-948-2 01 1 0411-0606
234 TRIM; QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97425-955-2 01 1 0607-
234 TRIM; QTR
EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-950-2 01 1 0411-0606
234 TRIM; QTR
CLOTH TRIM COVER<7PG> LIGHT GRAY THA 		8-97425-950-2 01 1 0411-0606
234 TRIM; QTR
INTERIOR COLOR BEIGE<184> BEIGE THA 		8-97425-960-2 01 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
