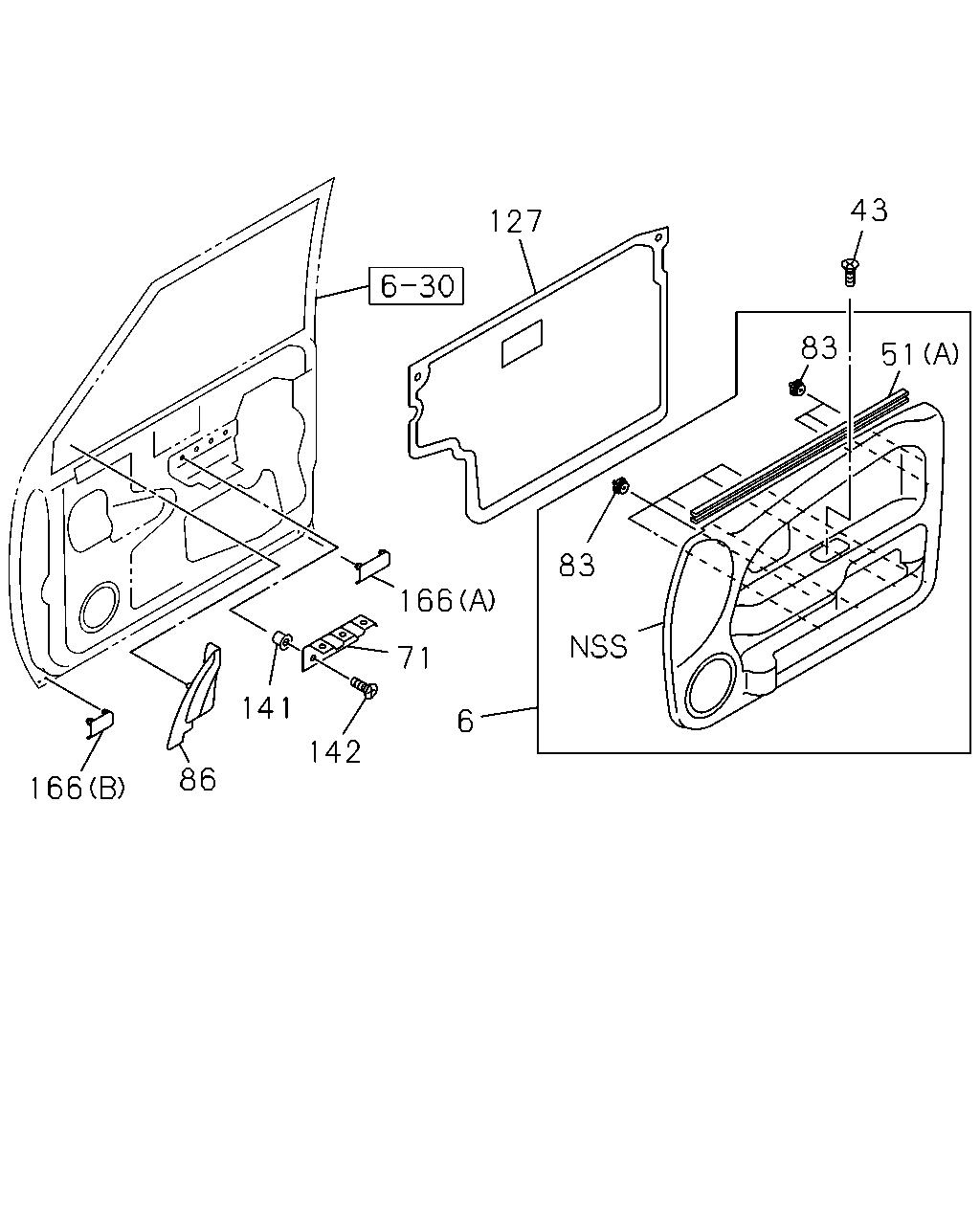

6-35 — FRONT DOOR TRIM (#73830) — 46 parça

43 127 83 51 83 166 71 141 6 142 86 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	TRIM; DOOR,UPR INTERIOR COLOR VERY DARK GRAY<116> THA	8-97422-925-0	01	1	1101-
6	TRIM; DOOR,UPR INTERIOR COLOR VERY DARK GRAY<116> THA	8-97422-926-0	01	1	1101-
6	TRIM; DOOR,UPR CLOTH TRIM COVER<7PG> LIGHT GRAY THA	8-97399-006-0	01	1	0411-0606
6	TRIM; DOOR,UPR CLOTH TRIM COVER<7PG> BEIGE THA	8-97404-653-0	01	1	0607-1010
6	TRIM; DOOR,UPR INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA	8-97404-653-0	01	1	1011-
6	TRIM; DOOR,UPR CLOTH TRIM COVER<7PG> LIGHT GRAY THA	8-97399-005-0	01	1	0411-0606
6	TRIM; DOOR,UPR CLOTH TRIM COVER<7PG> BEIGE THA	8-97404-652-0	01	1	0607-1010
6	TRIM; DOOR,UPR INTERIOR COLOR BEIGE<184> CLOTH TRIM COVER<7PG> BEIGE THA	8-97404-652-0	01	1	1011-
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> THA	8-97402-347-0	01	1	0411-0508
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA	8-97404-981-0	01	1	0509-0606
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> BEIGE THA	8-97406-959-0	01	1	0607-1010
6	TRIM; DOOR,UPR INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA	8-97406-959-0	01	1	1011-
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> THA	8-97402-346-0	01	1	0411-0508
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> LIGHT GRAY THA	8-97404-980-0	01	1	0509-0606
6	TRIM; DOOR,UPR EXC. CLOTH TRIM COVER<7PG> BEIGE THA	8-97406-958-0	01	1	0607-1010
6	TRIM; DOOR,UPR INTERIOR COLOR BEIGE<184> EXC. CLOTH TRIM COVER<7PG> BEIGE THA	8-97406-958-0	01	1	1011-
43	SCREW; DOOR POCKET M5X14 THA	8-94152-495-0	04	1	0411-0707

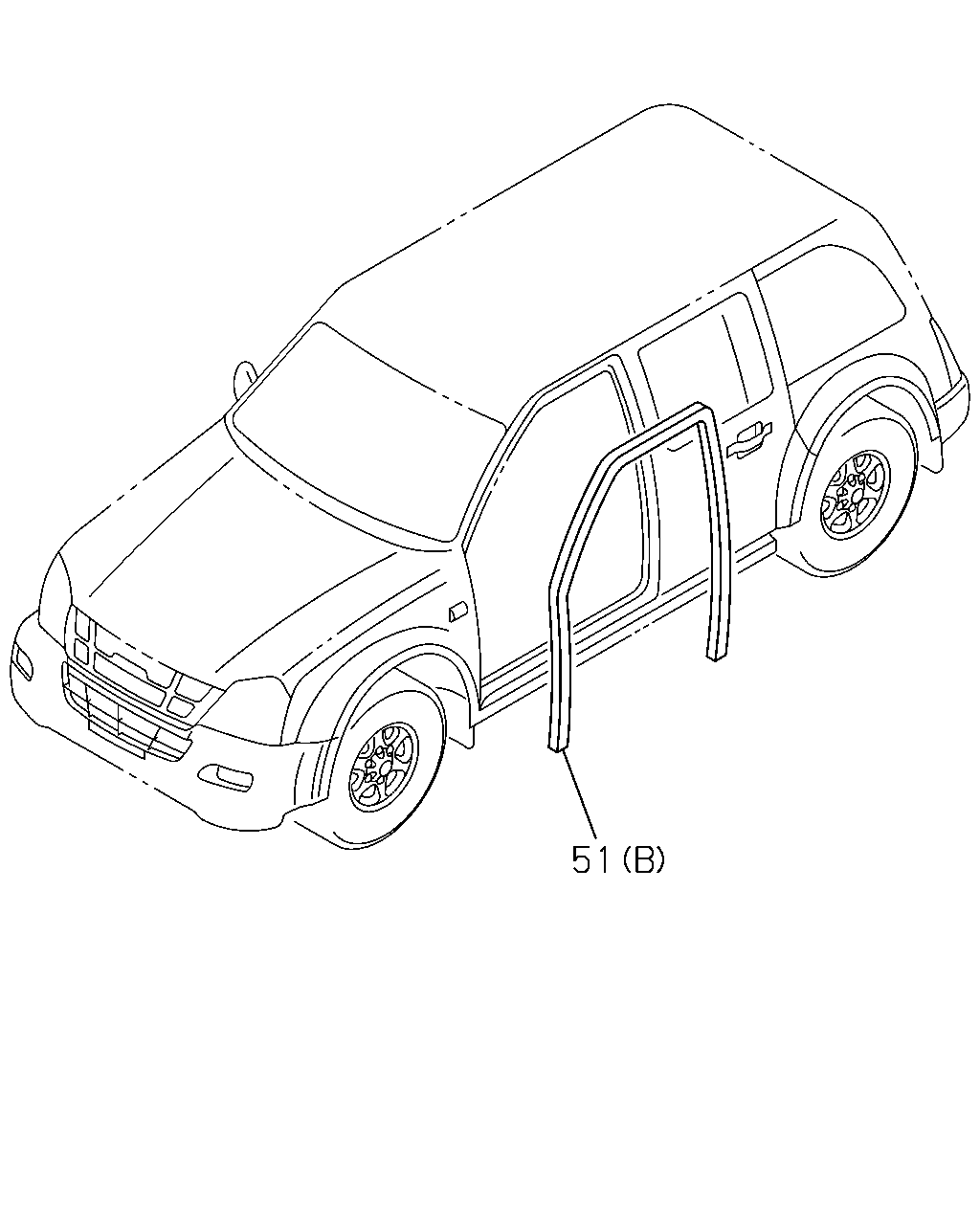

51	WEATHERSTRIP; FRONT DOOR INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1101-
51	WEATHERSTRIP; FRONT DOOR (B) LIGHT GRAY THA	8-97398-997-1	02	1	0411-0412
51	WEATHERSTRIP; FRONT DOOR (B) LIGHT GRAY THA	8-97402-845-0	02	1	0501-0606
51	WEATHERSTRIP; FRONT DOOR (B) BEIGE THA	8-97404-643-0	02	1	0607-1010
51	WEATHERSTRIP; FRONT DOOR INTERIOR COLOR BEIGE<184> (B) BEIGE THA	8-97404-643-0	02	1	1011-
51	WEATHERSTRIP; FRONT DOOR CLOTH TRIM COVER<7PG> (A) THA	8-97364-719-0	01	1	0411-0510
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0511-
51	WEATHERSTRIP; FRONT DOOR CLOTH TRIM COVER<7PG> (A) THA	8-97364-718-0	01	1	0411-0510
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0511-
71	BRACKET; ARM REST THA	8-97238-106-2	02	1	0411-
83	CLIP; DOOR TRIM CLOTH TRIM COVER<7PG> H=16.7 THA	8-97022-017-0	16	1	0411-0510
83	CLIP; DOOR TRIM H=16.7 THA	8-97022-017-0	16	1	0511-
86	COVER ASM; DOOR POCKET BLACK THA	8-97298-456-2	01	1	0411-
86	COVER ASM; DOOR POCKET BLACK THA	8-97298-455-2	01	1	0411-
127	SEAL; DOOR INNER THA	8-97373-017-1	01	1	0411-
127	SEAL; DOOR INNER THA	8-97373-016-1	01	1	0411-
141	GROMMET; SCREW,LWR COVER THA	8-94152-494-0	04	1	0411-
142	SCREW; LWR COVER,DOOR TRIM M5X14 THA	8-94152-495-0	04	1	0411-
166	PLUG; HOLE (A) THA	8-98009-499-0	02	1	0508-
166	PLUG; HOLE (B) THA	8-98009-500-0	02	1	0508-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	WEATHERSTRIP; FRONT DOOR INTERIOR COLOR VERY DARK GRAY<116> (B) DARK GRAY THA	8-97403-590-0	02	1	1101-
51	WEATHERSTRIP; FRONT DOOR (B) LIGHT GRAY THA	8-97398-997-1	02	1	0411-0412
51	WEATHERSTRIP; FRONT DOOR (B) LIGHT GRAY THA	8-97402-845-0	02	1	0501-0606
51	WEATHERSTRIP; FRONT DOOR (B) BEIGE THA	8-97404-643-0	02	1	0607-1010
51	WEATHERSTRIP; FRONT DOOR INTERIOR COLOR BEIGE<184> (B) BEIGE THA	8-97404-643-0	02	1	1011-
51	WEATHERSTRIP; FRONT DOOR CLOTH TRIM COVER<7PG> (A) THA	8-97364-719-0	01	1	0411-0510
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-719-0	01	1	0511-
51	WEATHERSTRIP; FRONT DOOR CLOTH TRIM COVER<7PG> (A) THA	8-97364-718-0	01	1	0411-0510
51	WEATHERSTRIP; FRONT DOOR (A) THA	8-97364-718-0	01	1	0511-
