◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30C - GEAR SHIFTER AND QUADRANT BOX ▶
2-30C — GEAR SHIFTER AND QUADRANT BOX (#7383) — 131 parça

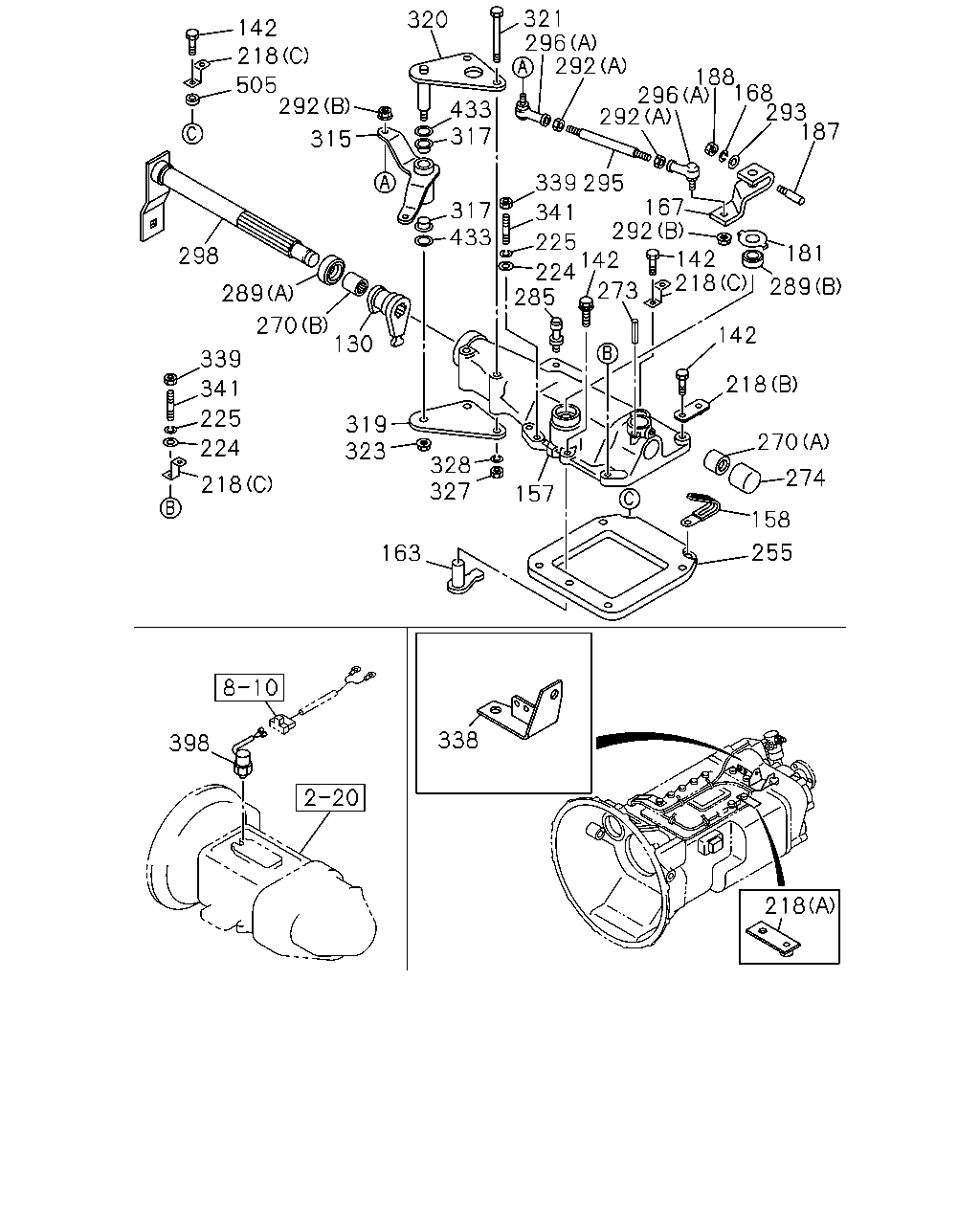

çizim 5944
321 296 292 320 142 218 188 296 168 293 292 187 505 292 433 317 315 167 292 317 433 341 225 142 224 285 142 181 298 289 273 289 270 130 142 339 218 341 225 319 323 270 224 328 327 274 218 157 158 255 163 338 398 218 339 295 218
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33521-055-0 01 1 9905-9906 ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9907-0002 ●
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 0003- ● ●
142 BOLT; QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9905-9906 ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9907-0002 ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0003- ● ●
157 BOX; QUAD,TRANS
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33541-267-1 01 1 9905-9906 ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9907-0002 ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 0003- ● ●
158 CLIP; HARNESS
CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=36 		8-94224-891-1 01 1 9905-9906 ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 9907-0002 ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0003- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-9906 ● ●
163 LEVER; SELECT,INTERNAL
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33522-041-3 01 1 9907-0002 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0003- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-9906 ● ●
167 LEVER; SELECT,EXTERNAL
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33521-138-0 01 1 9907-0002 ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0003- ● ●
168 WASHER; LK,SELECT LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=8.2 		9-09150-508-0 01 1 9905-9906 ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9907-0002 ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 0003- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-9906 ● ●
181 WASHER; PL,SELECT LEVER
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) OD=40 		1-09532-008-0 01 1 9907-0002 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0003- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-9906 ● ●
187 BOLT; SELECT LEVER
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X42 		1-33659-045-0 01 1 9907-0002 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0003- ● ●
188 NUT; SELECT LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8 		9-09110-408-0 01 1 9905-9906 ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9907-0002 ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 0003- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) L=65 		1-47476-513-0 01 1 9905-9906 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 9907-0002 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 0003- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B) L=59 		1-82699-228-0 01 1 9905-9906 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9907-0002 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 0003- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (C) 		1-82699-425-0 03 1 9905-9906 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 03 1 9907-0002 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 03 1 0003- ● ●
224 WASHER; PL,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=10.5 OD=18 		9-09160-510-0 02 1 9905-9906 ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9907-0002 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 0003- ● ●
225 WASHER; LK,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=10.2 		9-09150-510-0 02 1 9905-9906 ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9907-0002 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 0003- ● ●
255 PLATE; DIST,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33549-070-1 01 1 9905-9906 ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9907-0002 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0003- ● ●
270 BEARING; NEEDLE,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) NTN 		1-09811-006-0 01 1 9905-9906 ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9907-0002 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0003- ● ●
270 BEARING; NEEDLE,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) NSK 		1-09811-057-0 01 1 9905-9906 ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9907-0002 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0003- ● ●
270 BEARING; NEEDLE,QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B) NTN 		1-09811-260-0 01 1 9905-9906 ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9907-0002 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0003- ● ●
273 PIN; SPR,STOPPER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-09748-016-0 01 1 9905-9906 ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9907-0002 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0003- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-9906 ● ●
274 COVER; SHAFT,QUAD BOX
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		9-33545-017-1 01 1 9907-0002 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0003- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-9906 ● ●
285 BREATHER; AIR,QUAD BOX
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33149-008-0 01 1 9907-0002 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0003- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-9906 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) OD=41 		1-09625-334-0 01 1 9907-0002 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0003- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-9906 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B) OD=30 		1-09625-386-0 01 1 9907-0002 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0003- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-9906 ● ●
292 NUT; LINK ROD
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B) M8 FLANGE 		1-09440-062-1 02 1 9907-0002 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0003- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-9906 ● ●
293 WASHER; PL,TAPER BOLT
6WG1 TC-N(71L) CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=8.4 OD=22 		9-09160-708-0 01 1 9907-0002 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0003- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9905-9906 ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9907-0002 ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0003- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907- ●
298 SHAFT; SHIFT LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33522-141-0 01 1 9905-9906 ● ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 9907-0002 ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 0003- ● ●
315 LEVER; SELECT
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33651-746-0 01 1 9905-9906 ● ●
315 LEVER; SELECT 1-33651-746-0 01 1 9907-0002 ●
315 LEVER; SELECT 1-33651-746-0 01 1 0003- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9905-9906 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9907-0002 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0003- ● ●
319 BRACKET; SELECT LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33657-640-0 01 1 9905-9906 ● ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 9907-0002 ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 0003- ● ●
320 SHAFT; LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-33619-629-0 01 1 9905-9906 ● ●
320 SHAFT; LEVER 1-33619-629-0 01 1 9907-0002 ●
320 SHAFT; LEVER 1-33619-629-0 01 1 0003- ● ●
321 BOLT; BRKT,RELAY LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) M10X80 		0-10806-080-0 02 1 9905-9906 ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9907-0002 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 0003- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0002 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0003- ● ●
327 NUT; BRKT,RELAY LEVER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) M10 		9-09110-510-0 02 1 9905-9906 ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9907-0002 ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 0003- ● ●
328 WASHER; LK,BRKT
CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=10.2 		9-09150-510-0 02 1 9905-9906 ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9907-0002 ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0003- ● ●
338 BRACKET; FLEX TUBE
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-47477-814-0 01 1 9905-9906 ● ●
338 BRACKET; FLEX TUBE 1-47477-814-0 01 1 9907-0002 ●
338 BRACKET; FLEX TUBE 1-47477-814-0 01 1 0003-0003 ● ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 0004- ● ●
339 NUT; QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) M10 		9-09110-510-0 02 1 9905-9906 ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9907-0002 ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 0003- ● ●
341 STUD; QUAD BOX
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-09305-004-0 02 1 9905-9906 ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9907-0002 ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 0003- ● ●
398 SWITCH; REV LAMP
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-82440-102-0 01 1 9905-9906 ● ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9907-0002 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0003- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0002 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0003- ● ●
505 SPACER; BRKT
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-53459-587-0 01 1 9905-9906 ● ●
505 SPACER; BRKT 1-53459-587-0 01 1 9907-0002 ●
505 SPACER; BRKT 1-53459-587-0 01 1 0003- ● ●
