◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#73828) — 58 parça

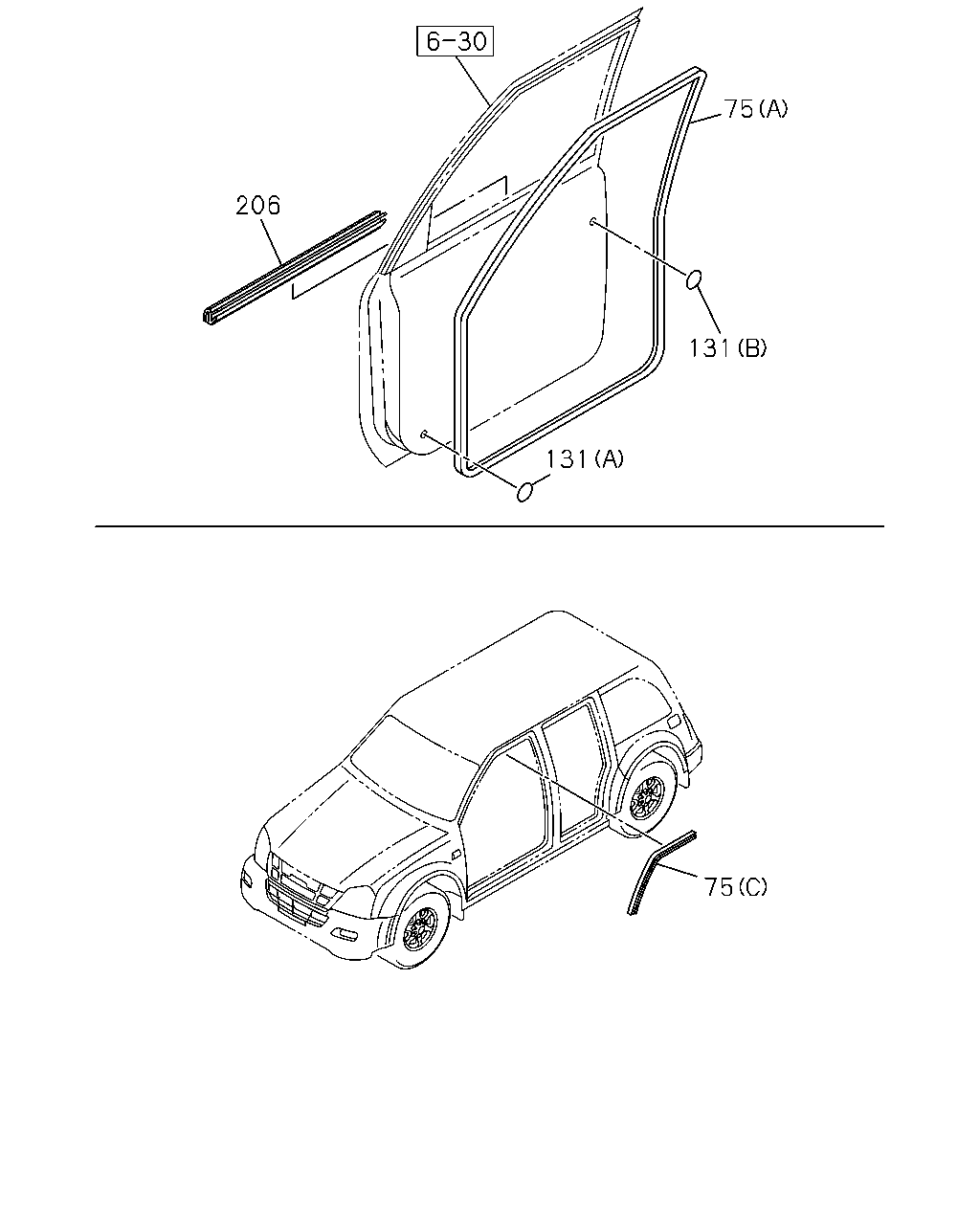

çizim 131027
75 206 131 131 75
BalonParca AdiParca NoAdetTipApplied Date A B
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-117-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-154-2 01 1 0411-0412 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-226-0 01 1 0501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97357-598-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-116-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-153-2 01 1 0411-0412 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-225-0 01 1 0501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97357-597-1 01 1 0411- ● ●
131 SEAL; FRT DOOR
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 0411- ● ●
131 SEAL; FRT DOOR
(B) OD=36 T=0.05 BLACK IMA 		5-76777-035-0 02 1 0411- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> THA 		8-98152-890-0 01 1 1002- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
BODY SIDE MOLDING CHROME<8NL> THA 		8-98152-889-0 01 1 1002- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-97364-716-0 01 1 0411-0411 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98003-176-0 01 1 0411-0412 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98004-222-0 01 1 0501-1001 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> THA 		8-98004-222-0 01 1 1002- ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-97364-715-0 01 1 0411-0411 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98003-175-0 01 1 0411-0412 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
THA 		8-98004-221-0 01 1 0501-1001 ● ●
206 WEATHERSTRIP; FRT DOOR GLASS
EXC. BODY SIDE MOLDING CHROME<8NL> THA 		8-98004-221-0 01 1 1002- ● ●

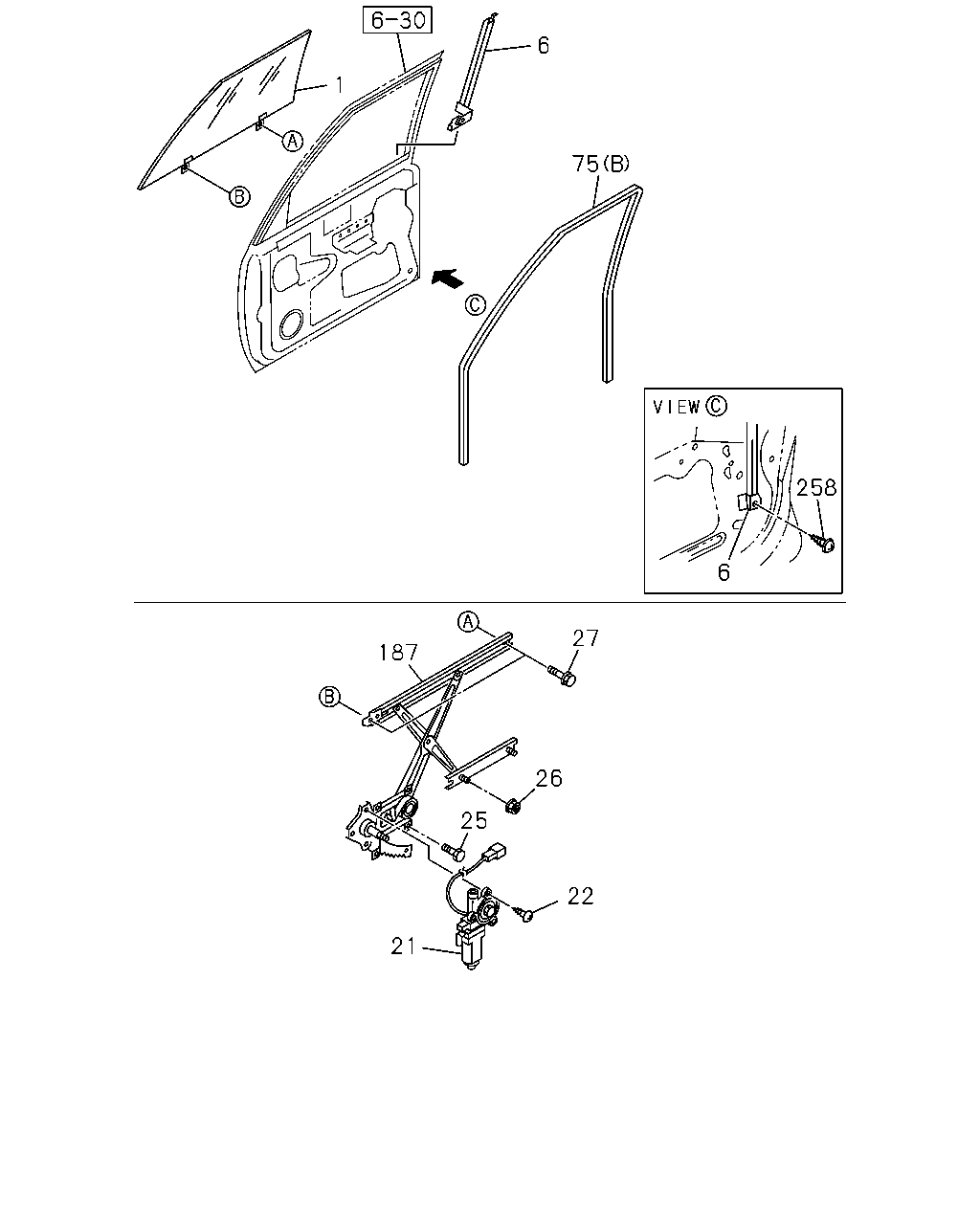

çizim 185429
1 6 75 187 27 26 22 25 21 258 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
THA 		8-97236-032-2 01 1 0411-0810 ● ●
1 GLASS; FRT DOOR
THA 		8-98130-013-0 01 1 0811- ● ●
1 GLASS; FRT DOOR
THA 		8-97236-028-2 01 1 0411-0810 ● ●
1 GLASS; FRT DOOR
THA 		8-98130-012-0 01 1 0811- ● ●
6 CHANNEL; DOOR GLASS
THA 		8-97241-127-1 01 1 0411- ● ●
6 CHANNEL; DOOR GLASS
THA 		8-97241-126-1 01 1 0411- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-97358-233-0 01 1 0411-0605 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98009-802-0 01 1 0606-0908 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98152-287-0 01 1 0909-1107 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98196-060-0 01 1 1108- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-97358-232-0 01 1 0411-0605 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98009-801-0 01 1 0606-0908 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98152-286-0 01 1 0909-1107 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
THA 		8-98196-059-0 01 1 1108- ● ●
22 SCREW; POWER WINDOW MOTOR
THA 		8-97351-770-0 06 1 0411-0605 ● ●
22 SCREW; POWER WINDOW MOTOR
THA 		8-98009-809-0 06 1 0606- ● ●
25 BOLT; WINDOW REG
M6X8 THA 		8-94155-893-0 06 1 0411-0609 ● ●
25 BOLT; WINDOW REG
M6X8 FLANGE THA 		8-98048-996-0 06 1 0610-1105 ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1106- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-97943-101-0 04 1 0411-0610 ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		8-98049-362-0 04 1 0611- ● ●
27 BOLT; GLASS FIX
M6X8 THA 		8-94155-893-0 04 1 0411-0609 ● ●
27 BOLT; GLASS FIX
M6X8 FLANGE THA 		8-98048-996-0 04 1 0610-1105 ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE THA 		8-98188-381-0 04 1 1106- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-117-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-154-2 01 1 0411-0412 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-226-0 01 1 0501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97357-598-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(A) THA 		8-97236-116-1 01 1 0411- ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-97236-153-2 01 1 0411-0412 ● ●
75 WEATHERSTRIP; FRT DOOR
(B) THA 		8-98004-225-0 01 1 0501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) THA 		8-97357-597-1 01 1 0411- ● ●
187 REGULATOR ASM; DOOR
THA 		8-97350-002-0 01 1 0411-0605 ● ●
187 REGULATOR ASM; DOOR
THA 		8-98009-811-3 01 1 0606- ● ●
187 REGULATOR ASM; DOOR
THA 		8-97350-004-0 01 1 0411-0605 ● ●
187 REGULATOR ASM; DOOR
THA 		8-98009-810-3 01 1 0606- ● ●
258 BOLT; CHANNEL
M6X8 THA 		8-94155-893-0 02 1 0411-0609 ● ●
258 BOLT; CHANNEL
M6X8 FLANGE THA 		8-98048-996-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
