6-30 — FRONT DOOR AND HINGE (#73827) — 26 parça

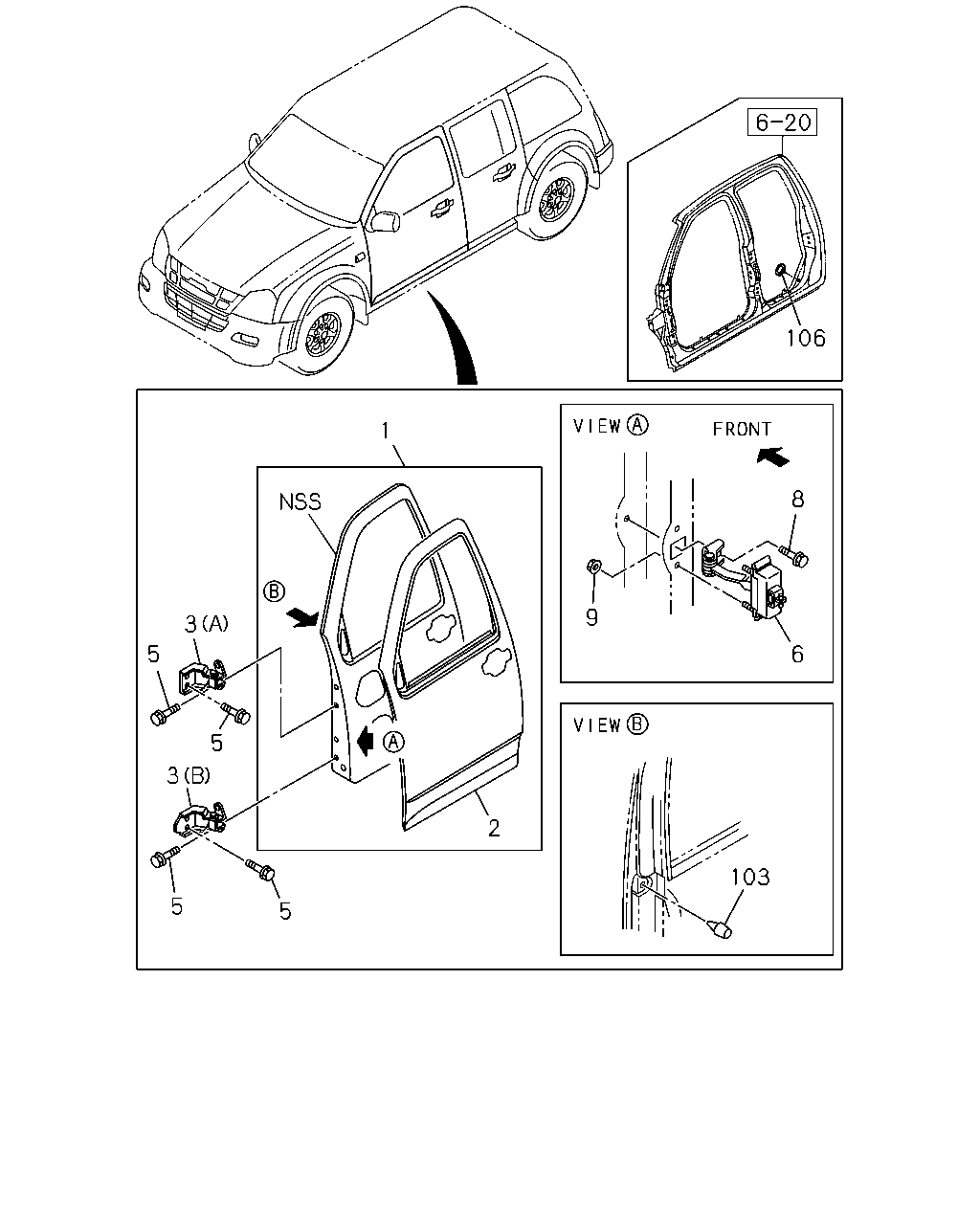

çizim 131158
106 1 8 9 3 5 6 5 3 2 103 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-524-0 01 1 0411- ● ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-97366-523-0 01 1 0411- ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-987-0 01 1 0411- ● ●
2 PANEL; FRT DOOR OUTER
THA 		8-97365-986-0 01 1 0411- ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-961-1 01 1 0411-0611 ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-546-0 01 1 0612- ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-984-1 01 1 0411-0611 ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-549-0 01 1 0612- ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-97235-960-1 01 1 0411-0611 ● ●
3 HINGE; DOOR FRT
(A) UPPER THA 		8-98057-547-0 01 1 0612- ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-97235-982-1 01 1 0411-0611 ● ●
3 HINGE; DOOR FRT
(B) LOWER THA 		8-98057-548-0 01 1 0612- ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0411-0508 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 08 1 0411-0508 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-94174-559-2 16 1 0509-0606 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 16 1 0607-1008 ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 16 1 1009- ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 16 1 1009- ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-97369-016-0 02 1 0411- ● ●
8 BOLT; CHECK ARM
M8X23 IMA 		8-97310-216-1 02 1 0411-0701 ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98062-206-0 02 1 0702-1110 ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1111- ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-97943-101-0 04 1 0411-0610 ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 0611- ● ●
103 PROTECTOR; FRT DOOR
THA 		8-97301-795-1 02 1 0411- ● ●
106 GROMMET; PROTECTOR
THA 		8-94279-724-0 02 1 0411- ● ●
