6-10 — ENGINE HOOD AND LOCK (#73824) — 72 parça

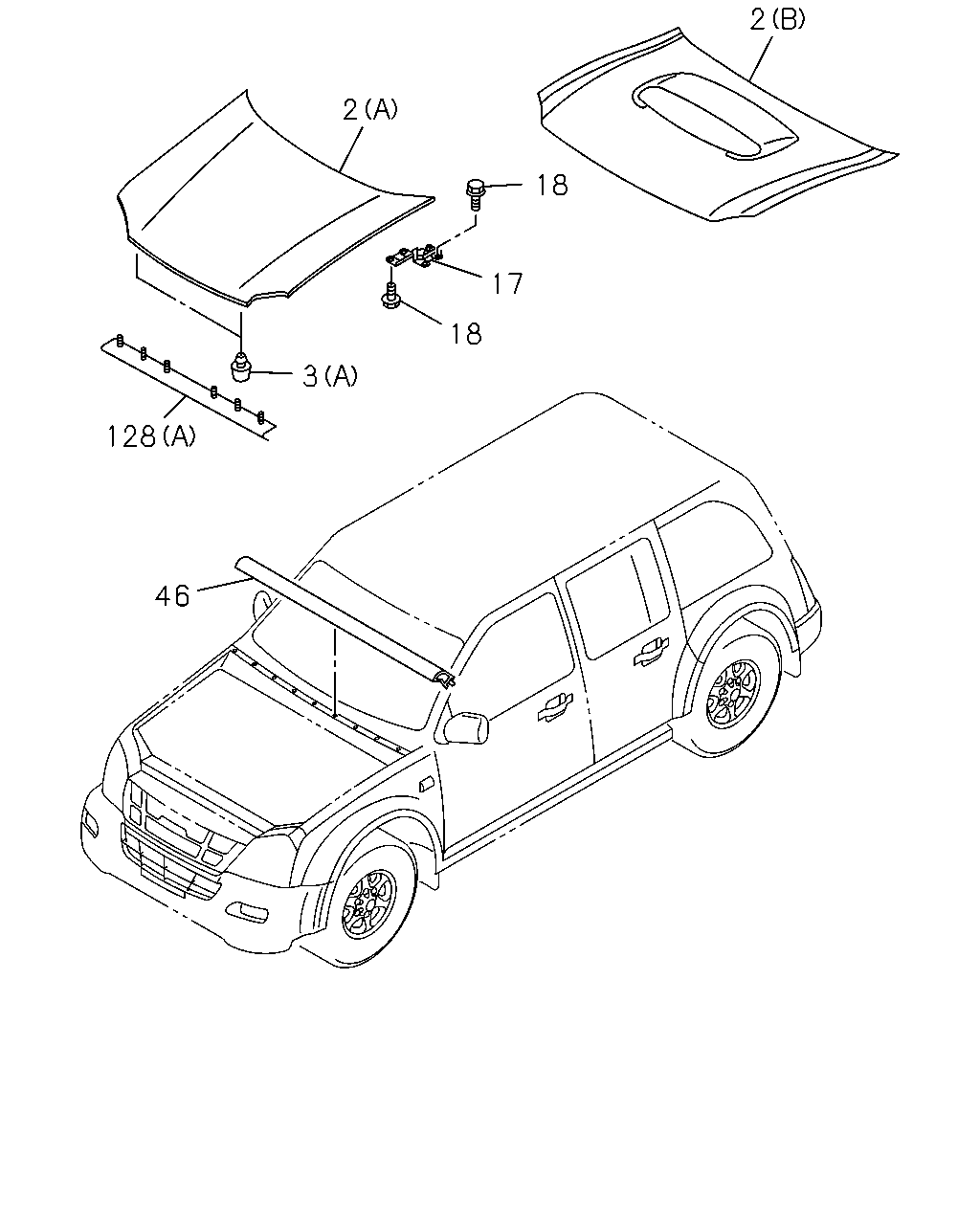

2 2 18 17 18 3 128 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL; ENG HOOD (A) THA	8-97363-781-0	01	1	0411-0606	●	●
2	PANEL; ENG HOOD 4JJ1-TCS ENG<LFB> (A) THA	8-97387-346-1	01	1	0607-0608	●	●
2	PANEL; ENG HOOD 4JJ1-TCS ENG<LFB> (A) THA	8-98046-692-0	01	1	0609-	●	●
2	PANEL; ENG HOOD 4JJ1-TCX ENG<LS0> (B) THA	8-98046-693-0	01	1	0610-	●	●
3	BUFFER; ENG HOOD,FRT (A) THA	8-94358-581-0	02	1	0411-	●	●
3	BUFFER; ENG HOOD,FRT (B) THA	8-97311-876-0	02	1	0411-	●	●
17	HINGE; ENG HOOD THA	8-97235-398-1	01	1	0411-0606	●	●
17	HINGE; ENG HOOD 4JJ1-TCS ENG<LFB> THA	8-97235-398-1	01	1	0607-0609	●	●
17	HINGE; ENG HOOD THA	8-97235-398-1	01	1	0610-0701	●	●
17	HINGE; ENG HOOD THA	8-98050-665-0	01	1	0702-0708	●	●
17	HINGE; ENG HOOD 4JJ1-TCS ENG<LFB> THA	8-98050-665-0	01	1	0709-0709	●	●
17	HINGE; ENG HOOD THA	8-98050-665-0	01	1	0710-	●	●
17	HINGE; ENG HOOD THA	8-97235-397-1	01	1	0411-0606	●	●
17	HINGE; ENG HOOD 4JJ1-TCS ENG<LFB> THA	8-97235-397-1	01	1	0607-0609	●	●
17	HINGE; ENG HOOD THA	8-97235-397-1	01	1	0610-0701	●	●
17	HINGE; ENG HOOD THA	8-98050-664-0	01	1	0702-0708	●	●
17	HINGE; ENG HOOD 4JJ1-TCS ENG<LFB> THA	8-98050-664-0	01	1	0709-0709	●	●
17	HINGE; ENG HOOD THA	8-98050-664-0	01	1	0710-	●	●
18	BOLT; HINGE M8X16 THA	8-94139-492-0	08	1	0411-0606	●	●
18	BOLT; HINGE M8X16 THA	8-94139-492-0	04	1	0607-0701	●	●
18	BOLT; HINGE M8X16 THA	8-94139-492-0	04	1	0607-0701	●	●
18	BOLT; HINGE M8X16 THA	8-98056-122-0	04	1	0702-	●	●
18	BOLT; HINGE M8X16 THA	8-98056-122-0	04	1	0702-	●	●
46	SEAL; ENG HOOD THA	8-97380-860-0	01	1	0411-	●	●
128	SEAL; PLATFORM (A) THA	8-97234-598-1	01	1	0411-0606	●	●
128	SEAL; PLATFORM (A) THA	8-98024-523-0	01	1	0607-	●	●
128	SEAL; PLATFORM (B) THA	8-97333-442-0	01	1	0411-0508	●	●
128	SEAL; PLATFORM (B) THA	8-98023-877-0	01	1	0509-0606	●	●
128	SEAL; PLATFORM 4JJ1-TCS ENG<LFB> (B) THA	8-98023-877-0	01	1	0607-	●	●
128	SEAL; PLATFORM (C) THA	8-97372-864-0	01	1	0411-	●	●
128	SEAL; PLATFORM 4JJ1-TCX ENG<LS0> (D) THA	8-98023-875-0	01	1	0610-	●	●

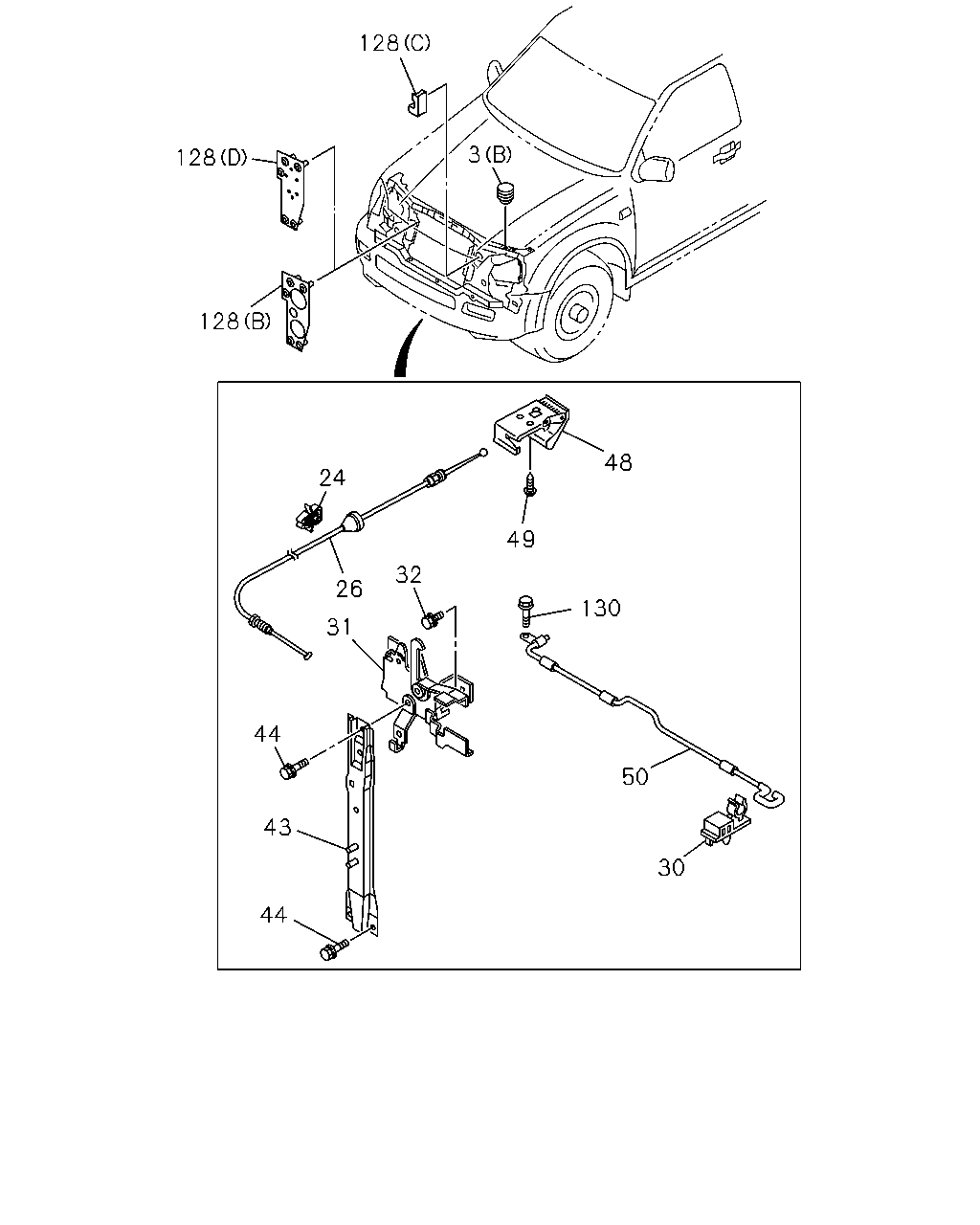

128 3 128 128 48 24 49 32 26 130 31 44 50 43 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BUFFER; ENG HOOD,FRT (A) THA	8-94358-581-0	02	1	0411-	●	●
3	BUFFER; ENG HOOD,FRT (B) THA	8-97311-876-0	02	1	0411-	●	●
24	CLIP; CONT CABLE THA	8-97182-405-0	02	1	0411-	●	●
26	CABLE; ENG HOOD CONT THA	8-97333-143-2	01	1	0411-0612	●	●
26	CABLE; ENG HOOD CONT THA	8-98072-367-0	01	1	0701-	●	●
30	CLIP; SUPPORT ROD,HOOD THA	8-97301-356-0	01	1	0411-	●	●
31	LOCK; ENG HOOD THA	8-97235-915-1	01	1	0411-	●	●
32	BOLT; HOOD LK M6X20 W/PL WASHER THA	8-97370-668-0	02	1	0411-	●	●
43	STAY; ENG HOOD,FRT END THA	8-97362-229-0	01	1	0411-0606	●	●
43	STAY; ENG HOOD,FRT END THA	8-98031-229-0	01	1	0607-	●	●
44	BOLT; STAY,HOOD M6X20 W/PL WASHER THA	8-97389-218-0	04	1	0411-0706	●	●
44	BOLT; STAY,HOOD M6X20 W/PL WASHER THA	8-97370-668-0	04	1	0707-	●	●
48	LEVER; ENG HOOD DARK GRAY THA	8-97397-848-0	01	1	0411-0606	●	●
48	LEVER; ENG HOOD DARK GRAY THA	8-97397-849-0	01	1	0607-0612	●	●
48	LEVER; ENG HOOD DARK GRAY THA	8-97411-781-0	01	1	0701-	●	●
49	SCREW; LEVER,ENG HOOD OPENER M5X16 TAPPING THA	9-09829-323-1	02	1	0411-0701	●	●
49	SCREW; LEVER,ENG HOOD OPENER M5X16 TAPPING THA	8-98061-685-0	02	1	0702-1005	●	●
49	SCREW; LEVER,ENG HOOD OPENER M5X16 TAPPING THA	8-98167-449-0	02	1	1006-	●	●
50	ROD; SUPPORT,ENG HOOD THA	8-97361-206-0	01	1	0411-0606	●	●
50	ROD; SUPPORT,ENG HOOD THA	8-98044-500-0	01	1	0607-	●	●
128	SEAL; PLATFORM (A) THA	8-97234-598-1	01	1	0411-0606	●	●
128	SEAL; PLATFORM (A) THA	8-98024-523-0	01	1	0607-	●	●
128	SEAL; PLATFORM (B) THA	8-97333-442-0	01	1	0411-0508	●	●
128	SEAL; PLATFORM (B) THA	8-98023-877-0	01	1	0509-0606	●	●
128	SEAL; PLATFORM 4JJ1-TCS ENG<LFB> (B) THA	8-98023-877-0	01	1	0607-	●	●
128	SEAL; PLATFORM (C) THA	8-97372-864-0	01	1	0411-	●	●
128	SEAL; PLATFORM 4JJ1-TCX ENG<LS0> (D) THA	8-98023-875-0	01	1	0610-	●	●
130	BOLT; SUPPORT ROD,HOOD M6X25 FLANGE THA	0-28680-625-0	01	1	0411-0601	●	●
130	BOLT; SUPPORT ROD,HOOD M6X25 FLANGE THA	0-28650-625-0	01	1	0602-	●	●

5 155 8 154 153 2 152 8 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL; ENG HOOD (A) THA	8-97363-781-0	01	1	0411-0606	●	●
2	PANEL; ENG HOOD 4JJ1-TCS ENG<LFB> (A) THA	8-97387-346-1	01	1	0607-0608	●	●
2	PANEL; ENG HOOD 4JJ1-TCS ENG<LFB> (A) THA	8-98046-692-0	01	1	0609-	●	●
2	PANEL; ENG HOOD 4JJ1-TCX ENG<LS0> (B) THA	8-98046-693-0	01	1	0610-	●	●
5	SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD 4JJ1-TCX ENG<LS0> PRIMER THA	8-98057-978-0	01	1	0610-	●	●
8	SEAL; AIR SCOOP 4JJ1-TCX ENG<LS0> (A) THA	8-98007-126-3	01	1	0610-	●	●
8	SEAL; AIR SCOOP 4JJ1-TCX ENG<LS0> (B) THA	8-98056-056-0	01	1	0611-	●	●
147	CLIP; COVER 4JJ1-TCX ENG<LS0> OD=22 L=10.7 THA	8-94215-211-0	06	1	0610-	●	●
152	NUT; HOOD 4JJ1-TCX ENG<LS0> M6 FLANGE THA	0-91180-106-0	04	1	0610-	●	●
153	STOPPER; SEAL 4JJ1-TCX ENG<LS0> THA	8-98056-058-0	03	1	0611-	●	●
154	STUD 4JJ1-TCX ENG<LS0> THA	8-98056-035-0	04	1	0611-	●	●
155	FASTENER; AIR SCOOP 4JJ1-TCX ENG<LS0> THA	8-98056-037-0	01	1	0611-	●	●
