◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#73822) — 32 parça

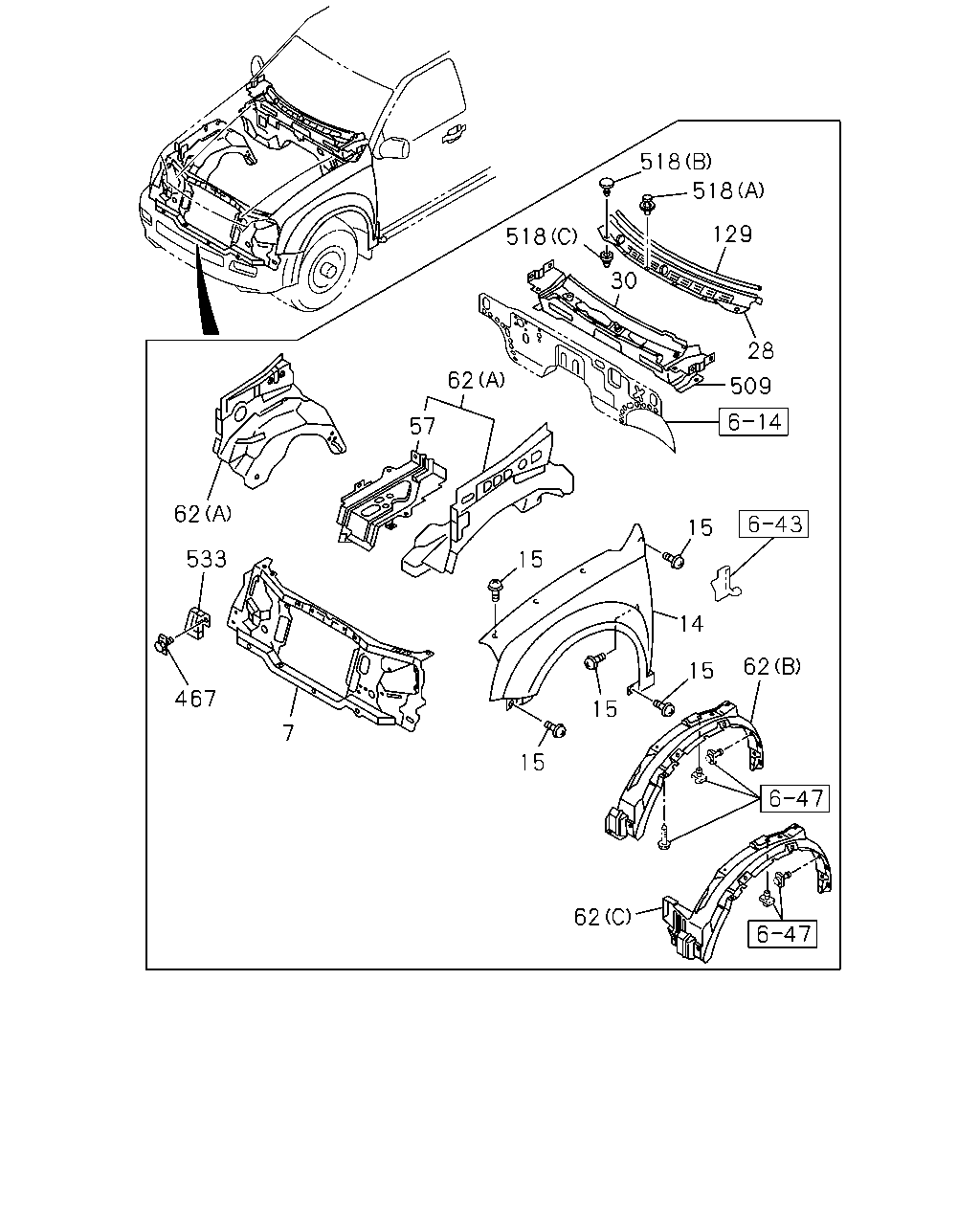

çizim 126301
518 518 129 518 30 28 62 509 57 62 15 533 15 14 62 15 467 15 7 15 62
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR
THA 		8-97364-302-1 01 1 0411-0606 ● ●
7 PANEL; DEFLECTOR
THA 		8-97387-380-0 01 1 0607- ● ●
14 FENDER; FRT
THA 		8-97367-006-0 01 1 0411-0606 ● ●
14 FENDER; FRT
THA 		8-97387-364-0 01 1 0607- ● ●
14 FENDER; FRT
THA 		8-97367-005-0 01 1 0411-0606 ● ●
14 FENDER; FRT
THA 		8-97387-363-0 01 1 0607- ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-97172-961-1 16 1 0411-0701 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98056-294-0 16 1 0702-0804 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98111-470-0 16 1 0805-1009 ● ●
15 BOLT; FENDER
M6X15 W/LK&PL WASHER THA 		8-98167-615-0 16 1 1010- ● ●
28 COVER; DASH COWL
THA 		8-97363-070-0 01 1 0411-0503 ● ●
28 COVER; DASH COWL
THA 		8-98009-237-0 01 1 0504- ● ●
30 PANEL; COWL UPR
THA 		8-97234-339-5 01 1 0411-0701 ● ●
30 PANEL; COWL UPR
THA 		8-98061-608-0 01 1 0702- ● ●
57 TRAY; BATTERY
THA 		8-97326-537-1 01 1 0411- ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-97235-443-1 01 1 0411-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-132-3 01 1 0607- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-97358-316-1 01 1 0411-0702 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98074-558-0 01 1 0703- ● ●
62 PANEL; WHEEL HOUSE
(B) THA 		8-97235-441-2 01 1 0411-0606 ● ●
62 PANEL; WHEEL HOUSE
(C) THA 		8-98007-131-3 01 1 0607- ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-97367-335-0 01 1 0411-0702 ● ●
62 PANEL; WHEEL HOUSE
(A) THA 		8-98074-559-0 01 1 0703- ● ●
129 FINISHER; COWL COVER
THA 		8-97333-282-2 01 1 0411- ● ●
467 RIVET; PLASTIC,DRIP MOLDING
THA 		8-94221-150-0 01 1 0411- ● ●
509 PANEL; DASH
THA 		8-97234-356-2 01 1 0411-0701 ● ●
509 PANEL; DASH
THA 		8-98061-610-0 01 1 0702- ● ●
518 SCREW; BRKT,COWL COVER
(A) IMA 		8-97013-997-0 05 1 0411-0503 ● ●
518 SCREW; BRKT,COWL COVER
(A) IMA 		8-97013-997-0 03 1 0504- ● ●
518 SCREW; BRKT,COWL COVER
(B) THA 		8-97329-760-0 01 1 0411- ● ●
518 SCREW; BRKT,COWL COVER
(C) THA 		8-97329-761-0 01 1 0411- ● ●
533 SEAL; FRT PANEL
THA 		8-97316-861-0 01 1 0411- ● ●
