Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#73821) — 51 parça
Tümü
A - UCB5VF
B - UCS5VF
◀

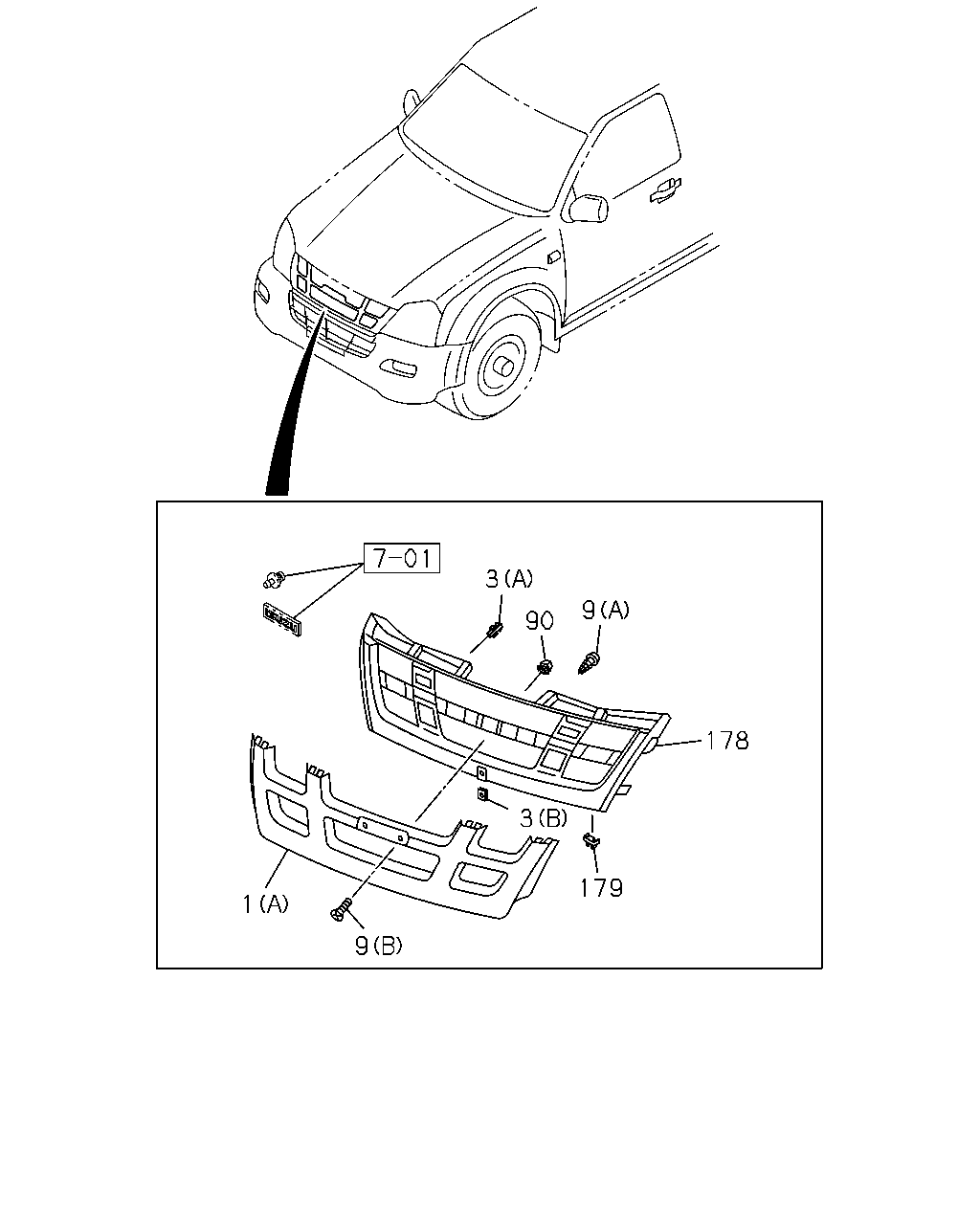

[603A] -'06/6 FIXING;RAD GRILLE (24 parça)

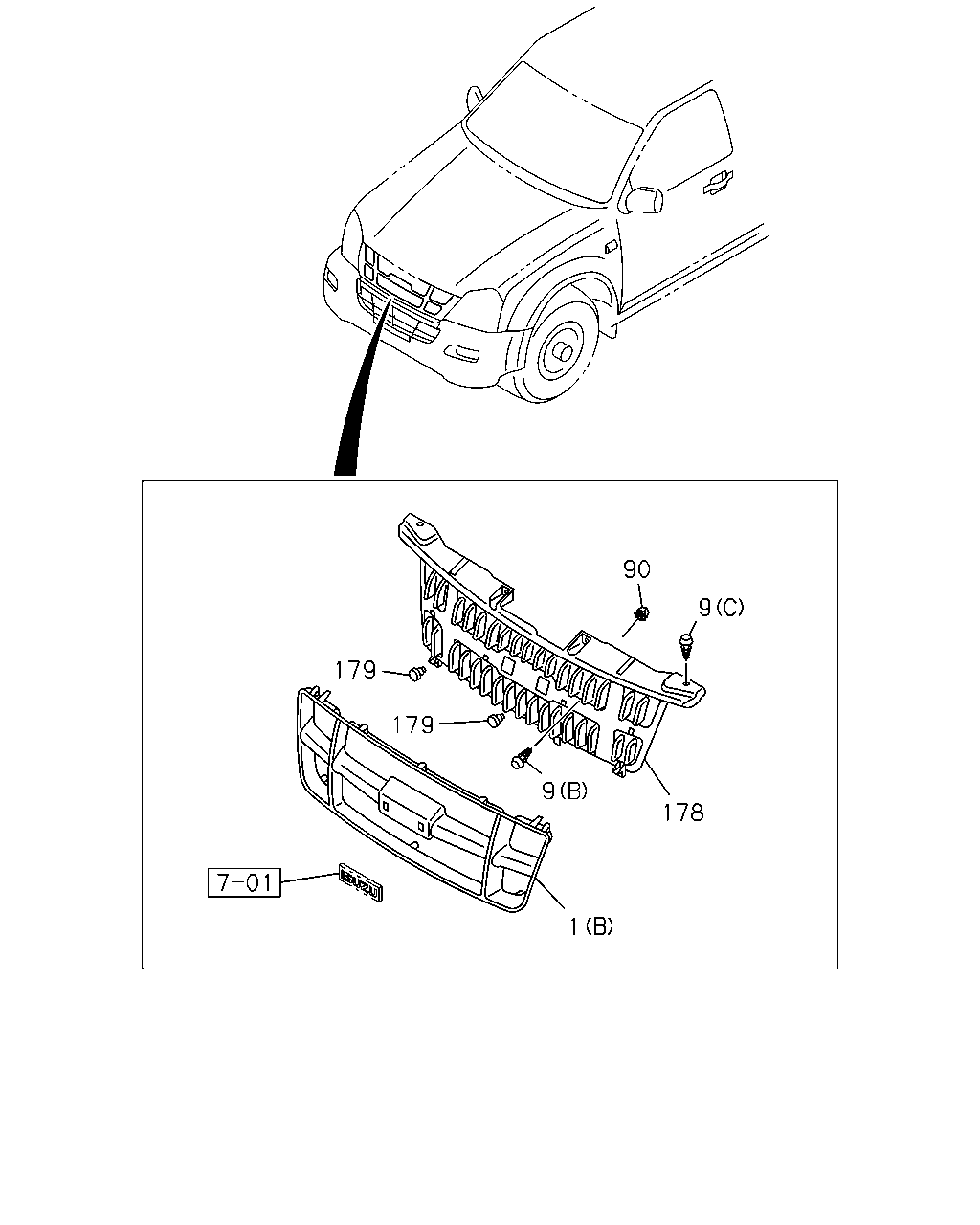

[603A] '06/7- FIXING;RAD GRILLE (22 parça)

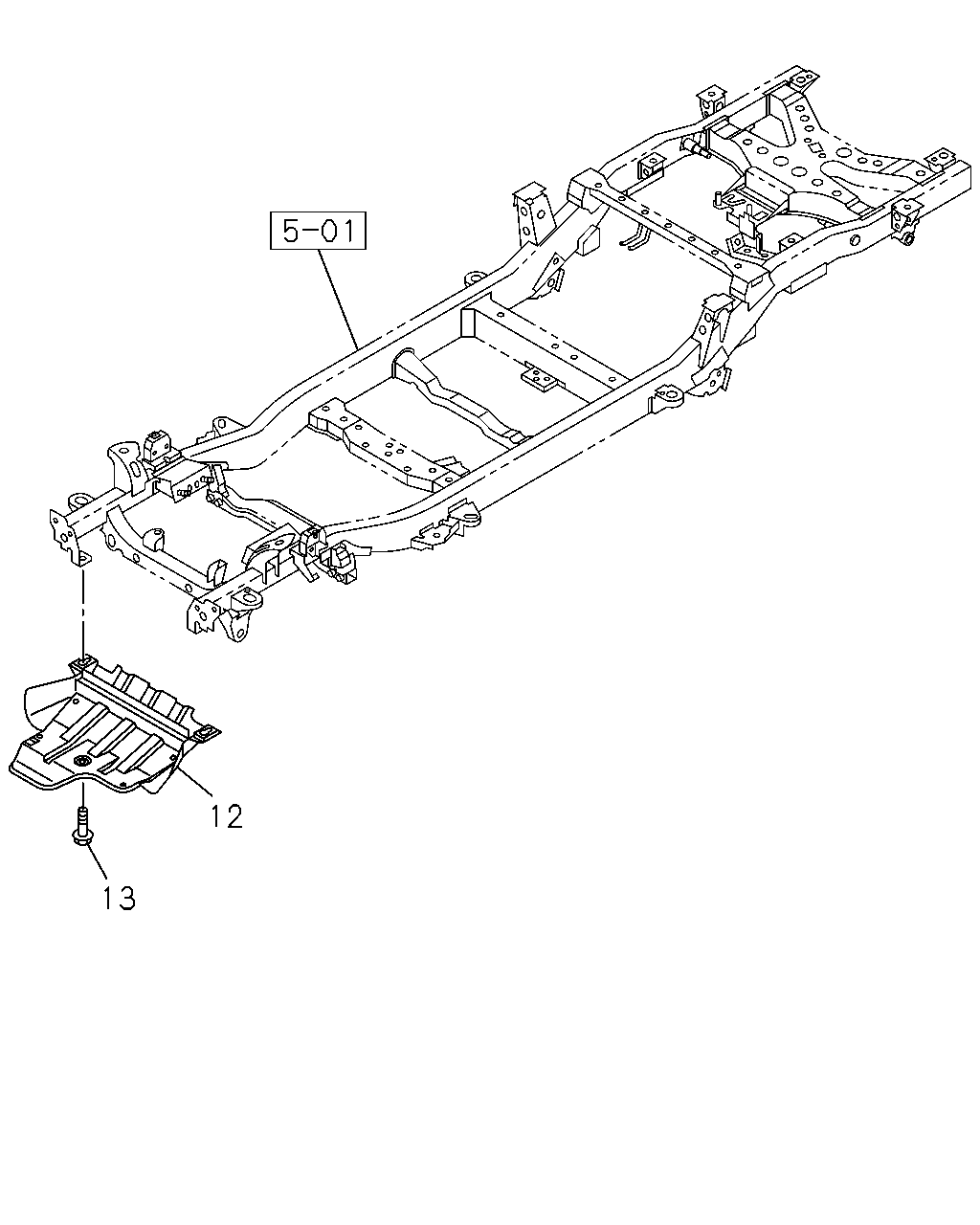

[603A] SKID,RAD PLATE (5 parça)
▶
3
9
90
178
3
179
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR THA
8-97386-222-0
01
1
0411-0508
●
1
GRILLE; RAD
(A) SILVER THA
8-98018-387-0
01
1
0509-0606
●
●
1
GRILLE; RAD
(B) PLATED THA
8-98012-482-1
01
1
0607-
●
●
1
GRILLE; RAD
(A) PLATED THA
8-97367-361-2
01
1
0411-0508
●
3
CLIP; GRILLE
(B) THA
8-97317-633-0
01
1
0411-0606
●
●
3
CLIP; GRILLE
(A) THA
8-97350-903-0
04
1
0411-0606
●
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-94380-268-0
01
1
0411-0606
●
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-94380-268-0
03
1
0607-0707
●
●
9
SCREW; RAD GRILLE
(B) M5X16 IMA
8-98073-081-0
03
1
0708-1005
●
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-98167-352-0
03
1
1006-
●
●
9
SCREW; RAD GRILLE
(A) THA
8-97370-062-0
09
1
0411-0606
●
●
9
SCREW; RAD GRILLE
(C) THA
8-98018-511-0
02
1
0607-0610
●
●
9
SCREW; RAD GRILLE
(C) THA
8-98049-358-0
02
1
0611-
●
●
90
NUT; RAD GRILLE
D=7X7 L=7.5 THA
8-94291-927-0
01
1
0411-0606
●
●
90
NUT; RAD GRILLE
D=7X7 L=7.5 THA
8-94291-927-0
03
1
0607-
●
●
178
GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98187-092-0
01
1
1101-1107
●
178
GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98187-092-0
01
1
1108-
●
●
178
GRILLE; INNER,RAD
THA
8-97367-363-3
01
1
0411-0606
●
●
178
GRILLE; INNER,RAD
THA
8-98012-821-2
01
1
0607-1012
●
●
178
GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98012-821-2
01
1
1101-1107
●
178
GRILLE; INNER,RAD
THA
8-98012-821-2
01
1
1101-1107
●
178
GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98012-821-2
01
1
1108-
●
●
179
RETAINER; GRILLE,RAD
THA
8-97350-904-0
02
1
0411-0606
●
●
179
RETAINER; GRILLE,RAD
THA
8-97301-188-0
02
1
0607-
●
●
90
9
179
179
9
178
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR THA
8-97386-222-0
01
1
0411-0508
●
1
GRILLE; RAD
(A) SILVER THA
8-98018-387-0
01
1
0509-0606
●
●
1
GRILLE; RAD
(B) PLATED THA
8-98012-482-1
01
1
0607-
●
●
1
GRILLE; RAD
(A) PLATED THA
8-97367-361-2
01
1
0411-0508
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-94380-268-0
01
1
0411-0606
●
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-94380-268-0
03
1
0607-0707
●
●
9
SCREW; RAD GRILLE
(B) M5X16 IMA
8-98073-081-0
03
1
0708-1005
●
●
9
SCREW; RAD GRILLE
(B) M5X16 THA
8-98167-352-0
03
1
1006-
●
●
9
SCREW; RAD GRILLE
(A) THA
8-97370-062-0
09
1
0411-0606
●
●
9
SCREW; RAD GRILLE
(C) THA
8-98018-511-0
02
1
0607-0610
●
●
9
SCREW; RAD GRILLE
(C) THA
8-98049-358-0
02
1
0611-
●
●
90
NUT; RAD GRILLE
D=7X7 L=7.5 THA
8-94291-927-0
01
1
0411-0606
●
●
90
NUT; RAD GRILLE
D=7X7 L=7.5 THA
8-94291-927-0
03
1
0607-
●
●
178
GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98187-092-0
01
1
1101-1107
●
178
GRILLE; INNER,RAD
SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98187-092-0
01
1
1108-
●
●
178
GRILLE; INNER,RAD
THA
8-97367-363-3
01
1
0411-0606
●
●
178
GRILLE; INNER,RAD
THA
8-98012-821-2
01
1
0607-1012
●
●
178
GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98012-821-2
01
1
1101-1107
●
178
GRILLE; INNER,RAD
THA
8-98012-821-2
01
1
1101-1107
●
178
GRILLE; INNER,RAD
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA
8-98012-821-2
01
1
1108-
●
●
179
RETAINER; GRILLE,RAD
THA
8-97350-904-0
02
1
0411-0606
●
●
179
RETAINER; GRILLE,RAD
THA
8-97301-188-0
02
1
0607-
●
●
12
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PLATE; SKID,RAD
THA
8-97944-143-0
01
1
0411-0606
●
●
12
PLATE; SKID,RAD
4JJ1-TCS ENG<LFB> THA
8-97944-143-0
01
1
0607-
●
●
12
PLATE; SKID,RAD
4JJ1-TCX ENG<LS0> THA
8-97945-194-0
01
1
0610-
●
●
13
BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA
8-97943-077-0
04
1
0411-0611
●
●
13
BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA
8-97945-706-0
04
1
0612-
●
●
