6-01 — FRONT BUMPER (#73820) — 78 parça

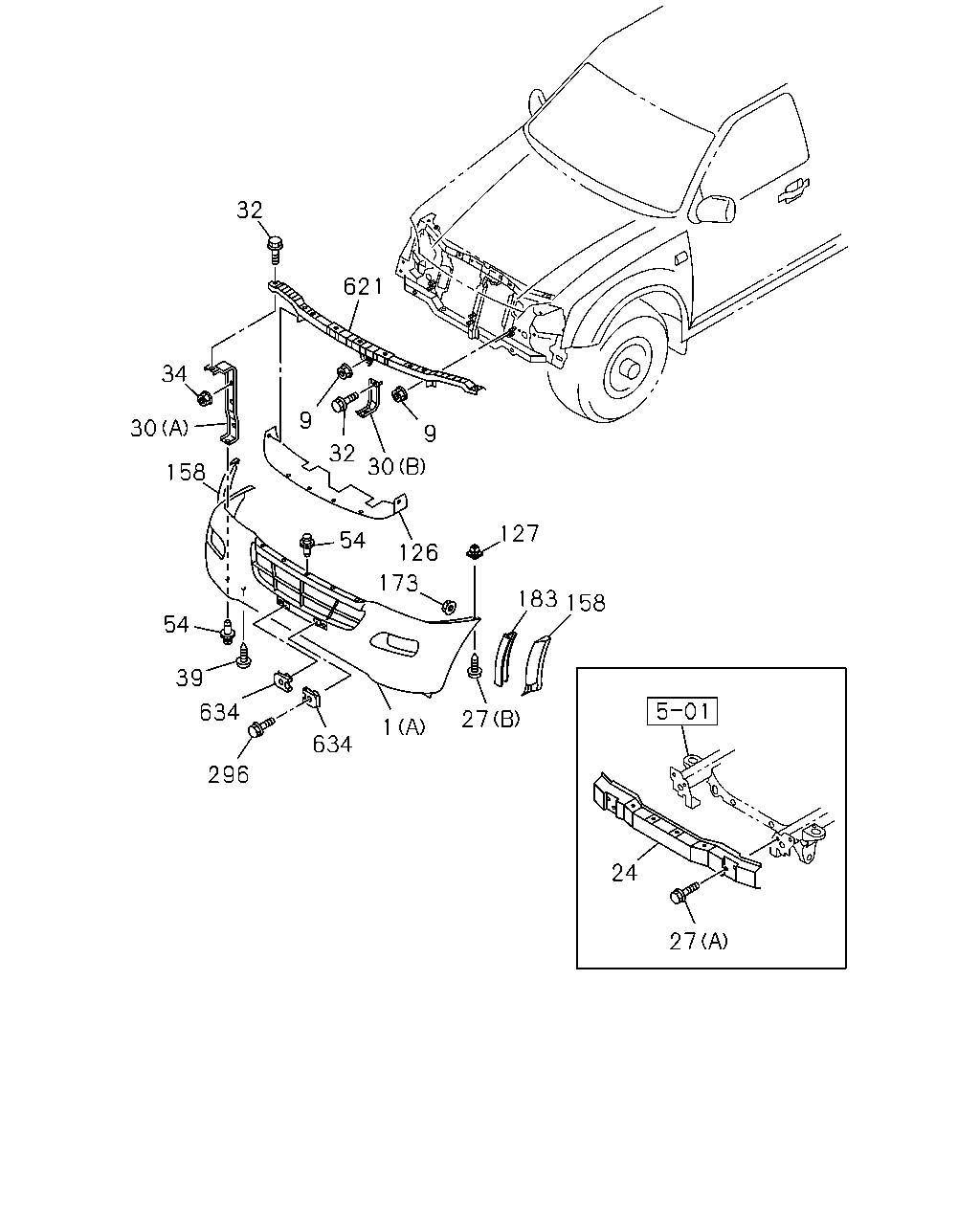

32 621 34 9 30 9 32 30 158 127 54 126 173 183 158 54 39 634 27 1 634 296 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97370-064-0	01	1	0411-0606	●	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98049-887-0	01	1	0607-1009	●	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1010-1012	●	●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1101-1107	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1101-1107		●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1108-	●	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98185-694-0	01	1	1101-1107	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98185-694-0	01	1	1108-	●	●
9	NUT; REINF,FRT BUMPER M6 FLANGE THA	0-91180-106-0	06	1	0411-	●	●
24	BAR; FRT BUMPER THA	8-97367-044-0	01	1	0411-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0411-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0411-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-97236-049-0	02	1	0411-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0411-0609	●	●
30	BRACKET; FRT BUMPER (B) THA	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28680-616-0	04	1	0411-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE THA	0-91180-106-0	04	1	0411-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0411-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING THA	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0411-0606	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER THA	8-97367-045-0	01	1	0411-0510	●	●
126	SEAL; BUMPER THA	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER THA	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0411-	●	●
158	EXTENSION; FRT BUMPER PRIMER THA	8-97331-851-1	01	1	0411-0606	●	●
158	EXTENSION; FRT BUMPER PRIMER THA	8-97331-852-1	01	1	0411-0606	●	●
173	NUT; EXT M6 FLANGE THA	0-91180-106-0	06	1	0411-0606	●	●
183	FINISHER; FRT BUMPER BODY COLOR COSMIC GRAY MET/WARM SILVER MET<690>, BODY COLOR IMPERIAL BLOND MET/WARM SILVER MET<691>, BODY COLOR OMEGA WHITE PEARL/WARM SILVER MET<692>,B ODY COLOR STEEL BLACK MET/WARM SILVER MET<693>, BODY COLOR MOONSTONE BLUE MICA/WARM SIL. MET<694>,BOD Y COLOR ALPINE WHITE<877> LIGHT GRAY THA	8-97396-033-0	02	1	0411-0508	●	●
183	FINISHER; FRT BUMPER LIGHT GRAY THA	8-97396-033-0	02	1	0509-0606	●	●
183	FINISHER; FRT BUMPER BODY COLOR IMPERIAL BLOND MET<688> BEIGE THA	8-97393-894-0	02	1	0411-0508	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28080-616-0	02	1	0411-0601	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●
621	SUPPORT; FRT BUMPER THA	8-97367-043-1	01	1	0411-0606	●	●
621	SUPPORT; FRT BUMPER THA	8-98039-600-1	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER THA	8-98060-774-0	01	1	0703-	●	●
634	NUT; LICENCE PLATE THA	8-94342-576-1	02	1	0411-0707	●	●
634	NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0708-	●	●

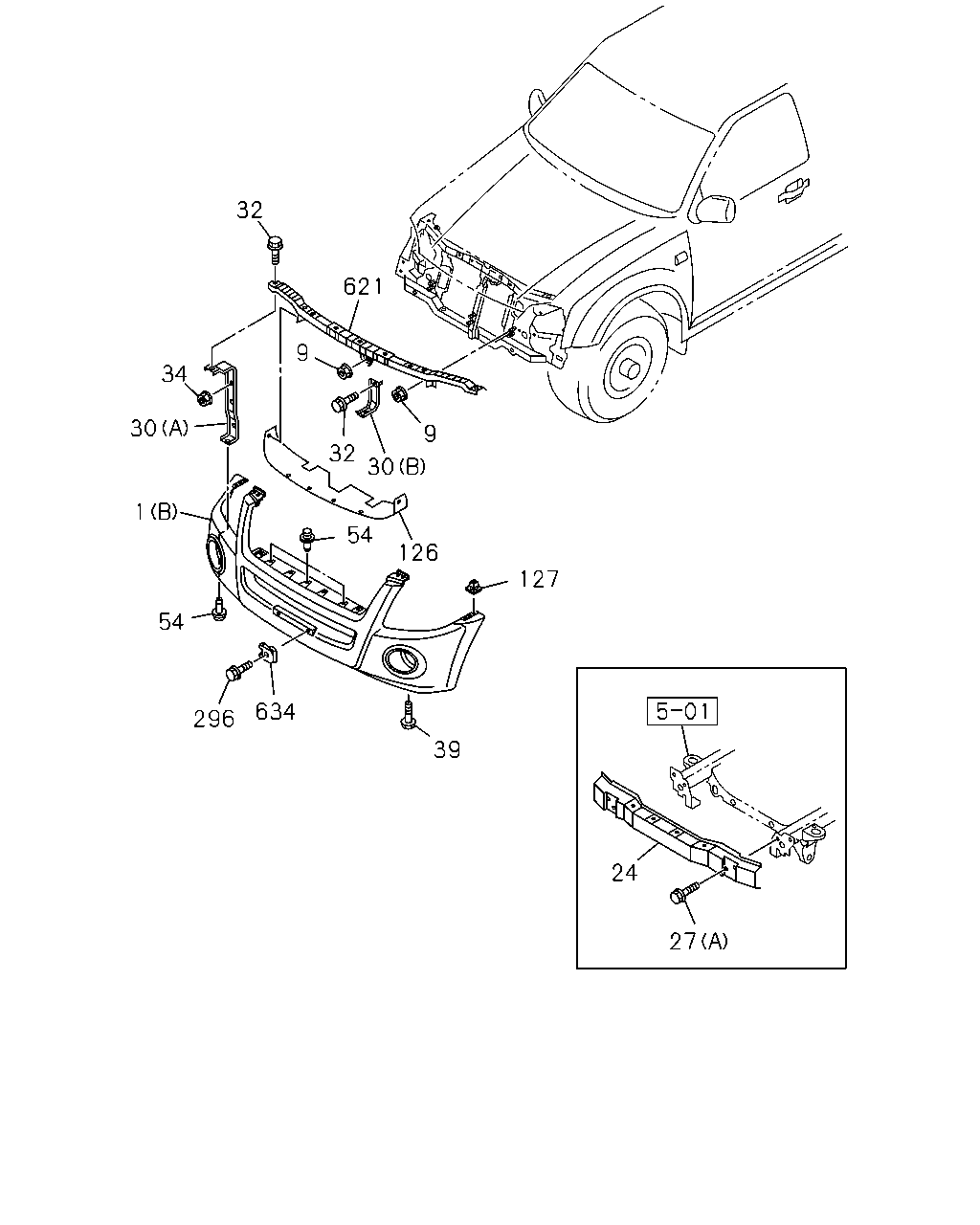

32 621 9 34 30 9 32 30 1 54 126 127 54 634 296 39 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) PLEASE PAINT TO MATCH BODY COLOR THA	8-97370-064-0	01	1	0411-0606	●	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98049-887-0	01	1	0607-1009	●	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1010-1012	●	●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1101-1107	●
1	BUMPER ASM; FRT (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1101-1107		●
1	BUMPER ASM; FRT EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98158-620-0	01	1	1108-	●	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98185-694-0	01	1	1101-1107	●
1	BUMPER ASM; FRT SALES PACKAGE EQUIPMENT SPORTY<XK0> (B) PLEASE PAINT TO MATCH BODY COLOR THA	8-98185-694-0	01	1	1108-	●	●
9	NUT; REINF,FRT BUMPER M6 FLANGE THA	0-91180-106-0	06	1	0411-	●	●
24	BAR; FRT BUMPER THA	8-97367-044-0	01	1	0411-	●	●
27	BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE THA	0-28661-025-0	04	1	0411-	●	●
27	BOLT; BUMPER TO BACK BAR (B) M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0411-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-97236-049-0	02	1	0411-0606	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98007-158-0	02	1	0607-0609	●	●
30	BRACKET; FRT BUMPER (A) THA	8-98062-652-0	02	1	0610-	●	●
30	BRACKET; FRT BUMPER (B) THA	8-97236-050-1	02	1	0411-0609	●	●
30	BRACKET; FRT BUMPER (B) THA	8-98062-655-0	02	1	0610-	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28680-616-0	04	1	0411-0601	●	●
32	BOLT; BRKT,BUMPER M6X16 FLANGE THA	0-28650-616-0	04	1	0602-	●	●
34	NUT; BRKT,BUMPER M6 FLANGE THA	0-91180-106-0	04	1	0411-	●	●
39	BOLT; BUMPER TO BODY M6X20 W/PL WASHER TAPPING THA	8-94321-767-1	02	1	0411-0612	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING THA	8-98052-950-0	02	1	0701-1005	●	●
39	BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1006-	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	09	1	0411-0606	●	●
54	RETAINER; FRT BUMPER THA	8-97301-188-0	07	1	0607-	●	●
126	SEAL; BUMPER THA	8-97367-045-0	01	1	0411-0510	●	●
126	SEAL; BUMPER THA	8-98030-942-0	01	1	0511-0606	●	●
126	SEAL; BUMPER THA	8-98007-149-1	01	1	0607-	●	●
127	NUT; FRT BUMPER D=9.7X9.7 L=8 THA	8-94222-314-0	02	1	0411-	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28080-616-0	02	1	0411-0601	●	●
296	BOLT; LICENSE PLATE,FRT M6X16 FLANGE THA	0-28050-616-0	02	1	0602-	●	●
621	SUPPORT; FRT BUMPER THA	8-97367-043-1	01	1	0411-0606	●	●
621	SUPPORT; FRT BUMPER THA	8-98039-600-1	01	1	0607-0702	●	●
621	SUPPORT; FRT BUMPER THA	8-98060-774-0	01	1	0703-	●	●
634	NUT; LICENCE PLATE THA	8-94342-576-1	02	1	0411-0707	●	●
634	NUT; LICENCE PLATE THA	8-98054-813-0	02	1	0708-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
