◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#7382) — 135 parça

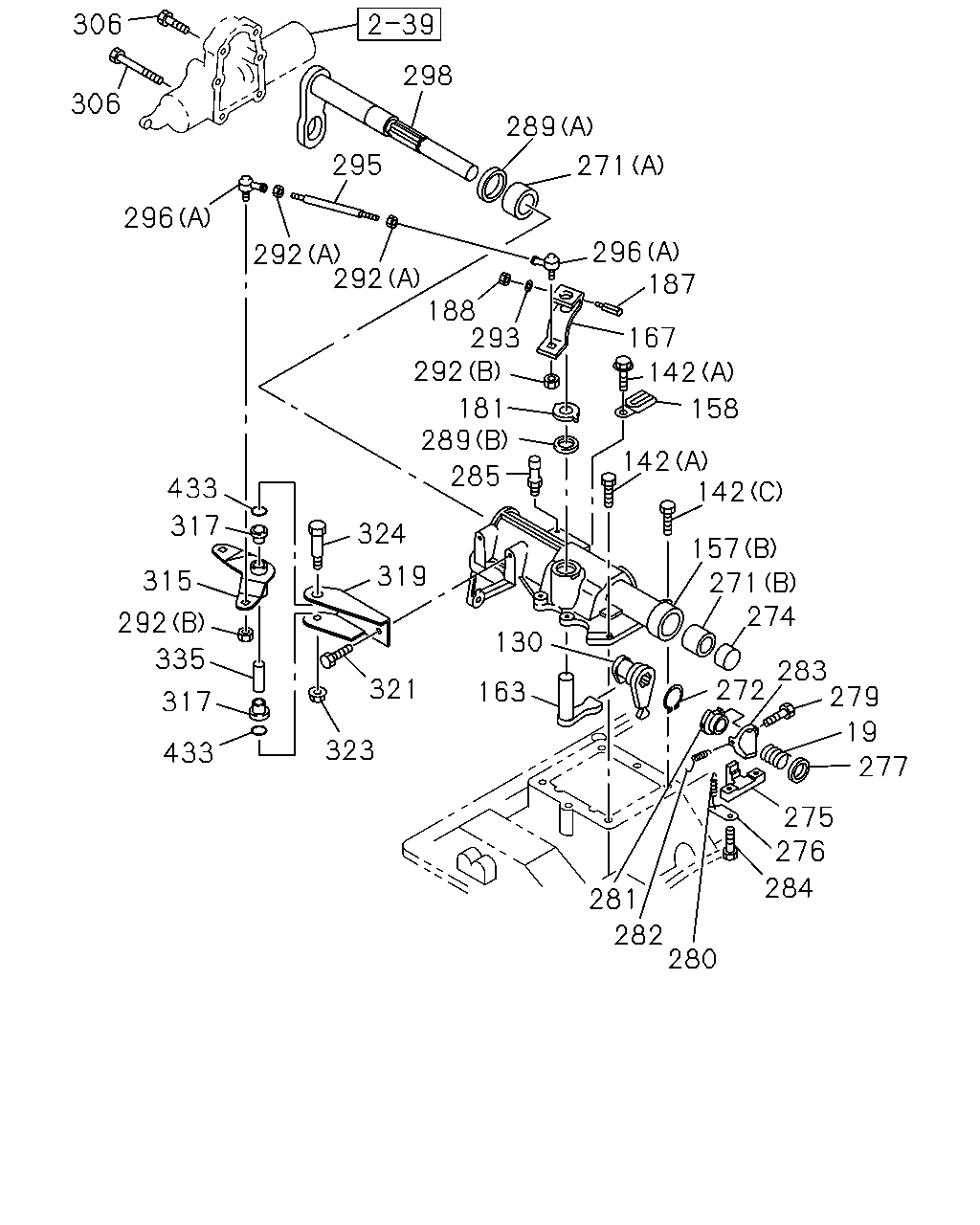

çizim 7229
306 298 306 289 295 271 296 296 187 292 292 188 293 292 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 283 279 321 272 163 317 19 323 433 277 275 276 284 281 282 280
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP 1-09580-519-0 01 1 9905-
130 LEVER; SHIFT,INTERNAL 1-33521-125-0 01 1 9905-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9905-
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9905-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9905-
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9905-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9905-
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 9905-
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9905-
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 9905-
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-9906
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9907-0002
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0003-
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-9906
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9907-0002
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0003-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-9906
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9907-0002
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0003-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-9906
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9907-0002
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0003-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9905-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 9905-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 9905-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 9905-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-9906
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9907-0002
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0003-
275 BLOCK; OBSTRUCT,QUAD BOX 1-33529-031-1 01 1 9905-
276 PLATE; SPRING RET 1-33529-010-0 01 1 9905-
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 9905-
279 BOLT; STOPPER
M5X8 		0-20800-508-0 01 1 9905-
280 SPRING; COIL TENSION 1-09583-285-0 01 1 9905-
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 9905-
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9905-
283 STOPPER; SHIFT SHAFT 1-33529-032-0 01 1 9905-
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9905-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-9906
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9907-0002
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0003-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-9906
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9907-0002
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0003-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-9906
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9907-0002
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0003-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-9906
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9907-0002
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0003-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-9906
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9907-0002
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0003-
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9905-9906
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9907-0002
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0003-
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906
296 ROD END
(A) 		1-09760-108-0 02 1 9907-
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 9905-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 9905-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 9905-
315 LEVER; SELECT 1-33651-719-0 01 1 9905-
317 BUSHING; LEVER 1-09330-119-0 02 1 9905-9906
317 BUSHING; LEVER 1-09330-119-0 02 1 9907-0002
317 BUSHING; LEVER 1-09330-119-0 02 1 0003-
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 9905-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9905-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0002
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0003-
324 BOLT; SHAFT
M10X60 		0-10811-060-0 01 1 9905-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 9905-
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0002
433 GASKET; BUSHING 1-09623-636-0 02 1 0003-

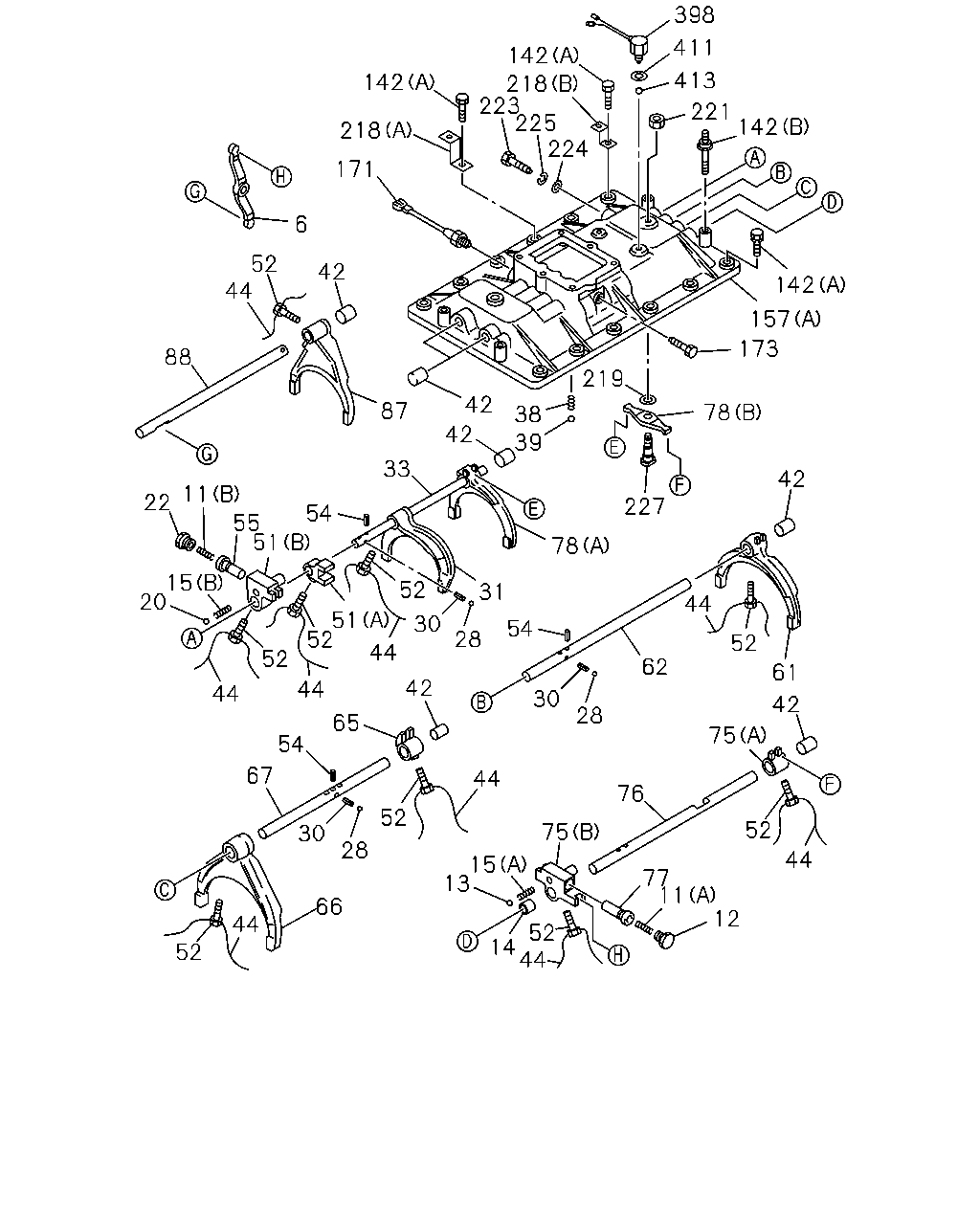

çizim 7291
398 411 142 413 142 218 223 225 224 221 142 218 171 6 52 44 42 142 157 173 88 219 42 87 78 38 39 42 33 42 11 22 227 54 55 51 78 52 15 20 31 44 51 52 30 54 28 52 44 52 62 61 42 44 44 30 42 28 65 75 54 67 44 76 52 52 75 30 28 44 15 13 77 11 12 66 44 52 14 44 52
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY 1-33511-233-1 01 1 9905-
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 9905-
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 9905-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9905-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9905-
14 STOPPER; SHIFT ROD,7TH TO RR 1-33537-019-0 01 1 9905-
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 9905-
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 9905-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9905-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9905-
28 BALL; INTER LK 9-00097-501-0 04 1 9905-
30 PIN; INTER LK 9-33534-003-0 03 1 9905-
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 9905-
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 9905-
38 SPRING; DETENT 1-09580-379-0 04 1 9905-
39 BALL; DETENT 1-09843-012-0 04 1 9905-
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9905-
44 WIRE; LK
L=180 		1-09780-024-0 07 1 9905-
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9905-
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-256-2 01 1 9905-9905
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 9906-
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 9905-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 9905-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 9905-
55 SLEEVE; 1ST & 2ND 1-33516-022-1 01 1 9905-
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 9905-
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 9905-
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-286-1 01 1 9905-
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 9905-
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 9905-
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-236-1 01 1 9905-
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-300-4 01 1 9905-
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-432-1 01 1 9905-
77 SLEEVE; REV & 7TH 1-33516-022-1 01 1 9905-
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9905-
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 9905-
87 ARM; SHIFT,7TH 1-33511-275-1 01 1 9905-
88 ROD; SHIFT,REV & 7TH ARM 1-33531-433-1 01 1 9905-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9905-
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9905-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9905-
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9905-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9905-
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 9905-
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9905-
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9905-
173 SCREW; SET,7TH TO REV 1-09000-446-1 01 1 9905-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 9905-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 9905-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9905-
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9905-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9905-
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9905-
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9905-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9905-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9905-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9905-
413 BALL; BACK SW 9-00097-013-0 01 1 9905-
