◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#73819) — 37 parça

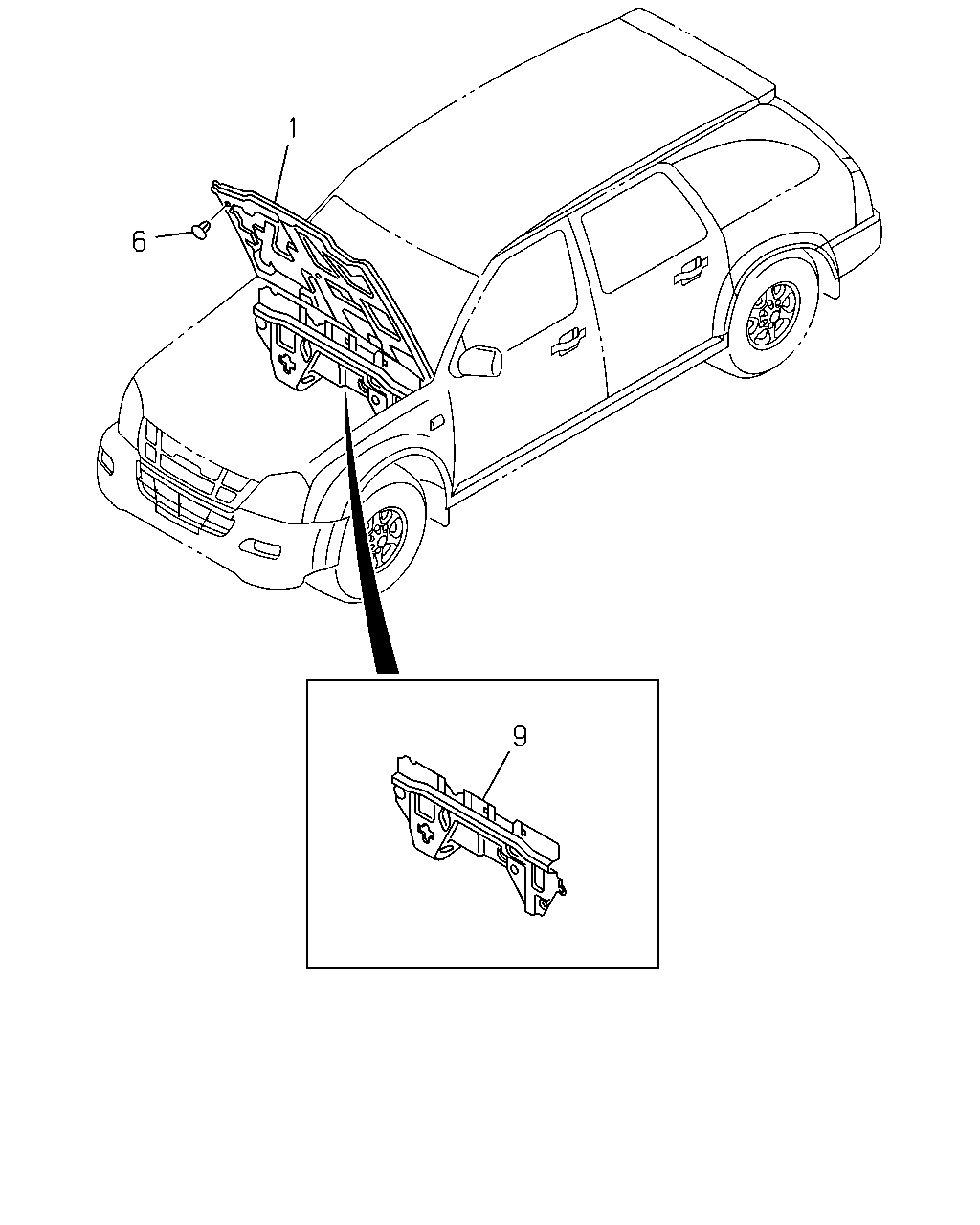

çizim 125738
1 6 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 INSULATION; ENG HOOD
THA 		8-97361-321-0 01 1 0411-0606 ● ●
1 INSULATION; ENG HOOD
4JJ1-TCS ENG<LFB> THA 		8-98007-122-3 01 1 0607- ● ●
1 INSULATION; ENG HOOD
4JJ1-TCX ENG<LS0> THA 		8-98007-123-3 01 1 0610-0708 ● ●
1 INSULATION; ENG HOOD
4JJ1-TCX ENG<LS0> THA 		8-98007-123-3 01 1 0710- ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 THA 		8-97808-623-0 12 1 0411-0606 ● ●
6 CLIP; ENG HOOD INSULATION
4JJ1-TCS ENG<LFB> ID=6.2 L=11.4 THA 		8-97808-623-0 13 1 0607- ● ●
6 CLIP; ENG HOOD INSULATION
4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA 		8-97808-623-0 14 1 0610-0708 ● ●
6 CLIP; ENG HOOD INSULATION
4JJ1-TCX ENG<LS0> ID=6.2 L=11.4 THA 		8-97808-623-0 14 1 0710- ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-97368-041-0 01 1 0411-0509 ● ●
9 INSULATION; DASH ENG ROOM
THA 		8-98021-496-0 01 1 0510- ● ●

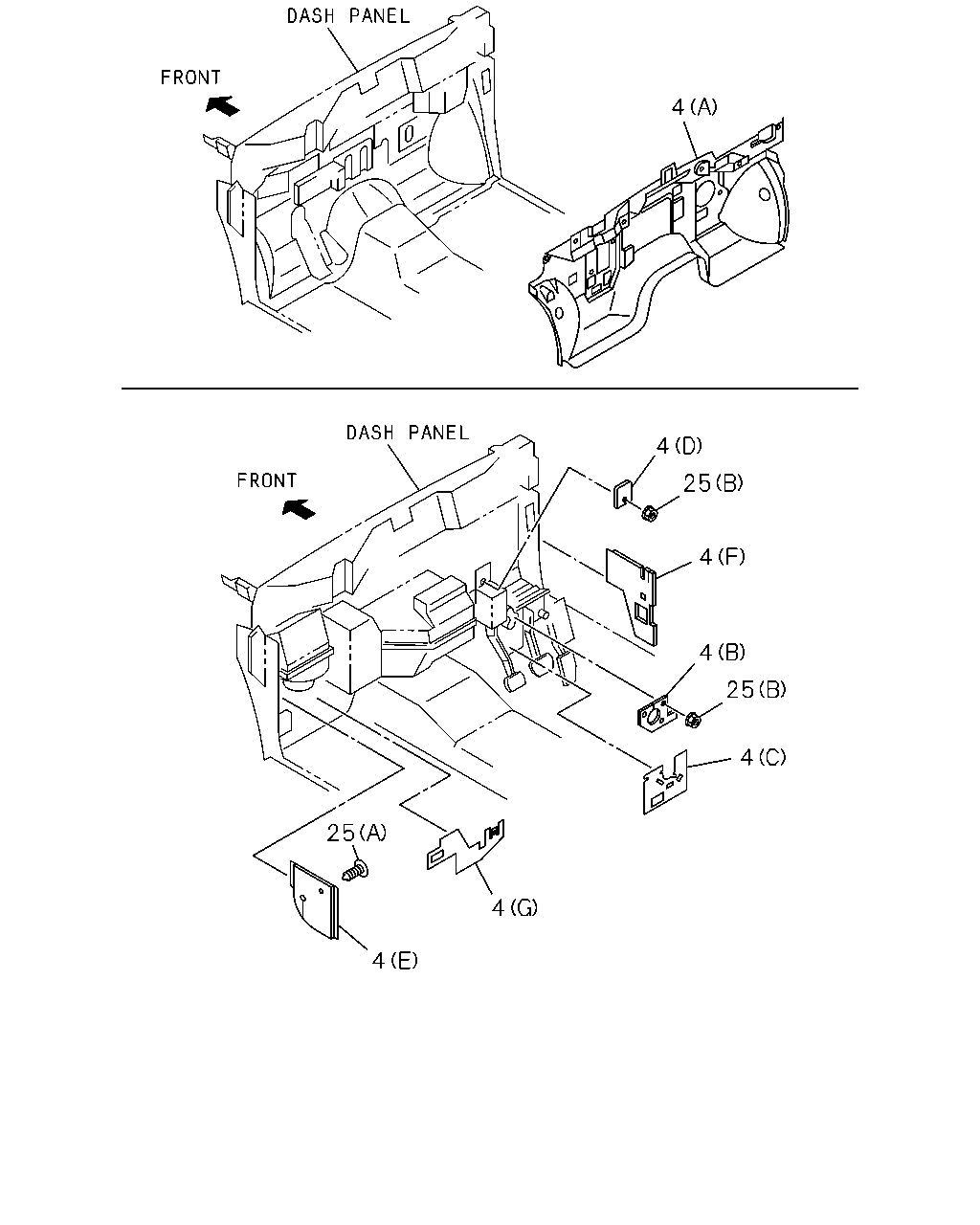

çizim 125773
4 4 25 4 4 25 4 25 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 INSULATION; DASH PNL,INNER
(B) THA 		8-97378-548-2 01 1 0411-0606 ● ●
4 INSULATION; DASH PNL,INNER
4JJ1-TCS ENG<LFB> (B) THA 		8-97378-548-2 01 1 0607-0609 ● ●
4 INSULATION; DASH PNL,INNER
(B) THA 		8-97378-548-2 01 1 0610-0708 ● ●
4 INSULATION; DASH PNL,INNER
4JJ1-TCS ENG<LFB> (B) THA 		8-97378-548-2 01 1 0709-0709 ● ●
4 INSULATION; DASH PNL,INNER
(B) THA 		8-97378-548-2 01 1 0710- ● ●
4 INSULATION; DASH PNL,INNER
(C) THA 		8-97378-549-2 01 1 0411-0503 ● ●
4 INSULATION; DASH PNL,INNER
(C) THA 		8-98013-156-0 01 1 0504- ● ●
4 INSULATION; DASH PNL,INNER
(D) THA 		8-97378-550-1 01 1 0411-0606 ● ●
4 INSULATION; DASH PNL,INNER
4JJ1-TCS ENG<LFB> (D) THA 		8-97378-550-1 01 1 0607-0609 ● ●
4 INSULATION; DASH PNL,INNER
(D) THA 		8-97378-550-1 01 1 0610-0708 ● ●
4 INSULATION; DASH PNL,INNER
4JJ1-TCS ENG<LFB> (D) THA 		8-97378-550-1 01 1 0709-0709 ● ●
4 INSULATION; DASH PNL,INNER
(D) THA 		8-97378-550-1 01 1 0710- ● ●
4 INSULATION; DASH PNL,INNER
(E) THA 		8-97378-551-1 01 1 0411- ● ●
4 INSULATION; DASH PNL,INNER
(F) THA 		8-97378-552-1 01 1 0411- ● ●
4 INSULATION; DASH PNL,INNER
(G) THA 		8-97378-553-1 01 1 0411- ● ●
4 INSULATION; DASH PNL,INNER
(A) THA 		8-98002-801-0 01 1 0411-0503 ● ●
4 INSULATION; DASH PNL,INNER
(A) THA 		8-98006-979-0 01 1 0504- ● ●
25 CLIP; DASH INSULATION
(A) OD=25 THA 		8-94279-810-0 01 1 0411-0606 ● ●
25 CLIP; DASH INSULATION
4JJ1-TCS ENG<LFB> (A) OD=25 THA 		8-94279-810-0 01 1 0607-0609 ● ●
25 CLIP; DASH INSULATION
(A) OD=25 THA 		8-94279-810-0 01 1 0610-0708 ● ●
25 CLIP; DASH INSULATION
4JJ1-TCS ENG<LFB> (A) OD=25 THA 		8-94279-810-0 01 1 0709-0709 ● ●
25 CLIP; DASH INSULATION
(A) OD=25 THA 		8-94279-810-0 01 1 0710- ● ●
25 CLIP; DASH INSULATION
(B) THA 		8-97379-175-0 03 1 0411-0606 ● ●
25 CLIP; DASH INSULATION
4JJ1-TCS ENG<LFB> (B) THA 		8-97379-175-0 03 1 0607-0609 ● ●
25 CLIP; DASH INSULATION
(B) THA 		8-97379-175-0 03 1 0610-0708 ● ●
25 CLIP; DASH INSULATION
4JJ1-TCS ENG<LFB> (B) THA 		8-97379-175-0 03 1 0709-0709 ● ●
25 CLIP; DASH INSULATION
(B) THA 		8-97379-175-0 03 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
