Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

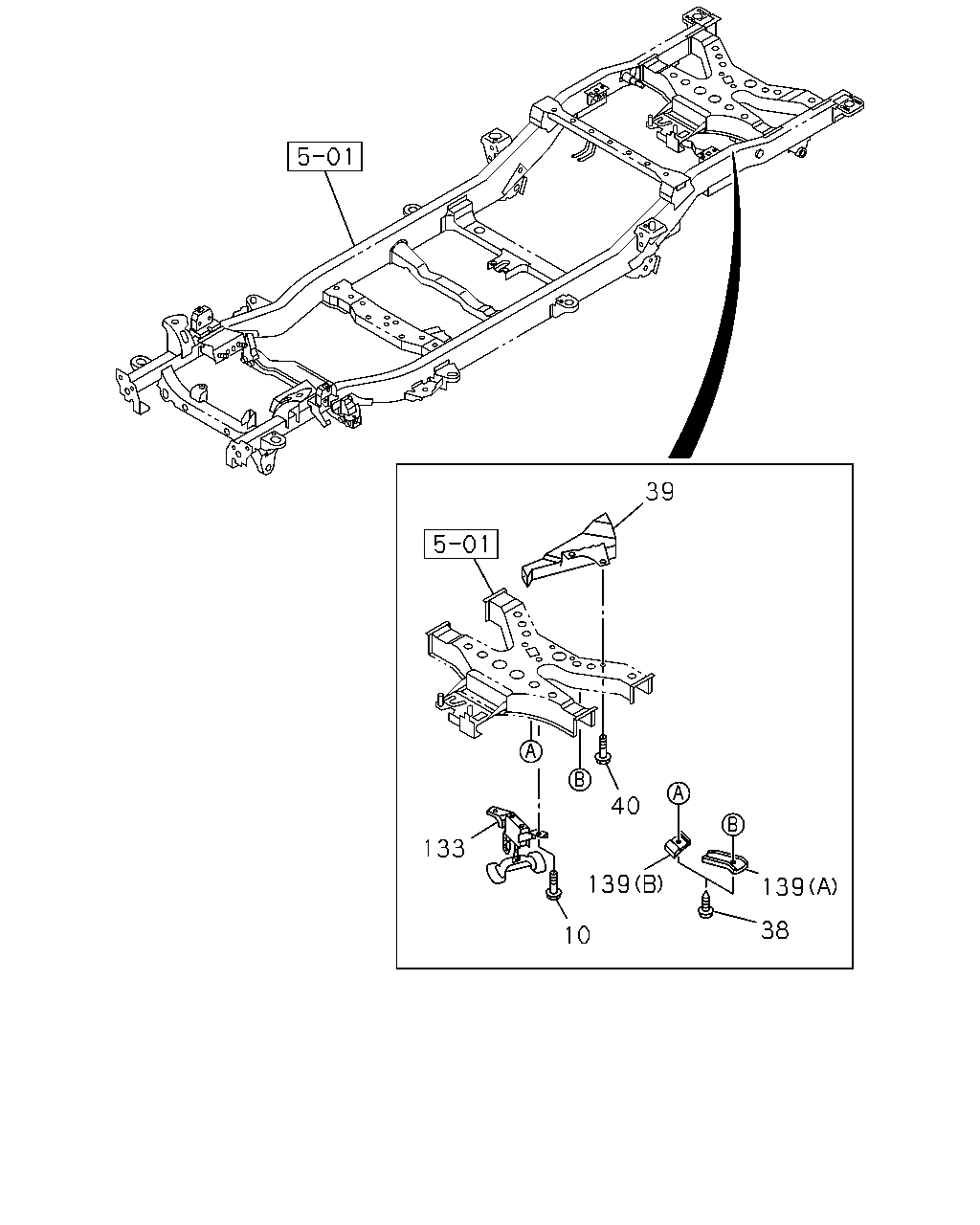

5-30 — SPARE TIRE CARRIER AND COVER
(#73818) — 20 parça
Tümü
A - UCB5VF
B - UCS5VF
39
40
133
139
139
38
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
BOLT; TIRE HANGER
M8X20 FLANGE THA
0-28650-820-0
02
1
0411-0508
●
●
10
BOLT; TIRE HANGER
M8X16 FLANGE THA
0-28050-816-0
02
1
0509-
●
●
38
BOLT; STOPPER
DISC WHEEL 16X7-38 ALUMI<PX0> M6X20 TAPPING THA
8-98048-999-0
02
1
0809-0901
●
●
38
BOLT; STOPPER
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0> M6X20 TAPPING THA
8-98048-999-0
02
1
0902-0908
●
●
38
BOLT; STOPPER
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> M6X20 TAPPING THA
8-98048-999-0
02
1
0909-1012
●
●
38
BOLT; STOPPER
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> M6X20 TAPPING THA
8-98048-999-0
02
1
1101-
●
●
39
GUIDE; SPARE TIRE HANGER
THA
8-97943-680-0
01
1
0411-0606
●
●
39
GUIDE; SPARE TIRE HANGER
THA
8-97945-305-0
01
1
0607-
●
●
40
BOLT; GUIDE TO FRAME
M8X20 FLANGE THA
0-28650-820-0
02
1
0411-0508
●
●
40
BOLT; GUIDE TO FRAME
M8X16 FLANGE THA
0-28050-816-0
02
1
0509-
●
●
133
HANGER; SPARE TIRE
THA
8-97215-333-1
01
1
0411-0507
●
●
133
HANGER; SPARE TIRE
THA
8-97944-941-0
01
1
0508-
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38 ALUMI<PX0> (A) THA
8-98118-491-1
01
1
0809-0901
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0> (A) THA
8-98118-491-1
01
1
0902-0908
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (A) THA
8-98118-491-1
01
1
0909-1012
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (A) THA
8-98118-491-1
01
1
1101-
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA
8-98118-492-1
01
1
0809-0901
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA
8-98118-492-1
01
1
0902-0908
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA
8-98118-492-1
01
1
0909-1012
●
●
139
STOPPER; SPARE TIRE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA
8-98118-492-1
01
1
1101-
●
●
