Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
5 - Frame, Cab Mounting
▶

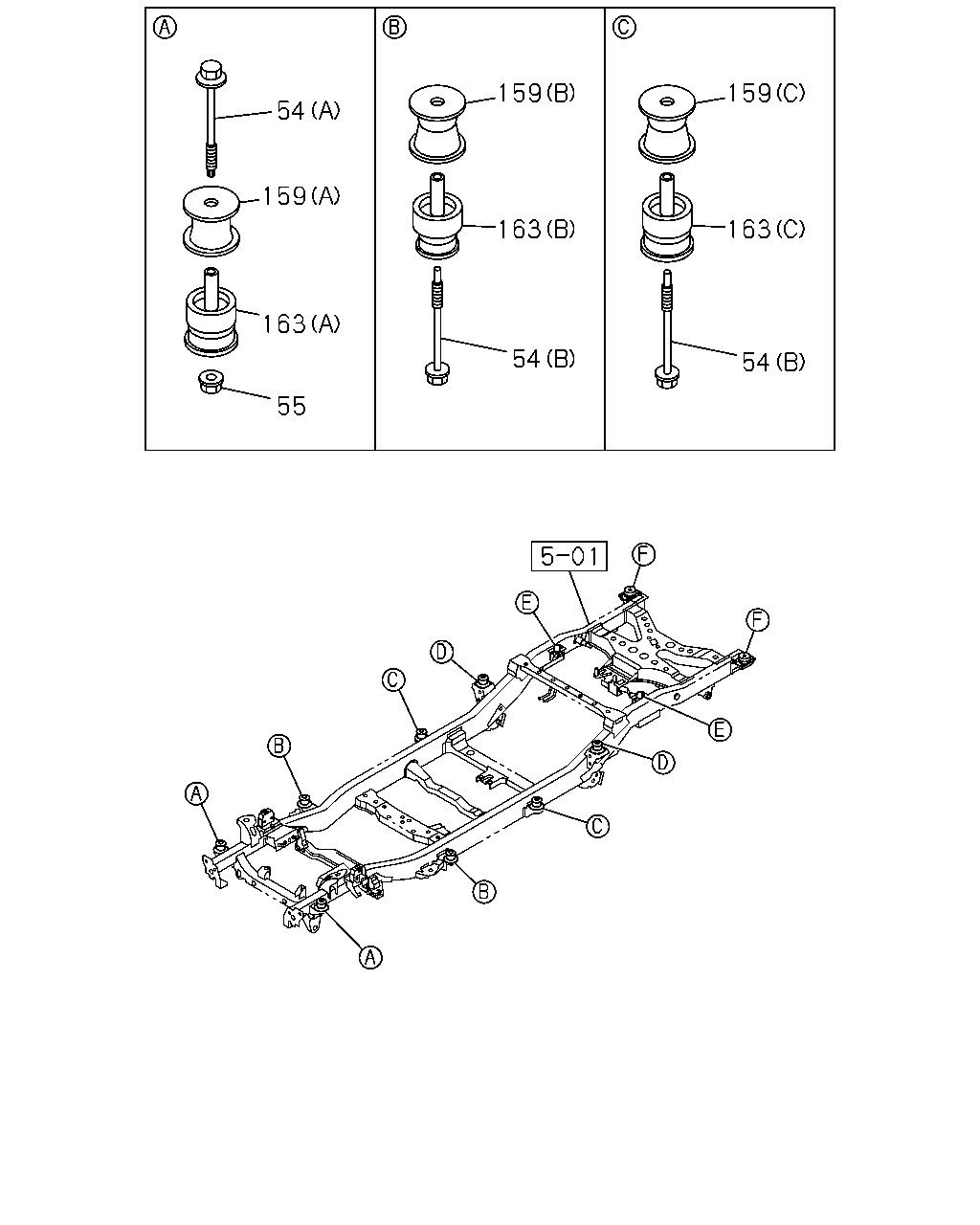

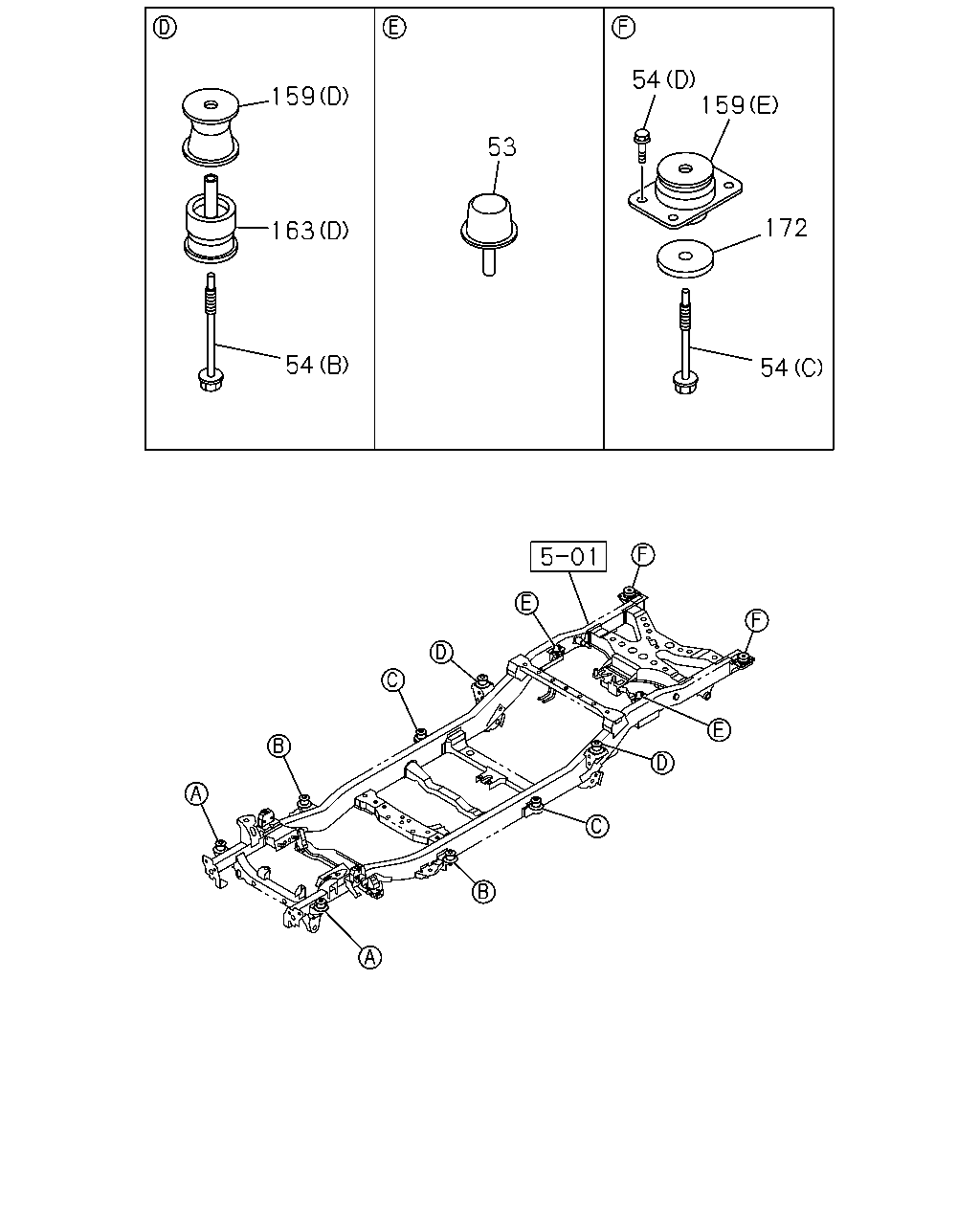

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#73816) — 40 parça
Tümü
A - UCB5VF
B - UCS5VF
◀
[510A] NO.1 (20 parça)
[510A] NO.2 (20 parça)
▶
54
159
163
55
159
163
54
159
163
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
54
BOLT; RUBBER
(D) M10X20 FLANGE THA
0-28451-020-0
08
1
0411-
●
●
54
BOLT; RUBBER
(C) THA
8-97363-591-0
02
1
0411-
●
●
54
BOLT; RUBBER
(A) M10X117.3 FLANGE THA
8-97365-219-0
02
1
0411-
●
●
54
BOLT; RUBBER
(B) THA
8-97365-220-0
06
1
0411-1009
●
●
54
BOLT; RUBBER
(B) THA
8-98178-536-0
06
1
1010-
●
●
55
NUT; RUBBER
M10 FLANGE THA
0-91250-210-0
02
1
0411-0603
●
●
55
NUT; RUBBER
M10 FLANGE THA
0-91280-210-0
02
1
0604-
●
●
159
RUBBER; CUSHION,CAB MTG
(E) THA
8-97363-552-1
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(A) THA
8-97367-285-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(C) THA
8-97367-286-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(D) THA
8-97367-287-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(B) THA
8-97378-726-2
02
1
0411-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA
8-97367-288-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA
8-98051-326-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA
8-97367-290-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA
8-98051-328-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(D) THA
8-97367-291-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(D) THA
8-98051-329-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA
8-97378-727-2
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA
8-98051-330-0
02
1
0610-
●
●
54
172
54
53
159
163
54
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
RUBBER; STOPPER
THA
8-97944-890-0
02
1
0411-
●
●
54
BOLT; RUBBER
(D) M10X20 FLANGE THA
0-28451-020-0
08
1
0411-
●
●
54
BOLT; RUBBER
(C) THA
8-97363-591-0
02
1
0411-
●
●
54
BOLT; RUBBER
(A) M10X117.3 FLANGE THA
8-97365-219-0
02
1
0411-
●
●
54
BOLT; RUBBER
(B) THA
8-97365-220-0
06
1
0411-1009
●
●
54
BOLT; RUBBER
(B) THA
8-98178-536-0
06
1
1010-
●
●
159
RUBBER; CUSHION,CAB MTG
(E) THA
8-97363-552-1
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(A) THA
8-97367-285-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(C) THA
8-97367-286-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(D) THA
8-97367-287-0
02
1
0411-
●
●
159
RUBBER; CUSHION,CAB MTG
(B) THA
8-97378-726-2
02
1
0411-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA
8-97367-288-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA
8-98051-326-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA
8-97367-290-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA
8-98051-328-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(D) THA
8-97367-291-0
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(D) THA
8-98051-329-0
02
1
0610-
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA
8-97378-727-2
02
1
0411-0609
●
●
163
RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA
8-98051-330-0
02
1
0610-
●
●
172
WASHER; BODY MTG RUBBER
ID=11 OD=75 T=6.0 THA
8-94338-455-0
02
1
0411-
●
●
