◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#73814) — 33 parça

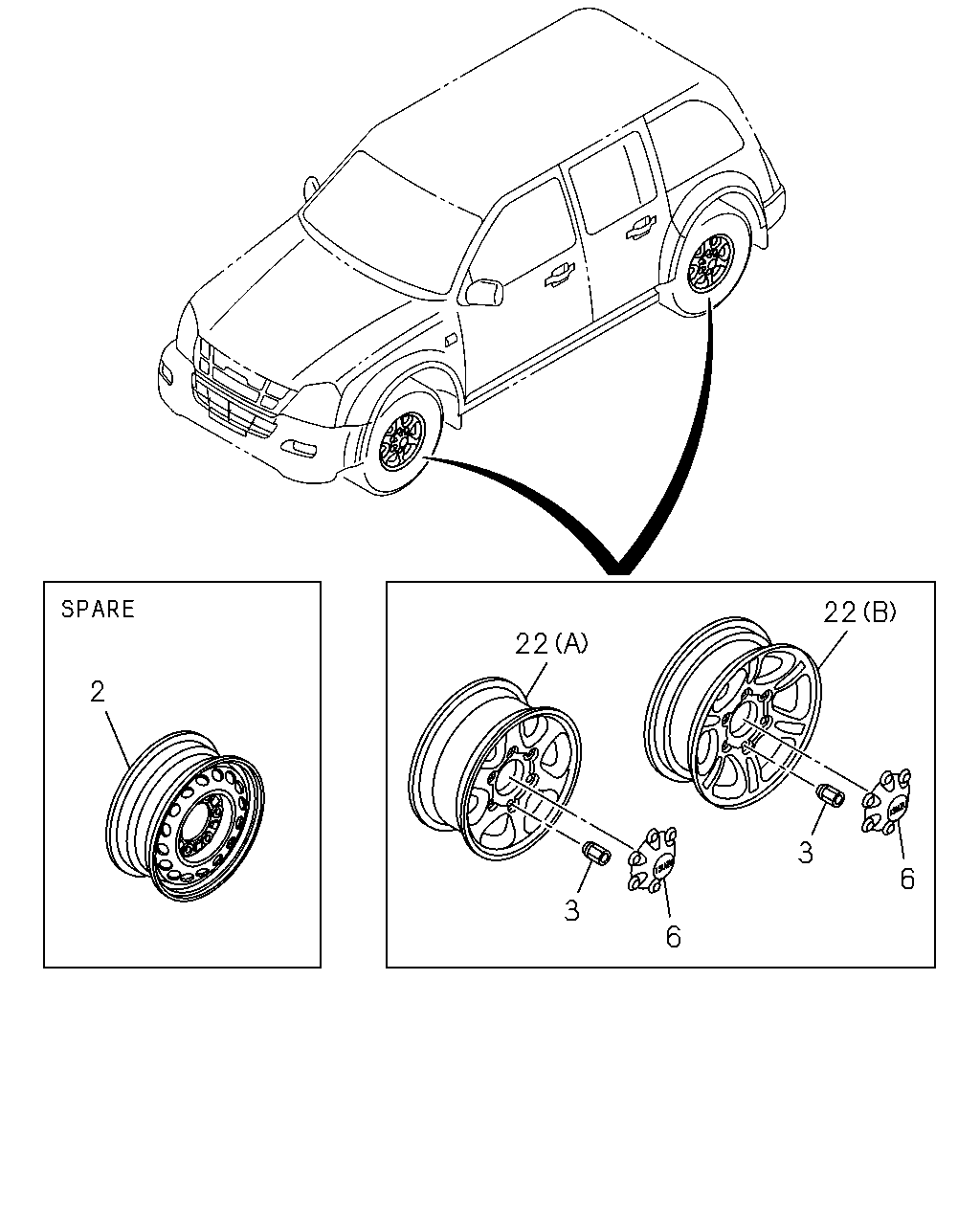

çizim 185426
22 22 2 3 6 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL 16X7-38 ALUMI<PX0> SPARE OFFSET 38 THA 		8-97324-669-1 01 1 0809-0901 ● ●
2 WHEEL; DISC
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0> SPARE OFFSET 38 THA 		8-97324-669-1 01 1 0902-0908 ● ●
2 WHEEL; DISC
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> SPARE OFFSET 38 THA 		8-97324-669-1 01 1 0909-1012 ● ●
2 WHEEL; DISC
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> SPARE OFFSET 38 THA 		8-97324-669-1 01 1 1101-1212 ● ●
2 WHEEL; DISC
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> SPARE OFFSET 38 THA 		8-98218-141-0 01 1 1301- ● ●
3 NUT; WHEEL,FRT AXLE
M12 H=25.5 THA 		8-97365-932-0 24 1 0411-0703 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 7X16 ALUMI<PF4> M12 H=25.5 THA 		8-97365-932-0 24 1 0704-0808 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38 ALUMI<PX0> M12 H=25.5 THA 		8-97365-932-0 24 1 0809-0901 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0> M12 H=25.5 THA 		8-97365-932-0 24 1 0902-0908 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> M12 H=23 THA 		8-98101-983-0 24 1 0909-1012 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC>,DISC WHEEL 16X7-38 ALUMI<PX0>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> M12 H=23 THA 		8-98101-983-0 24 1 1101- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> ISUZU MARK THA 		8-98116-111-0 04 1 1101- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38<CVJ> ISUZU MARK THA 		8-97945-399-0 04 1 0902-0908 ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38<CVJ>,DISC WHEEL 16X7-38 ALUMI CHROME<PX2> ISUZU MARK THA 		8-97945-399-0 04 1 0909- ● ●
6 CAP; WHEEL
ISUZU MARK THA 		8-97374-697-0 04 1 0411-0703 ● ●
6 CAP; WHEEL
DISC WHEEL 7X16 ALUMI<PF4> ISUZU MARK THA 		8-97374-697-0 04 1 0704-0808 ● ●
6 CAP; WHEEL
DISC WHEEL 16X7-38 ALUMI<PX0> ISUZU MARK THA 		8-97374-697-0 04 1 0809- ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> (B) THA 		8-98177-952-0 04 1 1101-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI DARK GRAY<CWC> (B) THA 		8-98218-157-0 04 1 1301- ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA 		8-98149-136-0 04 1 0909-1006 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA 		8-98172-697-0 04 1 1007-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI CHROME<PX2> (B) THA 		8-98218-145-0 04 1 1301- ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38<CVJ> (B) THA 		8-98134-932-0 04 1 0902-1006 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38<CVJ> (B) THA 		8-98172-698-0 04 1 1007-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38<CVJ> (B) THA 		8-98218-156-0 04 1 1301- ● ●
22 WHEEL; DISC,AL
(A) THA 		8-97363-556-1 05 1 0411-0508 ● ●
22 WHEEL; DISC,AL
(A) THA 		8-98018-194-0 05 1 0509-0606 ● ●
22 WHEEL; DISC,AL
(A) THA 		8-98009-207-0 05 1 0607-0703 ● ●
22 WHEEL; DISC,AL
FRT&RR 245/70R16 BRIDGESTONE DUELER H/T689<QCQ> DISC WHEEL 7X16 ALUMI<PF4> (A) THA 		8-98009-207-0 05 1 0704-0705 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 7X16 ALUMI<PF4> (A) THA 		8-98009-207-0 05 1 0706-0808 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA 		8-98101-921-0 04 1 0809-1006 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA 		8-98172-696-0 04 1 1007-1212 ● ●
22 WHEEL; DISC,AL
DISC WHEEL 16X7-38 ALUMI<PX0> (B) THA 		8-98218-144-0 04 1 1301- ● ●
