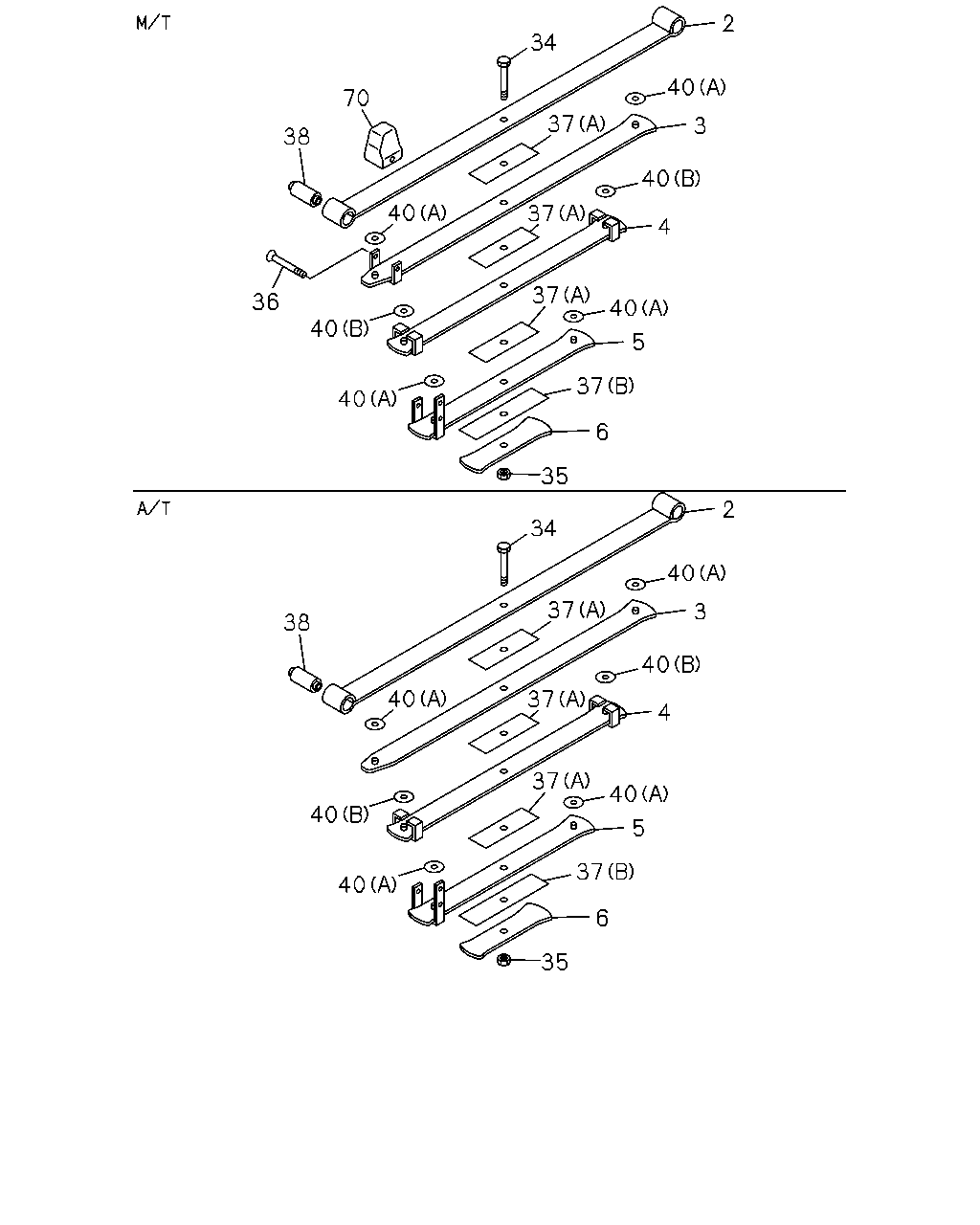

4-65 — REAR LEAF SPRING (#73813) — 22 parça

2 34 40 70 37 3 38 40 40 37 4 37 36 40 40 5 37 40 6 35 2 34 40 37 3 38 40 40 37 4 37 40 40 5 37 40 6 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1	8-97372-788-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97945-322-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97363-519-1	8-97372-789-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97374-313-1	8-97374-308-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97945-331-0, E = 8-97946-827-0	8-97945-323-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97945-332-1, F = 8-97946-828-0	8-97945-324-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1	8-97372-790-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97945-325-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1	8-97372-791-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97945-326-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1	8-97372-792-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN THA ASM PART: C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97945-327-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-94370-682-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8, THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97945-821-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: B = 8-97374-313-1, D = 8-97945-332-1, F = 8-97946-828-0	8-94468-262-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A), THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-94468-305-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR (B), THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97379-117-0	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97332-642-0	01	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97360-245-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: A = 8-97363-519-1, B = 8-97374-313-1, C = 8-97945-331-0, D = 8-97945-332-1, E = 8-97946-827-0, F = 8-97946-828-0	8-97360-246-0	02	1	-
70	RUBBER; LEAF SPR,RR THA ASM PART: B = 8-97374-313-1	8-97374-306-0	01	1	-
70	RUBBER; LEAF SPR,RR THA ASM PART: D = 8-97945-332-1, F = 8-97946-828-0	8-97945-329-0	01	1	-
