Isuzu WW
▶
SUV
▶
UCR
▶
51027 - UCR/UCS(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

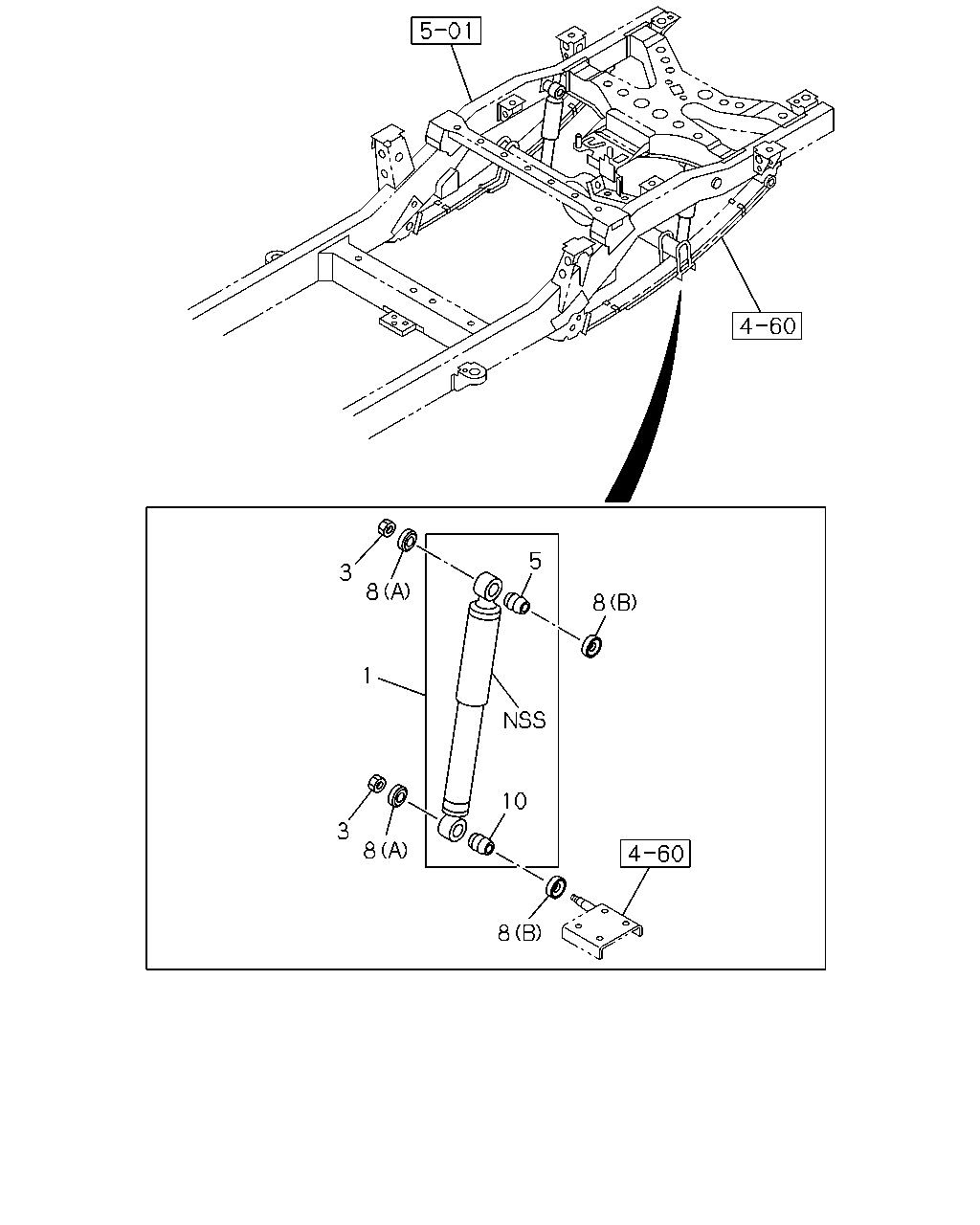

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#73812) — 12 parça
Tümü
A - UCB5VF
B - UCS5VF
5
3
8
8
1
10
3
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ABSORBER ASM; SHOCK,RR
THA
8-97363-521-1
02
1
0411-0508
●
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97945-190-0
02
1
0509-0705
●
●
1
ABSORBER ASM; SHOCK,RR
THA
8-98056-043-0
02
1
0706-0706
●
●
1
ABSORBER ASM; SHOCK,RR
THA
8-97946-677-0
02
1
0707-0910
●
●
1
ABSORBER ASM; SHOCK,RR
THA
8-98152-229-0
02
1
0911-
●
●
3
NUT; S/ABS
M12 FLANGE THA
8-97256-670-0
04
1
0411-
●
●
5
BUSHING; RUBBER,S/ABS,UPR
THA
8-97302-810-0
02
1
0411-
●
●
8
WASHER; S/ABS
(A) ID=16.5 THA
8-94445-688-0
04
1
0411-0606
●
●
8
WASHER; S/ABS
(A) ID=16.5 THA
8-98005-970-0
04
1
0607-
●
●
8
WASHER; S/ABS
(B) ID=12.5 IMA
9-51679-022-0
04
1
0411-0606
●
●
8
WASHER; S/ABS
(B) ID=12.5 THA
8-98005-969-0
04
1
0607-
●
●
10
BUSHING; RUBBER,S/ABS
THA
8-97302-810-0
02
1
0411-
●
●
