◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#73811) — 30 parça

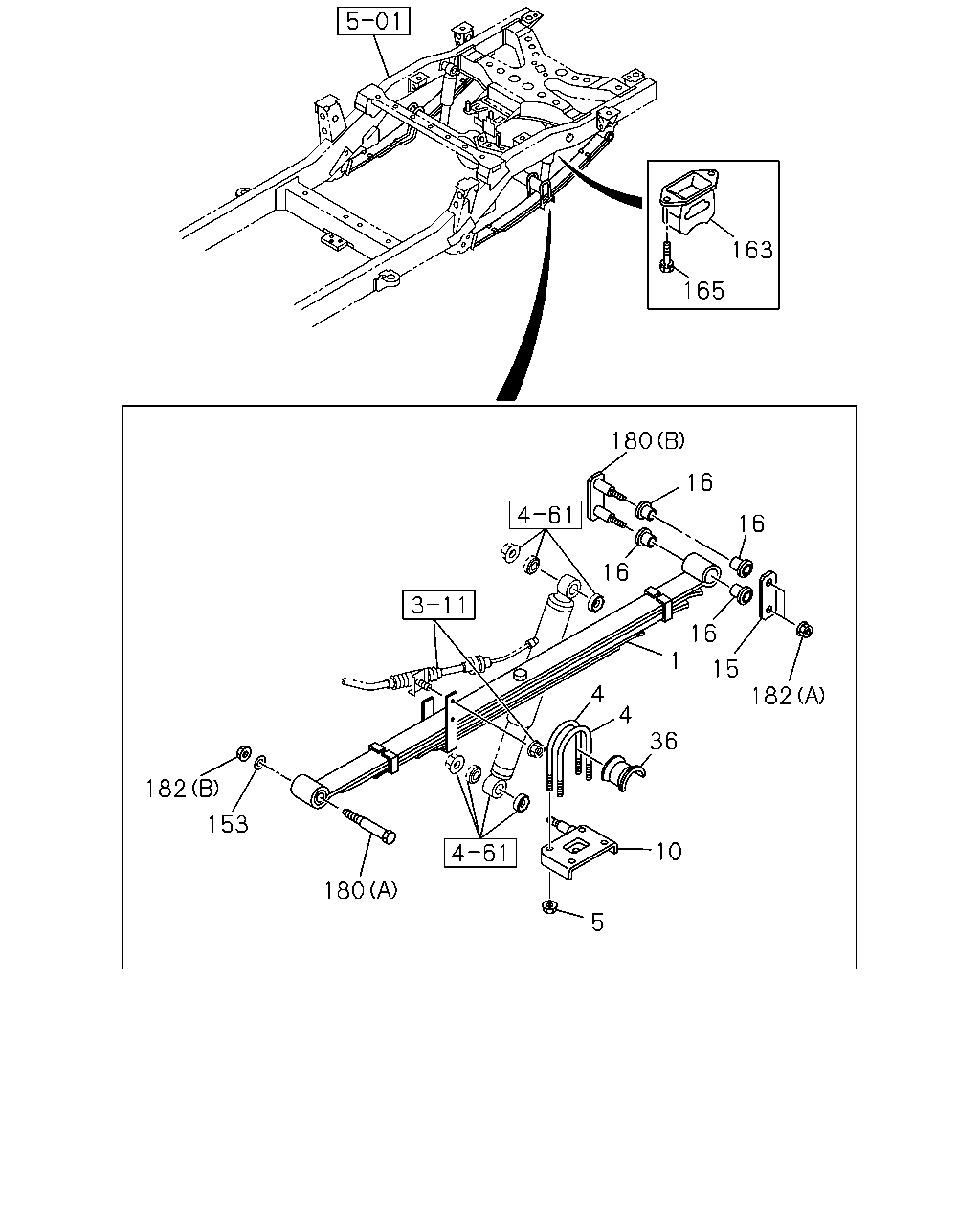

çizim 124987
163 165 180 16 16 16 16 1 15 4 182 4 36 182 153 10 180 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN<RMD> THA 		8-97945-331-0 02 1 0610-0708 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN<RMD> THA 		8-97945-331-0 02 1 0710-0710 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN<RMD> THA 		8-97946-827-0 02 1 0710-0809 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97946-827-0 02 1 0810- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 4 SPEED-JATCO<RMK> THA 		8-97363-519-1 02 1 0411-0606 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-332-1 02 1 0607-0609 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-332-1 02 1 0610-0708 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-332-1 02 1 0610-0708 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-332-1 02 1 0709-0709 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97945-332-1 02 1 0710-0710 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97946-828-0 02 1 0710- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5G<RSP> THA 		8-97374-313-1 02 1 0411-0606 ● ●
4 U-BOLT; RR SPR
THA 		8-97248-620-1 04 1 0411- ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 0411- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-97365-393-0 01 1 0411- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-97365-391-0 01 1 0411- ● ●
15 SHACKLE; RR SPR
THA 		8-97245-901-1 02 1 0411-0606 ● ●
15 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 0607- ● ●
16 BUSHING; SHACKLE,RR SPR
THA 		8-97357-492-0 08 1 0411- ● ●
36 SEAT; HELPER RUBBER,RR SPR
THA 		8-97221-355-0 02 1 0411-0606 ● ●
36 SEAT; HELPER RUBBER,RR SPR
THA 		8-98005-878-0 02 1 0607- ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-94476-635-0 02 1 0411-0606 ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 0607- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97366-990-0 02 1 0411- ● ●
165 BOLT; HELPER RUBBER
M10X16 FLANGE THA 		0-28051-016-0 04 1 0411- ● ●
180 PIN; RR SPR
(A) M14X106 THA 		8-97245-647-0 02 1 0411- ● ●
180 PIN; RR SPR
(B) THA 		8-97245-650-1 02 1 0411-0606 ● ●
180 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 0607- ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 0411- ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 0411- ● ●
