◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#73810) — 89 parça

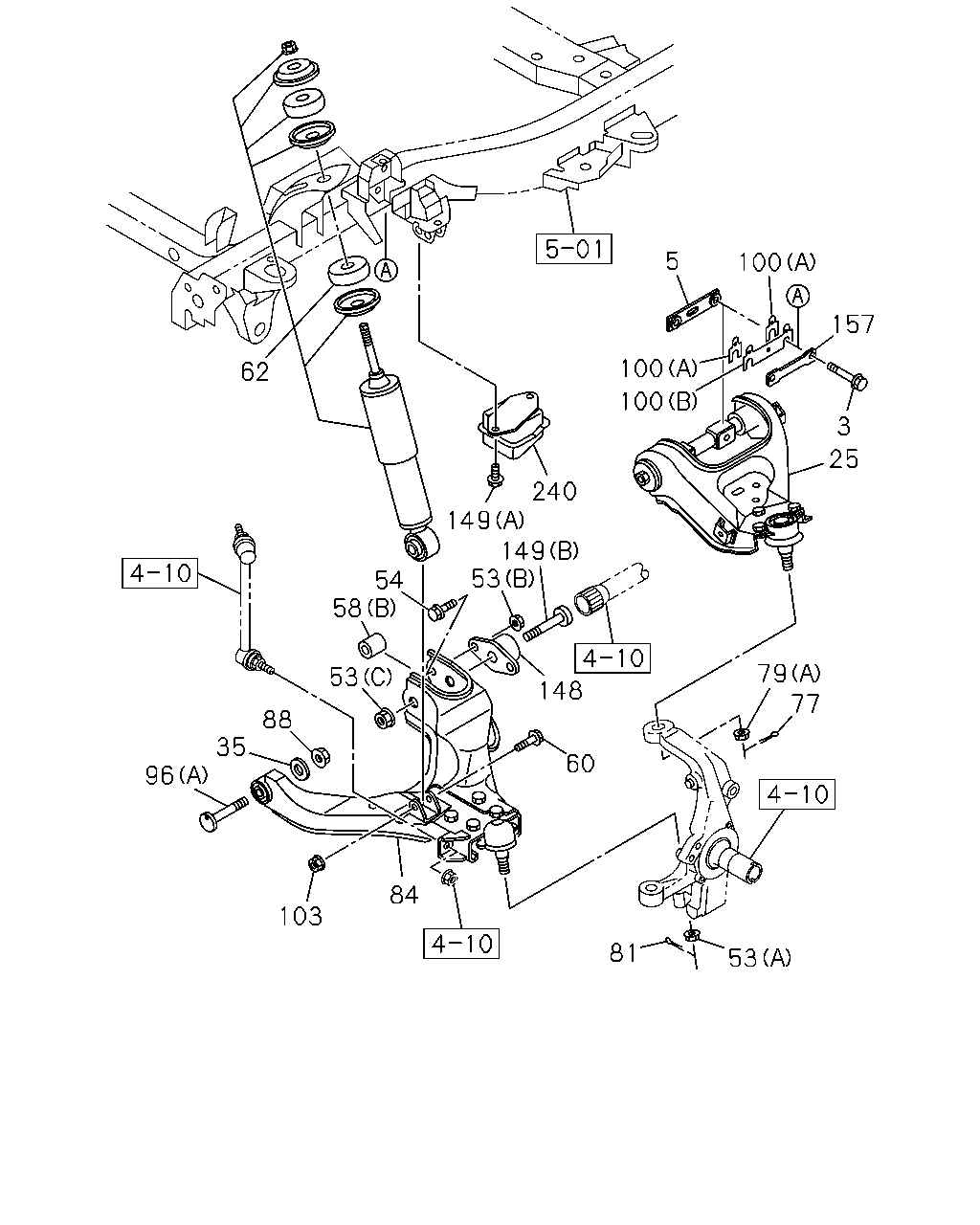

çizim 124111
62 96 35 88 53 58 54 149 240 149 53 148 60 84 103 81 53 77 79 25 3 157 100 100 100 5
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; UPR LINK TO FRAME
THA 		8-97245-628-0 04 1 0411- ● ●
5 NUT; UPR LINK TO FRAME
THA 		8-97245-629-0 02 1 0411- ● ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0411-0606 ● ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ● ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0411-0606 ● ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ● ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-721-0 02 1 0411- ● ●
53 NUT; LWR LINK
(A) M18 SLOTTED THA 		0-91116-518-0 02 1 0411- ● ●
53 NUT; LWR LINK
(B) M12 FLANGE THA 		0-91180-212-0 12 1 0411- ● ●
53 NUT; LWR LINK
(C) M18 FLANGE THA 		8-97245-634-0 02 1 0411- ● ●
54 PIN; FULCRUM,LWR LINK
THA 		8-97245-660-0 04 1 0411- ● ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-176-0 02 1 0411- ● ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-177-0 02 1 0411- ● ●
60 BOLT; S/ABS TO LWR LINK
M12X60 FLANGE THA 		0-29261-260-0 02 1 0411- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97363-520-1 02 1 0411-0508 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97945-201-0 02 1 0509-0705 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-025-0 02 1 0706-0706 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-657-0 02 1 0707-0910 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-217-0 02 1 0911- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0411-0606 ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0411- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE THA 		8-97245-637-0 06 1 0411- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 THA 		9-08113-028-0 02 1 0411-0606 ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 0607- ● ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0411-0606 ● ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ● ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0411-0606 ● ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ● ●
88 NUT; LWR LINK
M16 FLANGE THA 		8-97245-631-0 02 1 0411- ● ●
96 BOLT; LWR LINK
(A) M16X95.4 THA 		8-97214-719-0 02 1 0411- ● ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE THA 		8-97245-639-0 08 1 0411- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 THA 		8-94227-053-1 AR 1 0411-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=0.40 THA 		8-98005-914-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 THA 		8-94227-054-2 AR 1 0411-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=1.60 THA 		8-98005-915-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 THA 		8-94241-885-3 AR 1 0411-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(A) T=3.20 THA 		8-98005-916-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 THA 		8-94381-376-1 AR 1 0411-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=3.20 THA 		8-98005-917-0 AR 1 0607- ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 THA 		8-94381-377-1 AR 1 0411-0606 ● ●
100 SHIM; UPR LINK TO FRAME
(B) T=1.60 THA 		8-98005-918-0 AR 1 0607- ● ●
103 NUT; S/ABS TO LWR LINK
M12 FLANGE THA 		0-91180-212-0 02 1 0411- ● ●
148 ARM; LWR LINK
THA 		8-97235-902-0 02 1 0411- ● ●
149 BOLT; ARM TO LWR CONT ARM
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0411- ● ●
149 BOLT; ARM TO LWR CONT ARM
(B) THA 		8-97235-908-0 02 1 0411- ● ●
157 PLATE; UPR LINK TO FRAME
THA 		8-94382-920-1 02 1 0411-0606 ● ●
157 PLATE; UPR LINK TO FRAME
THA 		8-98005-876-0 02 1 0607- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-967-0 01 1 0411- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97234-966-0 01 1 0411- ● ●

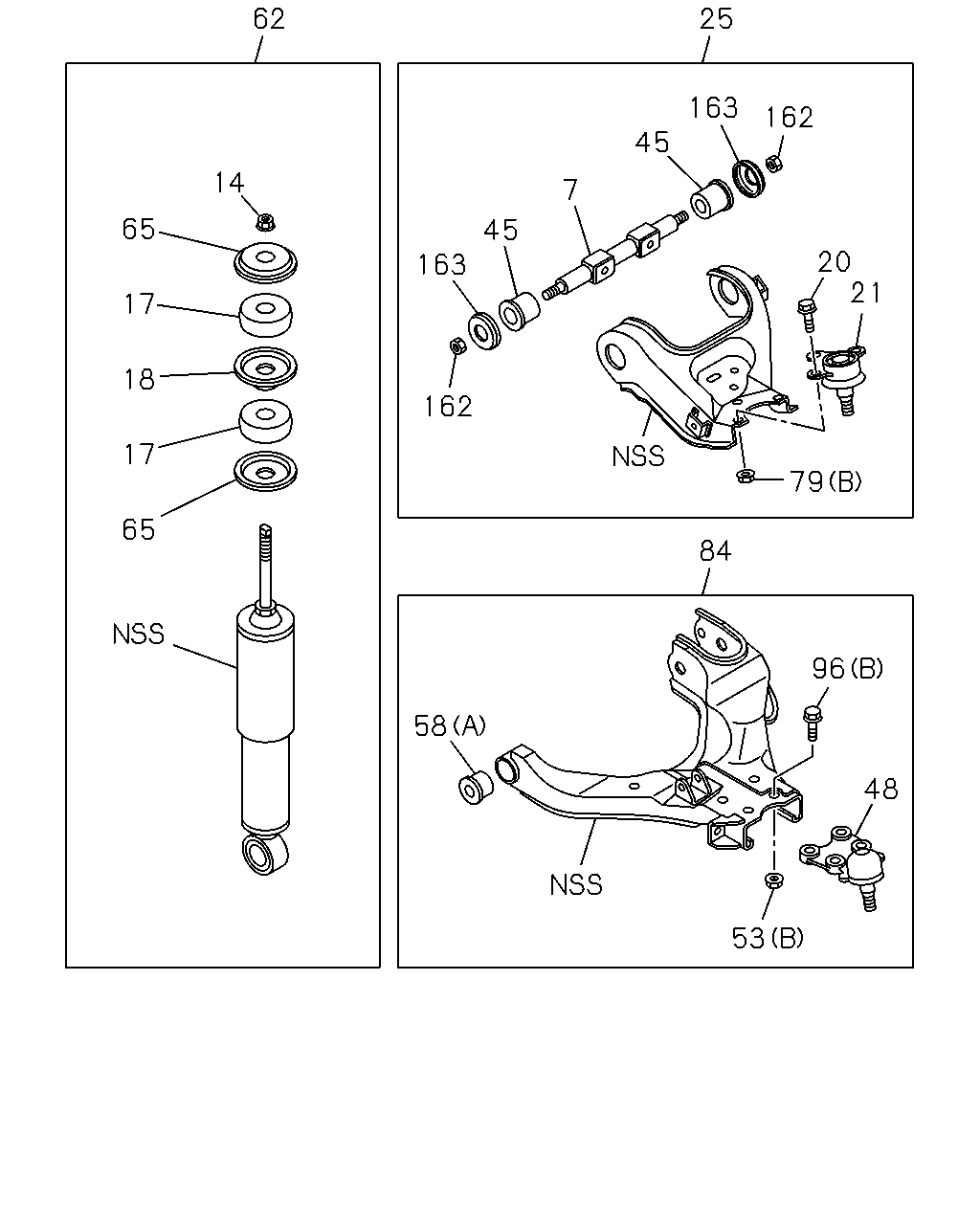

çizim 124256
62 25 163 162 45 14 7 65 45 20 21 163 17 18 162 17 79 65 84 96 58 48 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 PIN; FULCRUM,UPR LINK
THA 		8-97245-690-0 02 1 0411-0606 ● ●
7 PIN; FULCRUM,UPR LINK
THA 		8-98005-825-0 02 1 0607- ● ●
14 NUT; S/ABS,UPR
M10 FLANGE THA 		0-91180-110-0 02 1 0411- ● ●
17 BUSHING; RUBBER,S/ABS
THA 		8-97120-138-0 04 1 0411- ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97120-137-0 02 1 0411-0508 ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-98005-974-0 02 1 0509- ● ●
20 BOLT; UPR LINK END TO UPR LINK
THA 		8-97245-636-0 06 1 0411- ● ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-97365-019-0 02 1 0411-0606 ● ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-826-0 02 1 0607- ● ●
25 ARM; UPR CONT
THA 		8-97365-013-0 01 1 0411-0606 ● ●
25 ARM; UPR CONT
THA 		8-98005-839-0 01 1 0607- ● ●
25 ARM; UPR CONT
THA 		8-97365-012-0 01 1 0411-0606 ● ●
25 ARM; UPR CONT
THA 		8-98005-838-0 01 1 0607- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-175-0 04 1 0411- ● ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-97365-021-0 02 1 0411-0606 ● ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 0607- ● ●
53 NUT; LWR LINK
(A) M18 SLOTTED THA 		0-91116-518-0 02 1 0411- ● ●
53 NUT; LWR LINK
(B) M12 FLANGE THA 		0-91180-212-0 12 1 0411- ● ●
53 NUT; LWR LINK
(C) M18 FLANGE THA 		8-97245-634-0 02 1 0411- ● ●
58 BUSHING; LWR LINK
(A) THA 		8-97364-176-0 02 1 0411- ● ●
58 BUSHING; LWR LINK
(B) THA 		8-97364-177-0 02 1 0411- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97363-520-1 02 1 0411-0508 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97945-201-0 02 1 0509-0705 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98056-025-0 02 1 0706-0706 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97946-657-0 02 1 0707-0910 ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98152-217-0 02 1 0911- ● ●
65 WASHER; S/ABS
THA 		8-97120-136-1 04 1 0411-0508 ● ●
65 WASHER; S/ABS
THA 		8-98005-973-0 04 1 0509- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 SLOTTED THA 		8-97245-624-0 02 1 0411- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M10 FLANGE THA 		8-97245-637-0 06 1 0411- ● ●
84 ARM; LWR CONT
THA 		8-97365-017-0 01 1 0411-0606 ● ●
84 ARM; LWR CONT
THA 		8-98005-835-0 01 1 0607- ● ●
84 ARM; LWR CONT
THA 		8-97365-016-0 01 1 0411-0606 ● ●
84 ARM; LWR CONT
THA 		8-98005-834-0 01 1 0607- ● ●
96 BOLT; LWR LINK
(A) M16X95.4 THA 		8-97214-719-0 02 1 0411- ● ●
96 BOLT; LWR LINK
(B) M12X37 FLANGE THA 		8-97245-639-0 08 1 0411- ● ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE THA 		8-97245-635-0 04 1 0411- ● ●
163 PLATE; FULCRUM PIN,UPR LINK
THA 		8-94407-707-0 04 1 0411-0606 ● ●
163 PLATE; FULCRUM PIN,UPR LINK
THA 		8-98005-932-0 04 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
