◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#73808) — 29 parça

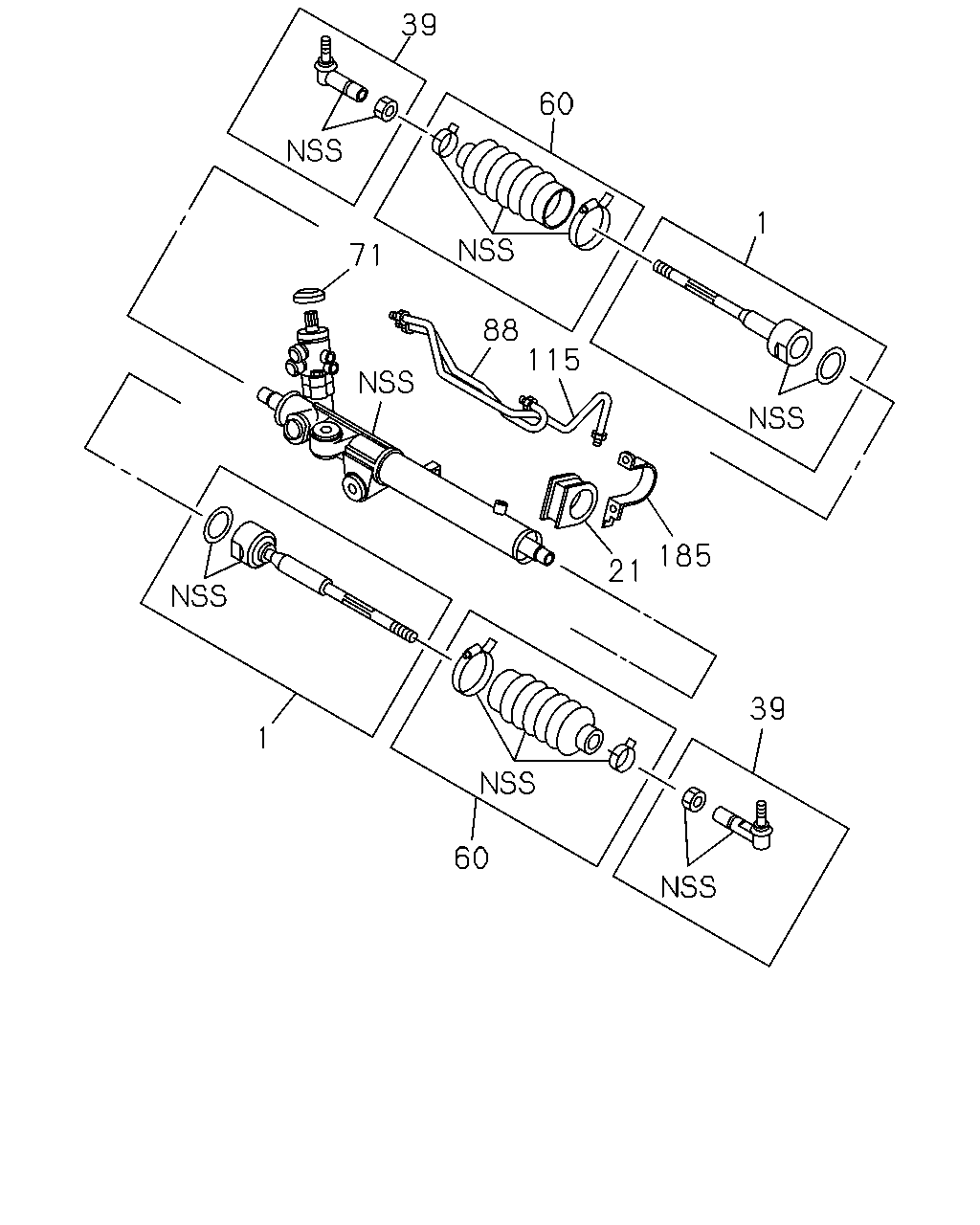

çizim 124048
39 60 1 71 88 115 185 21 39 1 60
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-97943-521-1 		8-97304-853-0 02 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-98056-550-0 01 1 -
21 RUBBER; MTG,PINION SIDE
THA ASM PART: A = 8-97943-521-1 		8-97304-923-0 01 1 -
39 ROD END ASM; OUTER
THA ASM PART: A = 8-97943-521-1 		8-97304-855-0 02 1 -
39 ROD END ASM; OUTER
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-98056-551-0 01 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97943-521-1 		8-97304-854-0 02 1 -0505
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97943-521-1 		8-97944-515-0 02 1 0506-
60 BOOT KIT; STRG HSG
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-423-0 02 1 -
71 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97943-521-1 		8-97304-904-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: A = 8-97943-521-1 		8-97304-916-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-428-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: A = 8-97943-521-1 		8-97304-918-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-427-0 01 1 -
185 BRACKET; P/S
THA ASM PART: A = 8-97943-521-1 		8-97304-891-0 01 1 -
185 BRACKET; P/S
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-425-0 01 1 -

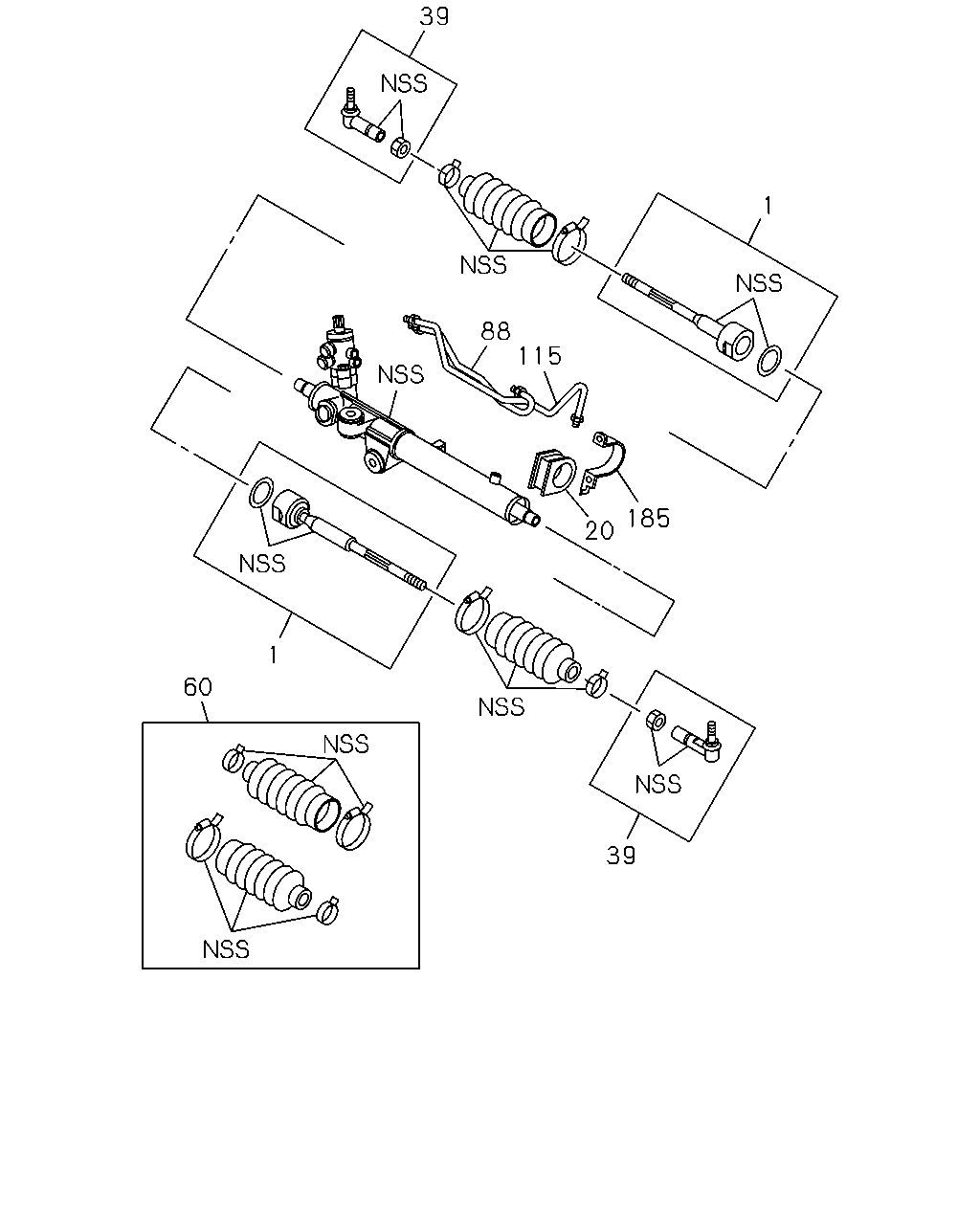

çizim 185425
39 1 88 115 185 20 1 60 39
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-97943-521-1 		8-97304-853-0 02 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-98056-550-0 01 1 -
20 RUBBER; MTG
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-426-0 01 1 -
39 ROD END ASM; OUTER
THA ASM PART: A = 8-97943-521-1 		8-97304-855-0 02 1 -
39 ROD END ASM; OUTER
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-98056-551-0 01 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97943-521-1 		8-97304-854-0 02 1 -0505
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97943-521-1 		8-97944-515-0 02 1 0506-
60 BOOT KIT; STRG HSG
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-423-0 02 1 -
88 PIPE; HSG TO VLV
THA ASM PART: A = 8-97943-521-1 		8-97304-916-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-428-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: A = 8-97943-521-1 		8-97304-918-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-427-0 01 1 -
185 BRACKET; P/S
THA ASM PART: A = 8-97943-521-1 		8-97304-891-0 01 1 -
185 BRACKET; P/S
THA ASM PART: B = 8-97944-518-1, C = 8-98101-779-0 		8-97945-425-0 01 1 -
